Native USB-C DisplayPort Alt Mode 4K60 Extender over Fiber — 10G SFP+, up to 10km
Extend a USB-C Source Without Dongling to HDMI - Full 4:4:4, HDR Pass-Through, EDID from Receiver

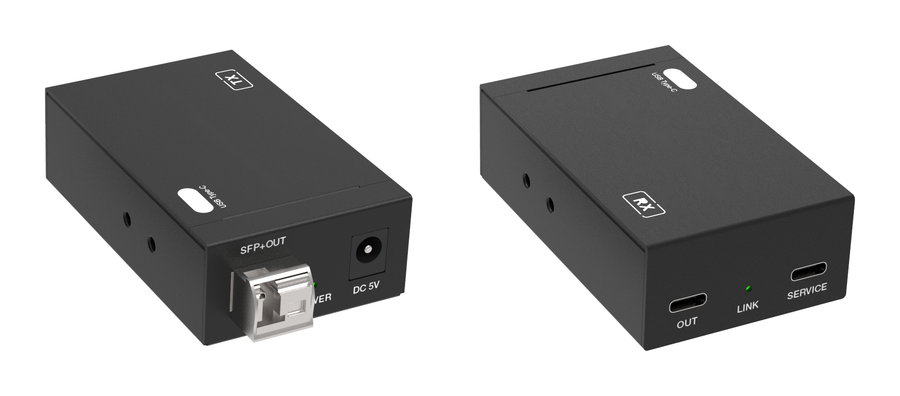

Carries a native USB-C 4K60 display signal up to 10km over single-mode fiber, with no dongle at the source and no 100m copper ceiling. The transmitter and receiver are a matched pair of compact black metal endpoints — 3.19" × 1.93" × 0.98" each, powered by their own 5V/1A supplies at 2.7W and 2.5W — that take a USB-C source running DisplayPort Alt Mode straight onto 10G SFP+ fiber and back to native USB-C at the display. It is the right choice for multi-building campuses, transport hubs, stadiums, control rooms and broadcast installs where reach across a fiber backbone and full signal integrity matter more than carrying keyboard-and-mouse peripherals.
The link holds 4K at 60Hz in full 4:4:4 color with HDR10, HDR10+, Dolby Vision and HLG pass-through, and lossless audio up to Dolby Atmos and DTS:X — the same at 300m or at 10km — while EDID passes back from the receiver so the source always reads the remote display. SFP+ modularity is the single strongest differentiator: the same TX/RX pair serves a 10km single-mode run or a 300m OM4 multi-mode run by swapping the optic, so the fiber plant you already own decides the module, not the extender. SFP+ modules and fiber are selected to match the run and sold separately.
- Compliant with USB Type-C DisplayPort Alternate Mode
- Compliant with HDCP 2.2 / 2.3 and 1.x
- Supports HBR3, HBR2, HBR and RBR (8.1 / 5.4 / 2.7 / 1.62 Gbps)
- Video resolution up to 4K2K@50/60Hz 4:4:4
- Supports any VESA-standard resolution transmission
- HDR10, HDR10+, Dolby Vision and HLG pass-through
- Supports LPCM 7.1CH, Dolby 5.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Transmission distance up to 10km over single-mode fiber; up to 300m over OM4 multi-mode fiber via the SFP modules
- EDID transmission from the receiver back to the transmitter
- Compact metal enclosure for easy and flexible installation
| Technical | |
| HDCP Compliance | HDCP 2.3 / 2.2 / 1.x |
| USB-C Compliance | USB Type-C 1.1, DisplayPort Alt Mode |
| Video Bandwidth | 32.4 Gbps (8.1 / 5.4 / 2.7 / 1.62 Gbps) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | LPCM, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| Video Resolution | Up to 4096×2160p60/50, 3840×2160p60/50/30/25, 1920×1200p60RB, 1920×1080p60/50, 1280×720p60/50 and any VESA-standard resolution |
| ESD Protection | IEC 61000-4-2: ±8kV (air discharge), ±4kV (contact discharge) |
| Connections | |
| Transmitter — Input | 1× IN [USB-C, 24-pin female]; 1× SERVICE [USB-C, update port] |
| Transmitter — Output | 1× SFP+ OUT [LC female] |
| Receiver — Input | 1× SFP+ IN [LC female]; 1× SERVICE [USB-C, update port] |
| Receiver — Output | 1× OUT [USB-C, 24-pin female] |
| Transmission Distance | Up to 10km over single-mode fiber; up to 300m over OM4 multi-mode fiber |
| Fiber-Optic Module | 10G SFP+ module |
| Power | |
| Power Supply | Input: AC 100–240V, 50/60Hz; Output: DC 5V/1A |
| Power Consumption | Transmitter: 2.7W (max); Receiver: 2.5W (max) |
| Environmental | |
| Operating Temperature | 32°F – 104°F (0°C – 40°C) |
| Storage Temperature | -4°F – 140°F (-20°C – 60°C) |
| Operating Humidity | 20% – 80% RH, non-condensing |
| Storage Humidity | 10% – 90% RH, non-condensing |
| Physical | |
| Dimensions (each unit) | 3.19 × 1.93 × 0.98 in (81 × 49 × 25 mm) [W × D × H] |
| Weight (each unit) | 0.30 lbs (138 g) |
| Housing | Black metal enclosure |
| Certifications | |
| Certifications | CE, FCC, UL |
| Package Contents | |
| Included | 1× 4K60 USB-C over Fiber Extender (Transmitter); 1× 4K60 USB-C over Fiber Extender (Receiver); 2× 5V/1A multinational power supply |
