Extensor USB 3.2 Gen 1 de 100 m con dos entradas USB-C, dos salidas HDMI, resolución 4K60 y carga USB-C de 100 W
TX/RX Kit with 100W USB-C PD Charging, Balanced/Unbalanced Audio Output, RS-232 & FSYNC GPIO
Resellers, installers, schools and businesses. Approval is usually the same working day.

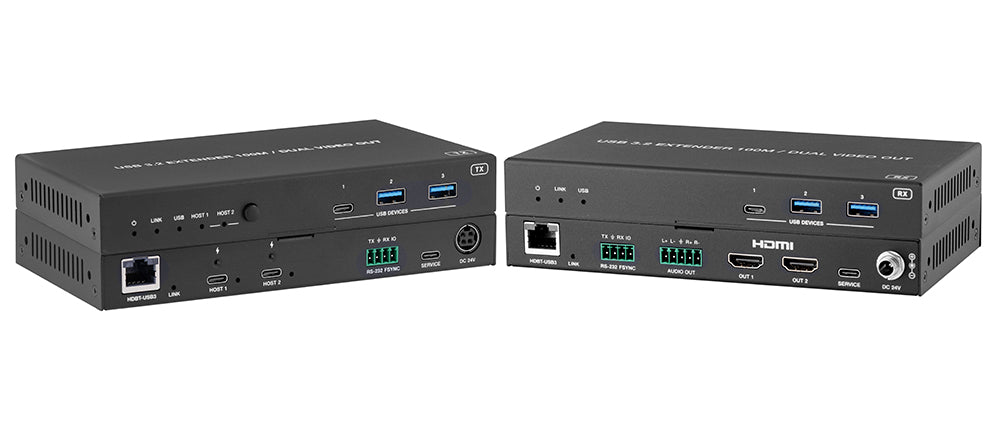

Extend two USB-C host laptops to a remote location up to 100 meters away — with dual 4K displays, USB peripherals, analog audio, and control — over a single CAT6a cable. The KanexPro EXT-USBCPD2X4K-100M is a 5Gbps USB 3.2 Gen 1 extender kit that delivers full USB-C docking station functionality at distances far beyond standard cable limits. Two selectable USB-C host ports on the transmitter support auto/manual switching for seamless presenter handoff, while USB-C PD charging up to 100W powers laptops directly from the TX.
At the receiver, dual HDMI 2.0b outputs deliver mirrored or extended displays at up to 4K@60Hz with HDCP 2.2 compliance. Balanced and unbalanced analog audio is de-embedded via a 5-pin phoenix connector for integration with existing speaker systems. Three downstream USB device ports on each unit support webcams, PTZ cameras, keyboards, mice, and touch panels. RS-232 pass-through enables third-party control system integration, while FSYNC GPIO provides industrial camera synchronization. Bi-directional 24V PoC allows flexible power deployment at either end of the cable run.
- Extends USB 3.2 signals at 5Gbps up to 100m/328ft over a single CAT6a cable via HDBaseT
- Dual USB-C host inputs on TX with auto/manual switching — supports two-laptop redundancy or presenter handoff
- USB-C PD charging up to 100W (1×100W or 2×50W) — powers laptops directly from the transmitter
- Dual HDMI 2.0b outputs on RX at up to 4K@60Hz — mirror or extend displays (Synaptics DisplayLink driver required)
- Balanced and unbalanced analog audio de-embedding on RX (LPCM 2CH, 32–192kHz) via 5-pin phoenix connector
- Three downstream USB device ports on each unit (1× USB-C + 2× USB-A) for webcams, PTZ cameras, keyboards, and touch panels
- RS-232 pass-through on both TX and RX for third-party control system integration
- FSYNC GPIO pass-through for industrial camera synchronization (default level range 0–5V)
- Bi-directional 24V PoC — power either TX or RX, the other unit is powered over the CAT6a link
| Technical | |
| USB Protocol | USB 3.2 Gen 1 |
| Transmission Rate | Up to 5Gbps |
| HDMI Compliance | HDMI 2.0b |
| HDMI Video Bandwidth | 18Gbps |
| HDMI Video Resolution | Up to 4K@60Hz |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Audio Format | HDMI: Up to LPCM 2.0/5.1CH • Analog De-embedding: LPCM 2CH (32–192kHz) |
| Transmission Distance | 100m/328ft via CAT6a (F/FTP) • 1.5m via USB • 3m via HDMI |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact) |
| Connections — Transmitter | |
| Input | 2× USB-C HOST [24-pin female] |
| Output | 2× USB-A DEVICE [9-pin female] • 1× USB-C DEVICE [24-pin female] |
| Link | 1× HDBT-USB3 [RJ45, 24V PoC] |
| Control | RS-232 + FSYNC on one 4-pin 3.5mm phoenix block (TX, ground, RX, IO) • 1× SERVICE [USB-C] |
| Connections — Receiver | |
| Input | 1× HDBT-USB3 [RJ45, 24V PoC] |
| Output | 2× USB-A DEVICE • 1× USB-C DEVICE • 2× HDMI OUT [Type A] • 1× AUDIO OUT [5pin phoenix] |
| Control | RS-232 + FSYNC on one 4-pin 3.5mm phoenix block (TX, ground, RX, IO) • 1× SERVICE [USB-C] |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions | TX: 180 × 95 × 23mm • RX: 180 × 95 × 23mm |
| Weight | TX: 482g • RX: 486g |
| Power Supply | AC 100–240V 50/60Hz → DC 24V/7.5A (TX input 24V/7.5A; RX input 24V/3.75A) |
| Power Consumption | TX: 120W max (incl. PD 100W) • RX: 19.44W max |
| Operating Temp | 32–113°F / 0–45°C |
| Storage Temp | −40–140°F / −40–60°C |
| Operating Humidity | 20–80% RH (non-condensing) |
| Storage Humidity | 10–90% RH (non-condensing) |
| Package Contents | |
| 1× | USB 3.2 Extender (TX) |
| 1× | USB 3.2 Extender (RX) |
| 1× | 24V/7.5A Locking Power Supply |
| 2× | 4pin-3.5mm Phoenix Connector |
| 1× | 5pin-3.5mm Phoenix Connector |
| 4× | Mounting Ears |
| 8× | Machine Screws (KM3*4) |
