4K60 SDVoE AV over IP System Controller New
Zero-Frame Latency Matrix Switching, 9×9 Video Wall & USB KVM for SDVoE Systems — Dual-Network Isolation, Web GUI & IR/RS-232 Control

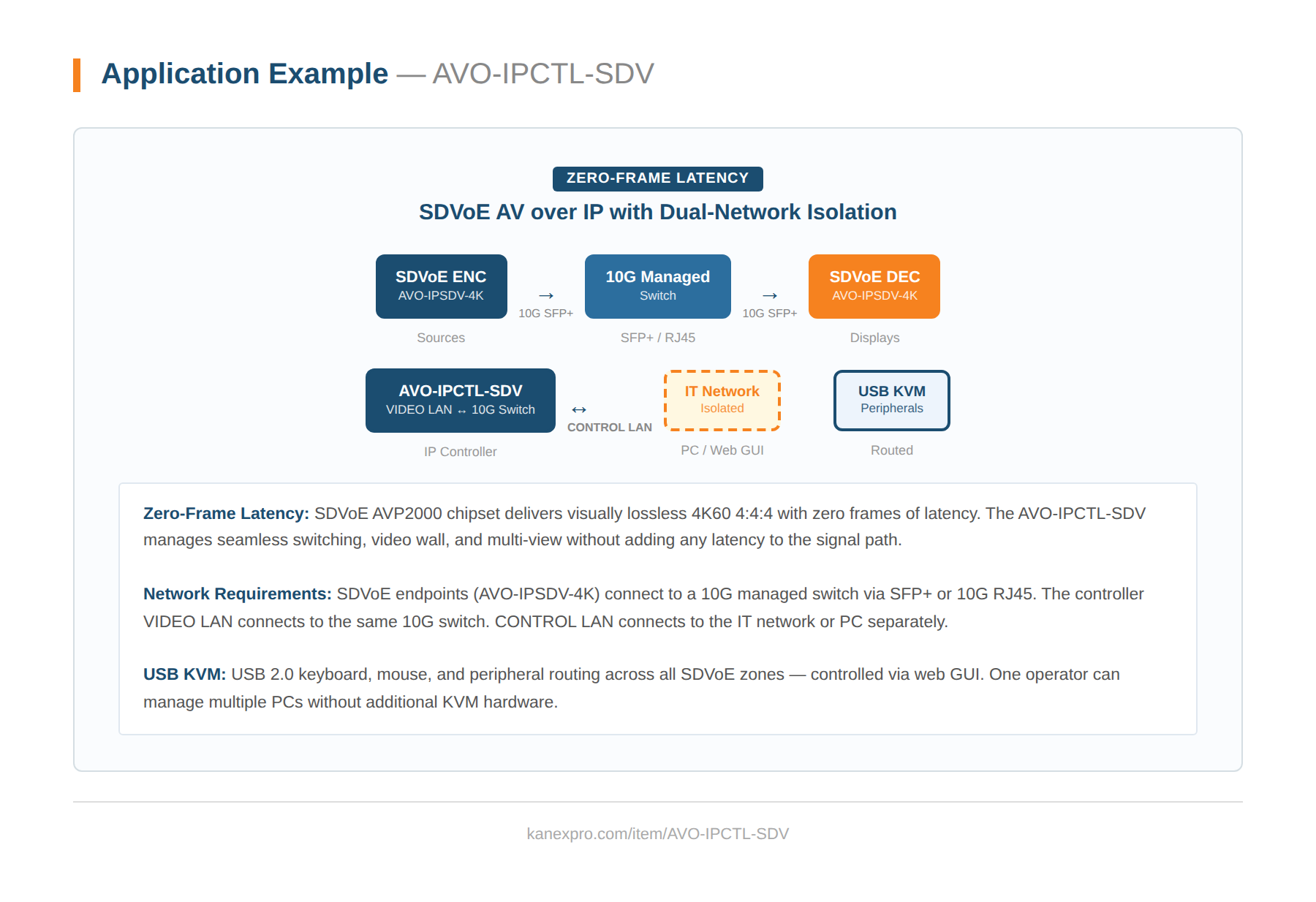

Delivers centralized management of SDVoE AV over IP systems — with zero-frame latency matrix switching, 9×9 video wall, 25-window multi-view, and USB KVM from a browser-based web GUI. The AVO-IPCTL-SDV connects to the same 10G managed switch as SDVoE encoders and decoders, auto-discovers all endpoints, and provides full system control of video routing, audio, RS-232, KVM, GPIO, and IR automation. Dual-network ports isolate AV multicast from the IT control network.
Built for mission-critical deployments where frame latency is not acceptable, the AVO-IPCTL-SDV leverages the SDVoE AVP2000 chipset architecture to deliver visually lossless, zero-frame latency performance at 4K60 4:4:4. Works with AVO-IPSDV-4K SDVoE transceivers. Dual RS-232 ports, 4-channel GPIO, IR IN/OUT, and support for Dante customization make it the complete control solution for demanding SDVoE installations.
- Centralized web GUI control of all SDVoE encoders and decoders
- Zero-frame latency matrix switching — visually lossless 4K60 4:4:4 routing
- Video wall up to 9×9 — seamless switching with zero-frame transitions
- Multi-view up to 25 windows on a single display
- USB 2.0 KVM — keyboard, mouse, and peripheral routing across SDVoE zones
- Dual-network ports — VIDEO LAN (PoE, 1G) for controller + CONTROL LAN for IT isolation
- Two RS-232 ports + 4-channel GPIO + IR IN/OUT for automation and third-party control
- HTTPS and SSH security with role-based access
- UPDATE port (Micro USB) for firmware upgrade
- Works with AVO-IPSDV-4K SDVoE AV over IP transceivers
| Specification | |
|---|---|
| Technical | |
| Supported Protocol | SDVoE (AVP2000 chipset ecosystem) |
| Endpoint Network | 10G managed switch (required for SDVoE endpoints) |
| Video LAN | 1G RJ45 (connects controller to AV switch) • PoE PD supported |
| Control Methods | Web GUI, TCP/IP, RS-232, IR, SSH, HTTPS |
| Latency Mode | Zero-frame latency (SDVoE AVP2000) |
| Video Wall | Up to 9×9 |
| Multi-View | Up to 25 windows per display |
| Default Control LAN IP | 192.168.6.100 (DHCP fallback) • http://controller.local |
| Connection | |

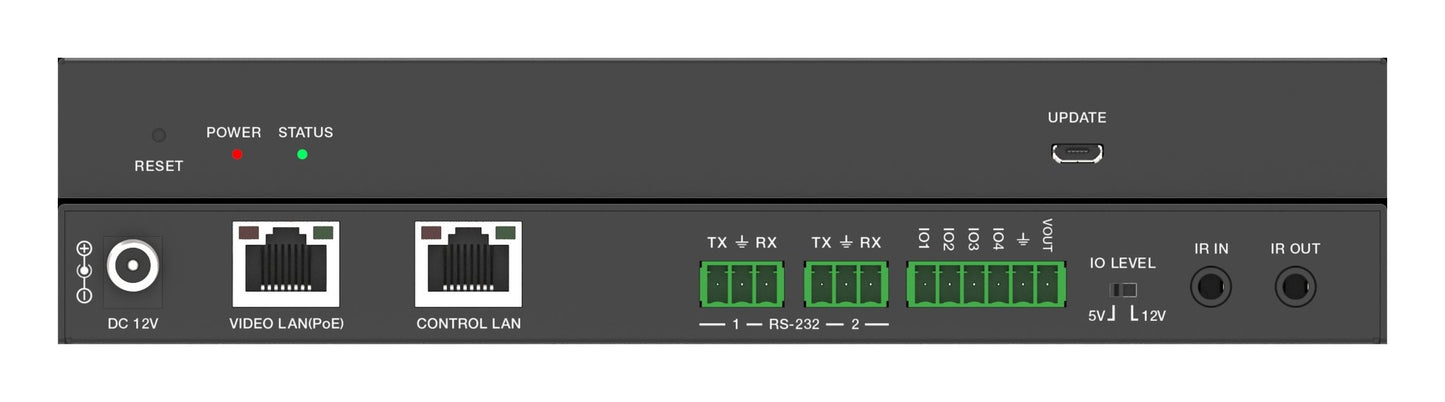

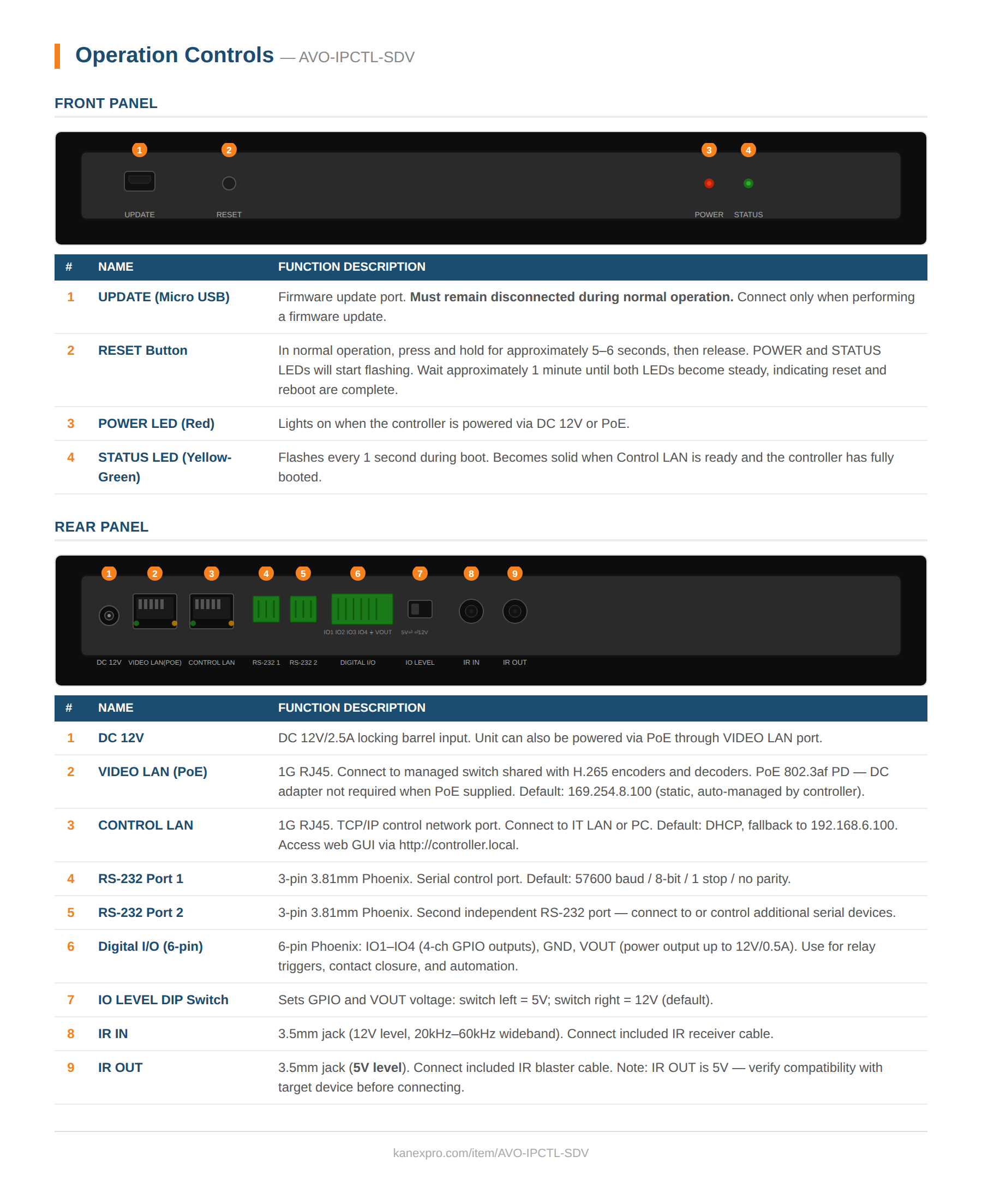

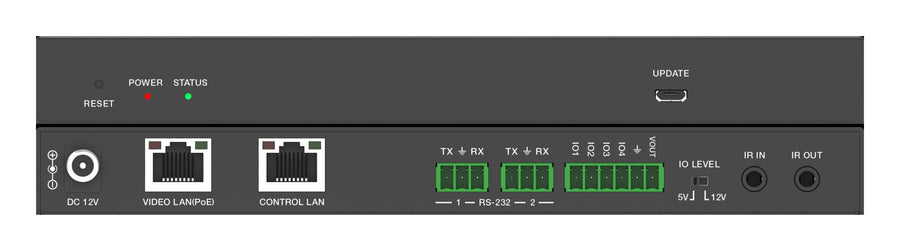

| LAN Ports | 2× RJ45 — VIDEO LAN (1G, PoE PD) + CONTROL LAN |
| RS-232 | 2× 3-pin 3.81mm Phoenix |
| Digital I/O | 1× 6-pin 3.81mm Phoenix — 4-ch GPIO, GND, VOUT 5V or 12V (DIP switch) |
| IR IN | 1× 3.5mm jack (12V level, 20kHz–60kHz) |
| IR OUT | 1× 3.5mm jack (5V level) |
| Firmware Update | 1× Micro USB (UPDATE port) — disconnect during normal operation |
| Compatible Endpoints | |
| Works With | AVO-IPSDV-4K — 4K60 SDVoE AV over IP Transceiver (HDN-EB100AT) |
| Physical | |
| Housing | Metal enclosure, Black |
| Power Supply | DC 12V (locking adapter) or PoE via VIDEO LAN |
| Operating Temperature | 32–104°F (0–40°C) |
