4K60 JPEG2000 AV over IP Decoder — Dante Dual LAN with Endpoint Control New
Isolate Dante AV-A Audio on LAN 2 Away from JPEG2000 Video on LAN 1 (PoE) — USB KVM, IR & RS-232, 9x9 Video Wall over Standard 1G
Terminates a visually lossless 4K60 4:4:4 JPEG2000 stream at any display over the standard 1G copper network you already run. The decoder is a compact metal endpoint (8.03" × 5.35" × 1.00" / 204 × 136 × 25.5 mm) that draws 7.8 W maximum and powers directly over PoE from the switch, so no local supply is needed at the panel. It is the right choice for boardrooms, video walls, courtrooms, and signage arrays where 4:4:4 image fidelity, isolated audio, and switch-agnostic 1G deployment matter more than the cost and complexity of a 10G SDVoE fabric.

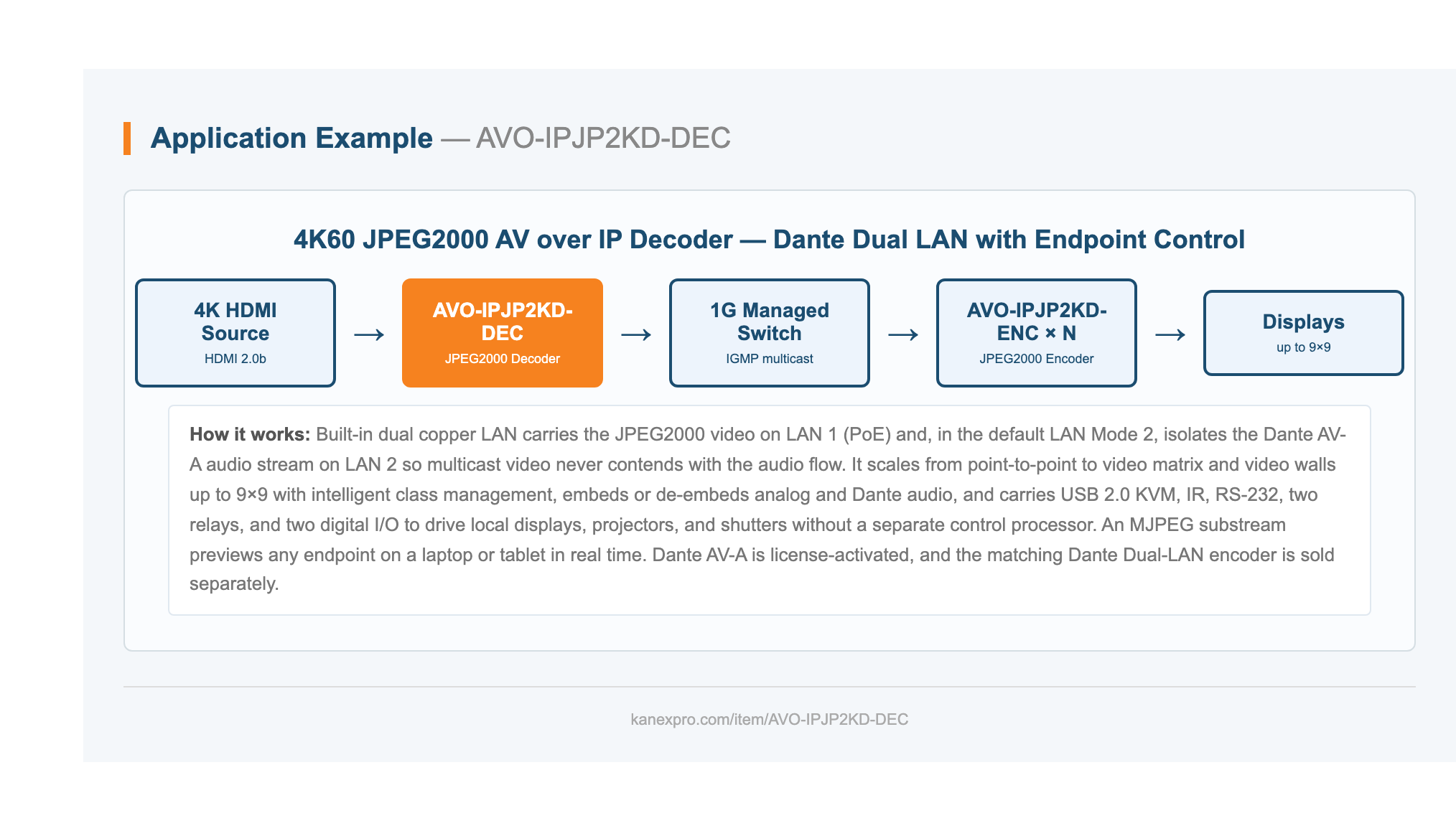

Built-in dual copper LAN carries the JPEG2000 video on LAN 1 (PoE) and, in the default LAN Mode 2, isolates the Dante AV-A audio stream on LAN 2 so multicast video never contends with the audio flow. It scales from point-to-point to video matrix and video walls up to 9×9 with intelligent class management, embeds or de-embeds analog and Dante audio, and carries USB 2.0 KVM, IR, RS-232, two relays, and two digital I/O to drive local displays, projectors, and shutters without a separate control processor. An MJPEG substream previews any endpoint on a laptop or tablet in real time. Dante AV-A is license-activated, and the matching Dante Dual-LAN encoder is sold separately.
- HDCP 2.2 compliant
- 18 Gbps video bandwidth
- Input and output video resolution up to 4K60 4:4:4, per HDMI 2.0b
- Signal transmission extendable up to 328 ft / 100 m over CAT6/6A/7 cable
- Transmits video, analog/digital audio, IR, RS-232, CEC, and USB 2.0 over Ethernet
- ARC/eARC/S-PDIF/analog audio return transmission
- Dante AV-A mode supported when license-activated
- Analog and Dante audio embedding and de-embedding
- Channel configuration via front-panel buttons and LED screen
- Built-in two-channel relay ports and two-channel I/O ports for contact control
- Unicast and multicast support
- Point-to-point, video matrix, and video wall functions (video wall up to 9×9)
- Intelligent video wall class management
- Built-in dual copper LAN ports with two working modes — LAN Mode 1: JPEG2000 video and Dante audio both on LAN 1 (PoE); LAN Mode 2 (default): JPEG2000 video on LAN 1 (PoE), Dante audio on LAN 2
- MJPEG substream for real-time video preview on portable devices
- Operates on a standard 1G managed network switch
- Standard PoE powered device (PD)
- Built-in web page configuration and control, plus Telnet and SSH
- HDMI audio formats: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DTS High Res, DTS-HD Master
- Flexible control via front-panel buttons, IR, RS-232, TCP/IP, and Web GUI
- Smart networking design for easy, flexible installation
| Video | |
| HDCP Compliance | HDCP 2.2 |
| HDMI Compliance | HDMI 2.0b |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | Input: 8/10/12-bit (1080p@60Hz); Output: 8-bit |
| HDR | Supported on both input and output |
| Video Compression | JPEG2000 |
| Audio | |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DTS High Res, DTS-HD Master, DTS:X |
| Audio Sample Rate | 44.1–192 kHz |
| Audio Return | ARC/eARC and S-PDIF return; analog audio return (unicast) |
| Network & Control | |
| Video Network Bandwidth | 1G |
| Transmission Distance | 100 m over CAT6/6A/7 |
| Casting Modes | Unicast, Multicast |
| Topologies | Point-to-point, video matrix, video wall (up to 9×9) |
| Dual LAN Modes | Mode 1: video + Dante on LAN 1 (PoE); Mode 2 (default): video on LAN 1 (PoE), Dante audio on LAN 2 |
| IP Modes | Static, DHCP, Auto IP (default, 169.254.x.x) |
| Control Interfaces | Front panel, IR, RS-232, TCP/IP, Web GUI, Telnet, SSH |
| MJPEG Substream | Real-time preview on portable devices |
| USB | |
| USB Bandwidth | USB 2.0 device to host: 480 Mbps |
| USB Ports | 2× USB 1.1 device, 2× USB 2.0 device |
| Connections | |
| Inputs | 1× S-PDIF IN (optical); 1× L/R analog audio IN (3-pin 3.81 mm Phoenix, unbalanced 2CH, max 2 Vrms) |
| Outputs | 1× HDMI OUT (Type A, 19-pin female); 1× L/R analog audio OUT (3-pin 3.81 mm Phoenix, unbalanced 2CH, max 2 Vrms) |

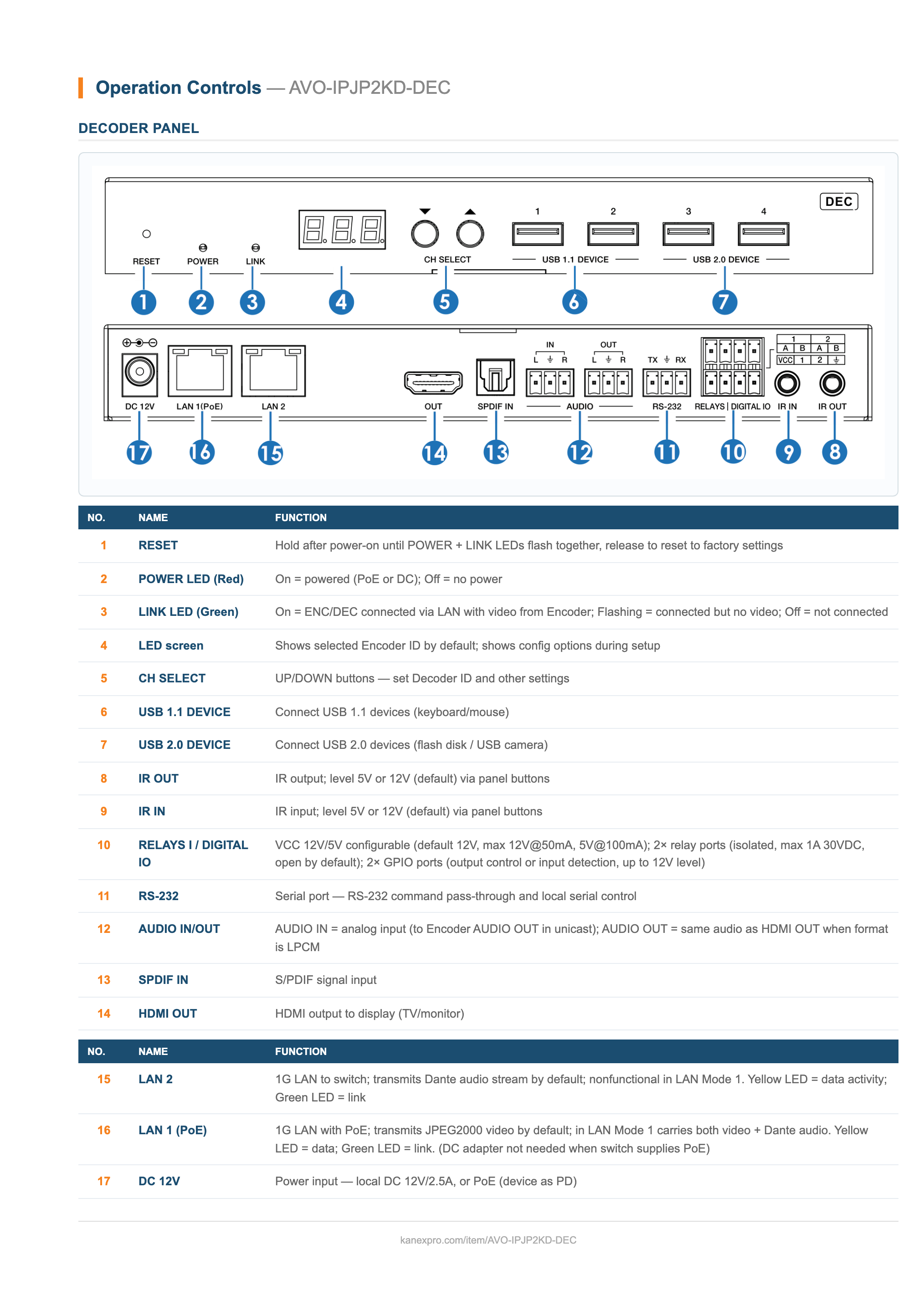

| Control Ports | 1× RS-232 (3-pin 3.81 mm Phoenix); 2× LAN (RJ45, LAN 1 PoE); 2× relays (3.81 mm Phoenix, isolated, max 1 A @ 30 VDC); 2× digital I/O (3.81 mm Phoenix); 1× IR IN and 1× IR OUT (3.5 mm, 5V/12V) |
| IR | Level 12V default, 5V optional; wideband 20–60 kHz |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 12V/2.5A |
| Powering Methods | Local DC 12V/2.5A supply, or PoE from network switch (device as PD; DC not required when switch supplies PoE) |
| Power Consumption | 7.8 W (max.) |
| Physical | |
| Dimensions (W × D × H) | 8.03" × 5.35" × 1.00" (204 × 136 × 25.5 mm) |
| Net Weight | 1.38 lbs (0.626 kg) |
| Housing | Metal enclosure |
| Color | Black |
| Environmental | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Relative Humidity | 20–90% RH (non-condensing) |
| ESD Protection | IEC 61000-4-2: ±15 kV (air-gap), ±8 kV (contact) |
| Certifications | |
| Power Supply | CE, FCC, UL |
| Package Contents | |
| Decoder unit | 1× 4K60 over IP 1GbE Decoder |
| Cables | 1× IR Receiver cable (1.5 m); 1× IR Blaster cable (1.5 m) |
| Connectors | 3× 3-pin 3.81 mm Phoenix connector (male); 2× 4-pin 3.81 mm Phoenix connector (male) |
| Power | 1× 12V/2.5A locking power adapter |
| Mounting | 2× mounting ear; 4× machine screw (KM3×4) |
| Documentation | 1× User Manual |
