4K60 4:4:4 JPEG2000 AV over IP Encoder — Dante Ready with Contact Control
Run Matrix, Video Wall & KVM on the 1G Network You Already Have — SFP Fiber, Relay/IO Contact Control & ARC/eARC over Copper
Resellers, installers, schools and businesses. Approval is usually the same working day.
Distributes one 4K60 4:4:4 HDMI source to an unlimited number of displays over the standard 1G network the building already runs. Housed in a compact black metal enclosure measuring 8.03" x 5.35" x 1.00" and drawing 8.52W from PoE or a local 12V supply, it delivers visually lossless JPEG2000 video with embedded audio, USB/KVM and control from a single endpoint. That makes it the right choice for corporate, higher-education, command-and-control and courtroom systems where 4:4:4 fidelity, network reach and endpoint density matter more than a dedicated 10G fabric or a box-per-function build.

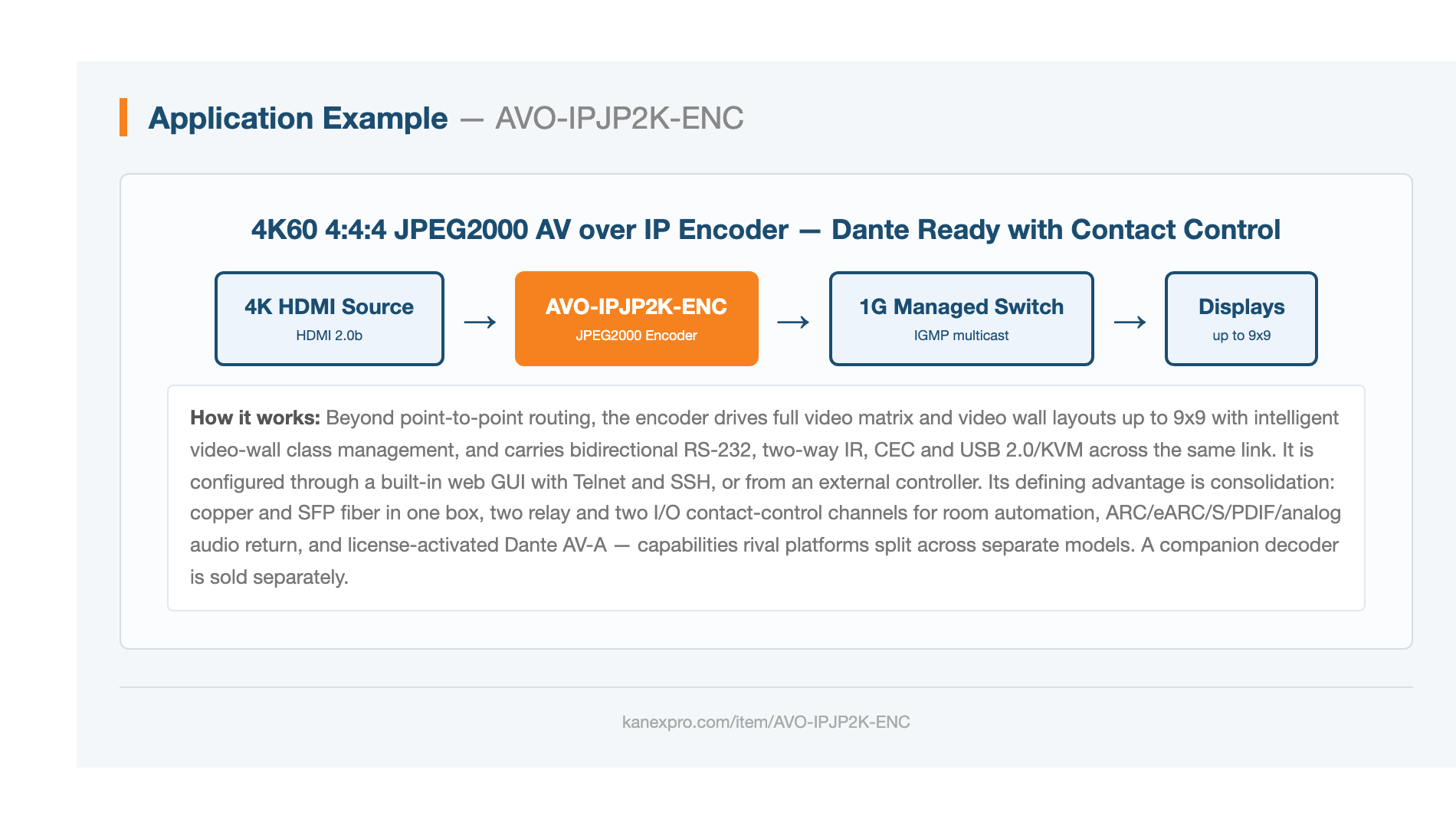

Beyond point-to-point routing, the encoder drives full video matrix and video wall layouts up to 9x9 with intelligent video-wall class management, and carries bidirectional RS-232, two-way IR, CEC and USB 2.0/KVM across the same link. It is configured through a built-in web GUI with Telnet and SSH, or from an external controller. Its defining advantage is consolidation: copper and SFP fiber in one box, two relay and two I/O contact-control channels for room automation, ARC/eARC/S/PDIF/analog audio return, and license-activated Dante AV-A — capabilities rival platforms split across separate models. A companion decoder is sold separately.
- HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Input and output video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
- Signal transmission distance extended up to 328ft / 100m via CAT5e/6/6A/7 cable
- Transmits video, analog/digital audio, IR, RS-232, CEC and USB over Ethernet
- Integrates copper port and fiber port within a single box
- ARC/eARC/S/PDIF/analog audio return function
- Dante AV-A mode supported when license activated
- Channel configuration via front-panel buttons and LED screen
- Built-in two-channel relay ports and two-channel I/O ports for contact control
- Supports unicast and multicast functions
- Supports point-to-point, video matrix and video wall functions (video wall up to 9x9)
- Intelligent video-wall class management
- Supports MJPEG substream real-time preview
- 1G Ethernet switching
- Supports PoE
- Built-in web-page configuration and control, with Telnet and SSH
- HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- USB 2.0, KVM and camera support
- Guest-mode control of RS-232, IR and CEC
- Built-in MJPEG substream with API commands for third-party preview
- Linux-based software
- Smart networking design for easy, flexible installation
| Video | |
| HDMI compliance | HDMI 2.0b |
| HDCP compliance | HDCP 2.2 |
| Video bandwidth | 18Gbps |
| Video compression standard | JPEG2000 |
| Video network bandwidth | 1G |
| Video resolution | Up to 4K60 4:4:4 |
| Color depth | Input: 8/10/12-bit; Output: 8-bit |
| Color space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Audio | |
| HDMI audio formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master |
| Audio return | ARC / eARC / S/PDIF / analog (C2C digital or A2A analog; A2A unicast only) |
| Dante | Dante AV-A, license-activated |
| Transmission | |
| Transmission distance | 328ft / 100m via CAT5e/6/6A/7 |
| HDMI cable length (4K60) | 16ft / 5m |
| HDMI cable length (4K30) | 32ft / 10m |
| HDMI cable length (1080p60) | 50ft / 15m |
| Topologies | Point-to-point, video matrix, video wall up to 9x9; unicast and multicast |
| Transport | Copper or fiber, selectable |
| Control & Connectivity | |
| Serial | RS-232, bidirectional (command pass-through and local control) |
| IR | Two-way IR; level 12V default, 5V optional; wideband 20K–60KHz |
| USB | USB 2.0, KVM and camera support |
| Contact control | Two-channel relay (isolated, max 1A 30VDC, open by default); two-channel I/O GPIO (VCC 12V/5V configurable, default 12V, max 12V@50mA / 5V@100mA) |
| Network / web | Built-in web-page configuration; Telnet and SSH; Bonjour discovery |
| Preview | MJPEG substream with API commands |
| Recommended switch | Layer-3 managed gigabit, 8KB jumbo frame, IGMP snooping |

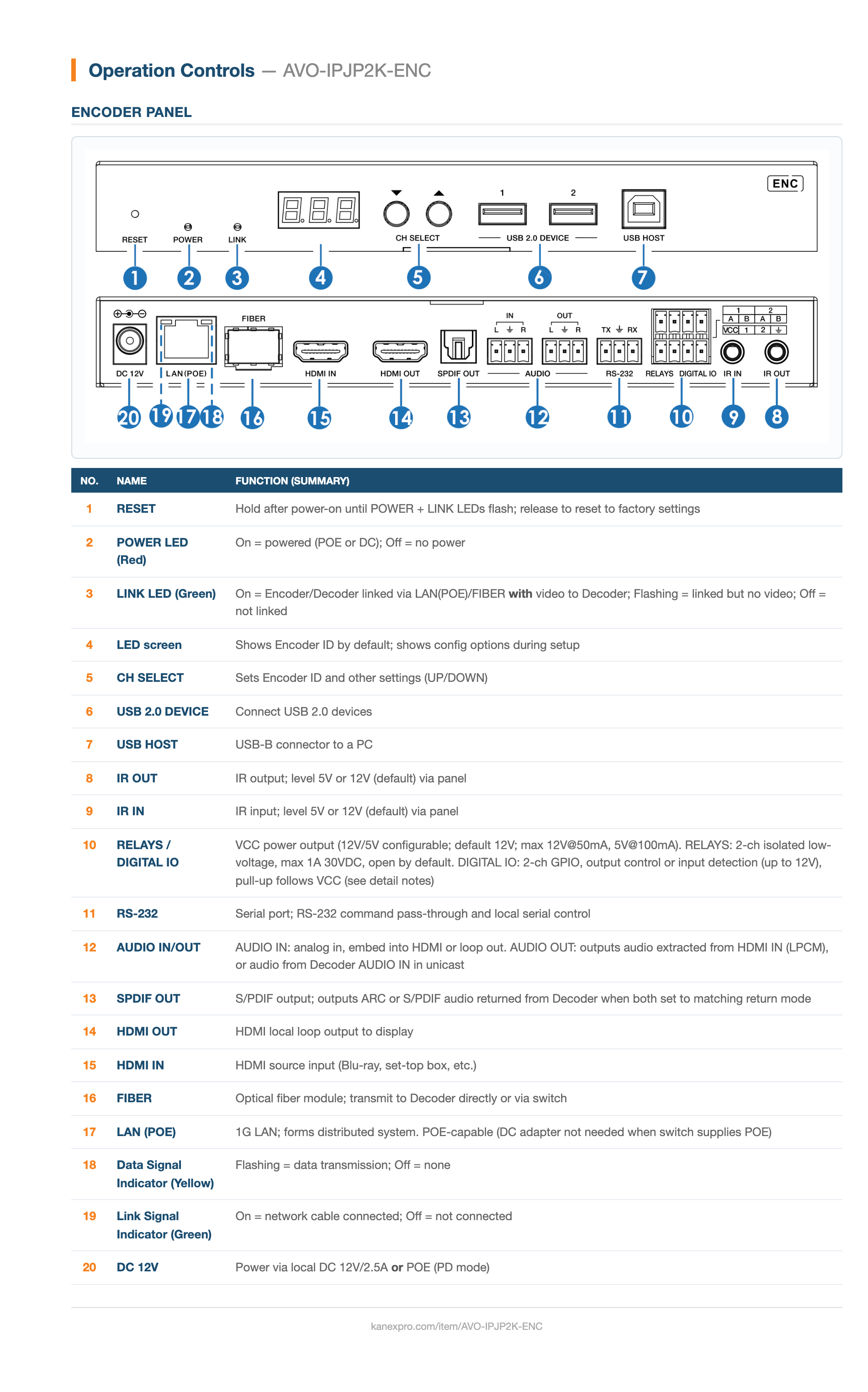

| Connections (Encoder) | |
| Input | 1 x HDMI IN [Type A, 19-pin female]; 1 x L/R audio in [3-pin 3.81mm Phoenix] |
| Output | 1 x HDMI OUT [Type A, 19-pin female]; 1 x L/R audio out [3-pin 3.81mm Phoenix]; 1 x S/PDIF out [optical] |
| Control ports | 1 x RS-232 [3-pin 3.81mm Phoenix]; 1 x LAN (PoE) [RJ45]; 1 x fiber [SFP optical slot]; USB 2.0 host [Type B]; 2 x USB 2.0 device [Type A]; 2 x relay [3.81mm Phoenix]; 2-channel digital I/O [3.81mm Phoenix]; 1 x IR in [3.5mm]; 1 x IR out [3.5mm] |
| ESD protection | IEC 61000-4-2: ±8kV air-gap discharge, ±4kV contact discharge |
| Power | |
| Power supply | Input AC 100–240V 50/60Hz; output DC 12V/2.5A |
| Powering methods | Local DC 12V/2.5A adapter or PoE from network switch (device acts as PD) |
| Power consumption (max.) | 8.52W |
| Physical | |
| Housing | Metal enclosure, black |
| Dimensions (W x D x H) | 8.03" x 5.35" x 1.00" (204 x 136 x 25.5 mm) |
| Weight | 1.39 lbs (631 g) |
| Rack mounting | 6U V2 rack (6/8/10 units vertical) and 1U V2 rack (2 units horizontal); brackets included |
| Environmental | |
| Operating temperature | 32–104°F / 0–40°C |
| Storage temperature | -4–140°F / -20–60°C |
| Relative humidity | 20–90% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, UL |
| Package Contents | |
| 1x | JPEG2000 Encoder |
| 1x | DC 12V/2.5A power adapter |
| 2x | Mounting ears |
| 1x | Quick start guide |
