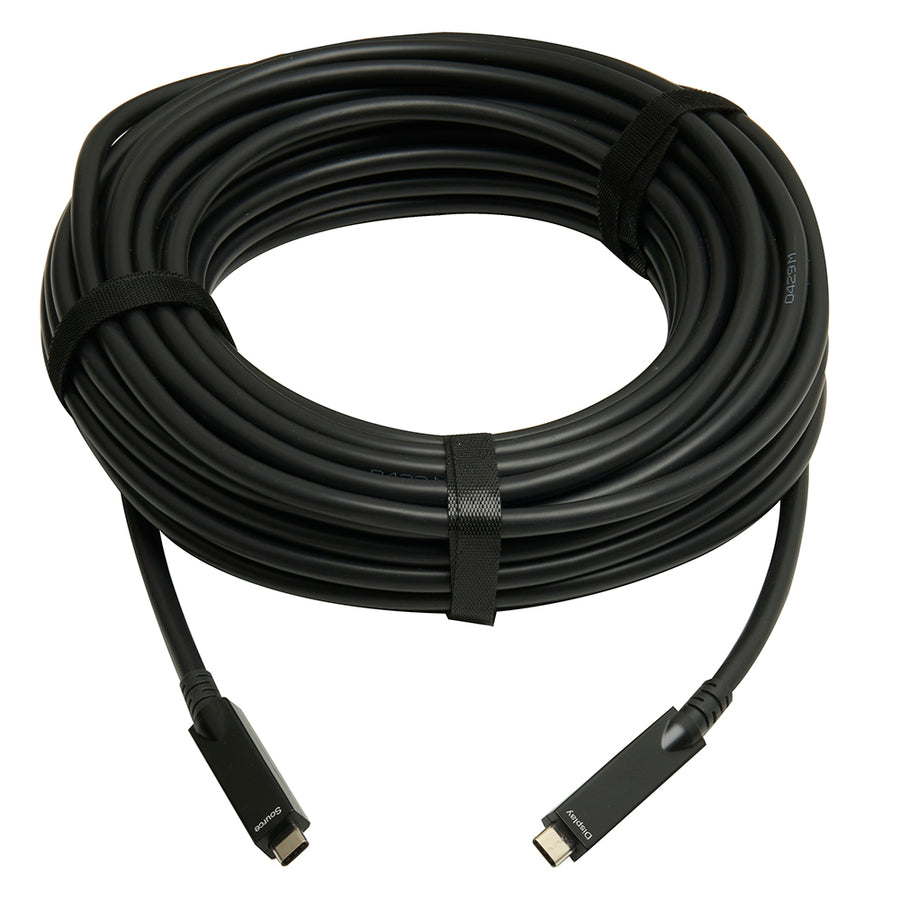

Adaptive USB-C 3.2 Gen2 Long Cable - 10M

Name: Adaptive USB-C 3.2 Gen2 Long Cable - 10M
Brand: KanexPro
SKU: CBL-AOCUSBC-10M

High Bandwidth 10Gbps 4-Lane DP 2.1 w/ USB + Power Delivery

1 1

KanexPro

SKU: CBL-AOCUSBC-10M

UPC: 813982023444

$319.96 $399.95 Save 20%

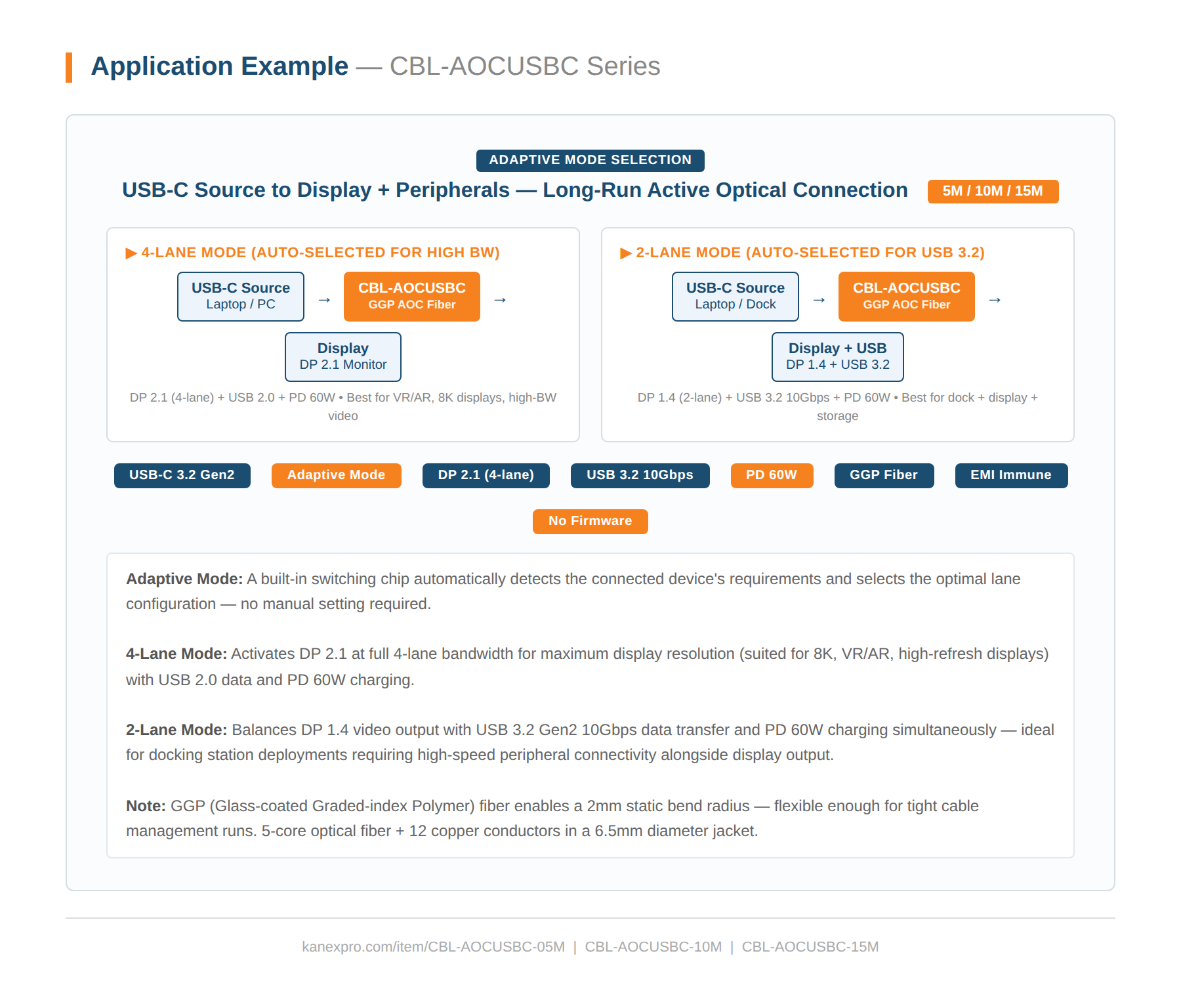

This is a versatile USB-C 3.2 Gen2 product with adaptive support for multiple fullfeatured

specifications. It supports either a 4-lane DP 2.1+ USB 2.0 or DP 1.4+ USB 3.2 10Gbps

data transfer rate,overcoming the limitation of active optical cables not supporting these specifications

simultaneously. It achieves multiple functions such as USB3.2 10Gbps data transfer, DP video

output, PD charging, and is backward compatible with USB2.0/1.1. The USB-C AOC cable

matches the functionality of a full-featured copper cable and can adaptively complete the

DP Alt mode function. Enabling a plug-and-play experience without needing separate device

configurations or firmware installations, and a way more longer length than convention copper cables.

Type	USB-C Full-featured AOC Support: 4-Lane DP2. 1+USB2.0 OR 2-Lane DP1.4+USB3.2 10G
Length	10M
Connector Shell	Zinc-alloy
Cable Diameter	6.5 mm
Maximum transfer rate	10Gbps

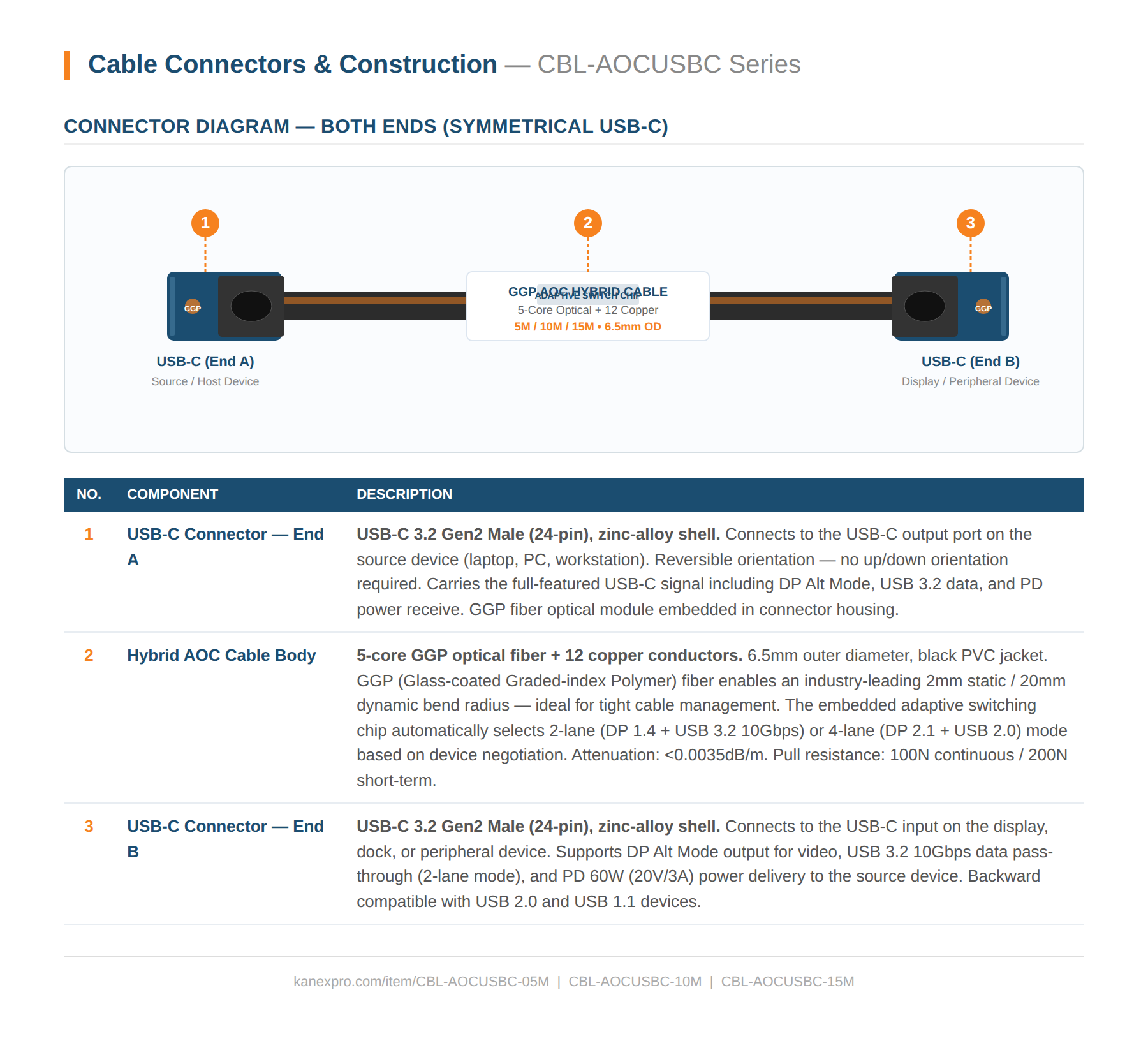

Cable structure	5- core optical fiber + 12 copper wires ;
Outer Jacket	Black PVC
Decay rate	<0.0035dB/m (nearly negligible attenuation at consumer lengths)
Minimum bending radius (Dynamic/static)	20mm/ 10mm
Cable pull resistance (Long term/short term)	100N/200N
Cable pressure resistance (Long term/short term)	200N/400N
Operating temperature	0~50°
Storage Temperature	- 4 0~70°
