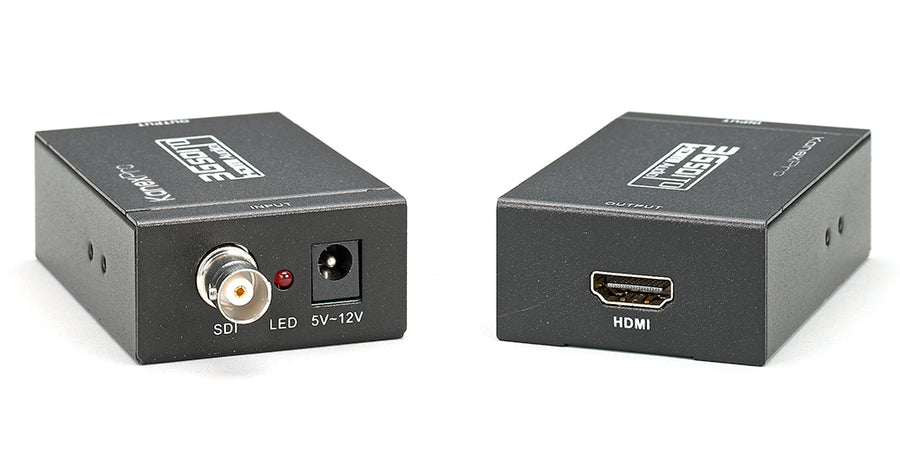

3G-SDI to HDMI Converter
SDI to HDMI converter
The KanexPro SDI to HDMI converter is an inexpensive version for our SDI customers looking to simply convert SDI signals to HDMI. It supports SDI, 3G-SDI & HD-SDI to an HD display or any monitor equipped with an HDMI jack. It supports signal re-clocking and equalization for longer SDI runs ideal for broadcasting and house of worship centers.
Perfect for broadcast monitoring to HDMI displays. It will save you a ton of money compared to buying special monitors with the capability to purchase an even more specialized, proprietary SDI cards.
Note: This only converts from SDI to HDMI and does not support 4K at this time.
- Get the highest quality 3G-SDI conversion to HDMI
- Integrated Audio de-embedder for 8-channel / 48KHz audio
- Supports multiple video resolutions: SDI 525i, 625i
- HD: 720p 24, 25,30,50 & 60 Hz.
- HD: 1080i 50 & 60 Hz.
- HD: 1080p 24, 25,30, 50 & 60 Hz.
- Data rates up to 2.97 Gbps
- Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit
- SDI Input Cable Length Support - up to 300m
- HD mode length up to: 130m
- One way SDI output with re-clock function
- Supports cascading of multiple SDI's in application
- Automatically switches between SD, HD and 3 Gb/s SDI standards
- Compact in size, perfect for mobile broadcasting units and users
Note: RG59 cable is required for SDI transmission, we recommend a 75-ohm high quality coaxial cable.
Video Input
- Input: 1 x SDI
- Input Connector: 1 x BNC
- Input Video Signal: SD/HD/3G SDI
Video Output
- Output: 1 x HDMI Female
- Output connector: HDMI
- Output Video Signal: SD/HD/3G SDI/DVI/ HDMI
Resolutions (HDTV)
- 1080p,1920 x 1080
- 720p; 1280 x 720
- 1280 x 720, 480i (NTSC mode) 576i Standard PAL mode
Enviromental
- Operating Temperature: 0°C to +70°C
- Operating Humidity: 10% to 85 % RH (no condensation)
- Storage Temperature: -10°C to +80°C
- Storage Humidity: 5% to 90 % RH (no condensation)
- Regulatory Approvals Converter: FCC, CE, UL
- Regulatory Approvals Power Supply: FCC, CE, UL
Mechanical
- Size: (LWH): 3.14"x1.61"x0.98"
- Weight (net): 0.33 lbs (150g)
Power Requirements
- External power supply: 5V -12V
- Power consumption: 5 W
Waranty
- 1 year parts & labor
Package Contents:
- 3G-SDI to HDMI converter
- 5V DC power supply
- Operation manual
