SDI/HDMI with Audio Embedder to Multiple Video - Discontinued

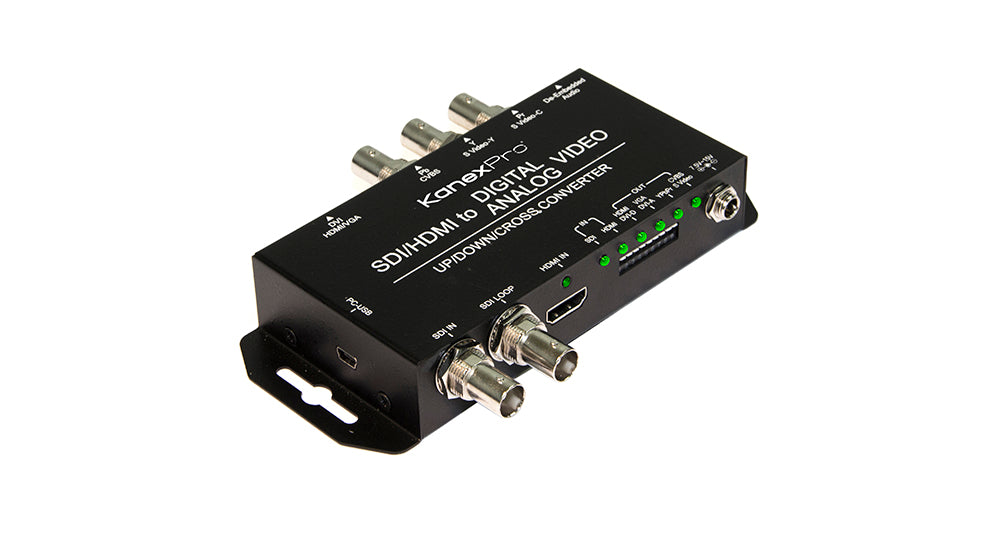

The SDI/HDMI with Audio Embedder to Multiple Video is a compact, rugged legacy cross-converter designed for demanding mobile broadcasting and field production setups. It seamlessly bridges SDI and HDMI sources to a wide range of analog and DVI outputs, all while preserving signal integrity and enabling on-device processing that matters on set.

Why this cross-converter matters

In real-world shoots you often need to feed multiple displays and recorders from a single source. This unit delivers: cross-conversion between SDI and HDMI, simultaneous outputs to analog video and DVI, on-board video processing, and a flexible ROI/annotation capability for quick on-site decisions. Whether you’re routing a live camera feed to an on-camera monitor, a projector, a digital recorder, or a video wall, this device keeps your signal sharp and synchronized.

Key features at a glance

• Dual-input, multi-output versatility: 1 x HDMI and 1 x BNC SDI input, with simultaneous outputs to DVI-I, VGA, Component, Composite, and S-video (via BNC).
• On-device video processing: Powerful up/down scaler with anti-aliasing and 3D de-interlacing for smooth, artifact-free images across formats.
• ROI annotation & quantitative info: Region of Interest capability lets you overlay annotations and extract measurement data right from the video stream.
• Built-in test pattern generator: Quick calibration, alignment, and verification without external test gear.
• Compact, field-ready design: Rugged chassis with mounting ears and locking power supply for reliable use in portable setups.
• Complete audio handling: Audio embedder supports up to 8 channels, 24-bit, 48 kHz for clean, synchronized sound with your video.
• Firmware and control: Mini-USB port for firmware updates; DIP switches provide flexible resolution control for diverse workflows.

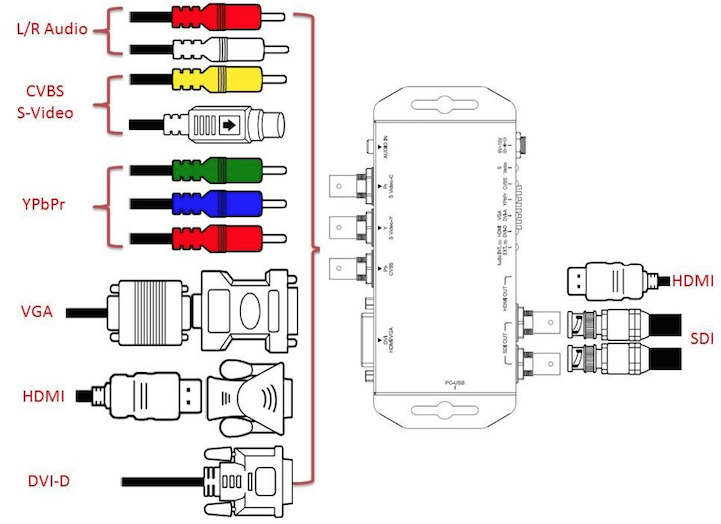

Inputs, outputs and signal paths

• Video Input: 1 x HDMI, 1 x BNC SDI
• Video Output: Analog video outputs (DVI-I, VGA, Component, Composite, S-video over BNC) and DVI video
• Supported resolutions (HDTV): 1080p, 1920 x 1080i at 50/59.94/60 Hz; 720p (1280 x 720); 480i NTSC; 576i PAL

Ideal use scenarios

• Mobile live events where a single camera feed must drive multiple displays and a recorder.
• ENG or field productions needing quick cross-conversion between SDI/HDMI sources and legacy displays (analog or DVI).
• Signage or presentation setups requiring annotated ROI data or on-screen quantitative information in real time.
• On-location monitoring with a compact, durable unit that tolerates a wide operating range and rough transport.

Technical specifications and build notes

• Environment: 0°C to +70°C operating; 10% to 85% RH (non-condensing); -10°C to +80°C storage; 5% to 90% RH (non-condensing).
• Regulatory approvals: FCC, CE, UL for converter and power supply.
• Mechanical: 3.14" L × 1.61" W × 0.98" H; 0.33 lb (150 g) net weight.
• Power: External power supply 7.5–15 V
• Warranty: 3 years parts and labor

What’s in the box

• 3G-SDI Cross-converter
• DC power supply
• Operation manual

Important note for installation: When delivering SDI, a RG59 cable is required for SDI transmission; a high-quality 75-ohm coaxial cable is recommended for best results.

Why this is a unique choice among cross-converters

Rather than simply converting formats, this device combines cross-conversion with advanced video processing (scaling, anti-aliasing, 3D de-interlacing) and practical workflow enhancements (ROI annotation, test patterns, and an on-device audio embedder). The result is a versatile, reliable solution for field broadcasts, live events, and compact studios where you must adapt quickly to changing display requirements without juggling multiple boxes.

Note: This model is a discontinued, legacy solution that continues to offer robust functionality for established workflows. If you’re maintaining an existing production setup, it remains a capable, compact option for bridging SDI and HDMI with broad output options and reliable performance.
