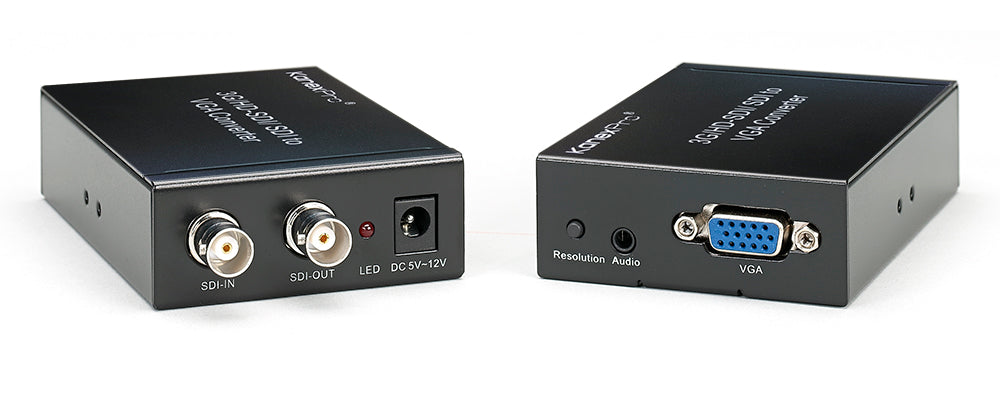

3G/HD-SDI/ SDI to VGA Converter w/ Scaling Technology

The KanexPro SDI to VGA Converter allows SDI, HD-SDI and 3G-SDI signals to be displayed on a VGA monitor or a projector ensuring high bit-rates up to 3 Gbps for faster signal transmission without loss in broadcasting quality signals. It provides scaling and signal re-clocking functions for optimal resolution and longer length transmission up to 200 meters for HD signals and 300 meters for SD formats.

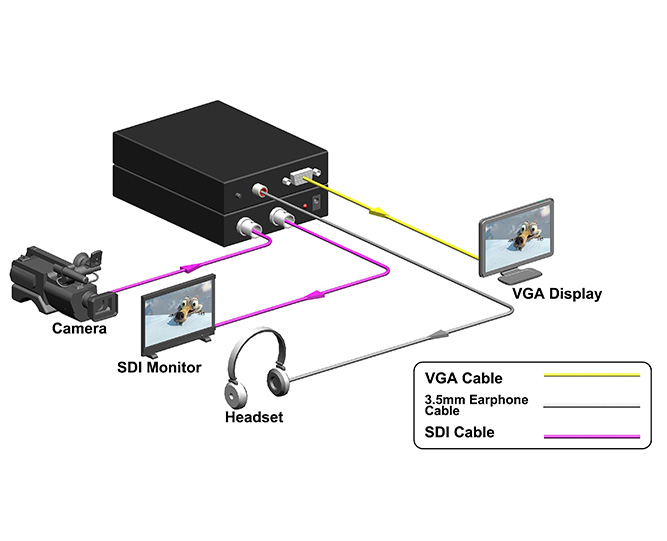

The SDI converter also features a loop-through SDI output for local monitor support simultaneously. Ideal for use with display equipment such as projectors, plasma TV, and LCD screens.

Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

• Get the highest quality 3G-SDI conversion to VGA formats
• Built-in Scaler for optimal resolution up to 1920x1080
• Front panel “Resolution” button for switching to different video resolutions
• Equalized and re-clocked loop output
• Supports multiple VGA output resolutions:
• SDI: 800x600,1024x768
• PC: 1280x720, 1440x900
• PC: 1280x1024, 1680x1050
• HD: 1600x1200, 1920x1080 & 1920x1200
• Simultaneous display with SDI /VGA signals
• Alternative audio output to analog 2CH stereo
• Data rates up to 3 Gbps
• SDI Input cable length support - up to 300m
• HD mode length up to: 200m
• Capable of cascading to multiple units
• Automatic detection of SD, HD and 3 Gb/s SDI standards
• Compact in size, perfect for mobile broadcasting units

Note: RG59 cable is required for SDI transmission, we recommend a 75-ohm high quality coaxial cable.
