16X20 Modular Matrix Switcher 4K@60Hz

: Full 4K/UHD at 18Gbps, Video-Wall, Quad-view, independent scaling

1 2

KanexPro

SKU: FLEX-MF16X20

UPC: 813982023154

View full details

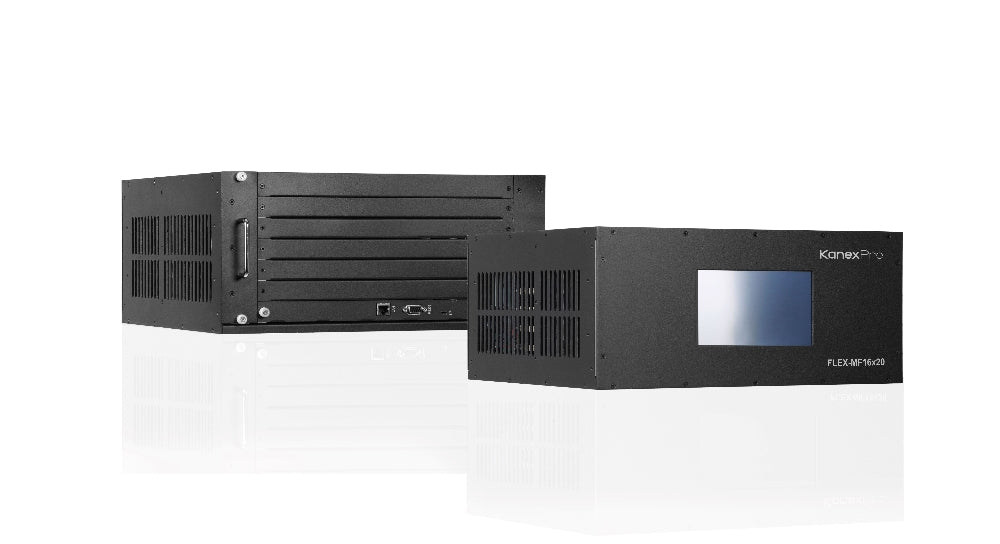

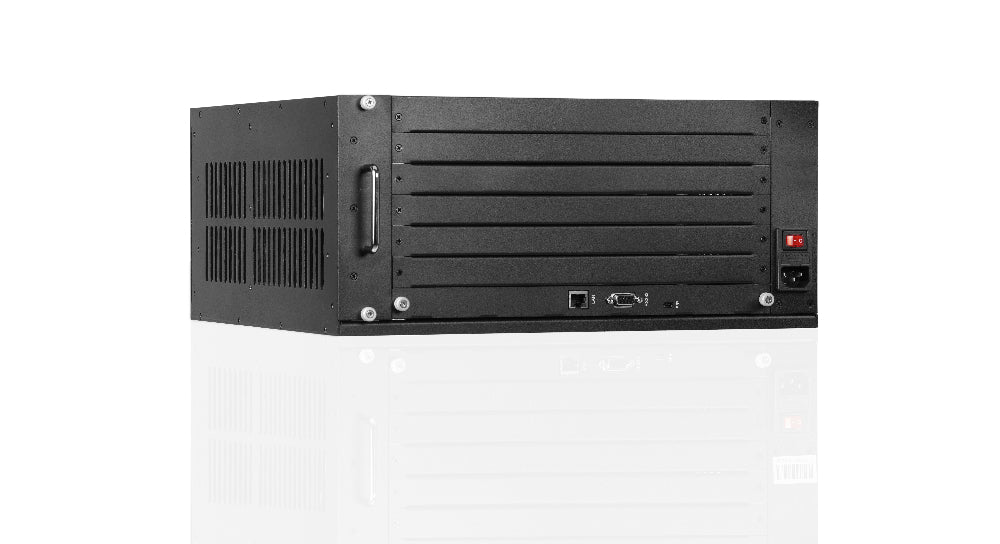

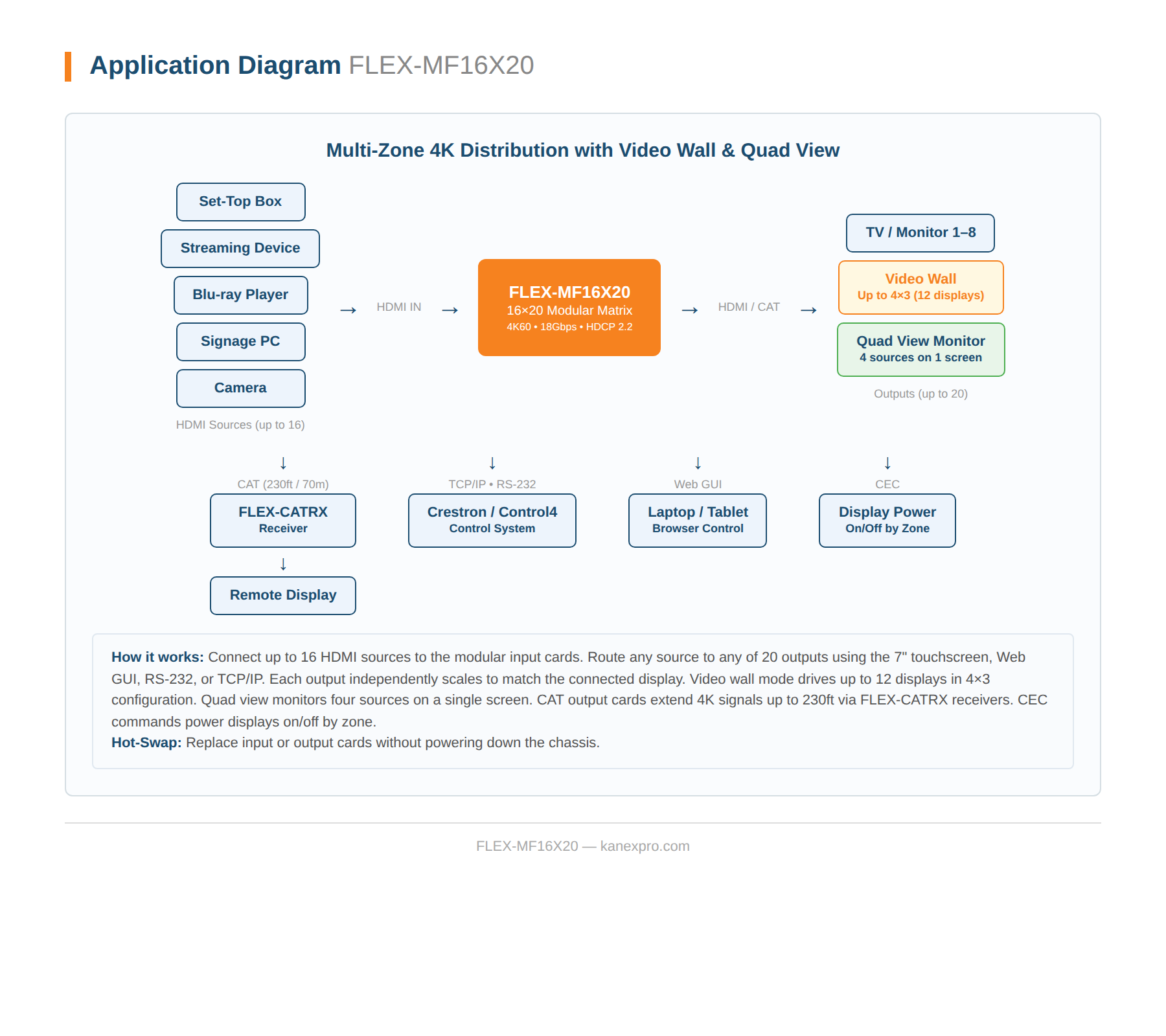

The KanexPro FLEX-MF16X20 is a modular matrix switcher designed to manage multiple audio and video Inputs and outputs, commonly used in professional AV setups.

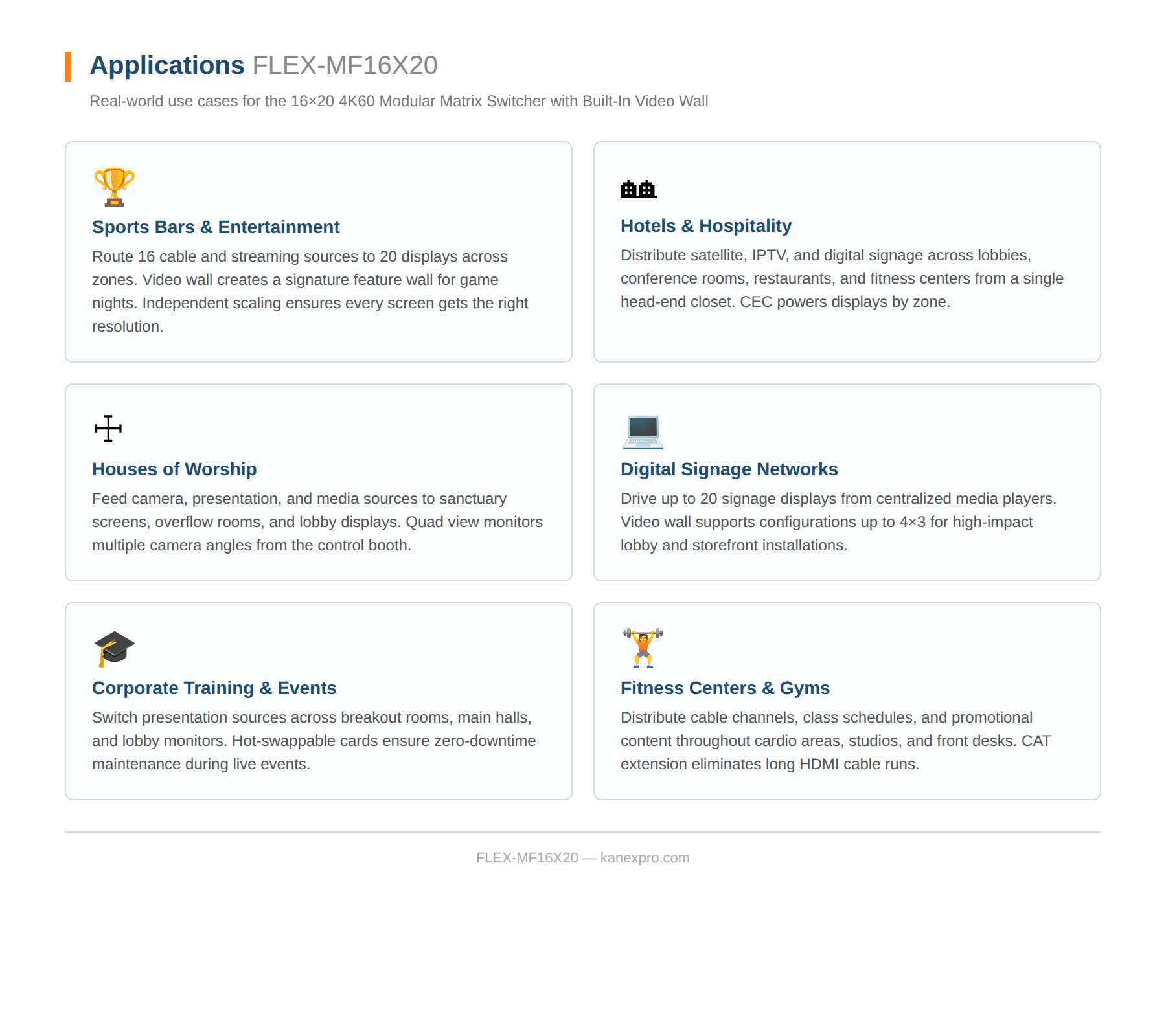

It allows for flexible video distribution with 4K/UHD resolution at 60Hz. This specific model supports up to 16 HDMI inputs and 20 HDMI outputs, all in 4K 60Hz, making it ideal for high-quality video distribution in a variety of environments like bars, restaurants, digital signage, and live event streaming.

  • Up to 16 inputs of 4K/UHD HDMI video (2 card slot)
  • Up to 20 outputs of 4K/UHD HDMI video (2 card slot)
  • HDMI 2.0, 18Gbps and HDCP 2.2 support
  • Low cost single CAT cable to each display
  • Selectable independent scaling on all outputs
  • Video wall up to 12 displays (1x12, 2x6, 3x4, 4x3, 6x2, 12x1)
  • Multi view (Quad view)
  • CEC display control
  • Audio extraction on all inputs
  • 7” front panel touch control
  • Hot-swappable design allows easy replacement of slots and FAN modules
  • RS-232, TCP/IP, Web UI control functions

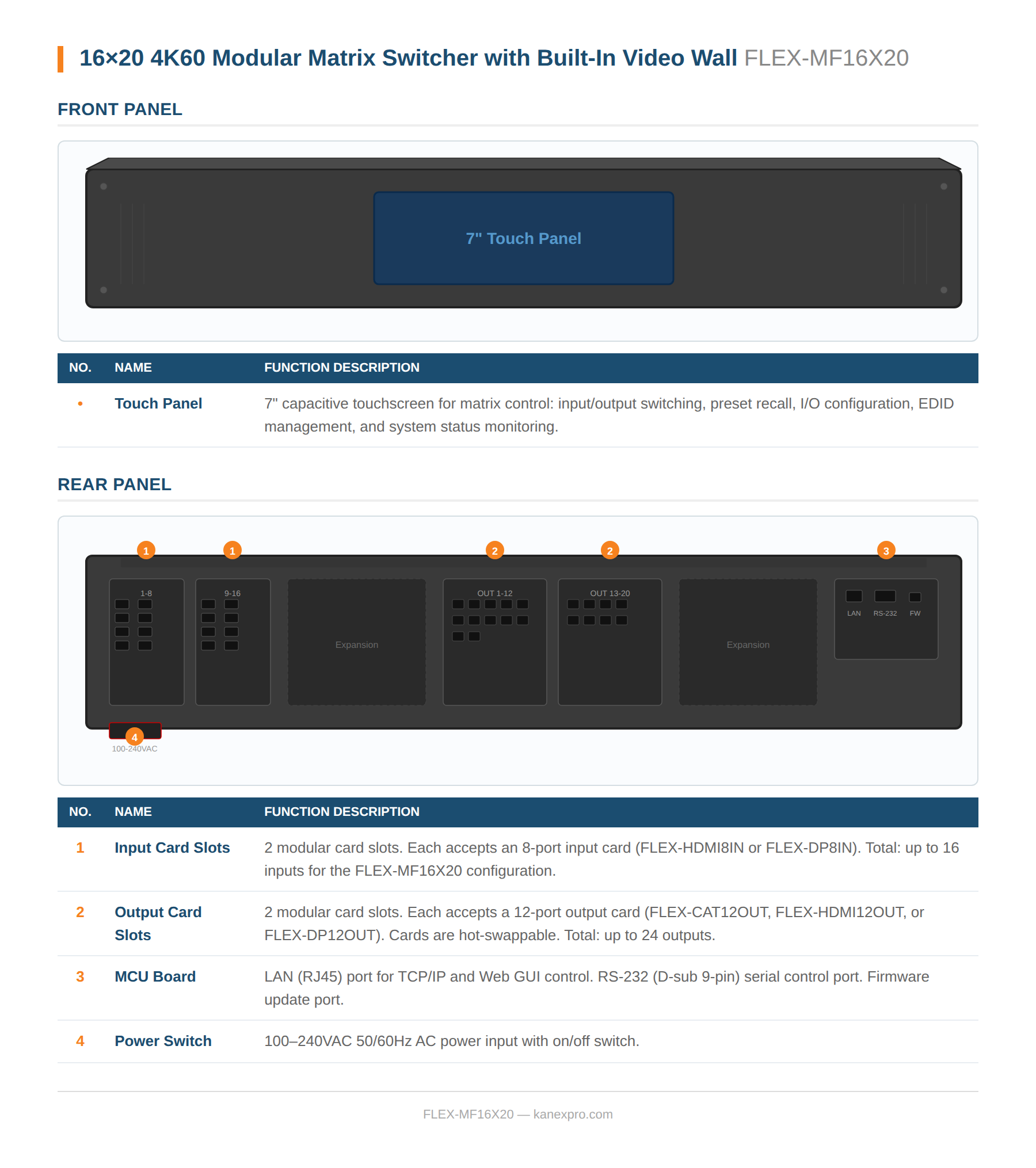

Connection

Input

2 Card Slot

[ Input Card

Option: FLEX-HDMI8IN]



Output

2 Card Slot

[ Output Card

Option1: FLEX-HDMI12OUT

Option 2: FLEX-CAT12OUT + FLEX-CATRX]



Controlports

1 x RS-232 [DB9 Connector]

1 x RJ 45

1x Service Point

Mechanical

Housing

Metal Enclosure

Colour

Black

Power Supply

Input:AC100-240V50/60Hz, 800 W

MTBF

 50,000 hrs

Temperature & Humidity

0~40°C, Humidity below 80%

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2

Video Bandwidth

18Gbps

Video Resolution

Up to 3840x2160 60Hz 4:4:4 (8bit)

Color Space

RGB and YCbCr 4:4:4, YCbCr 4:2:2:/4:2:0

Color Depth

8, 10, 12 bits per Color



Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby True HD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

HDR

 Supports

Video Wall

 Up to 12 Display

Multi View

 Quad View

Audio Extraction

 All Inputs
