Modular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall

Scalable HDMI-over-CAT Switcher (8x10 to 24x60) with Per-Output Resolution Control, Quad View & CEC Display Management

  • Modular 4K 60Hz Matrix Chassis with Independent Scaling & Video Wall
1 1

KanexPro

SKU: FLEX-MF8X10

UPC: 813982023147

View full details

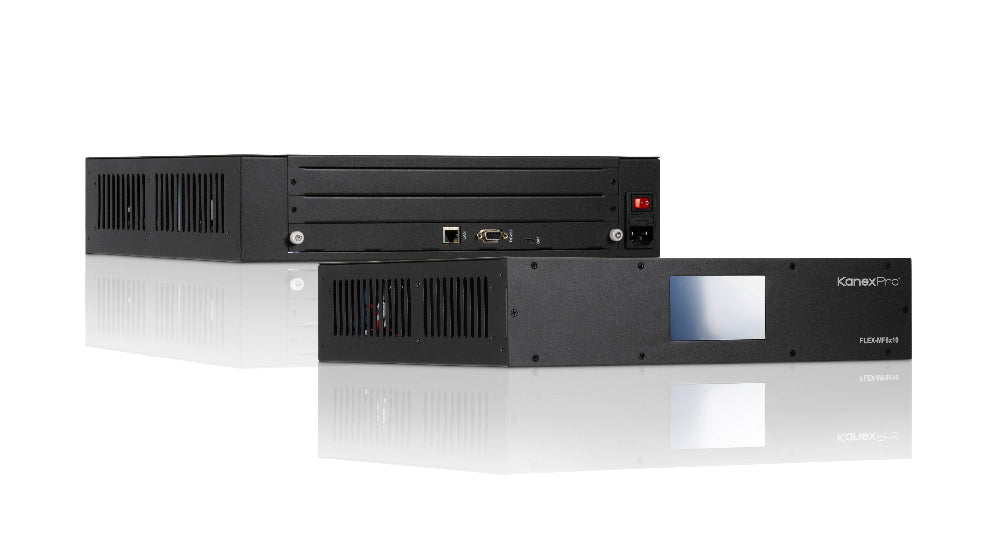

Eliminate the tradeoff between scalability and simplicity in multi-zone video distribution. The KanexPro FLEX-MF8X10 is a modular 4K 60Hz matrix chassis that routes up to 8 HDMI sources to 10 CAT-extended displays with independent per-output scaling.

Built on a modular card architecture that scales from 8x10 to 24x60, the matrix supports HDMI 2.0 at 18Gbps with HDCP 2.2, HDR, and full 4K60 4:4:4 color. Integrated video wall (up to 4x3), quad view, EDID management, and CEC display control.

  • Routes up to 8 HDMI 2.0 sources to 10 CAT-extended displays at 4K60 4:4:4 with 18Gbps and HDCP 2.2/1.x
  • Independent per-output scaling from 480p to 4K60
  • Video wall up to 4x3 with 30 groups and bezel compensation
  • Quad view with 3 layouts for confidence monitoring
  • Modular card architecture scales from 8x10 to 24x60
  • HDR with Dolby TrueHD, DD+, DTS-HD Master, DTS:X, LPCM 7.1
  • CEC display control through CAT receivers
  • Front-panel touchscreen, RS-232, TCP/IP, Web GUI with 8 presets
SpecificationValue
Technical
StandardHDMI 2.0, HDCP 1.x/2.2
ResolutionUp to 3840x2160 60Hz 4:4:4
Data Rate18 Gbps
Color Depth8/10/12 bits
HDRSupported
ScalingAuto, 480p-4K60, multiple fixed resolutions
Video WallUp to 4x3, 30 groups, bezel comp
Quad View3 layouts
Audio
FormatsLPCM 7.1, DD, TrueHD, DD+, DTS-ES, DTS-HD MA, DTS:X
Connection
Input8x HDMI Type A per card
Output12x CAT RJ45 per card
ControlRS-232, TCP/IP, Web GUI
ReceiverFLEX-CATRX (sold separately)
Mechanical
Dimensions445x355x450mm (17.5x14x17.7in)
Weight21 kg (46 lbs)
Power100-240VAC, 540W
Environment32-104F, 10-90% RH
Package Contents
1xFLEX-MF8X10 Chassis
-Cards sold separately

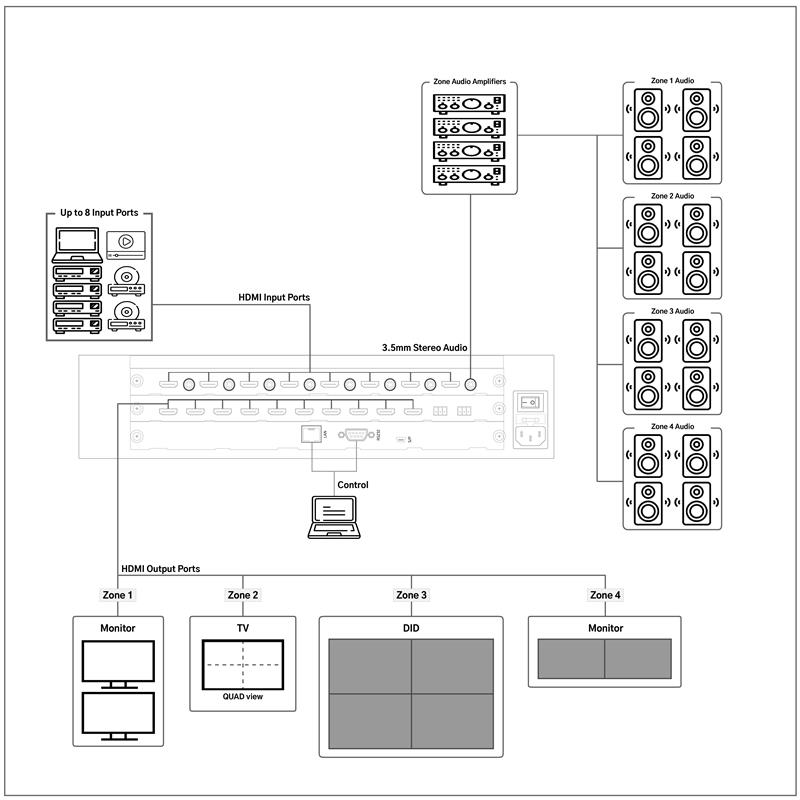

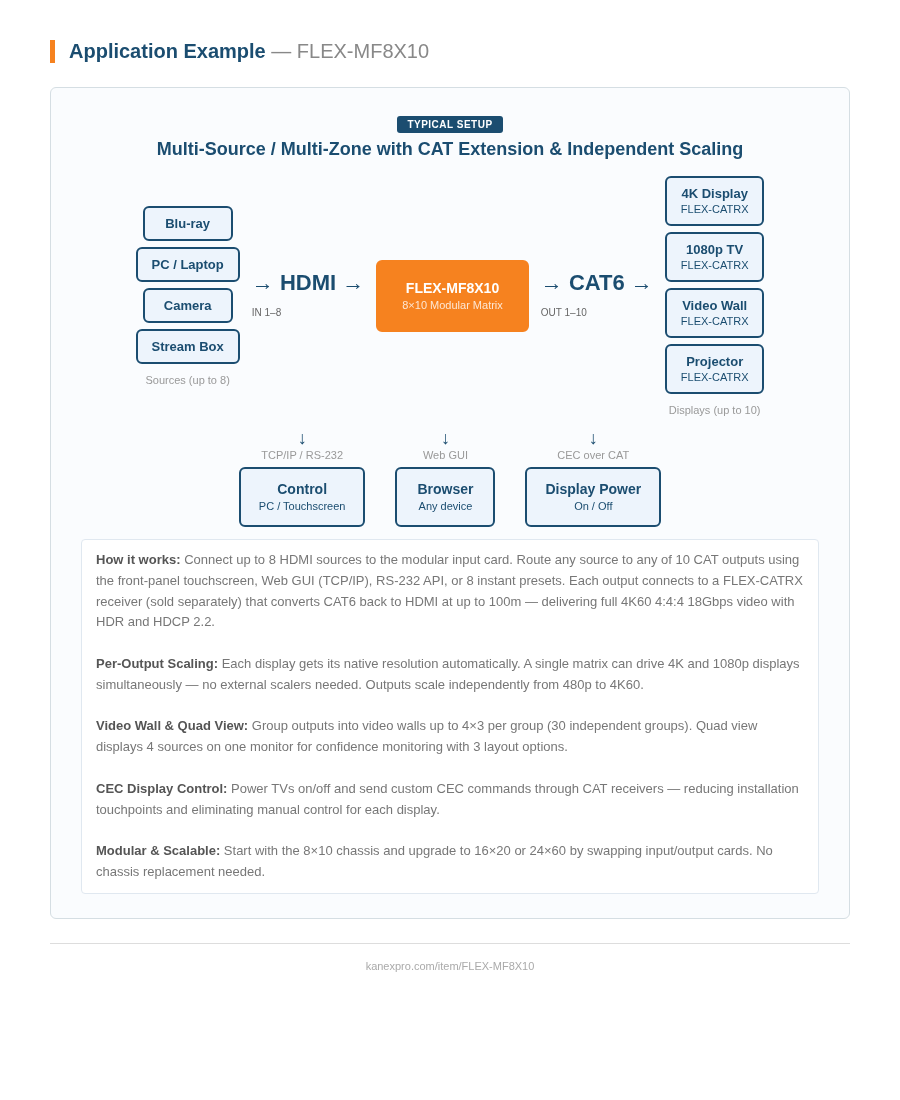

Product Diagram

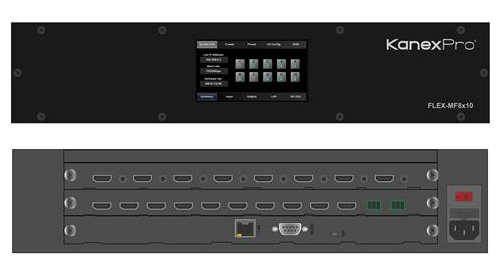

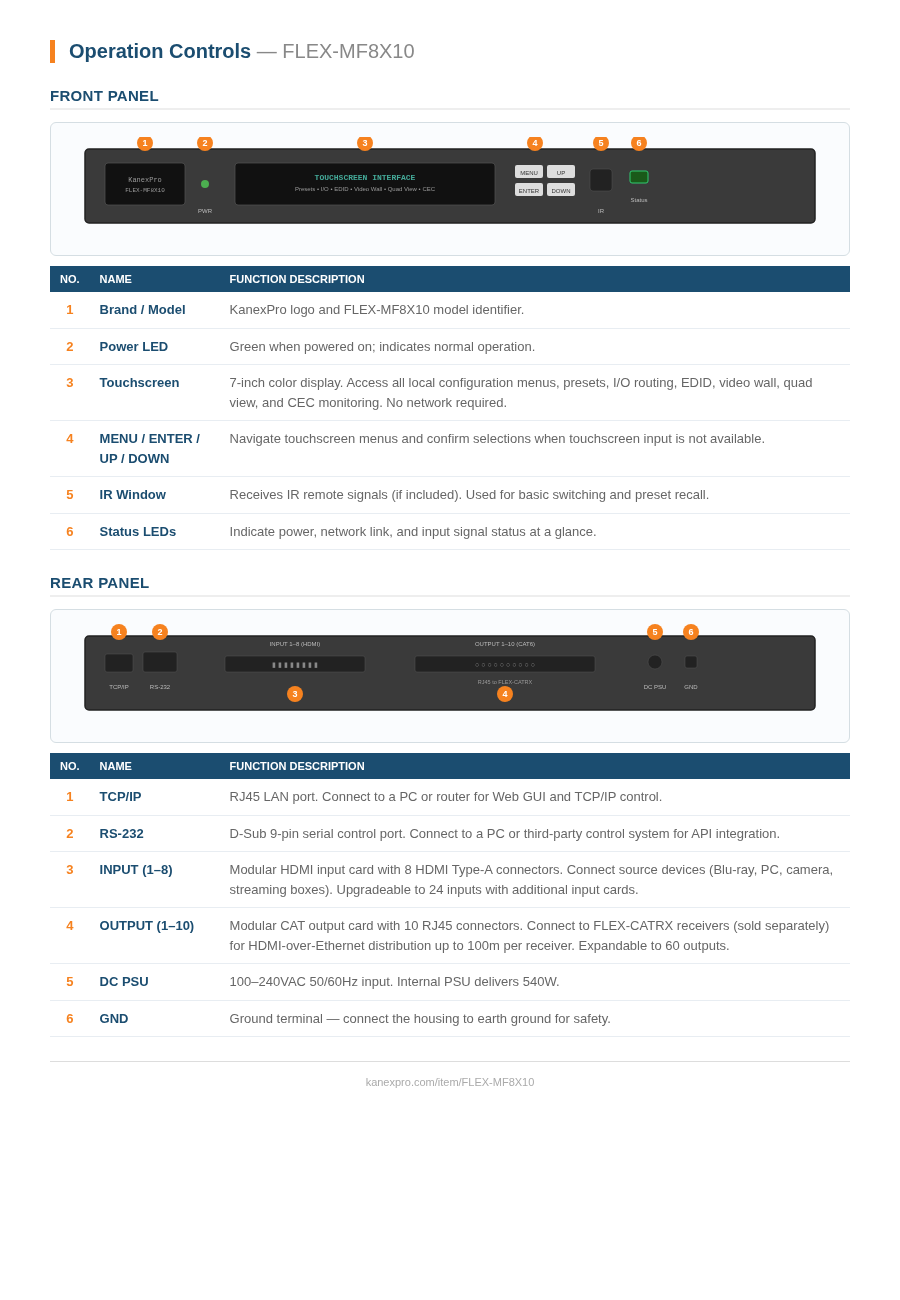

Product Panel
