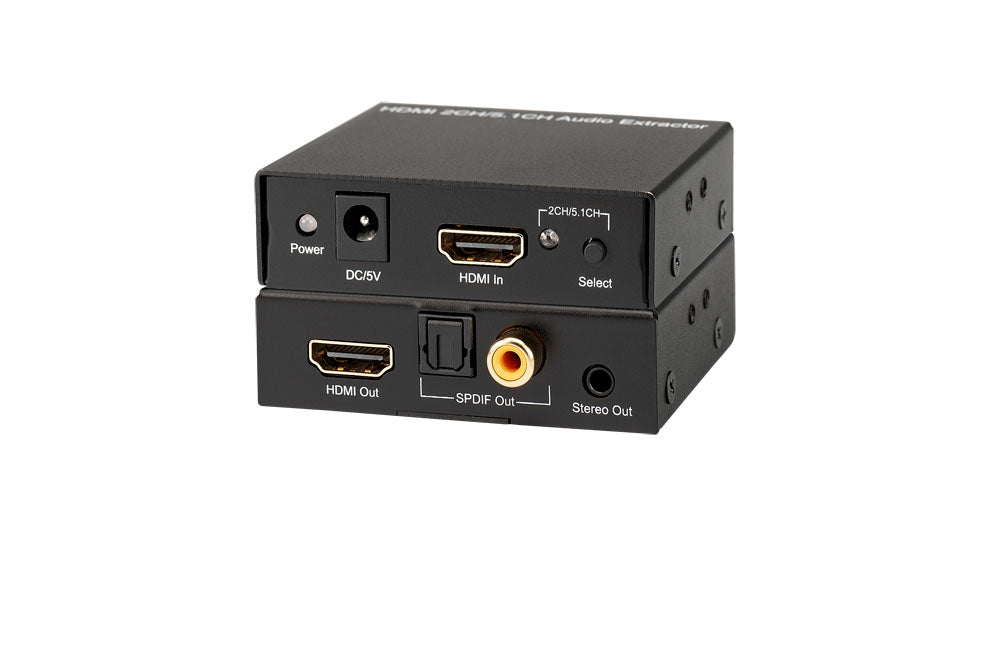

HDMI Audio De-Embedder
Extract Stereo and Surround Audio from Any HDMI Source to Optical, Coaxial, and Analog
The KanexPro HAECOAX is a straightforward HDMI audio de-embedder designed for reliable audio extraction from HDMI sources in legacy and value-tier installations. It extracts HDMI digital audio output simultaneously to stereo analog and S/PDIF digital outputs — providing uncompressed multichannel audio up to 5.1 channel surround sound from any HDTV-compatible source at resolutions up to 1080p/60. A front-panel 2.0CH / 5.1CH button lets users instantly toggle between stereo and surround audio output modes. Automatic input cable equalization compensates for signal loss on longer HDMI input cable runs, and the unit simultaneously outputs to Toslink optical, coaxial S/PDIF, and 3.5mm stereo analog.

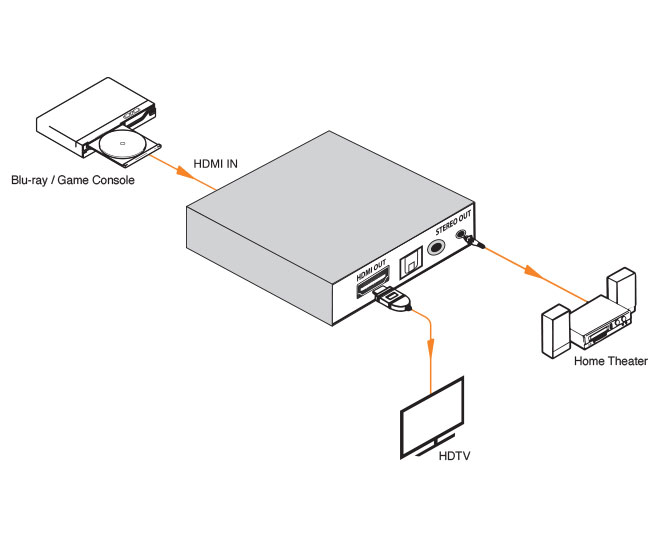

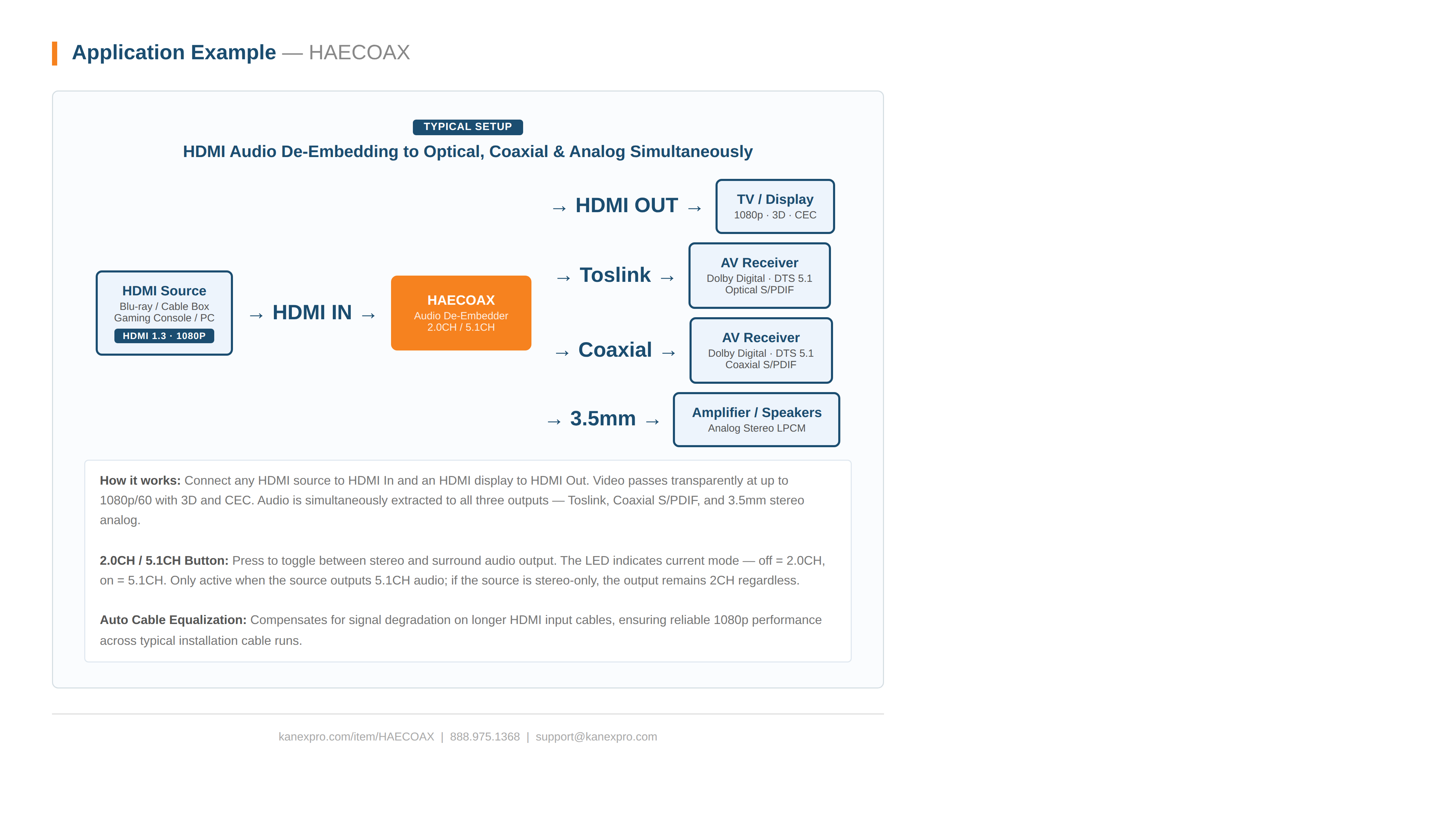

- Extracts HDMI digital audio simultaneously to Toslink optical, coaxial S/PDIF, and 3.5mm stereo analog
- HDCP compliant — compatible with all HDCP-protected content sources
- Supports 3D and CEC pass-through

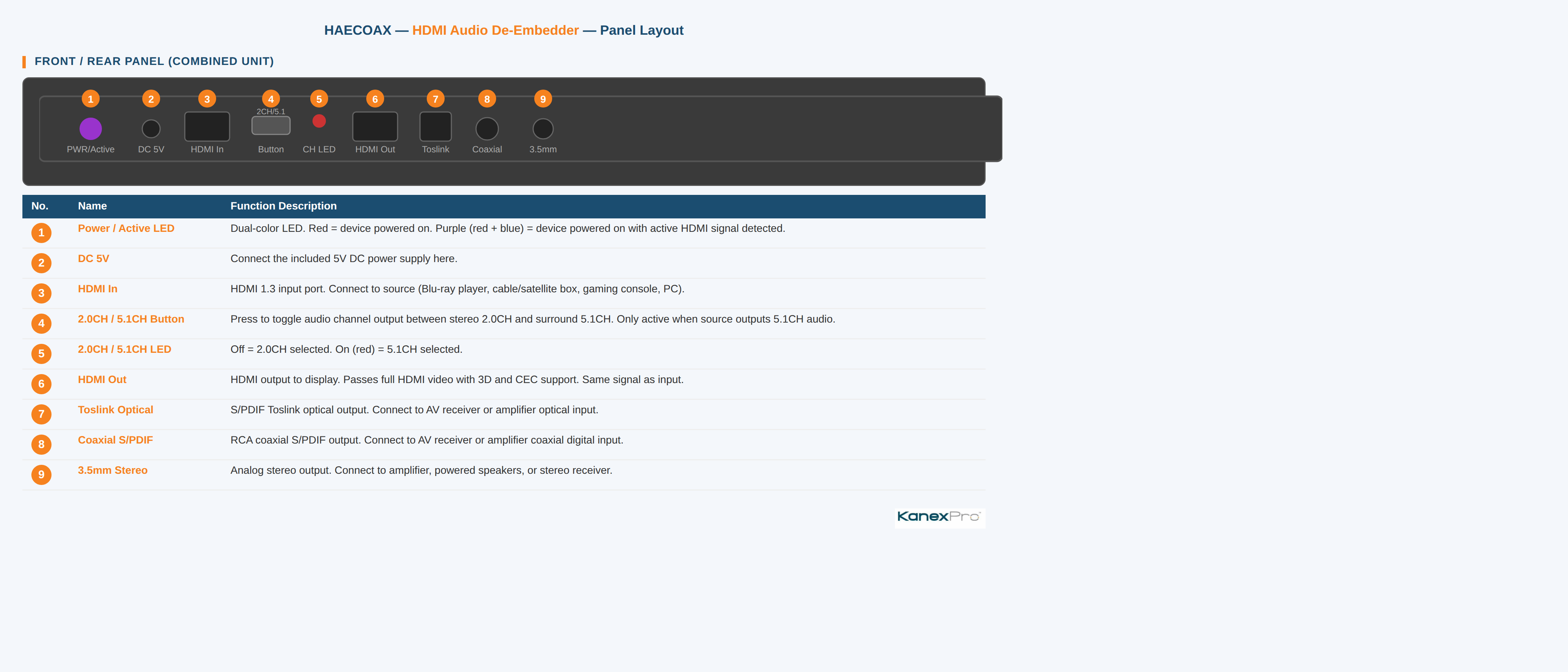

- Front-panel 2.0CH / 5.1CH audio channel selection button

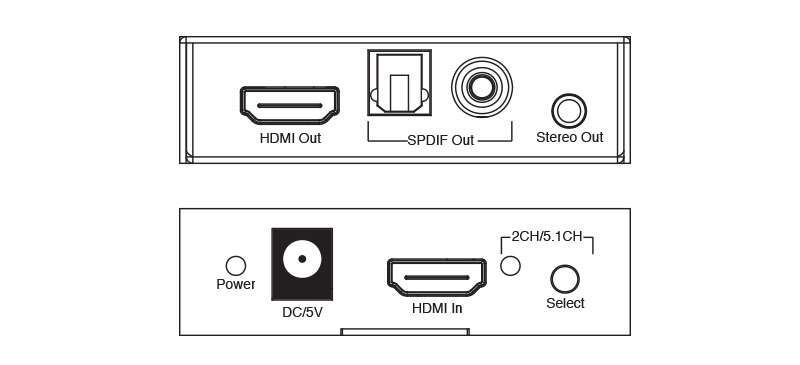

- Dual-color LED: red = power, purple = active (power + signal)
- Supports data rates up to 6.75Gbps — HDMI 1.3 with Deep Color
- HDTV resolutions to full 1080p/60 and PC resolutions to 1920×1200
- Supports uncompressed audio (LPCM) and compressed formats (DTS Digital, Dolby Digital)
- Supports Color Depth up to 12-bit per channel (36-bit all channels)
- Automatic input cable equalization for reliable performance on longer cable runs
- Selectable audio pass-through switching for flexible system integration
| Video | |
| HDMI Compliance | HDMI 1.3 (Deep Color) |
| HDCP Compliance | HDCP compliant |
| Video Bandwidth | 6.75Gbps / 225MHz |
| Video Resolution | Interlaced: 480i, 576i, 1080i (50/60Hz)<br>Progressive: 480p, 576p, 720p, 1080p (50/60Hz)<br>PC: up to 1920×1200 |
| Color Depth | Up to 12-bit per channel (36-bit all channels) |
| 3D / CEC | Pass-through |
| Audio | |
| Audio Formats | LPCM (uncompressed), Dolby Digital, DTS Digital Surround |
| Channel Selection | 2.0CH / 5.1CH (front-panel button) |
| Connections | |
| Input | 1× HDMI Female |
| Output | 1× HDMI Female<br>1× Toslink Optical (S/PDIF)<br>1× Coaxial S/PDIF (RCA)<br>1× 3.5mm Stereo Analog |
| Mechanical | |
| Power Supply | External DC 5V @ 2A |
| Power Consumption | 2.5W (Max) |
| Cable Equalization | Automatic input cable equalization |
| Environment | |
| Operating Temperature | 0°C – 70°C |
| Operating Humidity | 10%–80% RH (non-condensing) |
| Storage Temperature | -10°C – 80°C |
| Storage Humidity | 5%–90% RH (non-condensing) |
| Package Contents | |
| Includes | 1× HAECOAX Main Unit<br>1× 5V DC Power Supply<br>1× User Manual |
