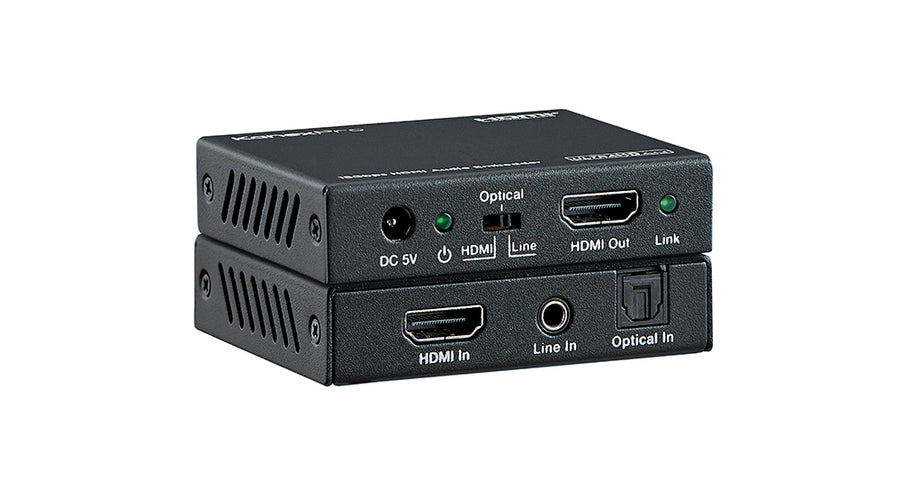

4K HDMI Audio Embedder
Insert Optical or Analog Audio into Any HDMI 2.0 Signal
HAECOAX4UPC 813982022393
Overview

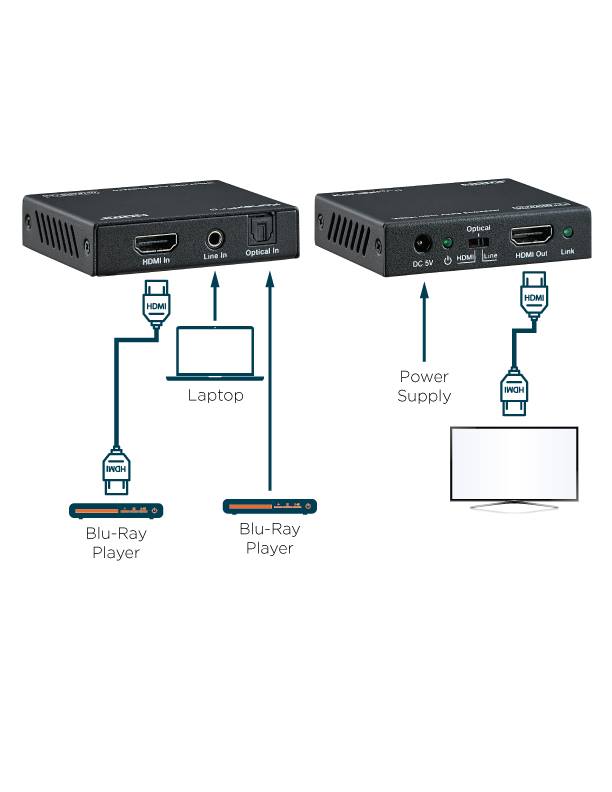

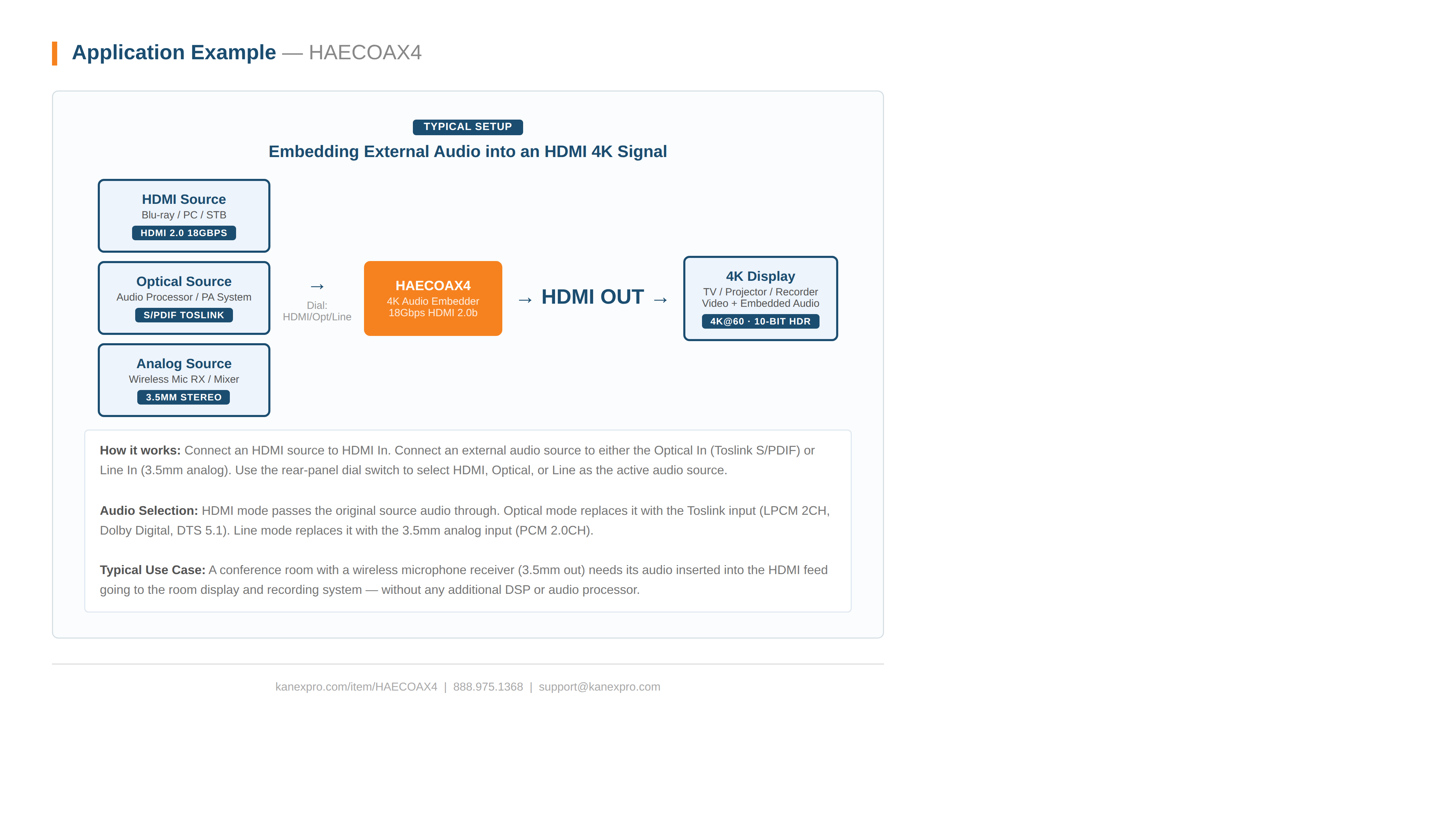

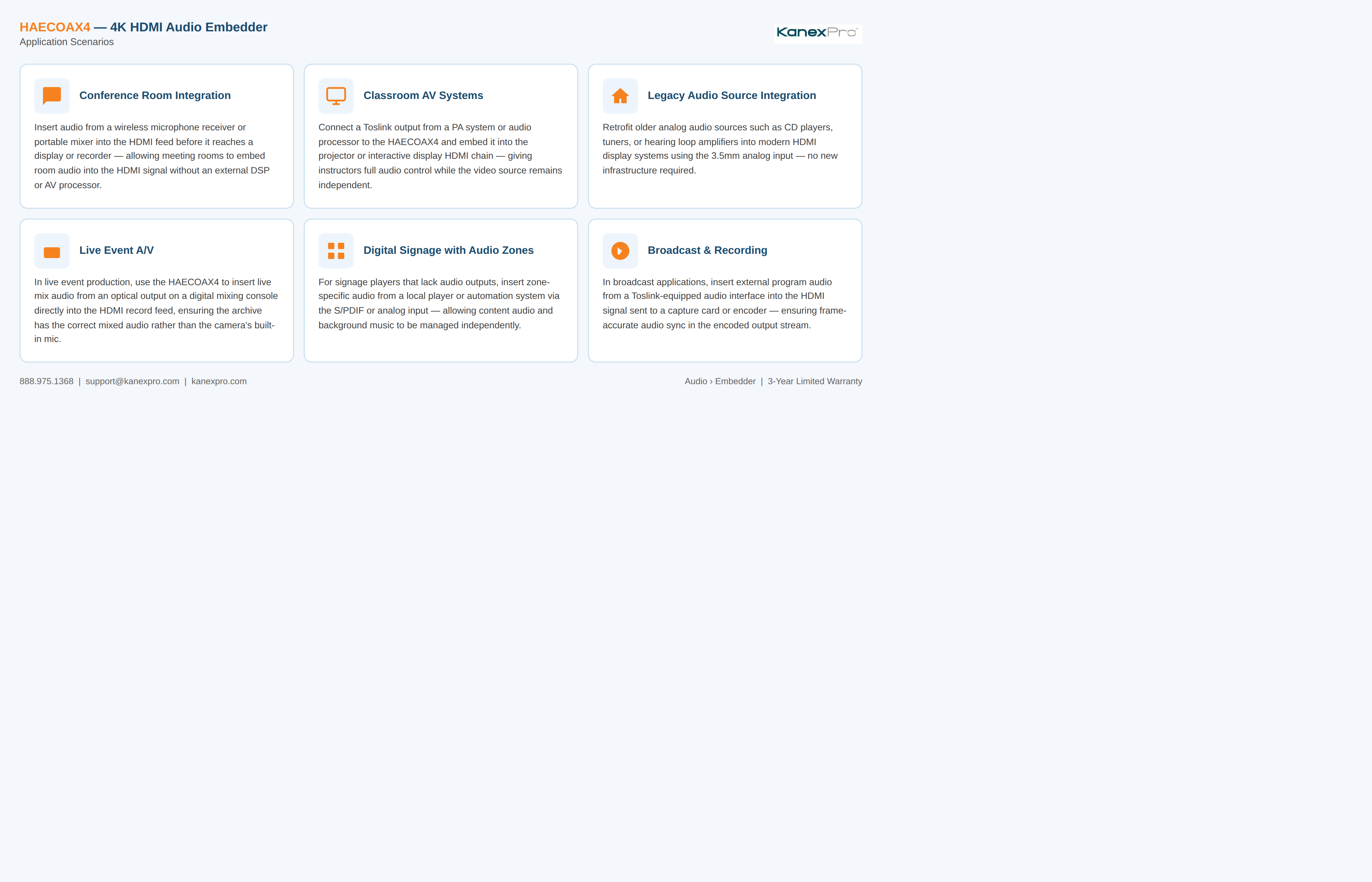

The KanexPro HAECOAX4 is a professional 4K HDMI audio embedder designed for integrators who need to insert external audio from digital optical or analog stereo sources directly into an HDMI signal chain. Supporting 18Gbps HDMI 2.0b bandwidth with 4K@60Hz 4:4:4 and 10-bit HDR pass-through, it accepts audio from a Toslink S/PDIF input or 3.5mm analog line input and seamlessly embeds it into the outgoing HDMI stream. A front-panel dial switch lets the installer instantly select between HDMI audio pass-through, Optical input, or Line analog input — making it ideal for conference rooms, classrooms, and installations where legacy audio sources need to be inserted into an HDMI display or recording chain.
Key features
- Embeds multi-channel optical (S/PDIF) or analog stereo Line audio into HDMI output
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
- Video resolutions up to 4K@50/60Hz (YUV 4:4:4), 4K@30Hz, 1080P@120Hz
- 10-bit HDR (High Dynamic Range) pass-through
- HDMI High Bit Rate (HBR) audio pass-through from HDMI source
- Optical audio: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- Analog audio: PCM 2.0CH stereo input via 3.5mm mini-jack
- Supports CEC bypass for transparent device control

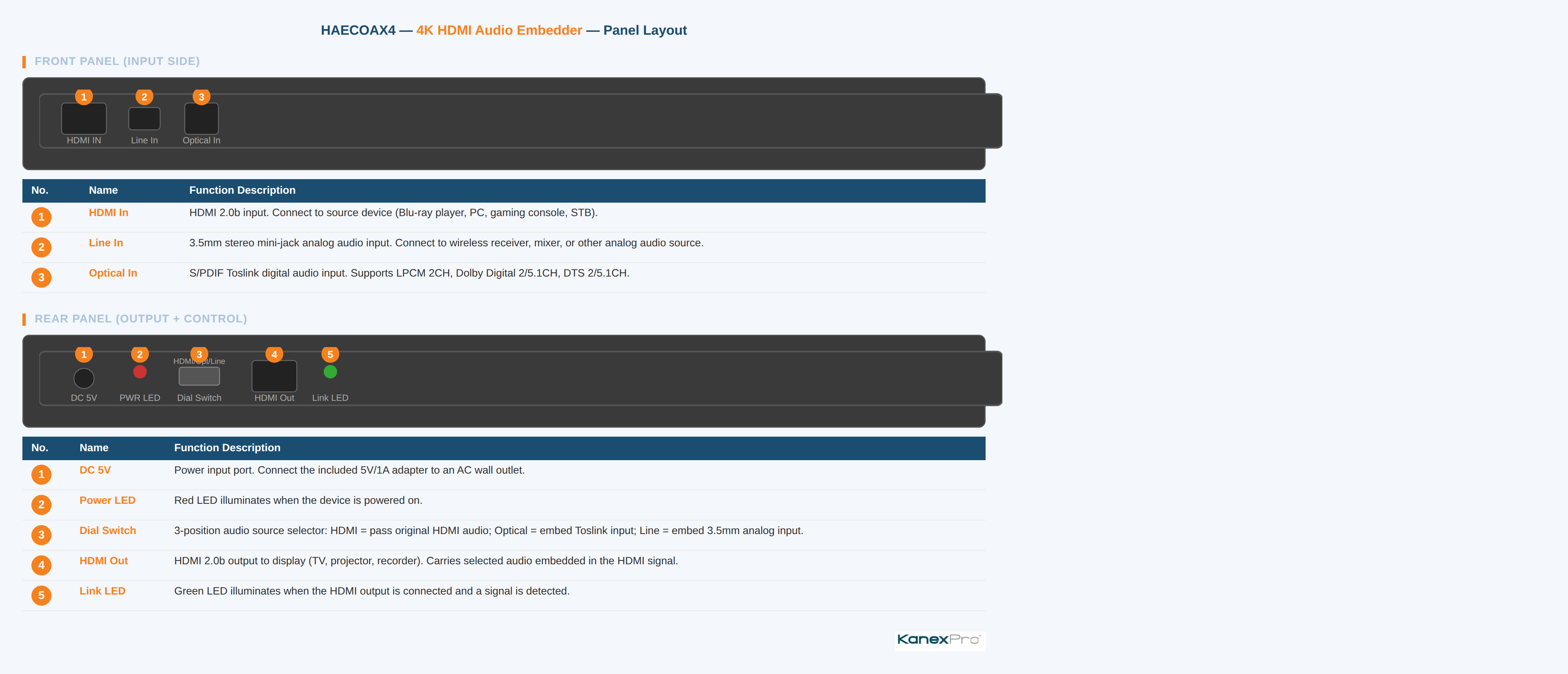

- Front-panel dial switch: HDMI / Optical / Line audio source selection
- Audio sampling rates up to 192kHz for highest fidelity
- Compact metal enclosure: 73.5×60.7×17mm, 122g
| Video | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@50/60Hz (YUV 4:4:4); 4K@30Hz; 1080P@120Hz; 1080P 3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:0 |
| Color Depth | 10-bit, 12-bit |
| HDR | 10-bit HDR (High Dynamic Range) pass-through |
| Audio | |
| HDMI Audio (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Input | LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| Line Audio Input | Analog Stereo 2CH |
| Audio Sampling Rate | Up to 192kHz |
| Connections | |

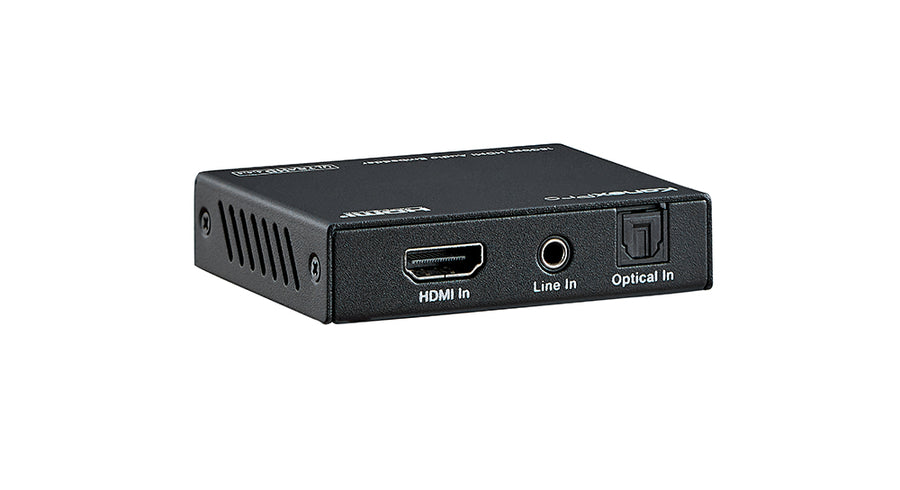

| Input Ports | 1× HDMI Type A [19-pin female]<br>1× Line In [3.5mm Stereo Mini-jack]<br>1× Optical In [S/PDIF] |

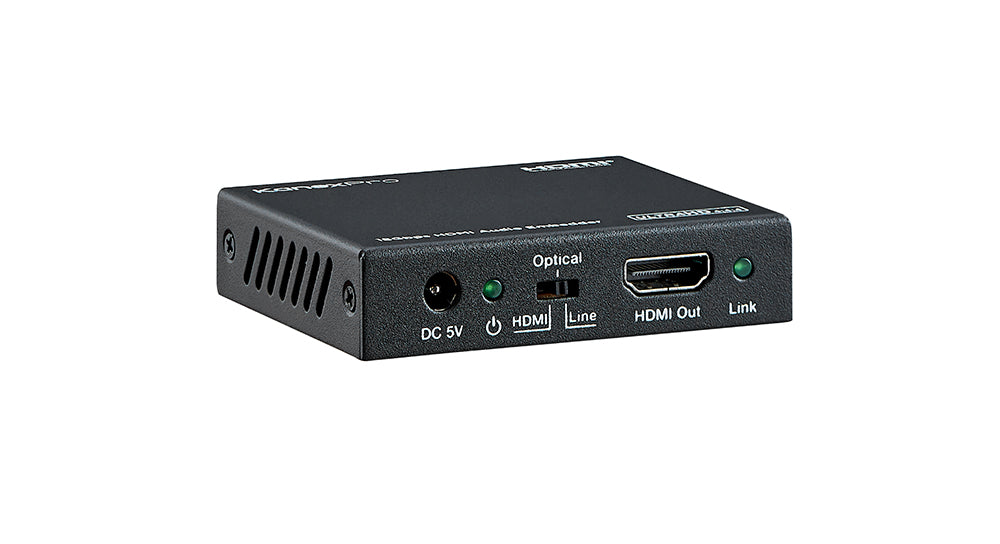

| Output Ports | 1× HDMI Type A [19-pin female] |
| Mechanical | |
| Dimensions | 73.5mm [W] × 60.7mm [D] × 17mm [H] |
| Weight | 122g |
| Housing | Metal Enclosure — Black |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 5V/1A (CE/FCC/UL certified) |
| Power Consumption | 1.25W |
| ESD Protection | ±8kV Air-gap discharge; ±4kV Contact discharge |
| Environment | |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Package Contents | |
| Includes | 1× HAECOAX4 18Gbps HDMI Audio Embedder<br>1× 5V/1A Power Adapter<br>1× User Manual |
