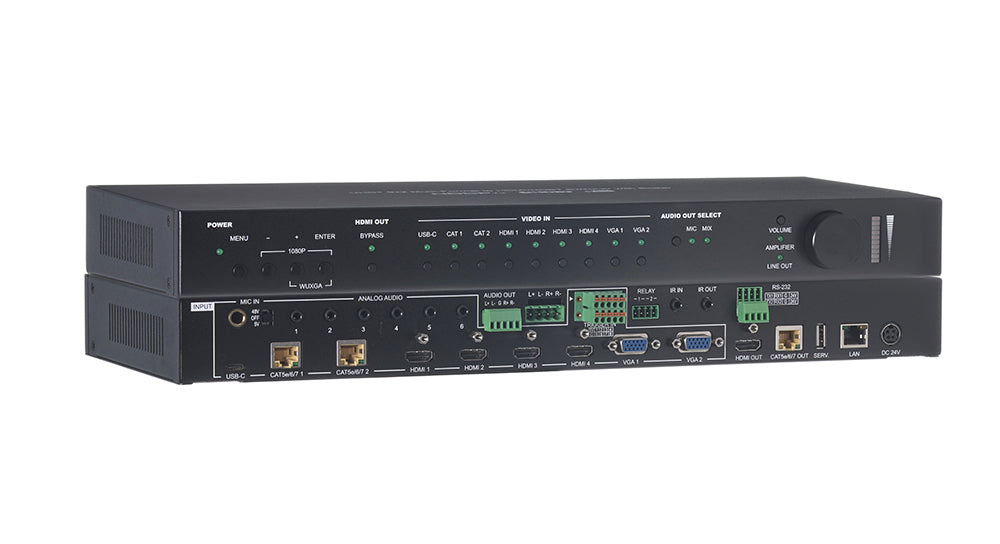

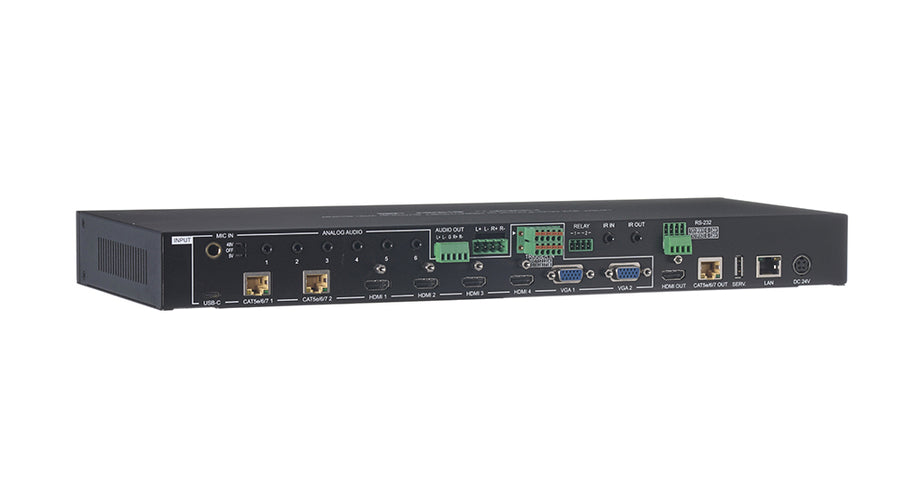

KanexPro 9 by 2 multi-format scaling switcher with HDBT In and Out

This KanexPro HDSC92D-4K is a 9 by 2 multi-format scaling switcher provides HDMI, USB-C, HDMI Extender, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDMI Extender outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDMI Extender output supports automatic color subsampling of 4K50/60 (4:4:4) sources to 4K50/60 (4:2:0). The VGA inputs support resolutions up to WUXGA. The HDMI Extender output provides a great solution to extend your audio and video up to 100 meters over a single run of Cat.6A cable as well as providing PoH power to compatible HDMI Extender Transmitters and Receivers.

This unit also includes multiple analog stereo audio inputs and a microphone input along with an amplifed analog stereo output to provide a range of audio routing and mixing fexibility. The built-in audio mixer function allows the user to mix audio from any LPCM 2.0 source with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and non-mixed audio greatly simplifes the presentation experience. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate functions with the simple press of a button. Standard control is available via front panel buttons with an On-Screen Display (OSD), WebGUI, Telnet, and RS-232 making it exceptionally versatile.

KanexPro MPN:

• HDSC92D-4KTX (https://www.kanexpro.com/item/?id=HDSC92D-4KTX)

• HDSC92D-4KRX (https://www.kanexpro.com/item/?id=HDSC92D-4KRX)

Applications

•     Lecture room display andcontrol

•     Showroom display andcontrol

•     Meeting room presentation andcontrol

•     Classroom display andcontrol

• HDMI 2.0 and DVI 1.0 compliant

• HDCP 1.x and 2.2 compliant

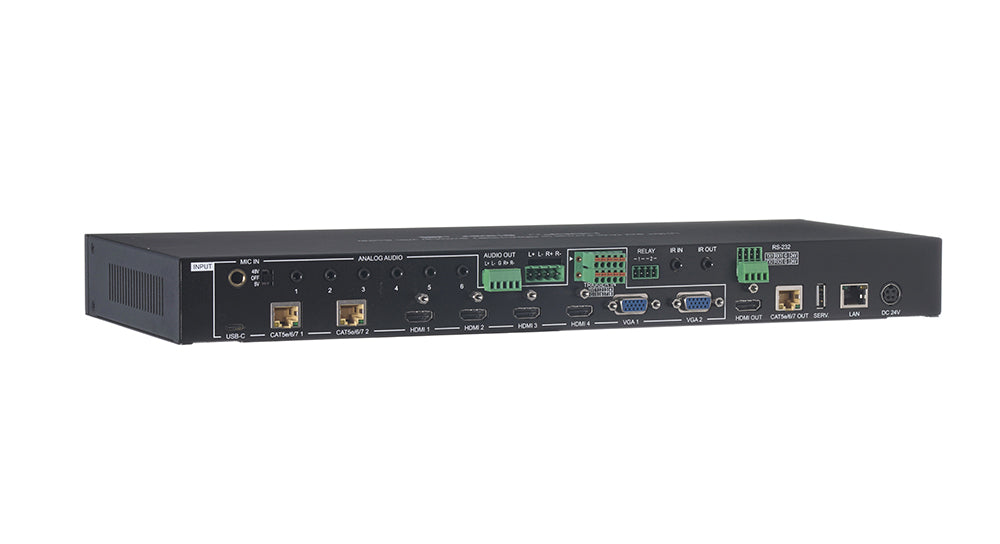

• 9 video inputs (1×USB-C, 2×HDMI Extender, 4×HDMI, 2×VGA)

• 2 mirrored video outputs (1×HDMI, 1×HDMI Extender)

• Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDMI Extender outputs

• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video

input (HDMI, USB-C) and output (HDMI)

• VGA input supports resolutions up to 1080p60/WUXGA (RB)

• HDMI Extender output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12- bit) sources will be automatically color space converted to within the available bandwidth

• Supports Deep Color input and output up to 12-bit (Bypass only)

• Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI Bypass only)

• HDMI Extender inputs/output extend video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat.6a/7

• Supports pass-through of many audio formats including LPCM (up to 8

channels), Bitstream and HD Bitstream

• Audio mixer function allows the mixing of audio from any LPCM 2.0 audio

source with the microphone input

• Trigger Control Keypad support for easy, single-button, function activation (Optional)

• Supports standard PoH (PSE) from the HDMI Extender output and HDMI Extender inputs to connected HDMI Extender (PD) transmitters and receiver (compatible transmitters/receivers only)

KanexPro MPN:

• HDSC92D-4KTX (https://www.kanexpro.com/item/?id=HDSC92D-4KTX)

• HDSC92D-4KRX (https://www.kanexpro.com/item/?id=HDSC92D-4KRX)

• Comprehensive EDID and HDCP management

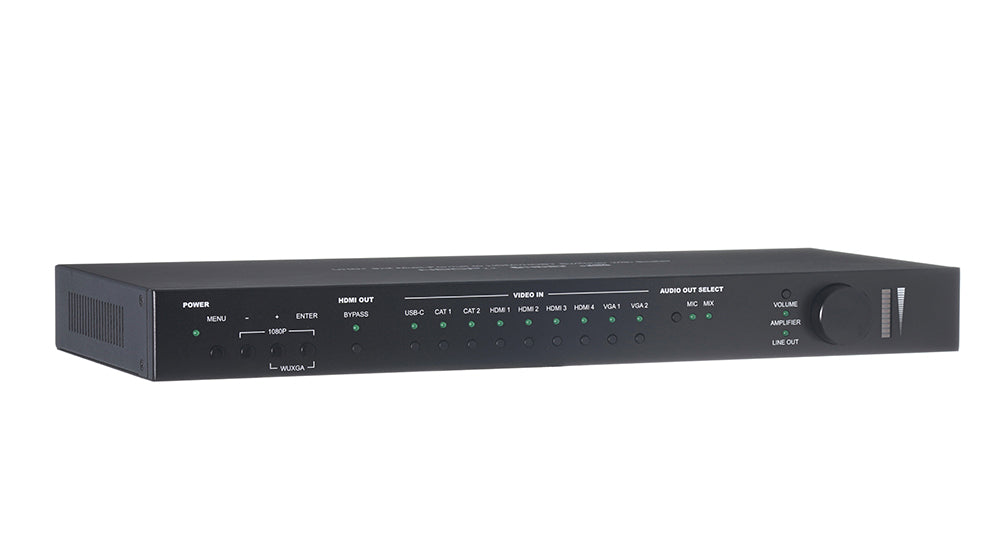

• Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers

• Backed by KanexPro 3 -Year Parts & Labor Warranty
