KanexPro Input Extender for HDSC92D-4K scaler

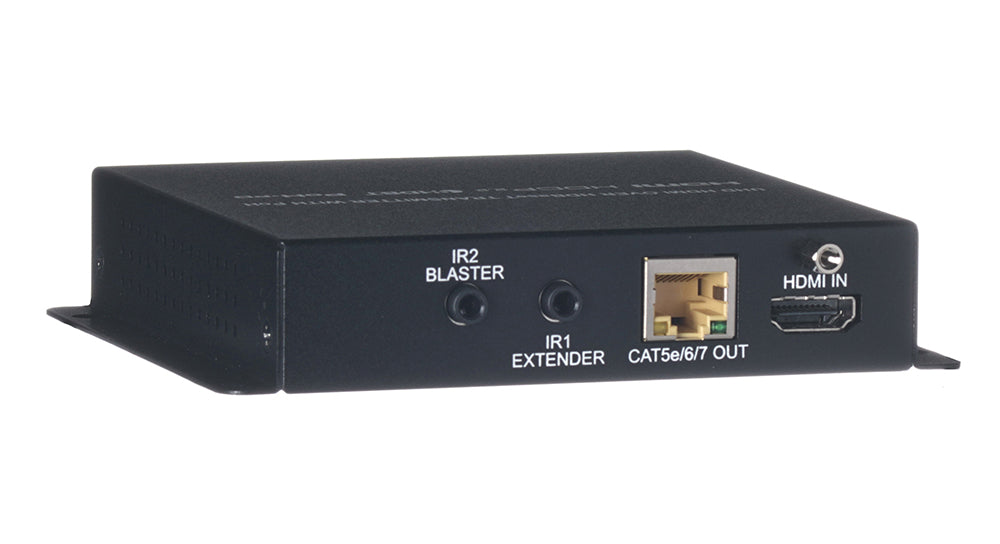

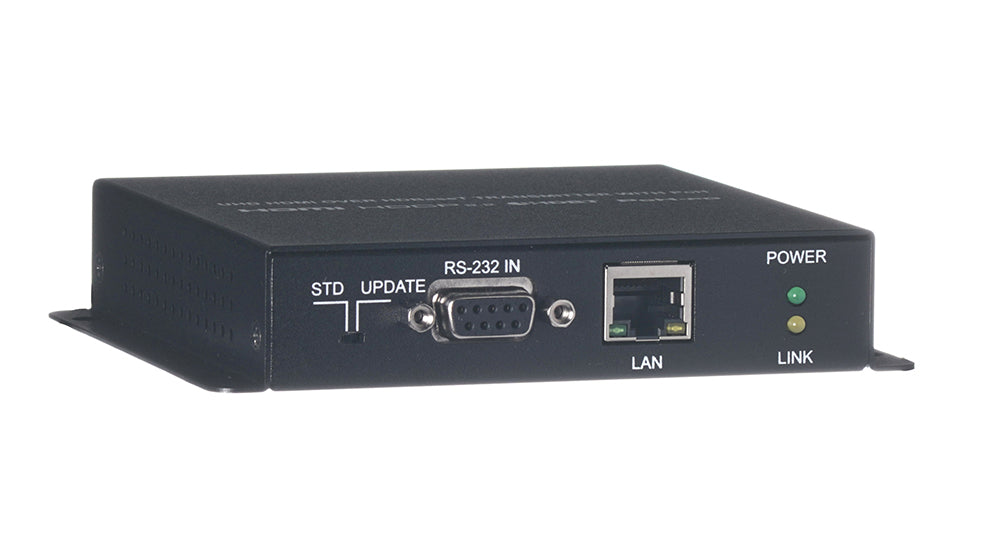

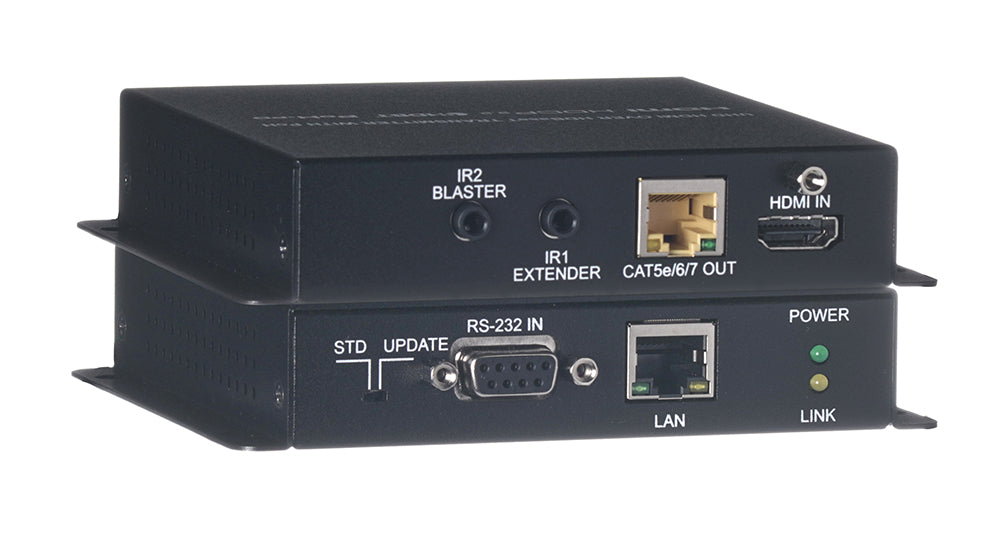

The KanexPro HDSC92D-4KTX is an HDMI over single Cat5e/6 Transmitter can send uncompressed audio/video and IP data over a single run of CAT5e/6/ cable at a distance up to 100 meters. The Receiver features passthrough of control through the built-in RS-232and IR ports and a bi-directional LAN connection which allows for integrators to pass data through the extender. The transmitter can be powered by the PoE 48V power which can be supplied by a POE injector or by the receiving device. This unit has been specifically designed to operate with the KanexPro HDSC92D-4K Scaler system or can be used as a stand-alone extender when combined with the KanexPro HDSC92D-4KRX receiver.

Applications

•     Household entertainment sharing and control

•     Lecture room display and control

•     Showroom display and control

•     Meeting room presentation and control

•     Classroom display and control

•     HDMI with 3D & 4K support, DVI 1.0compatible

•     HDCP 2.2 and HDCP 1.xcompliant

•     Supports resolutions up to 4K@50/60Hz (4:2:0,8-bit)

•     Supports CEC by pass

•     Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60and70m/230ft at 4K

•     HDBaseT feature support: HD Video and Audio, 100BaseTEthernet, 48VPoH, and Control (bidirectionalIR/RS-232pass-through)

•     Supports standard 48V PoH from Receiver (PSE) to Transmitter(PD)(compatible Transmittersonly)

Notes:

•   The 48V PoH function is designed to power compatibleTransmitter units only. Non-PoH Transmitters will need their own powersupply.Other brands of Transmitter may not becompatible.

•   The use of “Premium High Speed HDMI” cables ishighly recommended for displaying 3D and 4K content andcompatible display equipment isrequired.

• Backed by KanexPro 3 -Year Parts & Labor Warranty
