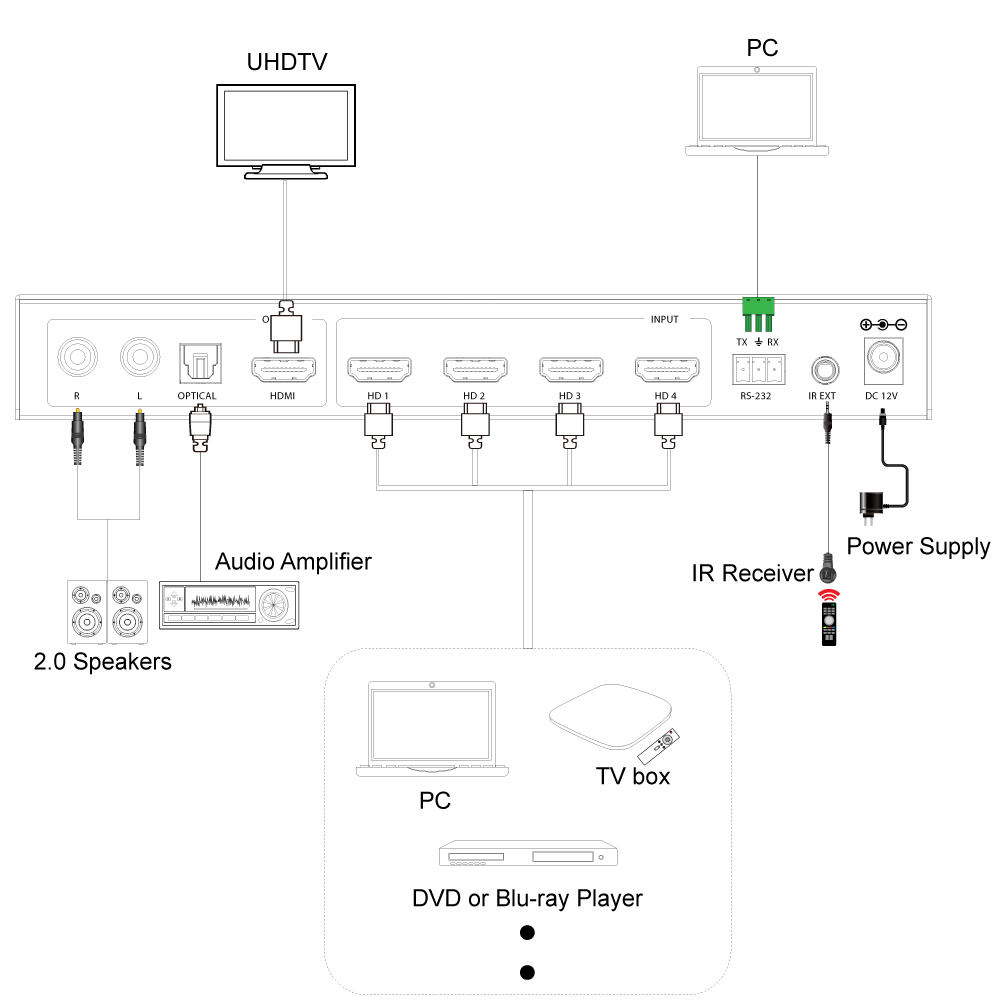

The KanexPro VW-MVIEW4X1 is designed to handle high-resolution video integration and display. Capable of supporting output resolutions up to 4K@60Hz 4:4:4, this device allows users to combine up to four video sources onto a single display. It offers flexible management of video inputs, enabling the creation of customized display layouts and adjustments of input positions on the screen.
This device can be controlled via front panel buttons, IR remote, OSD menu navigation,Controller Software, RS-232 commands.

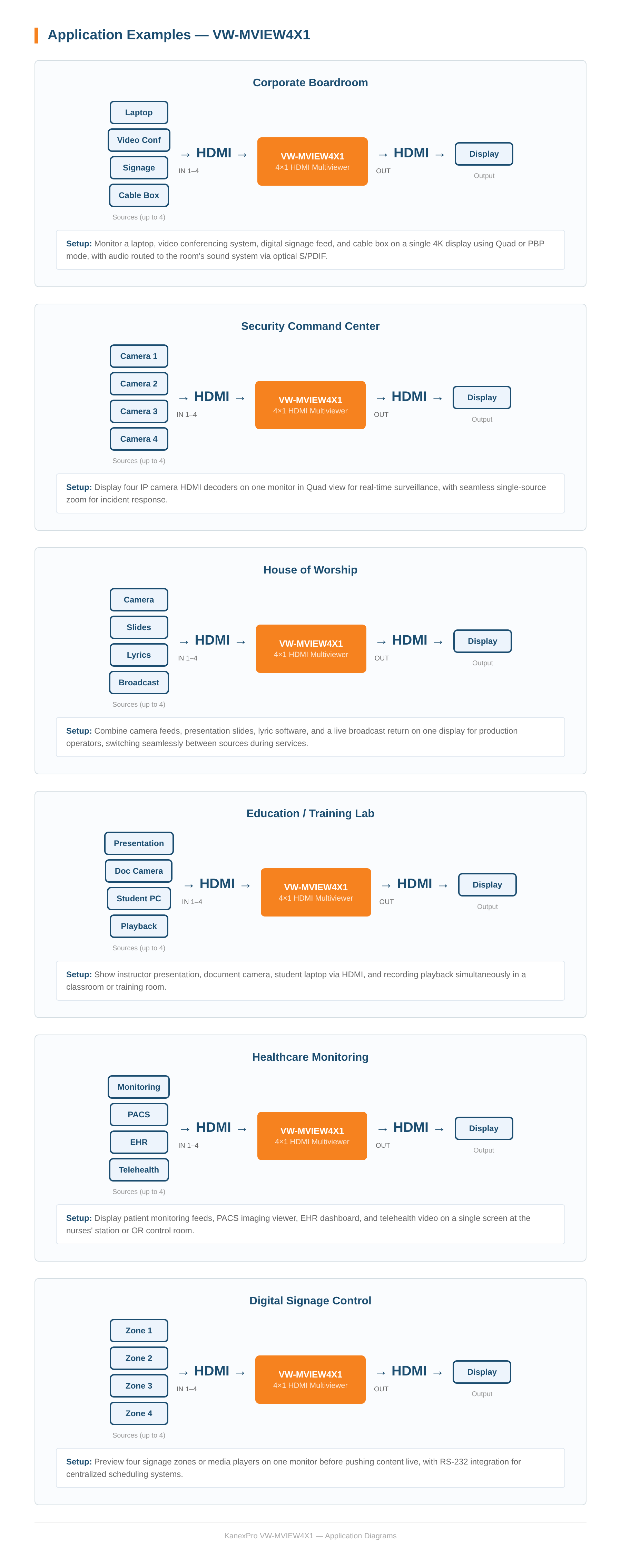

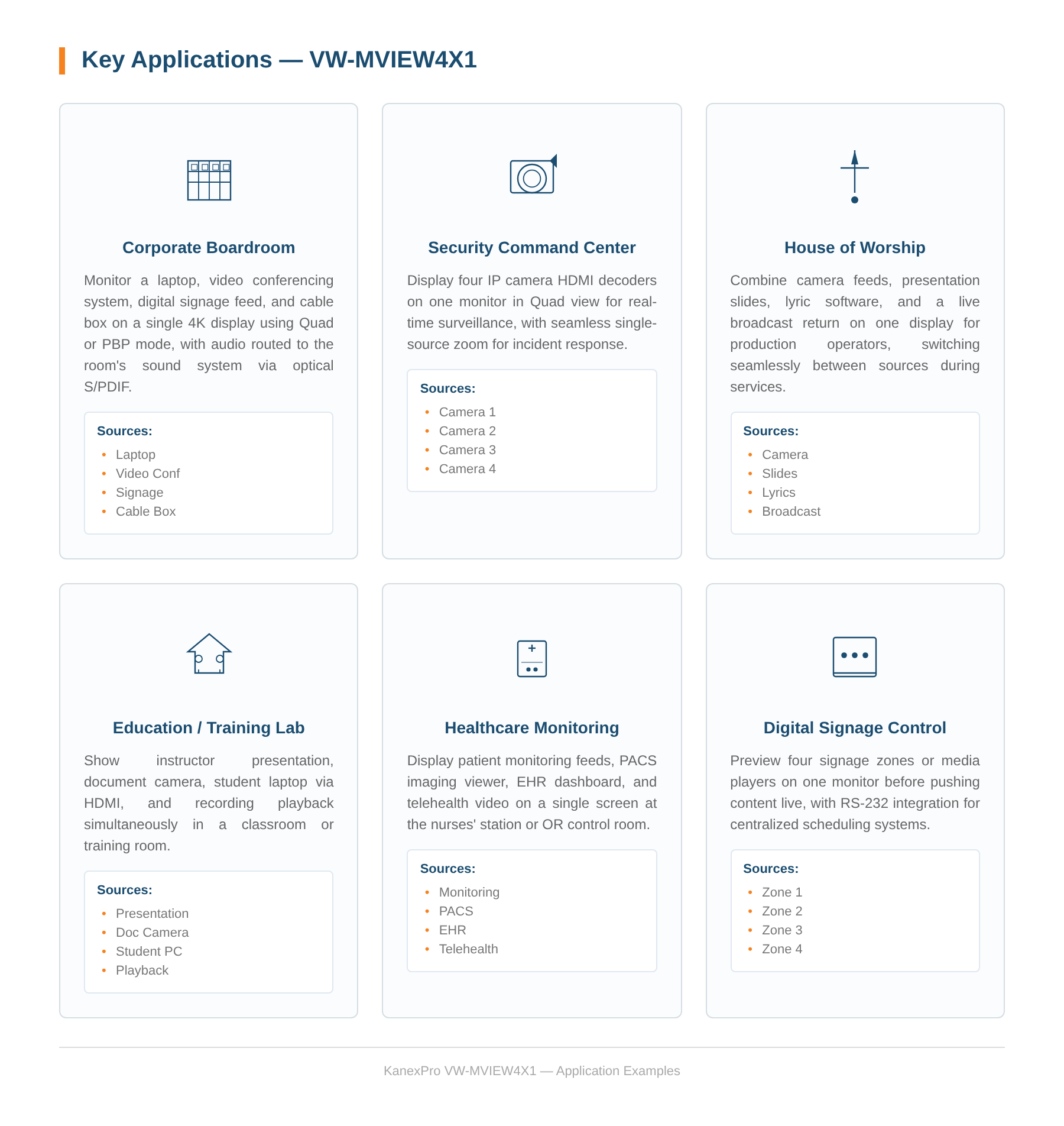

Broadcast Studios
- Allows operators to monitor multiple live video feeds simultaneously, enabling efficient switching and management during live broadcasts.
- Provides a comprehensive view of various camera angles and sources on a single display for directors and producers for Studio Monitoring.
Control Rooms
- For Security and Surveillance system , Integrates video feeds from multiple security cameras systems onto a single monitor, facilitating real-time monitoring and quick response to incidents.
- In Command Centres, It enables the viewing of different data sources, video feeds, and system statuses simultaneously for enhanced decision-making and coordination.
Corporate Environments
- Combines video inputs from multiple participants or sources into a single display, improving the effectiveness of virtual meetings and presentations during Video Conferencing.
- Supports the display of multiple content streams or advertisements on a single screen, useful for marketing and informational displays in lobbies or conference rooms.
Educational Settings
- At Classrooms and Lecture Halls, allows instructors to display and switch between various educational materials, video sources, and multimedia content on a single screen.
- Training Rooms are facilitating the simultaneous display of instructional videos, presentations, and live demonstrations for enhanced learning experiences.
Entertainment & Event Production
- Provides event organizers with the ability to display multiple video sources, such as speaker presentations, live feeds, and event graphics, on large screens.
- Enhances live events by combining multiple video feeds or camera angles for a more dynamic and engaging visual experience.
- Create dynamic displays with various video sources.
Home Theatre System
- Combines inputs from various home entertainment devices, such as gaming consoles, Blu-ray players, and streaming devices, onto a single display.
- Enjoy a seamless viewing experience with easy switching between sources.
Medical & Healthcare
- Display multiple diagnostic images or video feeds from different medical devices.
- Enhance the efficiency of medical procedures and consultation
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Supports 18Gbps video bandwidth
- Input and output resolutions support up to 4K@60Hz
- Supports LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
- Seamless switching between input channels and combined multiple images on single UHD monitor
- Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
- Seamless switching in single screen display mode
- Fast switching in multiview display mode
- Audio de-embedding via analog and optical fiber audio ports
- Supports volume control and independent audio selection
- Supports OSD navigation for advanced setting
- EDID management

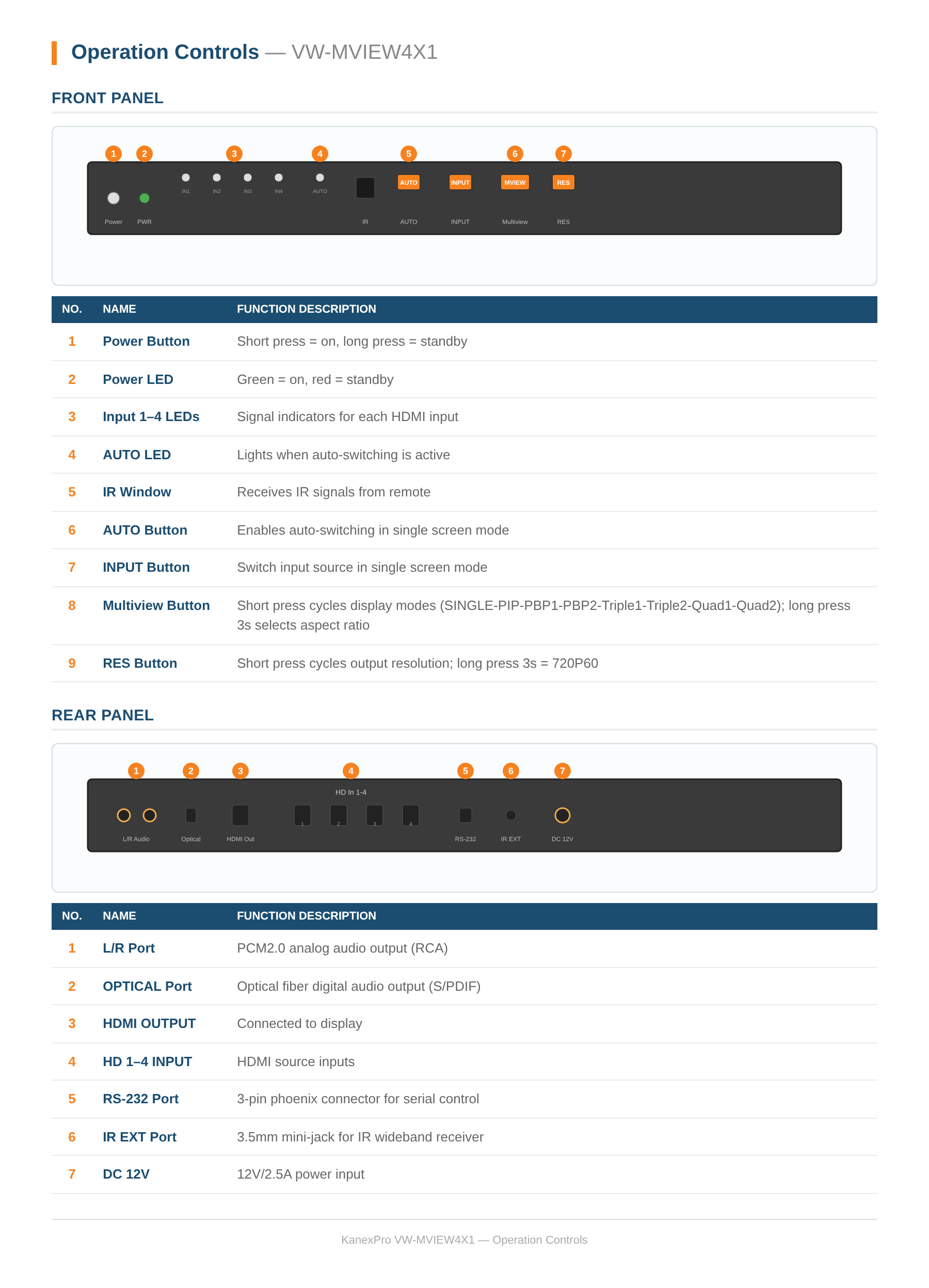

- Control via front panel buttons, IR remote, OSD menu navigation,Controller software, RS-232 commands
- Compact design for easy and flexible installation
| |
|
| |
|

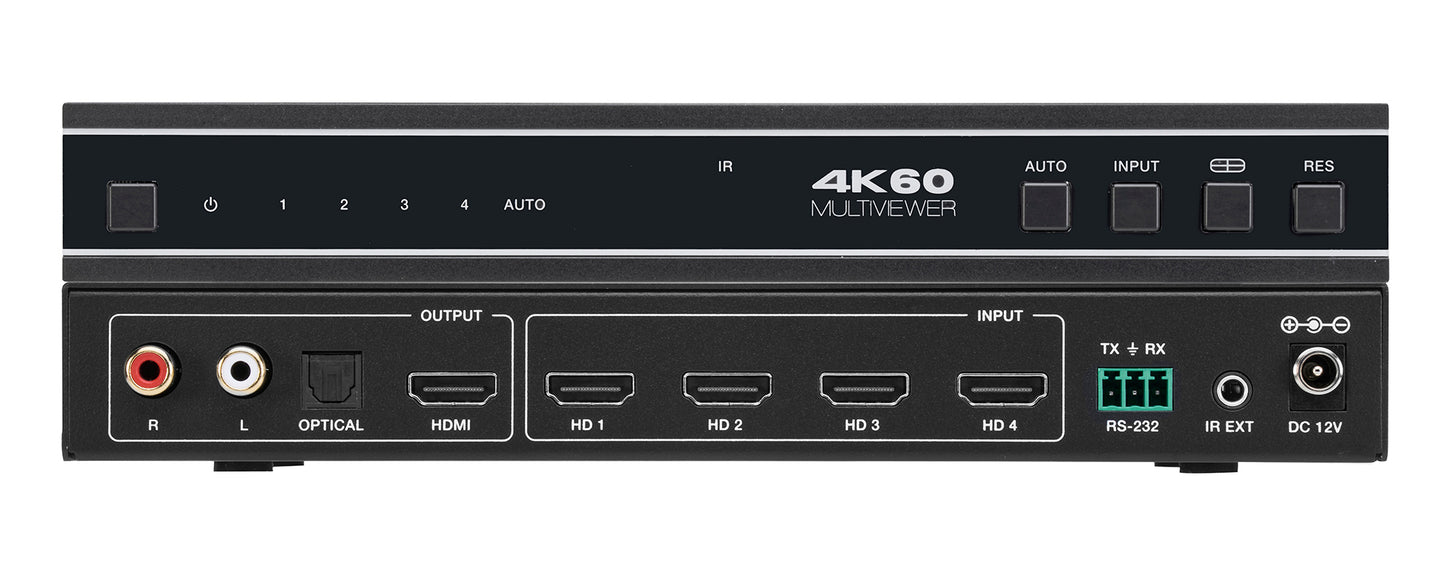

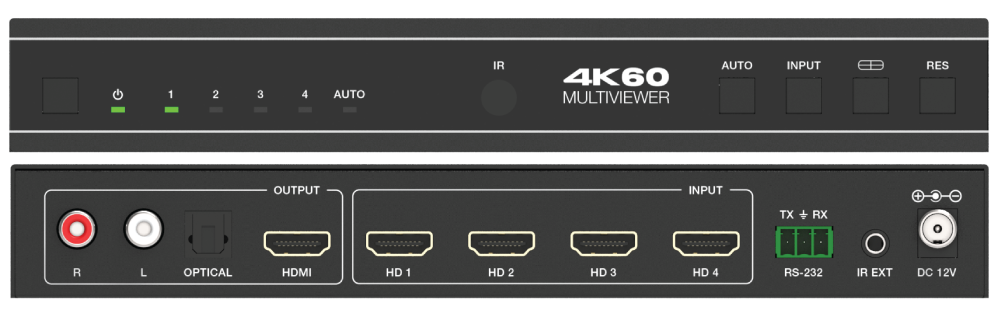

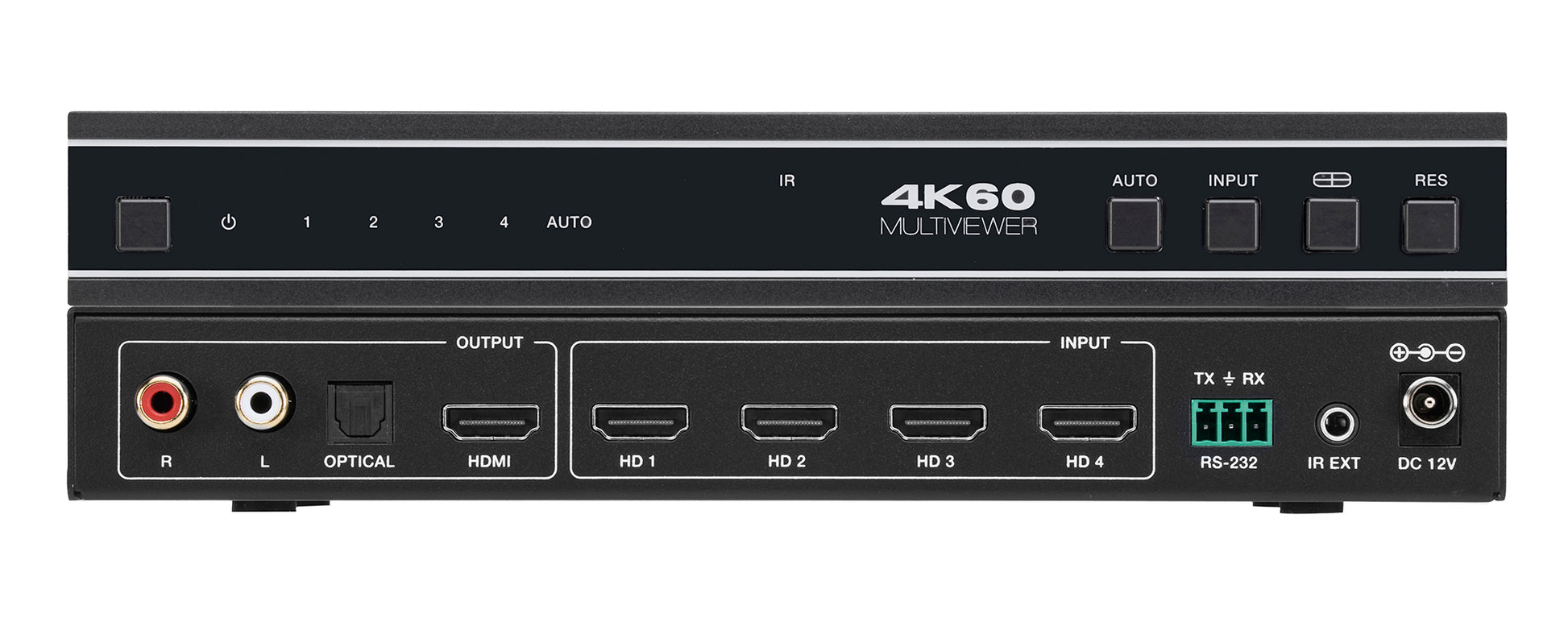

4 x HDMI IN [Type A, 19-pin female]
|
| |
|
1 x HDMI OUT [Type A, 19-pin female]
1 x OPTICAL OUTPUT [S/PDIF]
|
| |
|
1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini jack]
|
| |
|
| |
|
|
| |
|
|
| |
|
220mm [W] x 100mm [D] x 30mm [H]
|
| |
|
|
| |
|
Input: AC 100 - 240V 50/60Hz
(US/EU standard, CE/FCC/UL certified)
|
| |
|
|
| |
|
|
| |
|
|
| |
|
20 - 90% RH (no-condensing)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
|
|
|
|
|
|
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
Analog audio [3.5mm L/R]: PCM2.0
SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0
Note: It does not support HBR audio.
|
|
|
Human body model — ±8kV (Air-gap discharge) &
|
