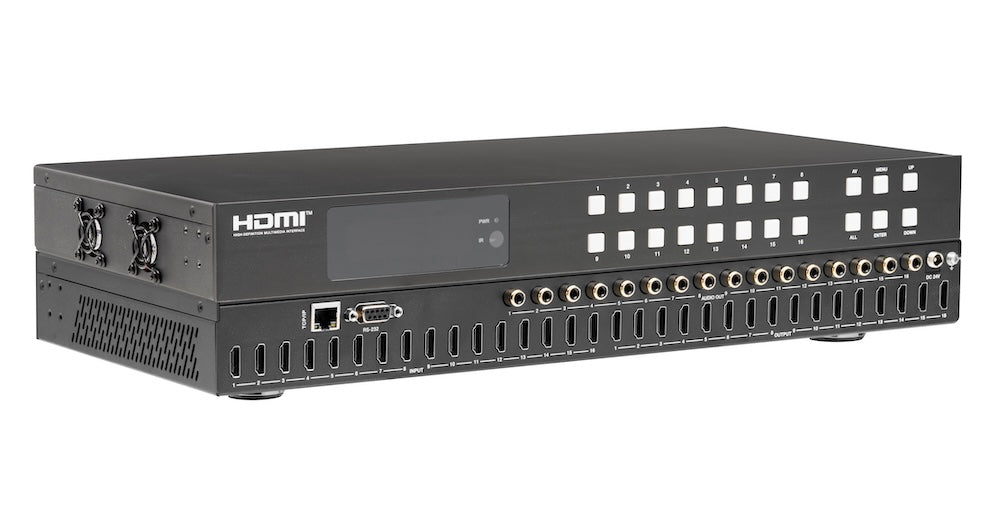

18Gbps 16×16 HDMI Matrix with ARC Function

4K60 4:4:4 Matrix Switcher with Coaxial Audio De-embedding & ARC

MMX-16X16AUDUPC 813982024205
18Gbps 16×16 HDMI Matrix with ARC Function
Available through our B2B portal
This part is sold to approved trade accounts.

Resellers, installers, schools and businesses. Approval is usually the same working day.

Overview

Route sixteen HDMI sources to sixteen displays with full 4K60 4:4:4 fidelity and independent coaxial audio de-embedding on every output. The KanexPro MMX-16X16AUD is an 18Gbps 16×16 HDMI matrix switcher that delivers seamless routing of ultra-high-definition video and multi-channel digital audio across large-scale AV environments — with dedicated coaxial audio outputs on all sixteen channels.

Compliant with HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0, the matrix supports HDR10, HDR10+, Dolby Vision, and HLG pass-through alongside Dolby Atmos and DTS:X audio. Each output features an independent 4K-to-1080p downscaler for mixed-resolution displays. ARC support extracts audio from connected displays to coaxial output. Control via front panel OLED, IR remote, RS-232, TCP/IP, and Web GUI. 1U rack-mountable.

Key features
  • Routes 16 HDMI 2.0b sources to 16 displays at up to 4K2K@60Hz 4:4:4 with 18Gbps bandwidth on every port
  • HDCP 2.2/1.x and DVI 1.0 compliant — supports protected content across all input and output channels
  • HDR10, HDR10+, Dolby Vision, and HLG pass-through preserves HDR metadata end-to-end
  • Audio pass-through up to 7.1-channel HD audio including LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
  • Independent coaxial audio de-embedding on all 16 outputs — supports LPCM 2.0, Dolby Digital/DD+, and DTS 5.1
  • Controlled in RelayAV, KanexPro’s control app, with a KanexPro AV-over-IP encoder or a Mac running RelayAV on the same network: drag a source onto a screen to route it, see which inputs have a picture and which outputs have a screen, turn each output on or off, recall named presets, and use each source’s and screen’s remote over CEC; streaming boxes (Roku, Fire TV, Apple TV, Google TV) get their own remote over the network
  • Through the AV-over-IP encoder or Mac running RelayAV, Control4, Crestron and RTI reach the matrix with plain device commands (route, presets, power, remote keys), and every command is open over RelayAV’s API, or to an AI assistant over MCP
  • ARC function on HDMI outputs extracts display audio to coaxial output — ideal for soundbar and amplifier integration
  • Independent 4K→1080p downscaler on each output for mixed-resolution display environments
  • Smart EDID management with 21 built-in presets, 2 user-defined, and 16 copy modes; CEC pass-through
  • CEC control of every source (power, menu, navigation, playback, volume) and display (power, volume, active source) from RS-232, TCP/IP or the Web GUI
  • Control via front panel (OLED), IR remote, RS-232, TCP/IP, and Web GUI — 1U rack-mountable
Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2/1.x • DVI 1.0
Video Bandwidth18 Gbps
Video ResolutionUp to 4K2K@60Hz (4:4:4)
Color Depth8-bit, 10-bit, 12-bit
Color SpaceRGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR FormatsHDR10, HDR10+, Dolby Vision, HLG
HDMI Audio (Pass-through)LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Coax Audio FormatsLPCM 2.0, Dolby Digital / Plus, DTS 5.1
ESD ProtectionIEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact)
Connection
Input16× HDMI Type A [19-pin female]
Output16× HDMI Type A [19-pin female], 16× Coaxial Audio (RCA)
Control1× TCP/IP [RJ45] • 1× RS-232 [D-Sub 9]
Mechanical
HousingMetal Enclosure, Black
Dimensions440mm (W) × 200mm (D) × 44mm (H) — 1U
Weight3.1 kg
Power SupplyAC 100–240V 50/60Hz → DC 24V/3.75A
Power Consumption76.8W
Operating Temp14–113°F / −10–45°C
Storage Temp−4–140°F / −20–60°C
Humidity20–90% RH (non-condensing)
Cable Length
Cable Length (4K60)Up to 16 ft / 5m
Cable Length (4K30)Up to 32 ft / 10m
Cable Length (1080p60)Up to 50 ft / 15m
Package Contents
1×18Gbps 16×16 HDMI Matrix
1×24V/3.75A Power Adapter
1×IR Remote
1×RS-232 Cable (1.5m, male to female)
2×Mounting Ears
1×Product Manual
