HDMI HDbaseT Matrix 4X4 CAT6 70M 4K@60Hz

4k@60 4:4:4 Video

1 2

KanexPro

SKU: MMX-4X4CAT-70M

UPC: 813982023635

View full details

The MMX-4X4CAT-70M is a 4x4 matrix switcher designed by KanexPro, which allows for the routing of HDMI signals over long distances using CAT5e or CAT6 cables. This switcher is ideal for environments that need to distribute HDMI signals over long distances while maintaining high-quality video and audio, all with robust control options.

This device is typically used in professional AV environments, such as conference rooms, control centers, digital signage applications, and home theaters, where multiple HDMI sources need to be managed and routed to different displays.

  • 4x4 Matrix Switching
  • 4 HDMI inputs, 4 HDMI & 4 CAT x mirrored outputs
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
  • Signal Extension Over CAT x up to 230ft/70m
  • Support one-way IR matrix function
  • HDBT Technology
  • Smart EDID Management
  • HDCP Compliance
  • Audio De-embedding
  • RS-232 and IR Pass-Through
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
  • Scaling and Output Adjustments

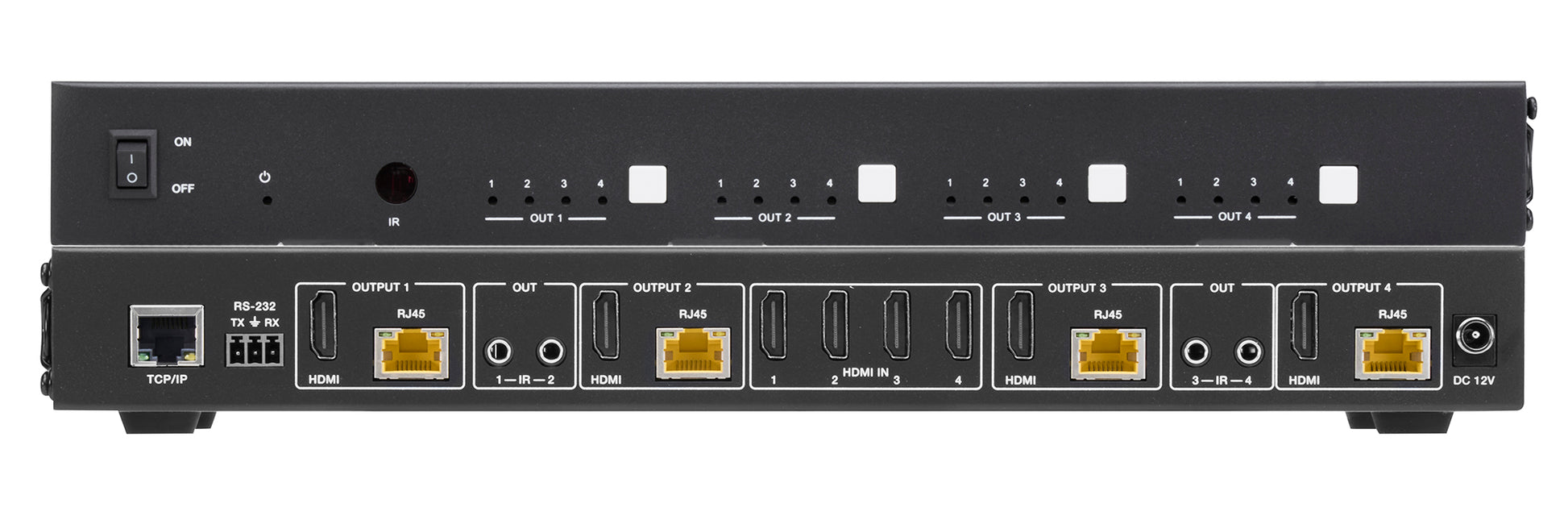

Connection

Matrix

Inputs:    4 x HDMI Type A [19-pin female]

Outputs: 4 x HDMI Type A [19-pin female]

                 4 x CAT port [RJ45]

                 4 x IR OUT [3.5mm Stereo Mini-jack]

Controls: 1 x TCP/IP [RJ45]

                 1 x RS-232 [3-pin phoenix connector]

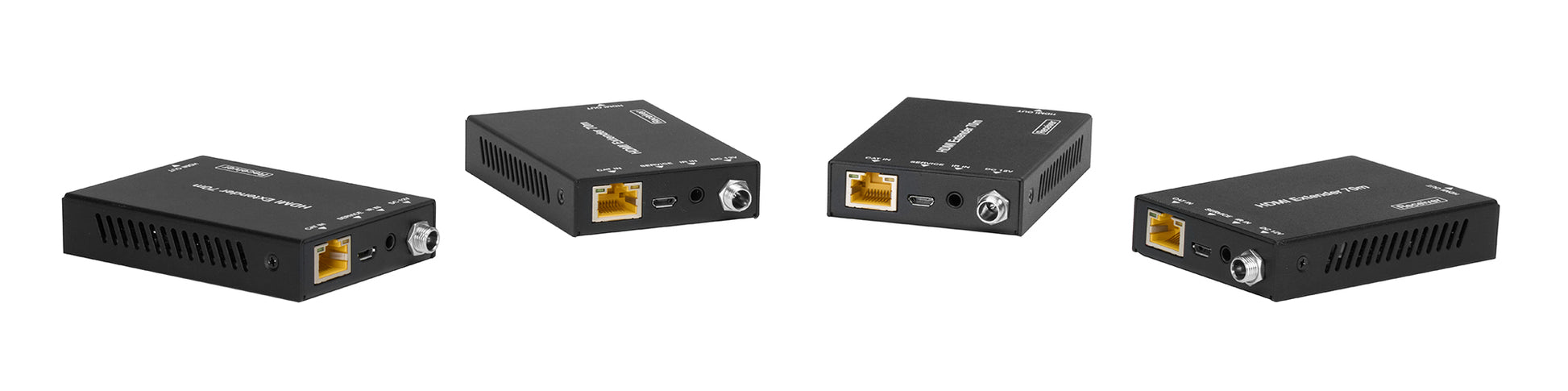

CAT Receiver

Inputs: 1 x IR IN [3.5mm Stereo Mini-jack]

              1 x CAT port [RJ45]

Output: 1 x HDMI Type A [19-pin female]

Control: 1 x SERVICE [Micro USB, Update port]

Mechanical

Housing

Metal Enclosure

Colour

Black

Dimensions

Matrix: 320mm (W) × 100mm (D) × 36mm (H) Receiver: 61mm (W) x 88mm (D) x 18mm (H)

Weight

Matrix: 915g, Receiver: 155g

Power Supply

Input: AC 90 - 260V 50/60Hz

Output: DC 12V/2.5A

               (US/EU standards, CE/FCC/UL certified)

PowerConsumption

19.68W (Max)

Operating Temperature

32-104°F/0-40°C

StorageTemperature

-4-140°F/-20-60°C

RelativeHumidity

20-90%RH(Non-condensing)

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 / 1.x

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@50/60Hz (4:4:4)

Color Space

RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth

8-bit, 10-bit, 12-bit (1080p@60Hz)

 8-bit (4K2K@60Hz YUV4:4:4)

8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)

HDR

HDR10, HDR10+, Dolby Vision, HLG



HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

Transmission Distance

230ft / 70m (via a single CAT x cable)

ESD Protection

IEC 61000-4-2:                                                                                      ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Resolution / Cable length

4K60 -                        Feet / Meters

4K30 -             Feet / Meters

1080P60 -                Feet / Meters

16ft / 5M

32ft / 10M

50ft / 15M



HDMI IN / OUT

The use of “Premium High- Speed HDMI” cable is highly recommended.

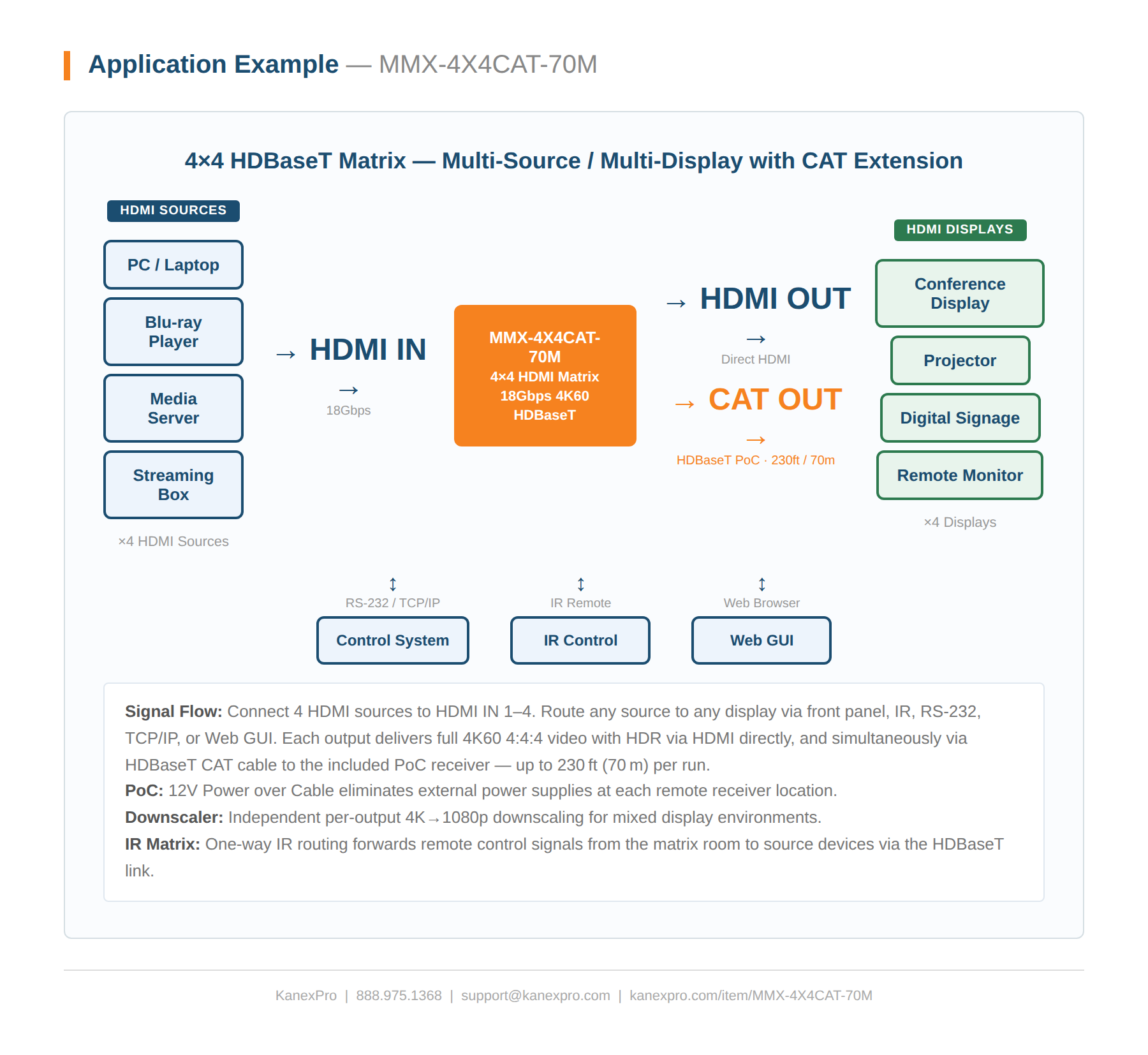

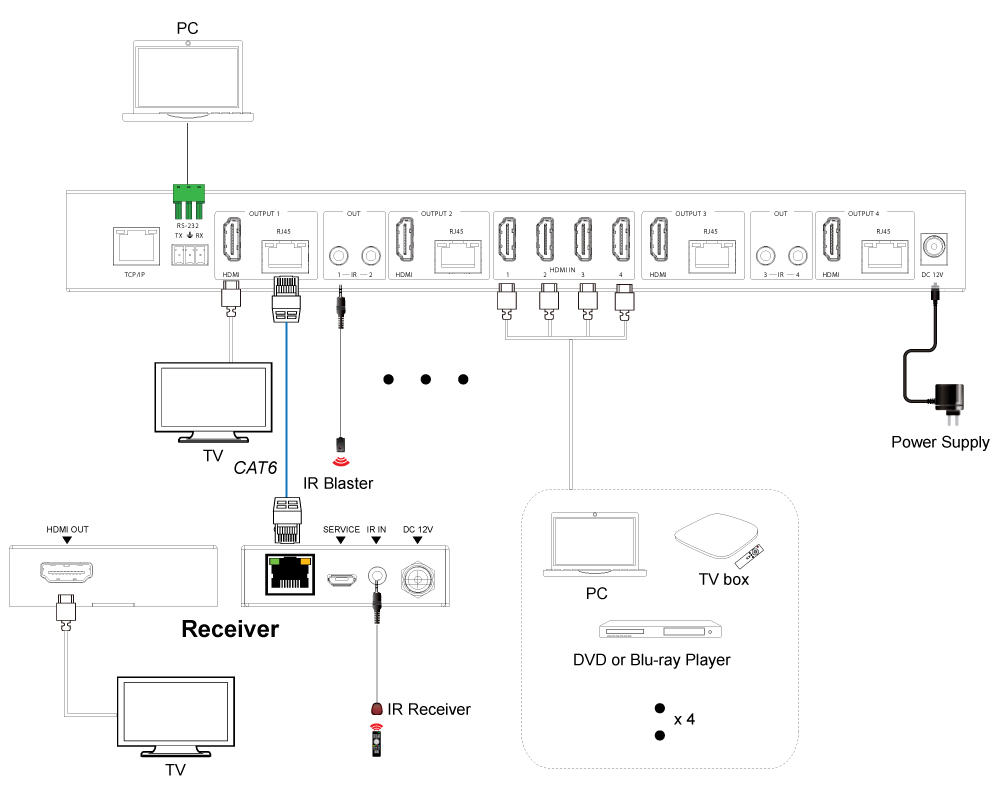

Product Diagram

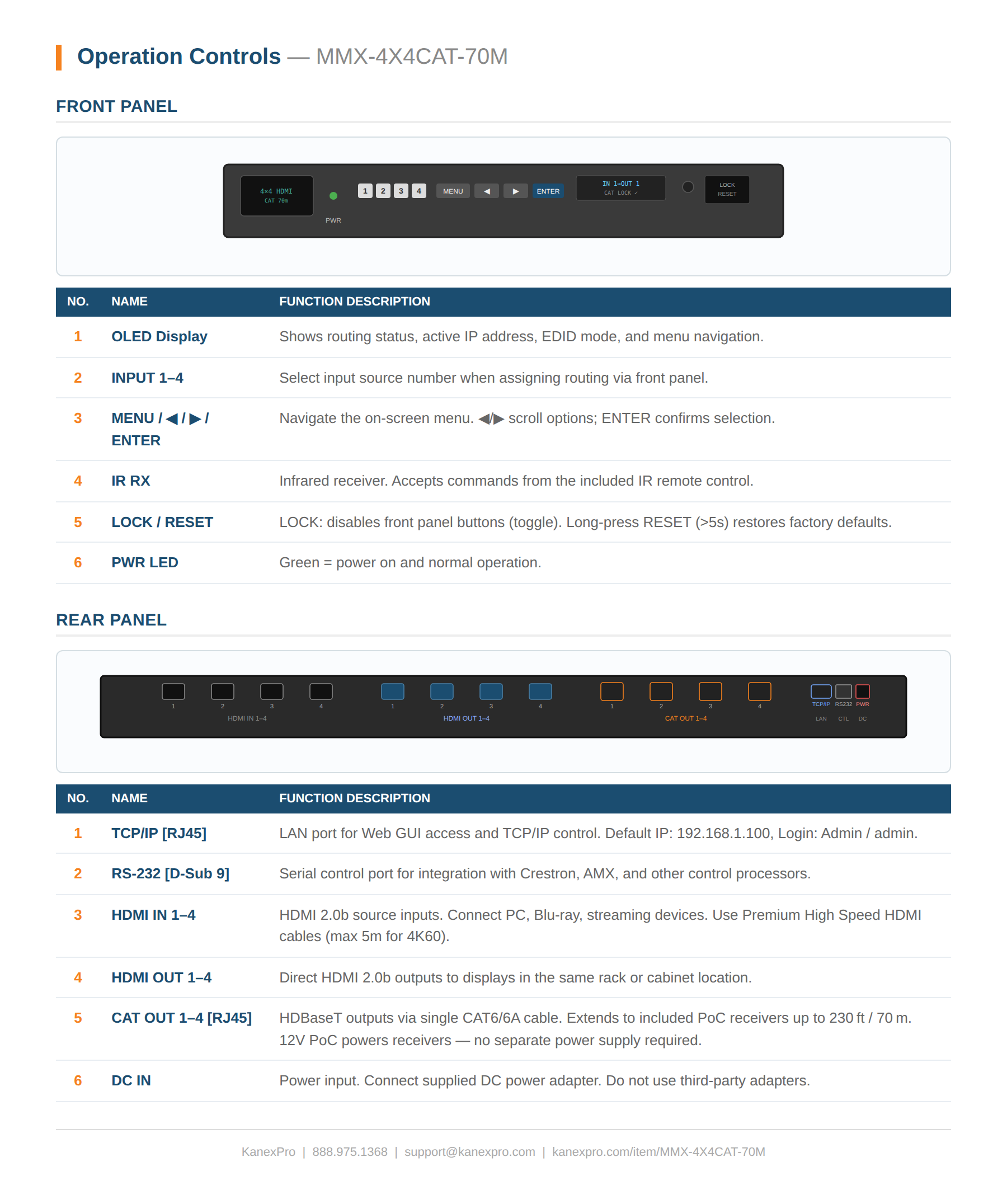

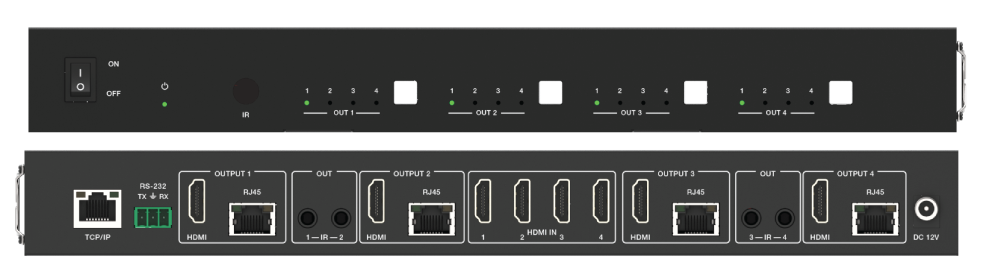

Product Panel
