HDMI HDBaseT Matrix 8x8 CAT6 70M 4K@60Hz

Name: HDMI HDBaseT Matrix 8x8 CAT6 70M 4K@60Hz
Brand: KanexPro
SKU: MMX-8X8CAT-70M

4k@60 4:4:4 Video

1 2

KanexPro

SKU: MMX-8X8CAT-70M

UPC: 813982023659

View full details

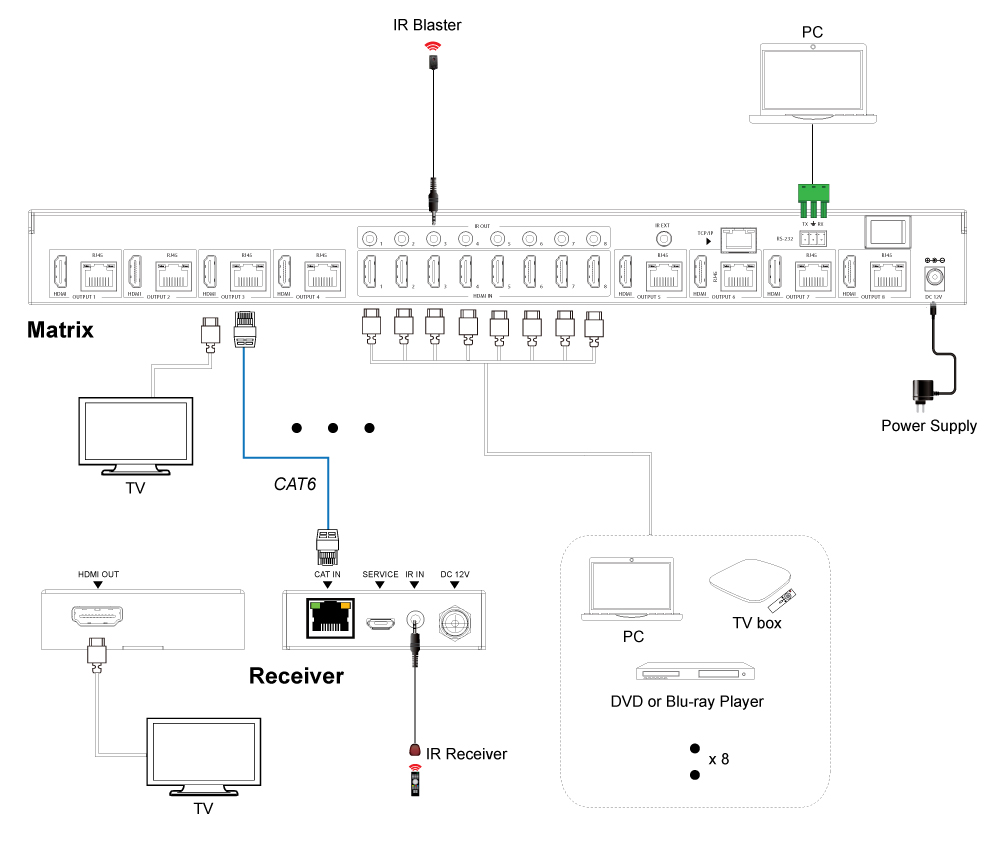

The Kanexpro MMX-8X8CAT- 70M is a versatile 8X8 switcher with HDMI and twisted pair input and output device. Additionally, it has simultaneous HDMI Mirror output for local distribution/ monitoring. An intuitive front panel with an OLED screen for easy setup and monitoring of input/output configurations.

4k@60 4:4:4 video can be extended over shielded twisted pair cable up to 230ft/70m.

Supports audio de-embedding to analogue formats, ensuring flexibility in audio output options alongside video from transmitter and receiver.

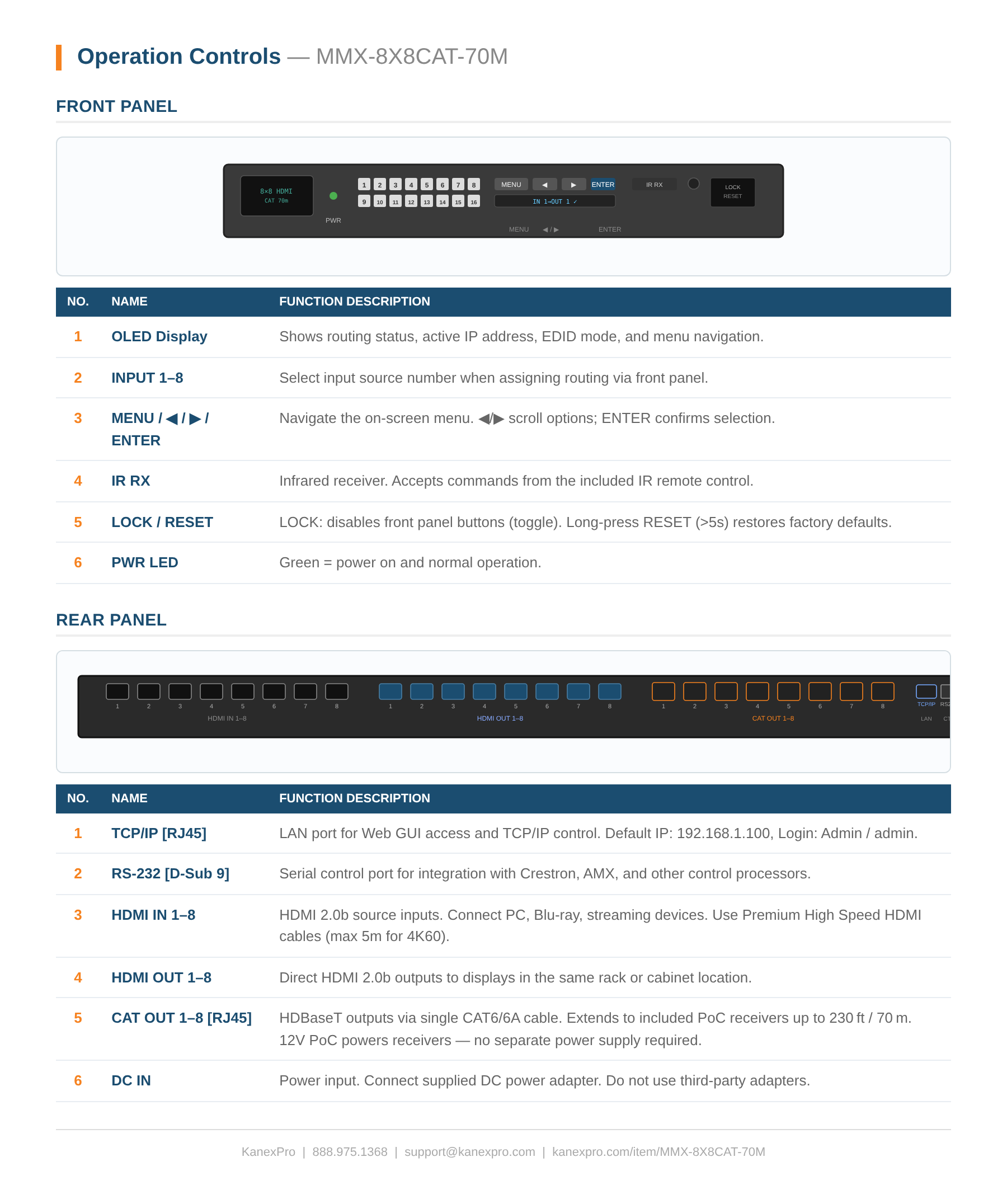

Provides multiple control methods including front buttons panel, IR remote control, RS-232/Serial control, LAN (Ethernet), and a Web GUI (Graphical User Interface).

The IR matrix allows one-to-one control at the Matrix end, meaning IR signals can control specific inputs and outputs directly.

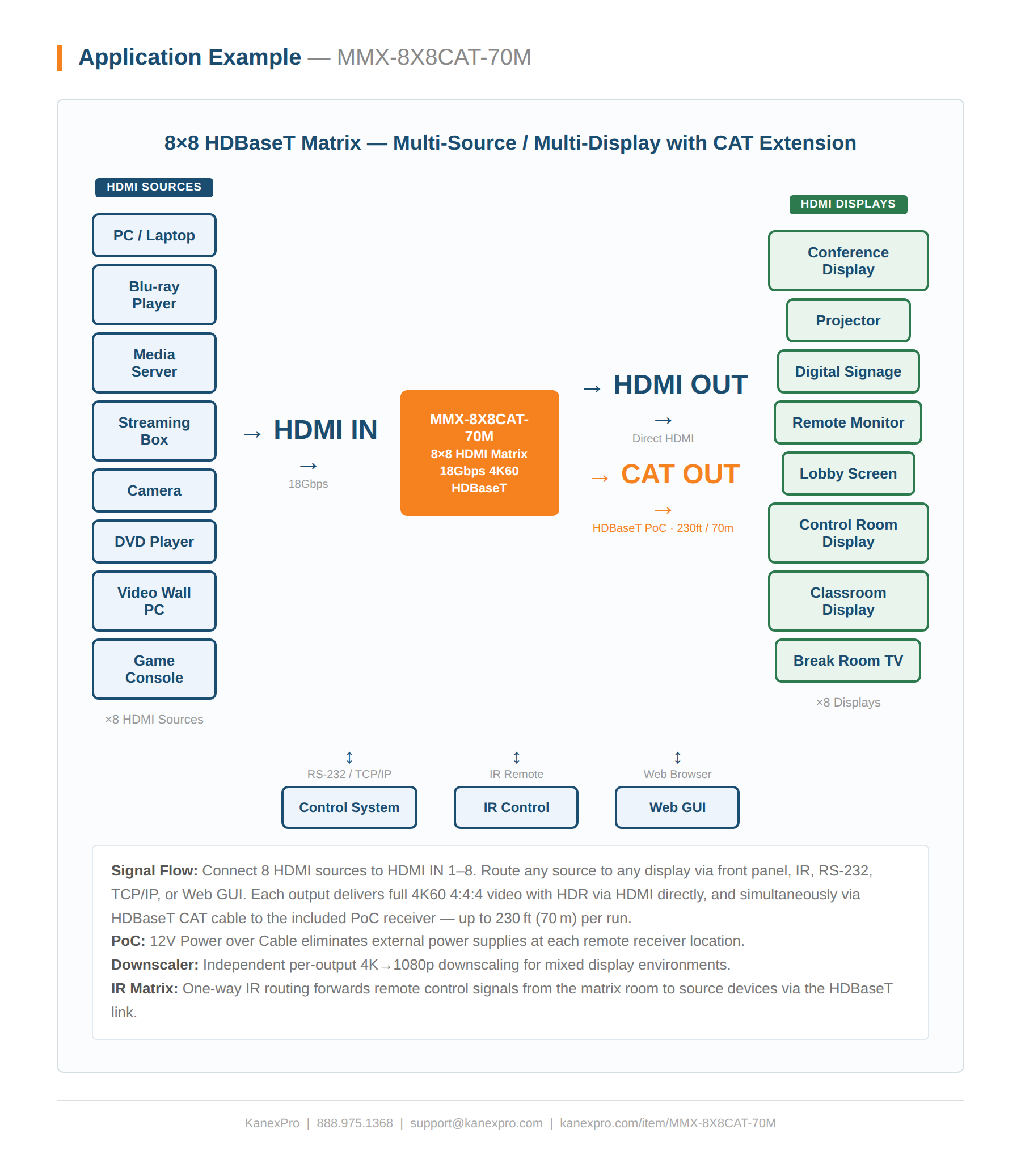

Overall, the KanexPro MMX-8X8CAT-70M HDMI 2.0 Matrix is well-suited for professional installations requiring high-definition video distribution over long distances, with robust audio support and comprehensive control options for ease of use and integration into various AV setups.

Max. 18 Gbps Data Rate Supported.
Up to 4K @60hz 4:4:4 resolution.
HDCP 2.2 and HDCP 1.x compliant.
8 HDMI inputs, 8 HDMI & CATx mirrored outputs.
Balanced Audio De-embedded supported.
POC to Receiver.
Advance EDID Management and CEC Control Supported.
Extend video transmission distance up to 230ft / 70m for 1080P for 4K2K via a single Cat 5e/6/7 cable.
Support IR Matrix.

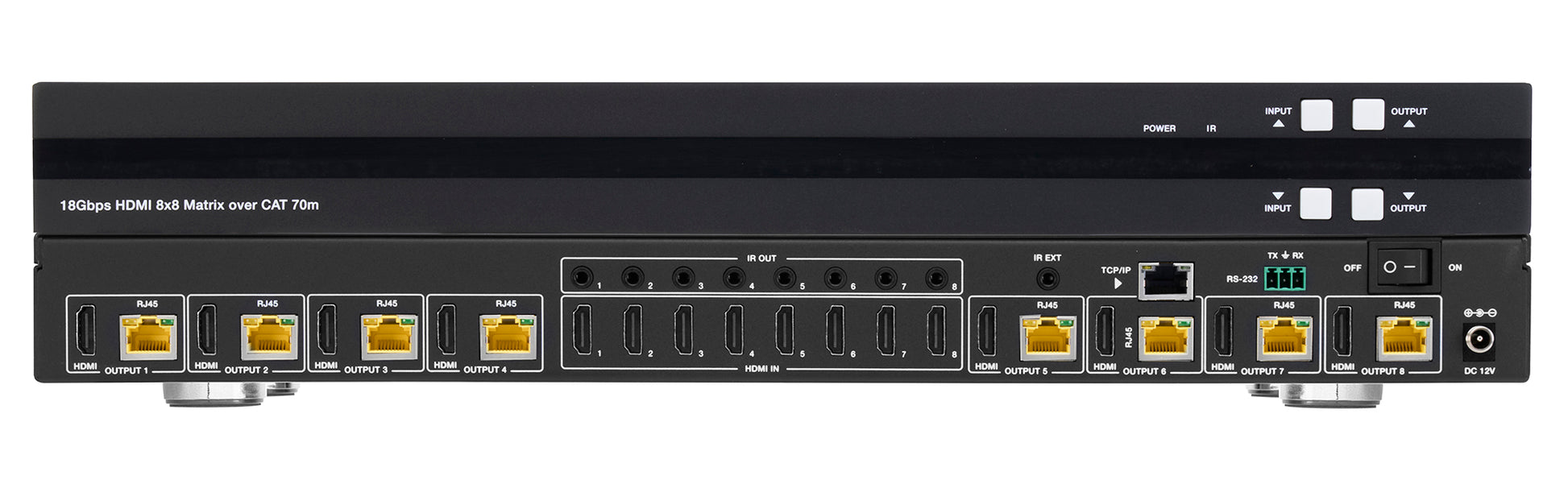

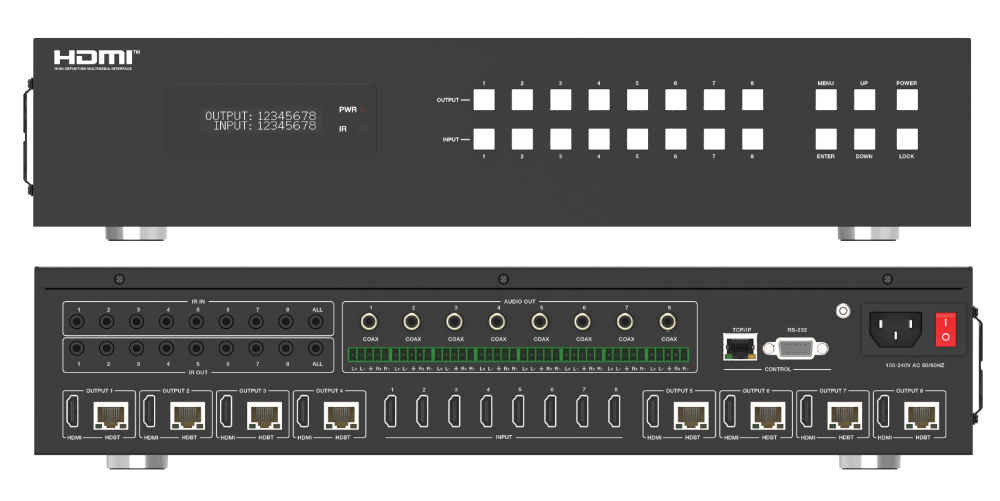

1U rack mounted design with front panel OLED display

Technical

HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2/1.x
Video Bandwidth: 18Gbps
Video resolution: Up to 4K/2K@50/60Hz (4:4:4)
Color space: RGB: 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Color depth: 8-bit, 10-bit, 12-bit (1080@60Hz) | 8-bit (4K2K@60Hz YUV4:4:4) | 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
HDR: HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Format: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,Dolby Digital Plus, DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X.
Transmission distance: 230ft / 70m (via a single CAT6 cable)
ESD protection: Human-body Model : ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Matrix: Inputs: 8 x HDMI Type A [19-pin female]

Outputs: 8 x HDMI Type A [19-pin female]

8 x CAT port [RJ45] | 4 x IR OUT [3.5mm Stereo Mini-jack]

Controls: 1 x TCP/IP [RJ45]

1 x RS-232 [3-pin phoenix connector]

8 x IR OUT [3.5mm Stereo Mini-jack]

1×IR EXT [3.5mm Stereo Mini-jack]

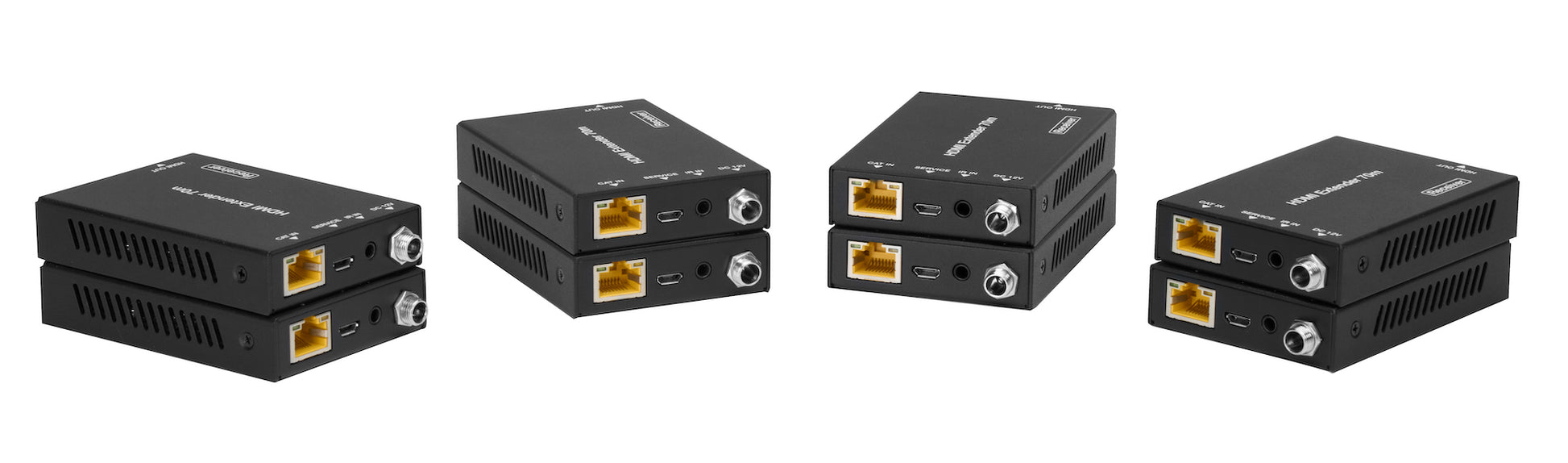

CAT Receiver: Inputs: 1 x IR IN [3.5mm Stereo Mini-jack]

1 x CAT port [RJ45]

Output: 1 x HDMI Type A [19-pin female]

Control: 1 x SERVICE [Micro USB, Update port]

Mechanical

Housing: Metal enclosure
Color: black
Dimensions: Matrix: 440mm (W) × 250mm (D) × 44.5mm (H)
Receiver: 61mm (W) x 88mm (D) x 18mm (H)
Weight: Matrix: 3.2Kg, Receiver: 155g
Power supply: Input: AC 90 - 260V 50/60Hz | Output: DC 12V/5A (US/EU standards, CE/FCC/UL certified)
Power consumption: 50W Max
Operating temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative humidity: 20~90% RH (non-condensing)

Resolution / Cable Length
