4K HDMI & VGA Wall Plate Transmitter Over HDBaseT™

Name: 4K HDMI & VGA Wall Plate Transmitter Over HDBaseT™
Brand: KanexPro
SKU: WP-HDBASETX

Auto Switch, Extend & Control HDMI & Analog video signals up to 230 feet (70m)

1 1

KanexPro

SKU: WP-HDBASETX

UPC: 814556017562

View full details

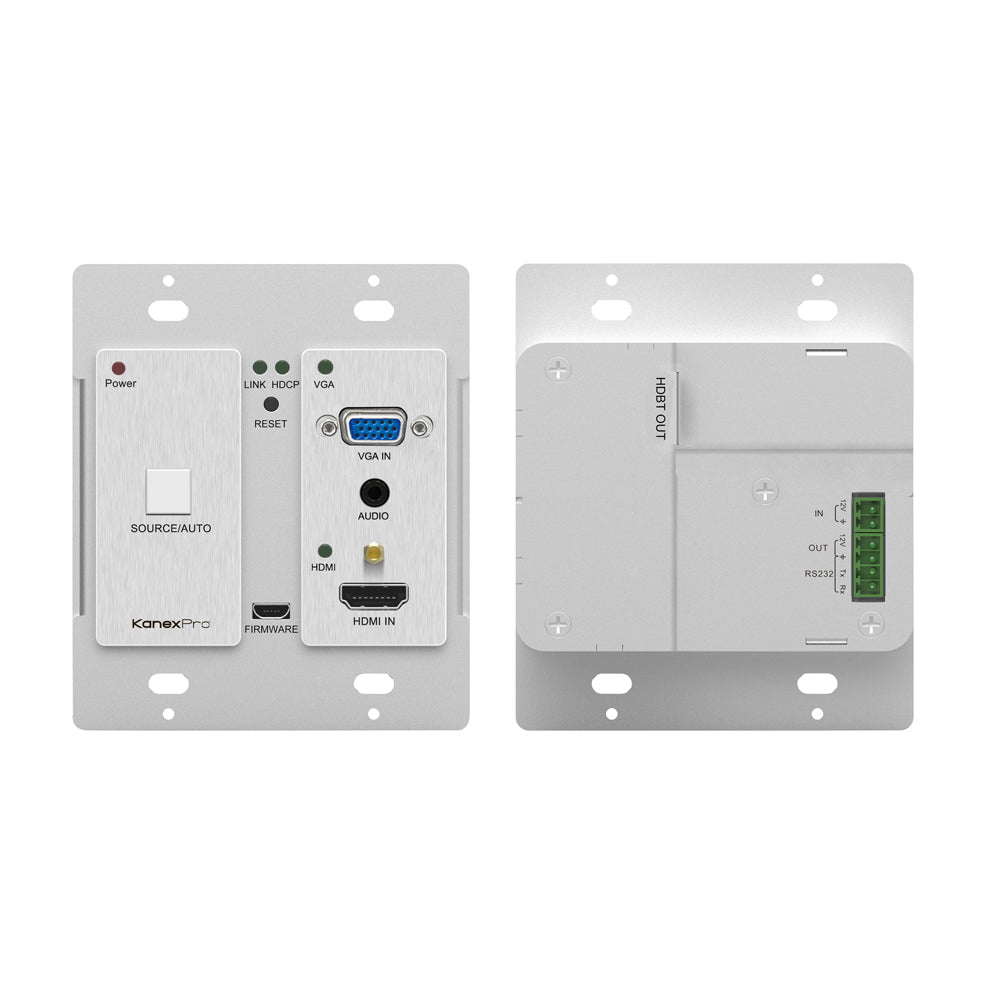

The KanexPro WP-HDBASETX is a compact 2-input transmitter for sending 4K HDMI video signals or 15-pin HD analog video, audio and control up to 230 feet (70m) over a shielded CAT6. This Décora style 2-gang wall plate also supports PoH - Power over HDBaseT to the receiver.

Based on HDBaseT™ technology, this wall plate extender is HDCP and EDID compliant ensuring proper output to displays.

Key Features:

Built in scaling function for HDMI with output resolutions up to 4K
HDMI or VGA with audio input selectable.
Auto switching or manual button control between inputs and RS232 controllable.

Applications:

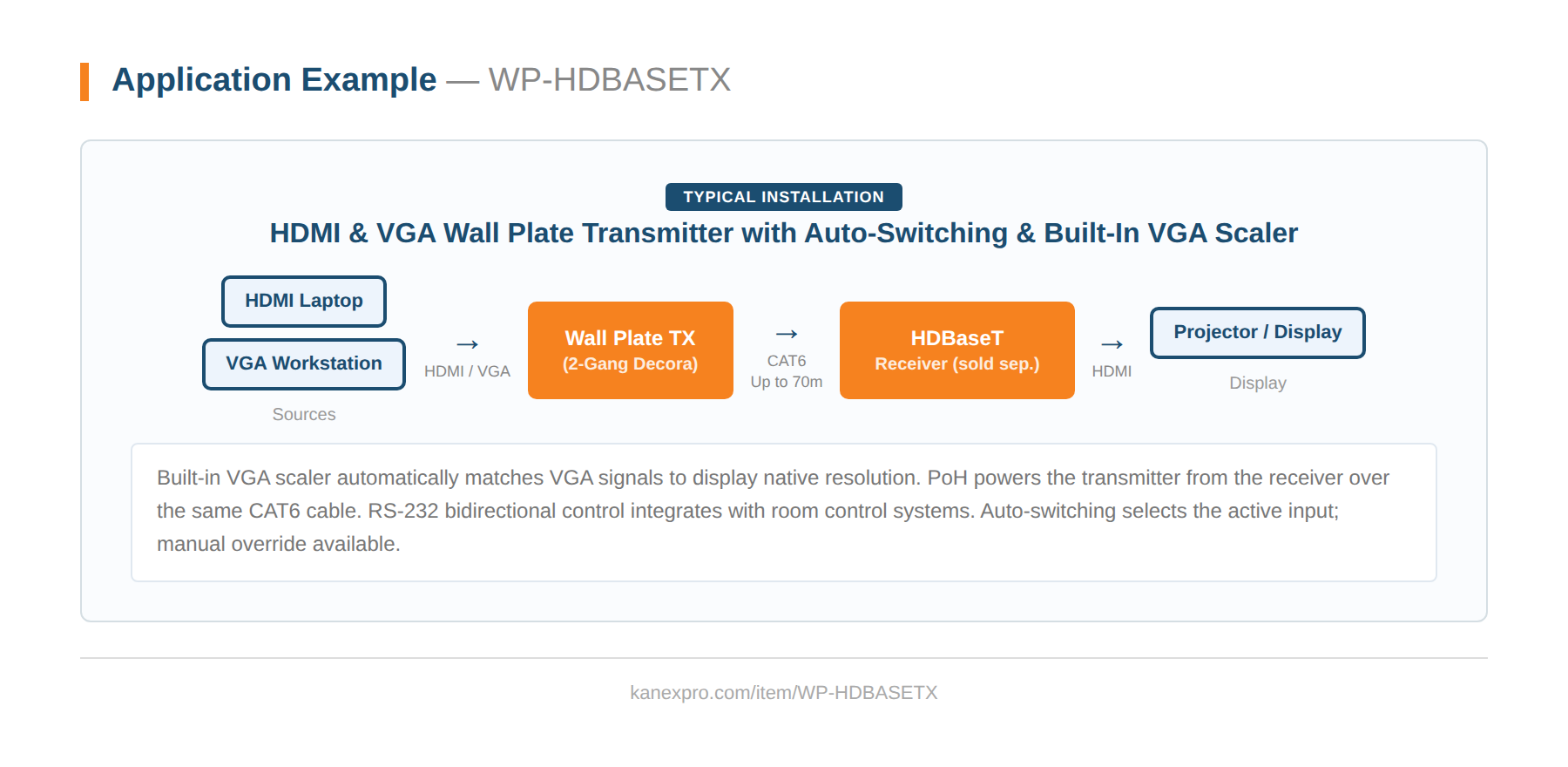

Ideally used in classrooms, lecture halls, boardrooms, where HDMI and/ or analog VGA based source devices are combined to present high-resolution signals up to 4K.

Note: The EXT-HDBT70MRX receivers over Cat6 are ordered separately, please contact sales for more information.

Do not use couplers between the RJ-45/ CAT6 cables, this will cause degradation or damage to the unit. To reduce video dropout problems from lightings, ceiling fans and other EMI issues, it is strongly recommended that you terminate shielded CAT6 or CAT5e cables and use shielded RJ45 connectors with our extender products.

Transmits HDMI or analog video, control, and analog audio up to 200 feet (70 meters) over a shielded CAT6 cable
Auto-switching between inputs
Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 4K
Remote power supporting PoE
HDCP & EDID compliant
RS-232 for control
Supports high bandwidth up to 10.2 Gbps
Locking HDMI connector
High grade aluminum design for commercial grade applications
Backed by KanexPro 3-Year Parts and Labor Warranty

Specifications

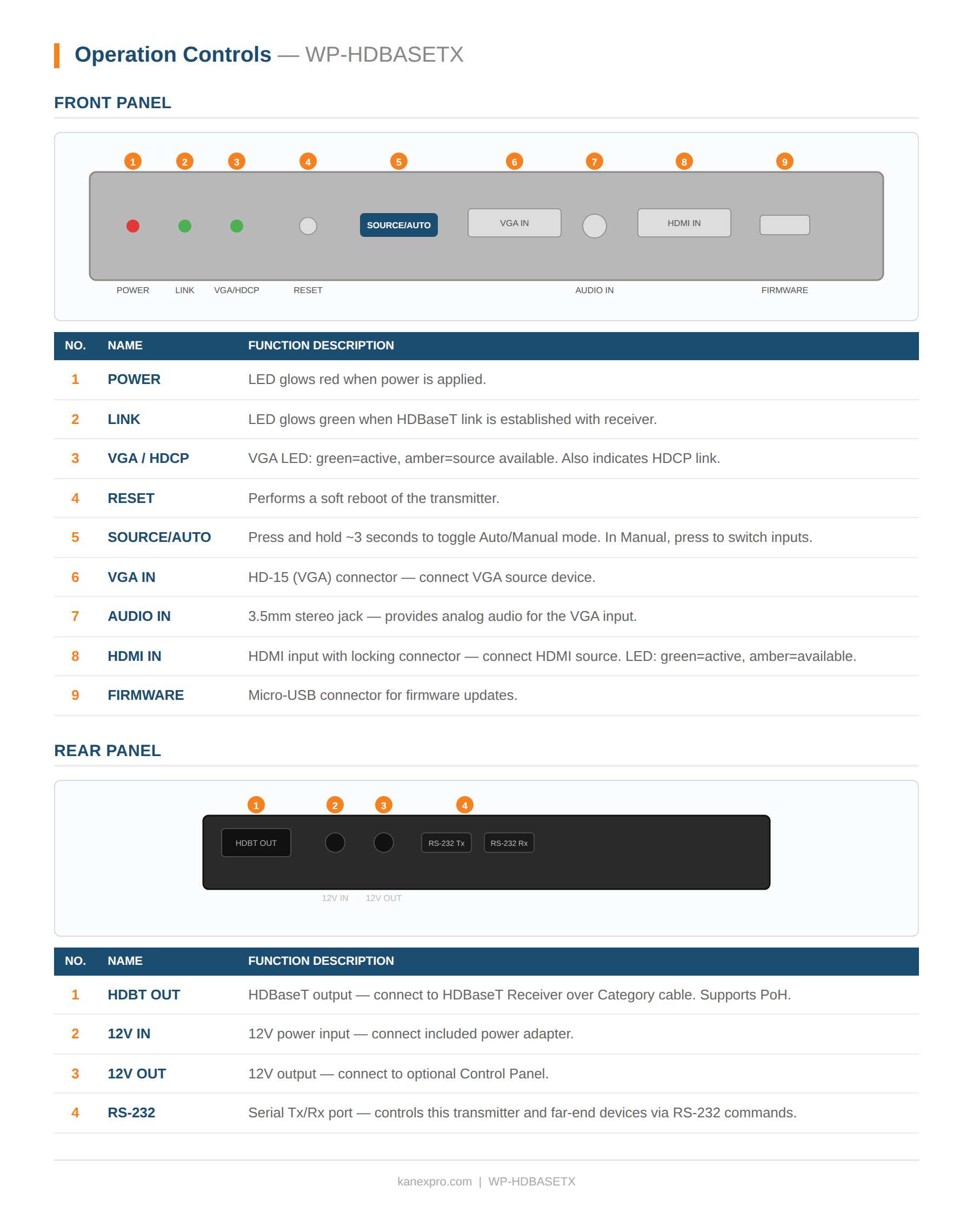

Input Signal: 1 x HDMI (female), 1x VGA(female), 1x Audio (3.5mm Mini jack)

Input Connector: 1 x HDMI, 1x VGA, 1 x 3.5 mm mini-jack and 1 x RS-232 Connector

HDMI Video Signal: HDMI1.4

Audio: Digital audio transmitted through HDMI audio & VGA thru 3.5mm Stereo Jack

Output Signal: 1 x HDBaseT

Output Connector: 1 x RJ-45

Resolutions supported:

VGA outputs resolution up to: 1080p
800x600 to 1920x1200
3D formats
4K x 2K for HDMI

Transmission Mode: HDBaseT® Lite Technology

General:

Resolution Range:

From 800x600 ~ 1920x1200, 4K

Transmission Distance:

Maximum distance: 197 feet (60 Meters)

Gain: 0dB ~ 10dB@100MHz

Differential Phase Error: ±10° @ 135MHz_100M

SNR: >70dB@ 100MHz-100M

Bandwidth: 10.2Gbps

Return Loss: <-30dB@5KHz

THD: <0.005%@1KHz

Min. ~Max. Level <0.3V ~ 1.45Vp-p

Impedance: 75Ω

Temperature: -20 ~ +60?

Humidity: 10% ~ 90%

Power Supply: 24V DC

Power Consumption: 9.6 Watts

Unit Dimension: W.H.D: 104.5 x 89 x 44 mm

Net Weight: 1.76 lbs (0.8Kg)

Chassis Dimension: Universal Decora Style 2-Gang Wall plate

Helpful Tips & Recommendations:

CAT-5e/6a cables should not exceed 230 feet or (70m)
Solid Core Shielded twisted pair cable recommended
Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
Do not use crossover cables, patch cables or Ethernet couplers to extend two CAT6 cables. This may damage the TX & Rx.
If the power LED indicator on the Tx/Rx unit is not on, check to make sure that the CAT6 cables are not crossed i.e., Ethernet to Link instead of Ethernet to Ethernet.
