4K60 JPEG2000 AV over IP System Controller
Centralized Matrix Switching, 9×9 Video Wall & KVM Roaming for JPEG2000 AV over IP Systems — Dual-Network Isolation, Web GUI & Dante Management
Resellers, installers, schools and businesses. Approval is usually the same working day.
Transforms a network of AVO-IPJP2K encoders and decoders into a fully managed AV over IP matrix — delivering drag-and-drop source switching, 9×9 video wall configuration, and KVM roaming from a single web interface without requiring dedicated AV matrix hardware. The AVO-IPCTL-JP2K connects to the same 1G managed switch as the encoders and decoders, automatically discovers all devices, and provides centralized control of video routing, audio management, Dante AV-A configuration, and RS-232/IR/GPIO automation.
Dual 1G network ports isolate the AV multicast network from the control network — keeping video traffic off the IT LAN while enabling management via Web GUI, SSH, or third-party control systems. The controller supports HTTPS and SFTP security protocols, a six-digit password system, and role-based user management, making it suitable for enterprise and institutional deployments. Works as the recommended companion to the AVO-IPJP2K, AVO-IPJP2KS, AVO-IPJP2KD, and other KanexPro JPEG2000 AV over IP endpoints.
- Centralizes control of all AVO-IPJP2K encoders and decoders via drag-and-drop web GUI
- Matrix switching — route any encoder to any decoder from browser without physical recabling
- Video wall configuration up to 9×9 (81 displays) with bezel compensation
- KVM roaming — move keyboard/mouse control between encoder zones from the web GUI
- Dante AV-A management — configure audio routing for all Dante-enabled endpoints
- Dual 1G network ports — VIDEO LAN (PoE) for AV endpoints, CONTROL LAN for IT network isolation
- Auto-discovery, DHCP, and static IP configuration modes for Video LAN
- MJPEG sub-stream preview — view all encoder feeds before switching
- Two RS-232 ports + 4-channel GPIO + IR IN/OUT for third-party device control
- HTTPS, SSH, and SFTP security with role-based user management
- Web GUI URL: http://controller.local — default Control LAN IP: 192.168.6.100
- PoE powered via VIDEO LAN port — DC 12V/1A adapter also included
| Specification | |
|---|---|
| Technical | |
| Network Bandwidth | 100M/1G |
| Transmission Distance | Up to 100m via CAT5E/6/6A/7 |
| Control Methods | Web GUI, TCP/IP, RS-232, IR, SSH, SFTP, HTTPS |
| Supported Systems | KanexPro JPEG2000 AV over IP family (AVO-IPJP2K series) |
| IP Modes (Video LAN) | Auto (controller-managed), DHCP, Static |
| Default Control LAN IP | 192.168.6.100 (DHCP fallback) • http://controller.local |
| Default Video LAN IP | 169.254.8.100 (auto-managed) |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap) / ±4kV (contact) |
| Connection | |

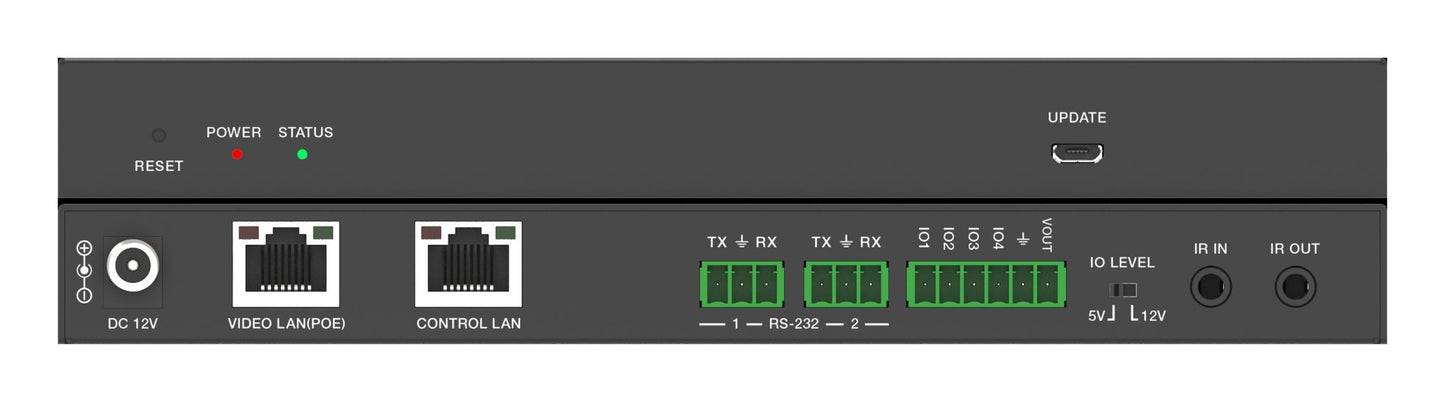

| LAN Ports | 2× 1G RJ45 — VIDEO LAN (supports PoE PD) + CONTROL LAN (TCP/IP control) |
| RS-232 | 2× 3-pin 3.81mm Phoenix connector |
| Digital I/O | 1× 6-pin 3.81mm Phoenix — 4-ch GPIO output, 1× GND, 1× VOUT (5V or 12V/0.5A, DIP switch selectable) |
| IR IN | 1× 3.5mm audio jack (12V level, 20kHz–60kHz wideband) |
| IR OUT | 1× 3.5mm audio jack |
| Firmware Update | 1× Micro USB (UPDATE port) — disconnect during normal operation |
| Physical | |
| Housing | Metal enclosure, Black |
| Dimensions (W×D×H) | 8.03″ × 3.88″ × 0.85″ (204 × 98.5 × 21.5mm) |
| Net Weight | 1.12 lbs (508g) |
| Power Supply | DC 12V/1A (locking adapter) or PoE via VIDEO LAN port |
| Power Consumption | 1.8W max |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | −4–140°F (−20–60°C) |
| Humidity | 20–80% RH operating / 10–90% RH storage (non-condensing) |
| Package Contents | |
| 1× | AVO-IPCTL-JP2K Controller |
| 1× | IR Receiver Cable, 20kHz–60kHz 12V, 1.5m |
| 1× | IR Blaster Cable, 1.5m |
| 2× | 3-pin 3.81mm Phoenix Connector (male) |
| 1× | 6-pin 3.81mm Phoenix Connector (male) |
| 2× | Mounting ears |
| 4× | Machine screws KM3×4 |
| 1× | DC 12V/1A locking power adapter |
| 1× | User manual |
