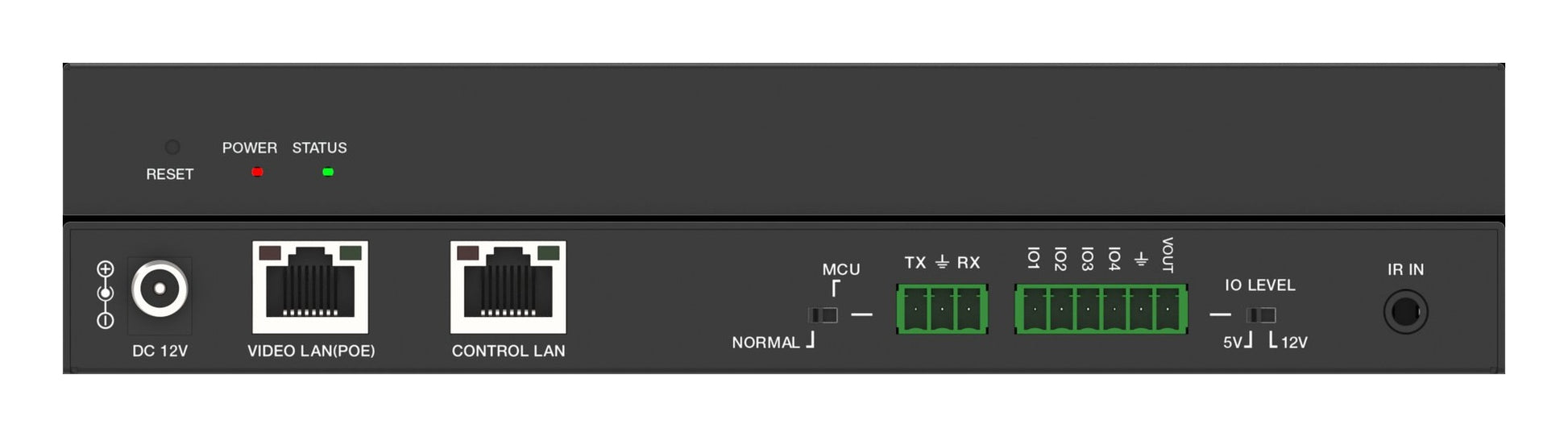

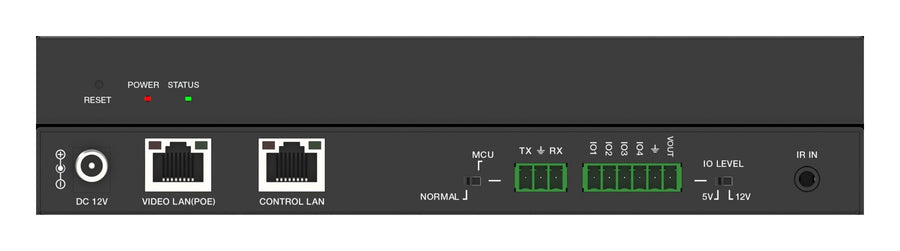

H.265 AV over IP System Controller — 100M New

Delivers cost-effective centralized management of H.264/H.265 AV over IP systems over 100M networks — with drag-and-drop matrix switching, video wall configuration, and dual-network isolation from a browser-based web GUI. The AVO-IPCTL-265HD connects to the same 100M managed switch as H.265 encoders and decoders, auto-discovers all endpoints, and provides full system control of video routing, audio, RS-232, KVM, and GPIO automation.

Where the AVO-IPCTL-265 adds 1G bandwidth, window roaming, seamless switching, and mouse collaboration, the AVO-IPCTL-265HD delivers the core matrix and video wall management functionality at a lower price point — the right choice for straightforward H.265 deployments without advanced video wall or collaborative workflow requirements. Dual 100M network ports isolate AV multicast traffic from the IT control network, with HTTPS and SSH security. Compatible with AVO-IP265-4K, AVO-IP265-HD, and AVO-IP265-HDK H.265 AV over IP encoders and decoders.

• Centralized web GUI control of H.264/H.265 AV over IP encoders and decoders
• Matrix switching — drag-and-drop one-to-one, one-to-many, and one-to-all routing
• Video wall configuration — up to 9 video walls with Class Preset management (up to 9 presets per wall)

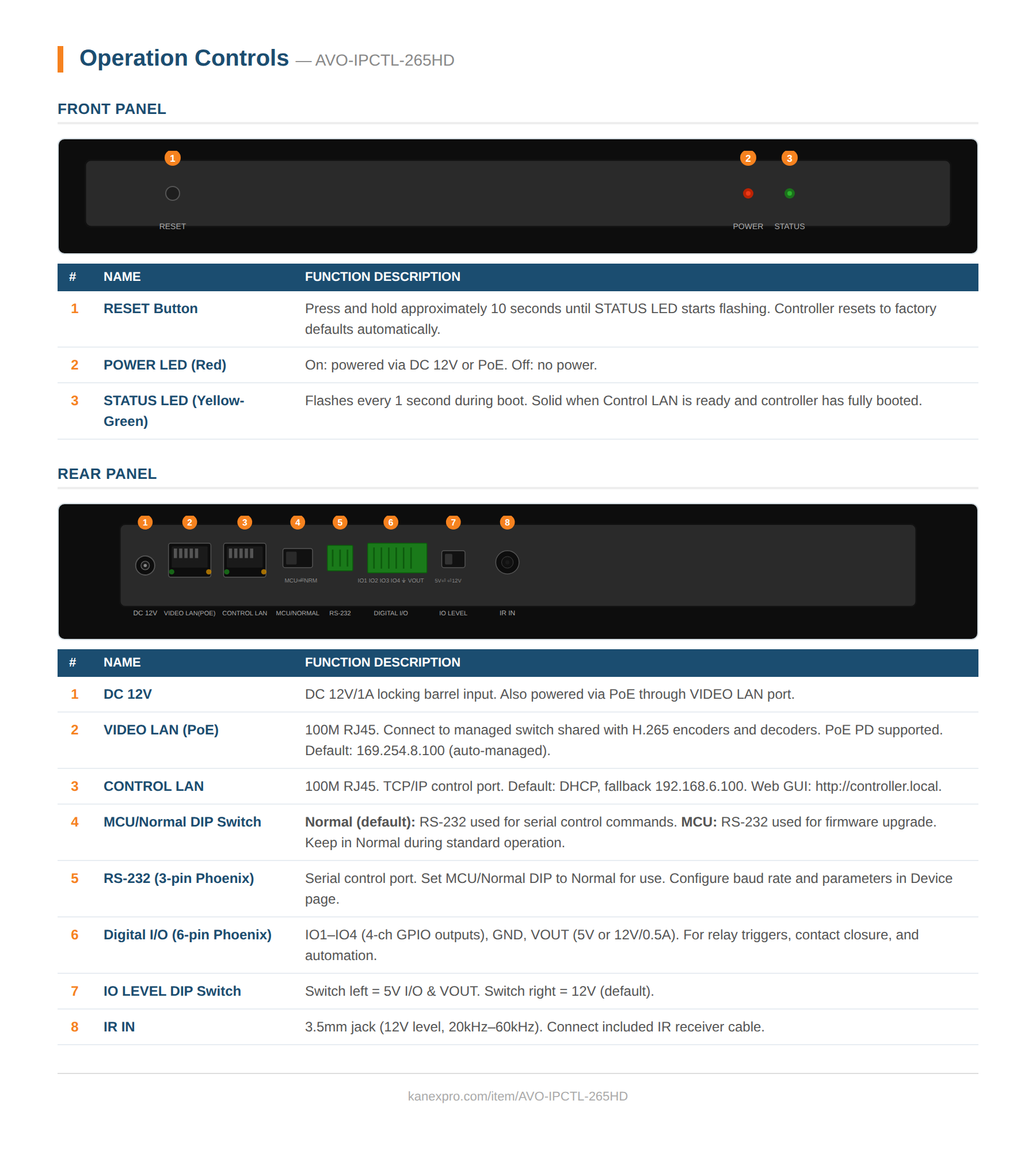

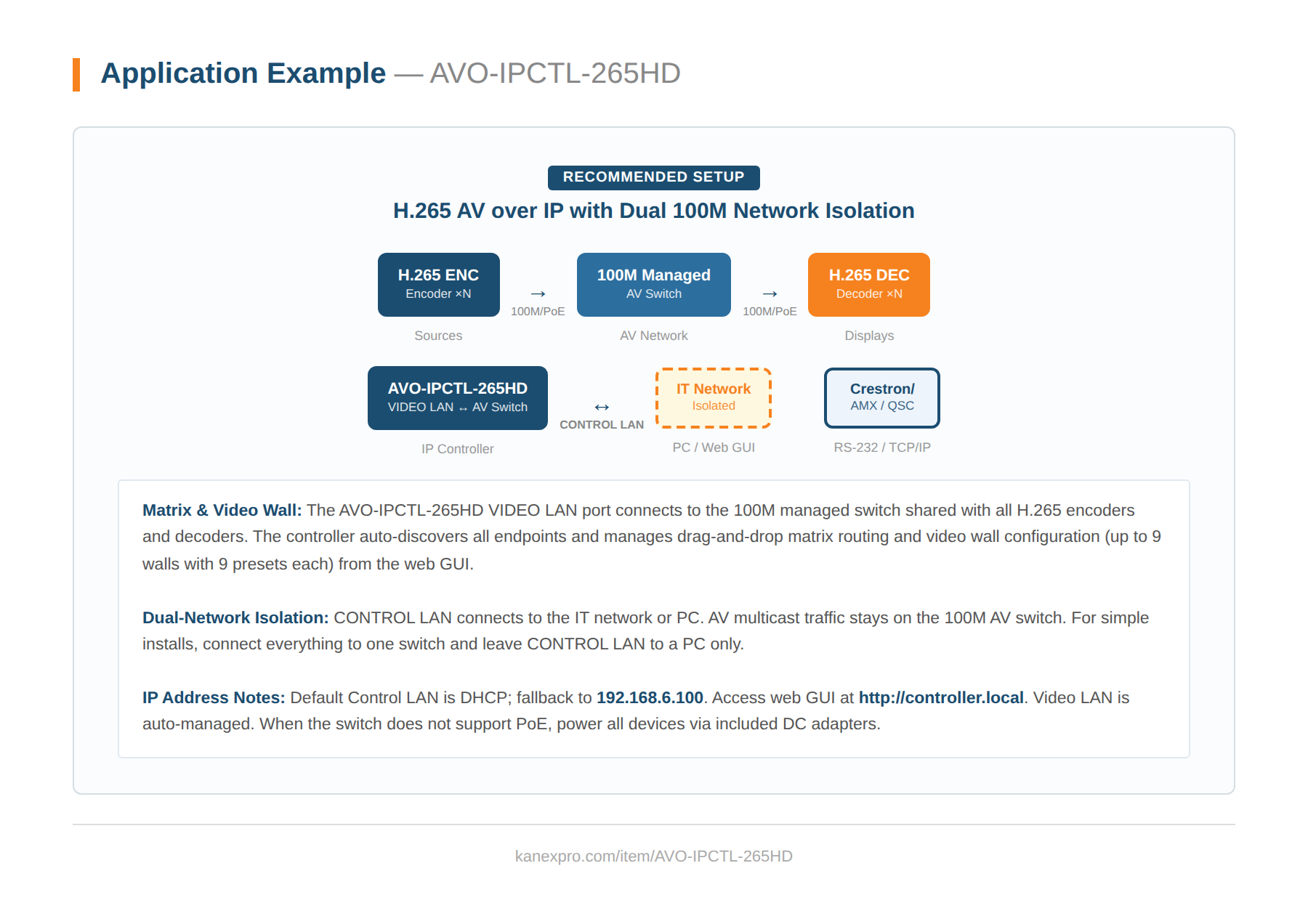

• Dual 100M network ports — VIDEO LAN (PoE) for AV endpoints, CONTROL LAN for IT network isolation
• RS-232 control port with MCU/Normal DIP switch for firmware upgrade mode
• 4-channel GPIO + IR IN (12V) for third-party device control and automation
• HTTPS and SSH security with 6–8 digit password
• Three Video LAN IP modes — Auto, DHCP, and Static
• PoE 802.3af PD via VIDEO LAN port — DC 12V/1A adapter also included
• Compatible with 1U/6U V2 rack — 7×24 reliable operation
• Works with AVO-IP265-4K, AVO-IP265-HD, AVO-IP265-HDK H.265 AV over IP encoders and decoders
