USB 3.0 延长器,支持 Cat6 100M HDBaseT

5Gbps USB Extension to 328ft — RS-232, FSYNC & PoC for Pro AV and Industrial Installs

EXT-USB3100MUPC 813982023611

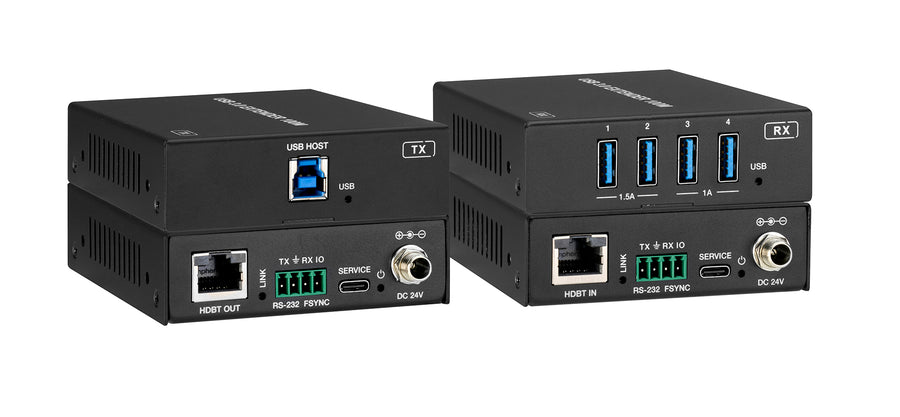

USB 3.0 Extender Over Cat6 100M HDBaseT
$399.95
In stock

Limited time: 20% off your order. Use FREE20 — apply it in the cart.

Overview

The KanexPro EXT-USB3100M extends USB 3.0 at full 5Gbps speeds up to 100 meters (328ft) over a single CAT6a cable using HDBaseT technology — delivering four USB-A ports at the remote end with bi-directional 24V Power over Cable, RS-232 pass-through, and FSYNC GPIO for synchronized industrial and broadcast camera deployments. No drivers required.

Designed for professional AV integrators centralizing rack infrastructure in corporate conference rooms, lecture halls, healthcare suites, and broadcast facilities, the EXT-USB3100M eliminates the 5-meter USB limit without sacrificing speed, control, or peripheral power. Backward compatible with USB 2.0 and 1.1, it integrates cleanly into mixed-device environments while delivering the industrial-grade reliability and 3-year warranty that project-based installs demand.

Key features
  • USB 3.0 connectivity with data transfer rate up to 5Gbps
  • Extends USB 3.0 up to 100m/328ft over a single shielded Cat6A (F/FTP) cable via HDBaseT
  • Backward compatible with USB 2.0 and USB 1.1 devices
  • 4-port USB-A receiver — ports 1 & 2 support 5V/1.5A; ports 3 & 4 support 5V/1A
  • Bi-directional 24V Power over Cable (PoC) — single power supply on either TX or RX end
  • RS-232 and FSYNC GPIO pass-through on one shared 4-pin 3.5mm Phoenix block, for control and camera synchronization
  • Hardware acceleration for isochronous and bulk transfer — driver-free plug and play
  • Metal enclosure • 10Gbps network bandwidth • USB-C SERVICE port for firmware updates
Technical
USB ProtocolUSB 3.0
Transfer RateUp to 5Gbps
Network Bandwidth10Gbps
Transmission Distance100m / 328ft over shielded Cat6A (F/FTP) cable
ESD ProtectionIEC 61000-4-2: ±8kV Air-gap, ±4kV Contact
Connections — Transmitter
Input1× USB HOST [USB-B, 9pin Female]
Output1× HDBT OUT [RJ45, Female]
ControlRS-232 + FSYNC [one shared 4-pin 3.5mm Phoenix block: RS-232 3 pins, FSYNC 1 pin] · SERVICE [USB-C]
Connections — Receiver
Input1× HDBT IN [RJ45, Female]
Output4× USB Devices [USB-A, 9pin Female]
ControlRS-232 + FSYNC [one shared 4-pin 3.5mm Phoenix block: RS-232 3 pins, FSYNC 1 pin] · SERVICE [USB-C]
Mechanical
Housing / ColorMetal Enclosure · Black
DimensionsTX / RX: 85mm (W) × 100mm (D) × 25.5mm (H)
WeightTransmitter: 253g · Receiver: 260g
Power & Environment
Power SupplyInput: AC 100–240V 50/60Hz · Output: DC 24V/2A
Power ConsumptionPoC Power Supply: 40W Max
Operating Temp0°C – 40°C / 32°F – 104°F
Storage Temp-20°C – 60°C / -4°F – 140°F
Relative Humidity20–90% RH (non-condensing)
USB 3.0 延长器,支持 Cat6 100M HDBaseT panel drawing
USB 3.0 延长器,支持 Cat6 100M HDBaseT system diagram

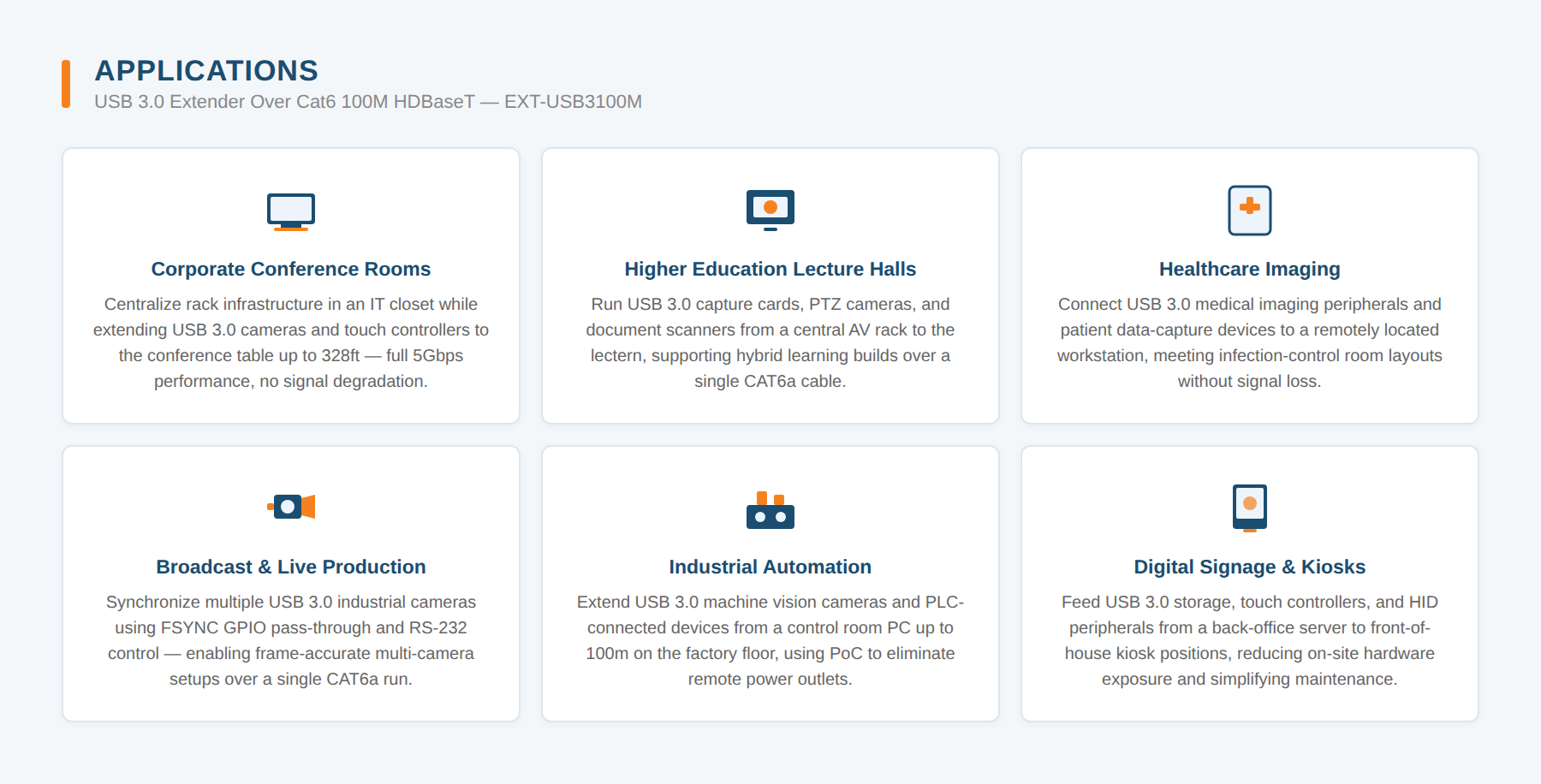

USB 3.0 延长器,支持 Cat6 100M HDBaseT applications
