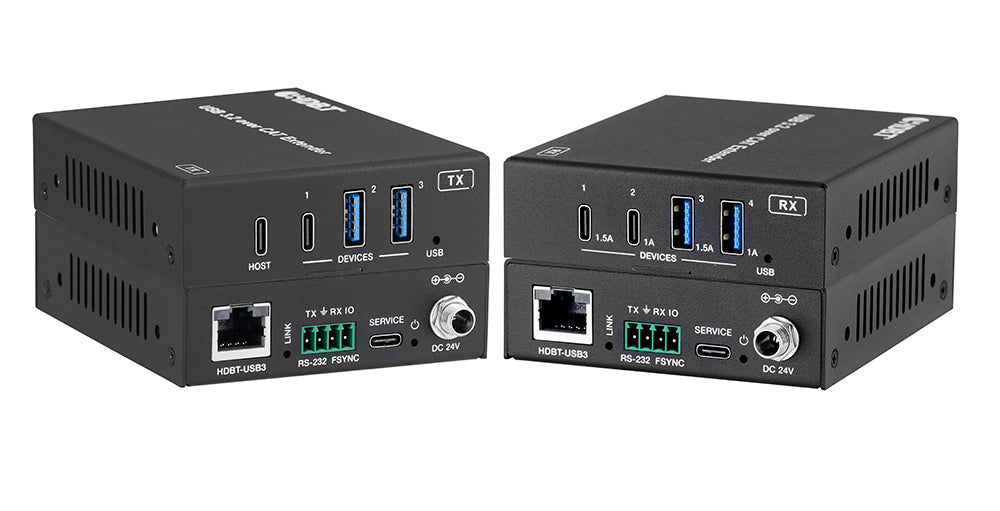

5Gbps USB-C 3.2 Gen 1 Extender over CAT6a (100m/328ft)

Extend USB 3.2 Gen 1 signals up to 100 meters over a single CAT6a cable — with bi-directional Power over Cable that eliminates the need for a power supply at the remote end. The KanexPro EXT-USBC-100M is a transmitter/receiver USB extender kit that delivers 5Gbps USB-C and USB-A connectivity to remote locations using standard network infrastructure, ideal for conference rooms, classrooms, digital signage, and industrial camera installations.

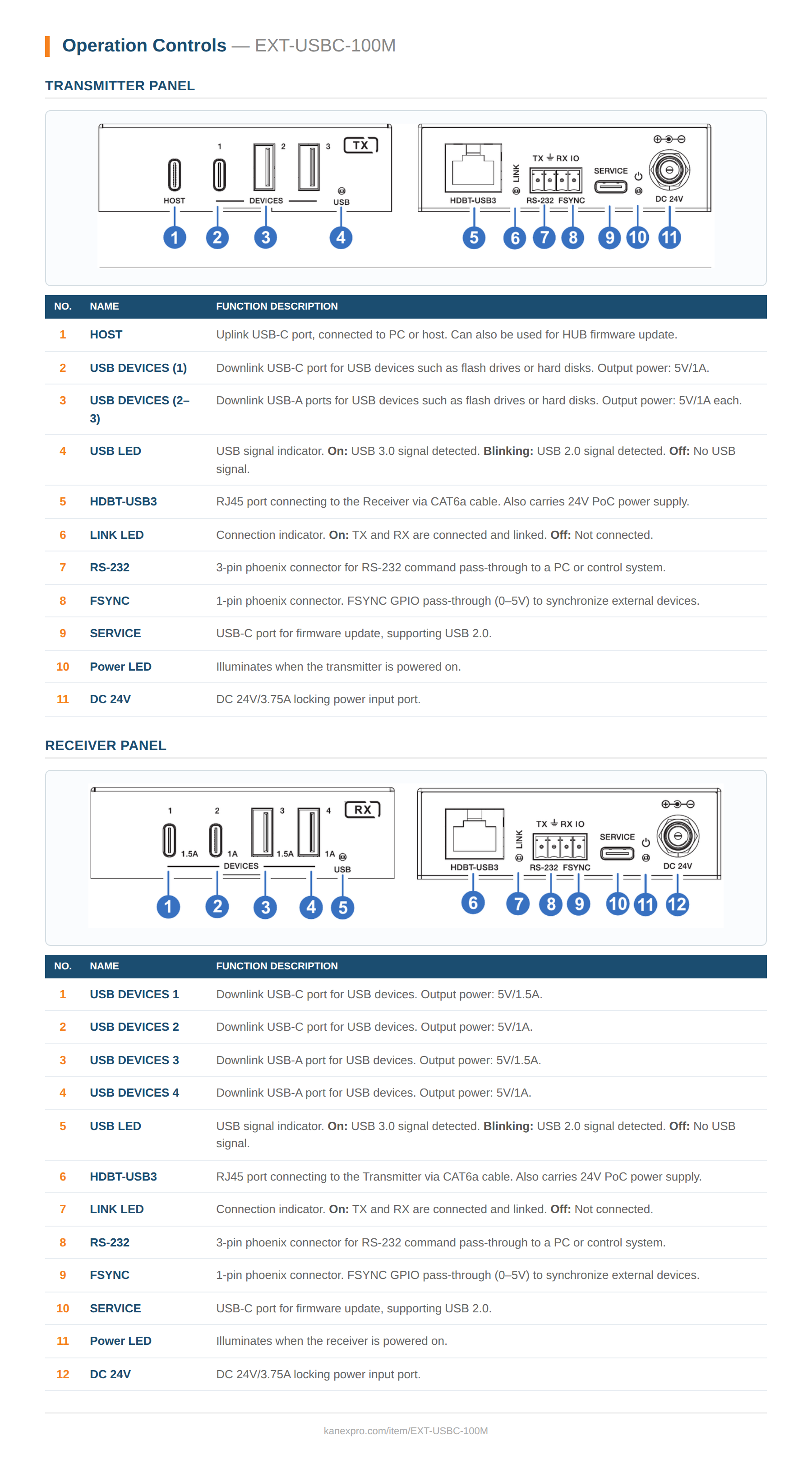

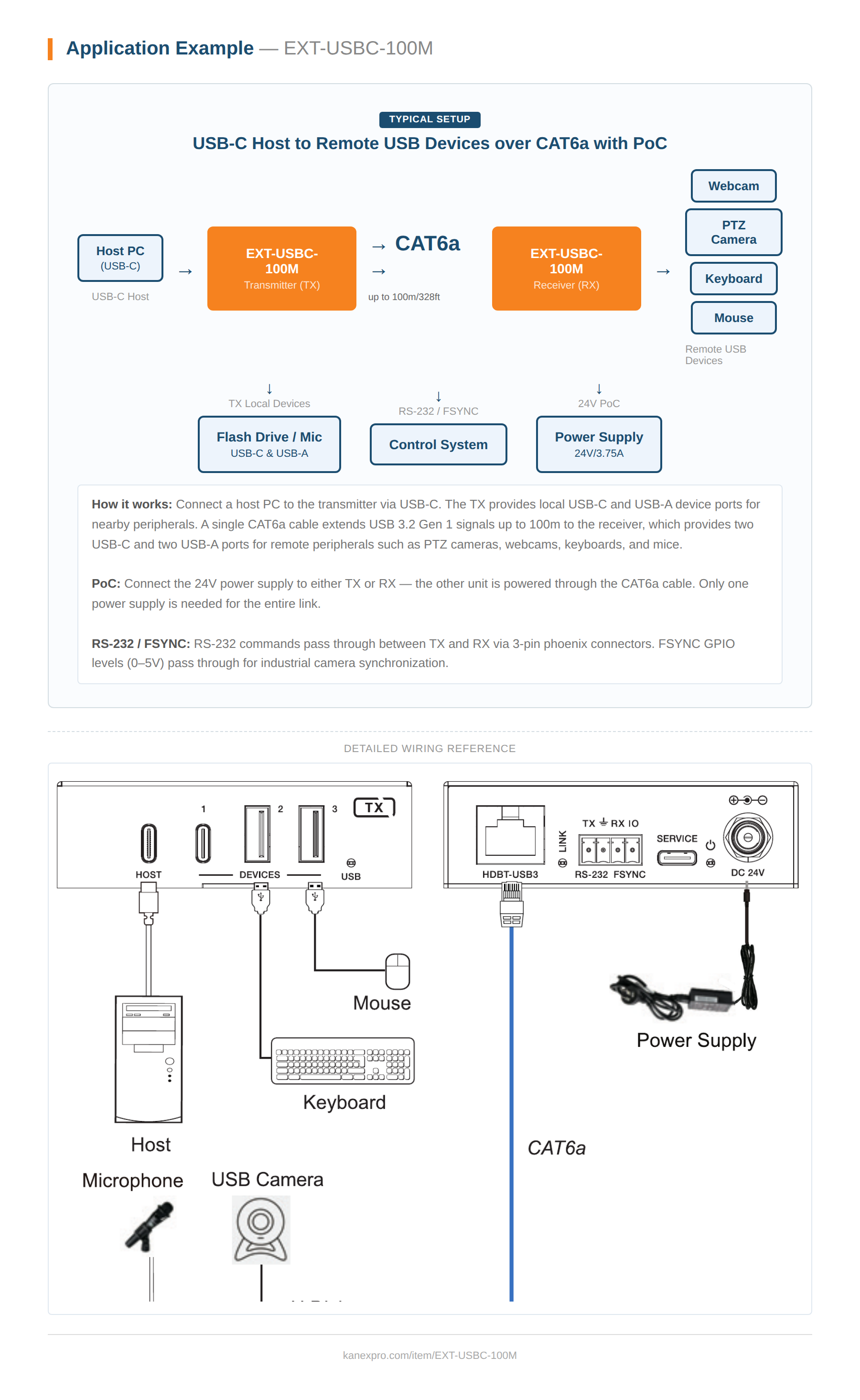

The transmitter connects to a host PC via USB-C and provides one USB-C and two USB-A device ports locally. The receiver extends an additional two USB-C and two USB-A device ports at the far end — supporting webcams, PTZ cameras, keyboards, mice, microphones, printers, and flash drives. RS-232 pass-through enables control system integration at both ends, while FSYNC GPIO support synchronizes industrial cameras. Bi-directional 24V PoC powers either unit through the CAT6a link. Plug-and-play with no drivers required.

• Extends USB 3.2 Gen 1 signals up to 100m/328ft over a single CAT6a (F/FTP) cable at data rates up to 5Gbps
• USB-C host connection on transmitter with one USB-C and two USB-A downstream device ports
• Receiver provides two USB-C device ports (1× 5V/1.5A, 1× 5V/1A) and two USB-A device ports (1× 5V/1.5A, 1× 5V/1A)
• Backwards compatible with USB 2.0 and USB 1.1 devices
• Bi-directional 24V PoC (Power over Cable) — power either the transmitter or receiver; the other unit is powered through the CAT6a link
• RS-232 pass-through via 3-pin phoenix connectors on both TX and RX for control system integration
• FSYNC GPIO pass-through (0–5V) for industrial camera synchronization
• Hardware acceleration for isochronous and bulk USB transfers
• Plug-and-play — no drivers, downloads, or software required; compact metal enclosure with mounting ears
