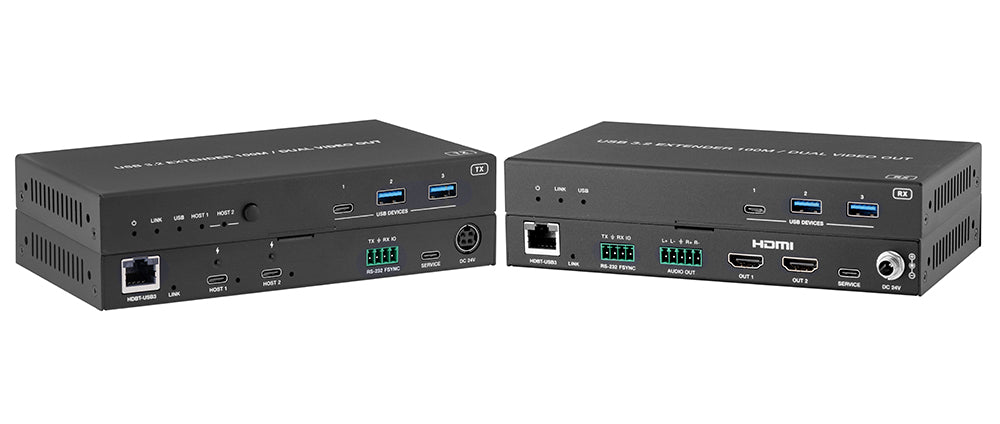

5Gbps Dual-Host USB-C Extender over CAT6a (100m/328ft) with Dual 4K HDMI Out New

TX/RX Kit with 100W USB-C PD Charging, Balanced/Unbalanced Audio Output, RS-232 & FSYNC GPIO

  • 5Gbps Dual-Host USB-C Extender over CAT6a (100m/328ft) with Dual 4K HDMI Out
1 1

KanexPro

SKU: EXT-USBCPD2X4K-100M

UPC: 813982024151

$699.95
查看完整详细信息

Extend two USB-C host laptops to a remote location up to 100 meters away — with dual 4K displays, USB peripherals, analog audio, and control — over a single CAT6a cable. The KanexPro EXT-USBCPD2X4K-100M is a 5Gbps USB 3.2 Gen 1 extender kit that delivers full USB-C docking station functionality at distances far beyond standard cable limits. Two selectable USB-C host ports on the transmitter support auto/manual switching for seamless presenter handoff, while USB-C PD charging up to 100W powers laptops directly from the TX.

At the receiver, dual HDMI 2.0b outputs deliver mirrored or extended displays at up to 4K@60Hz with HDCP 2.2 compliance. Balanced and unbalanced analog audio is de-embedded via a 5-pin phoenix connector for integration with existing speaker systems. Three downstream USB device ports on each unit support webcams, PTZ cameras, keyboards, mice, and touch panels. RS-232 pass-through enables third-party control system integration, while FSYNC GPIO provides industrial camera synchronization. Bi-directional 24V PoC allows flexible power deployment at either end of the cable run.

  • Extends USB 3.2 signals at 5Gbps up to 100m/328ft over a single CAT6a cable via HDBaseT
  • Dual USB-C host inputs on TX with auto/manual switching — supports two-laptop redundancy or presenter handoff
  • USB-C PD charging up to 100W (1×100W or 2×50W) — powers laptops directly from the transmitter
  • Dual HDMI 2.0b outputs on RX at up to 4K@60Hz — mirror or extend displays with HDCP 2.2 compliance
  • Balanced and unbalanced analog audio de-embedding on RX (LPCM 2CH, 32–192kHz) via 5-pin phoenix connector
  • Three downstream USB device ports on each unit (1× USB-C + 2× USB-A) for webcams, PTZ cameras, keyboards, and touch panels
  • RS-232 pass-through on both TX and RX for third-party control system integration
  • FSYNC GPIO pass-through for industrial camera synchronization (default level range 0–5V)
  • Bi-directional 24V PoC — power either TX or RX, the other unit is powered over the CAT6a link
Specification
Technical
USB ProtocolUSB 3.2 Gen 1
Transmission RateUp to 5Gbps
HDCP ComplianceHDCP 2.2
HDMI ComplianceHDMI 2.0b
HDMI Video Bandwidth18Gbps
HDMI Video ResolutionUp to 4K@60Hz
Color Depth8/10/12-bit
Color SpaceRGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Audio FormatHDMI: Up to LPCM 2.0/5.1CH • Analog De-embedding: LPCM 2CH (32–192kHz)
Transmission Distance100m/328ft via CAT6a (F/FTP) • 1.5m via USB • 3m via HDMI
ESD ProtectionIEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact)
Connections — Transmitter
Input2× USB-C HOST [24-pin female]
Output2× USB-A DEVICE [9-pin female] • 1× USB-C DEVICE [24-pin female]
Link1× HDBT-USB3 [RJ45, 24V PoC]
Control1× RS-232 [3pin phoenix] • 1× FSYNC [1pin phoenix] • 1× SERVICE [USB-C]
Connections — Receiver
Input1× HDBT-USB3 [RJ45, 24V PoC]
Output2× USB-A DEVICE • 1× USB-C DEVICE • 2× HDMI OUT [Type A] • 1× AUDIO OUT [5pin phoenix]
Control1× RS-232 [3pin phoenix] • 1× FSYNC [1pin phoenix] • 1× SERVICE [USB-C]
Mechanical
HousingMetal Enclosure, Black
DimensionsTX: 180 × 95 × 23mm • RX: 180 × 95 × 23mm
WeightTX: 482g • RX: 486g
Power SupplyAC 100–240V 50/60Hz → DC 24V/7.5A
Power ConsumptionTX: 120W max (incl. PD 100W) • RX: 19.44W max
Operating Temp32–113°F / 0–45°C
Storage Temp−40–140°F / −40–60°C
Operating Humidity20–80% RH (non-condensing)
Storage Humidity10–90% RH (non-condensing)
Package Contents
1×USB 3.2 Extender (TX)
1×USB 3.2 Extender (RX)
1×24V/7.5A Locking Power Supply
2×4pin-3.5mm Phoenix Connector
1×5pin-3.5mm Phoenix Connector
4×Mounting Ears
8×Machine Screws (KM3*4)
1×Product Manual

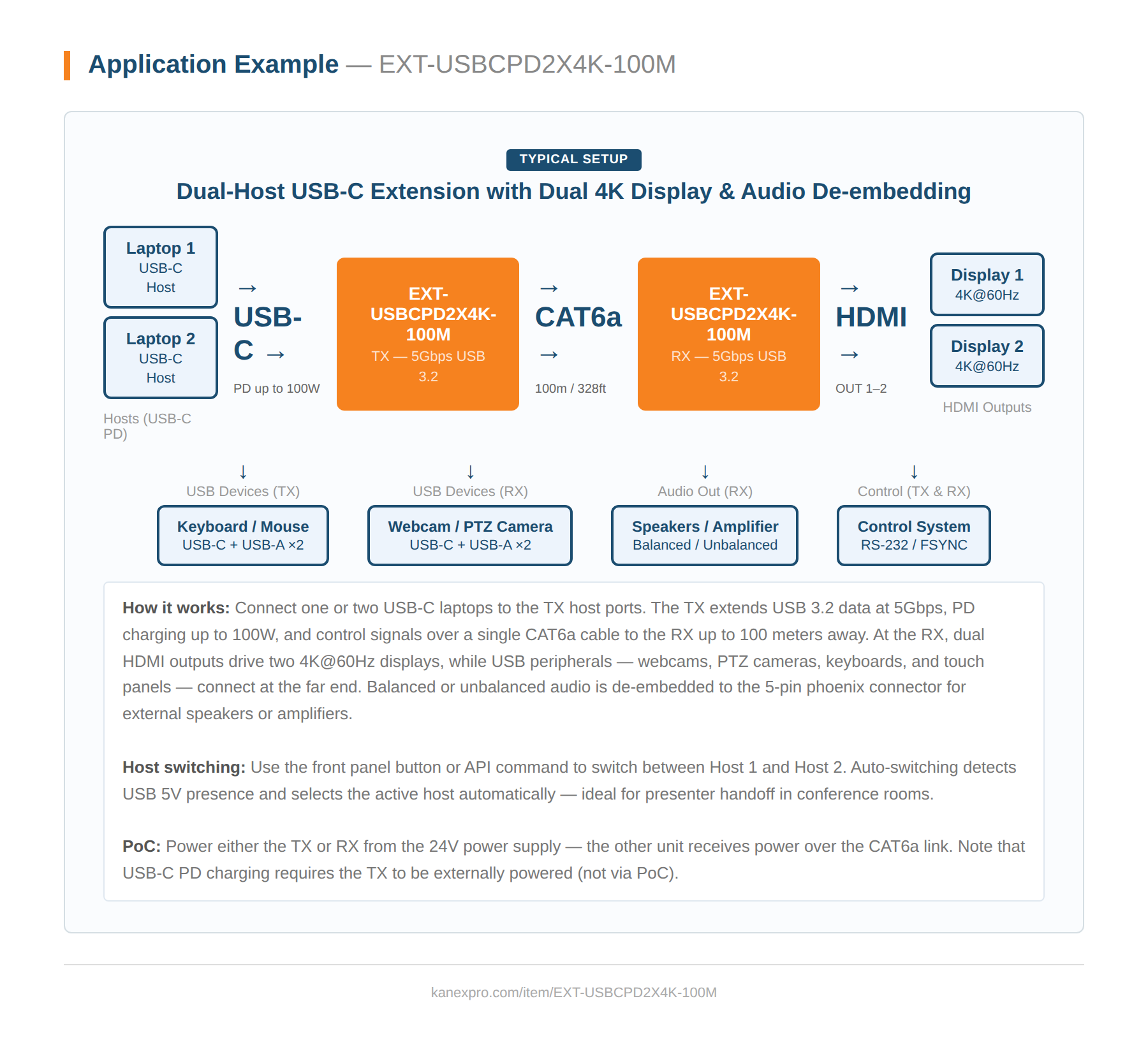

Product Diagram

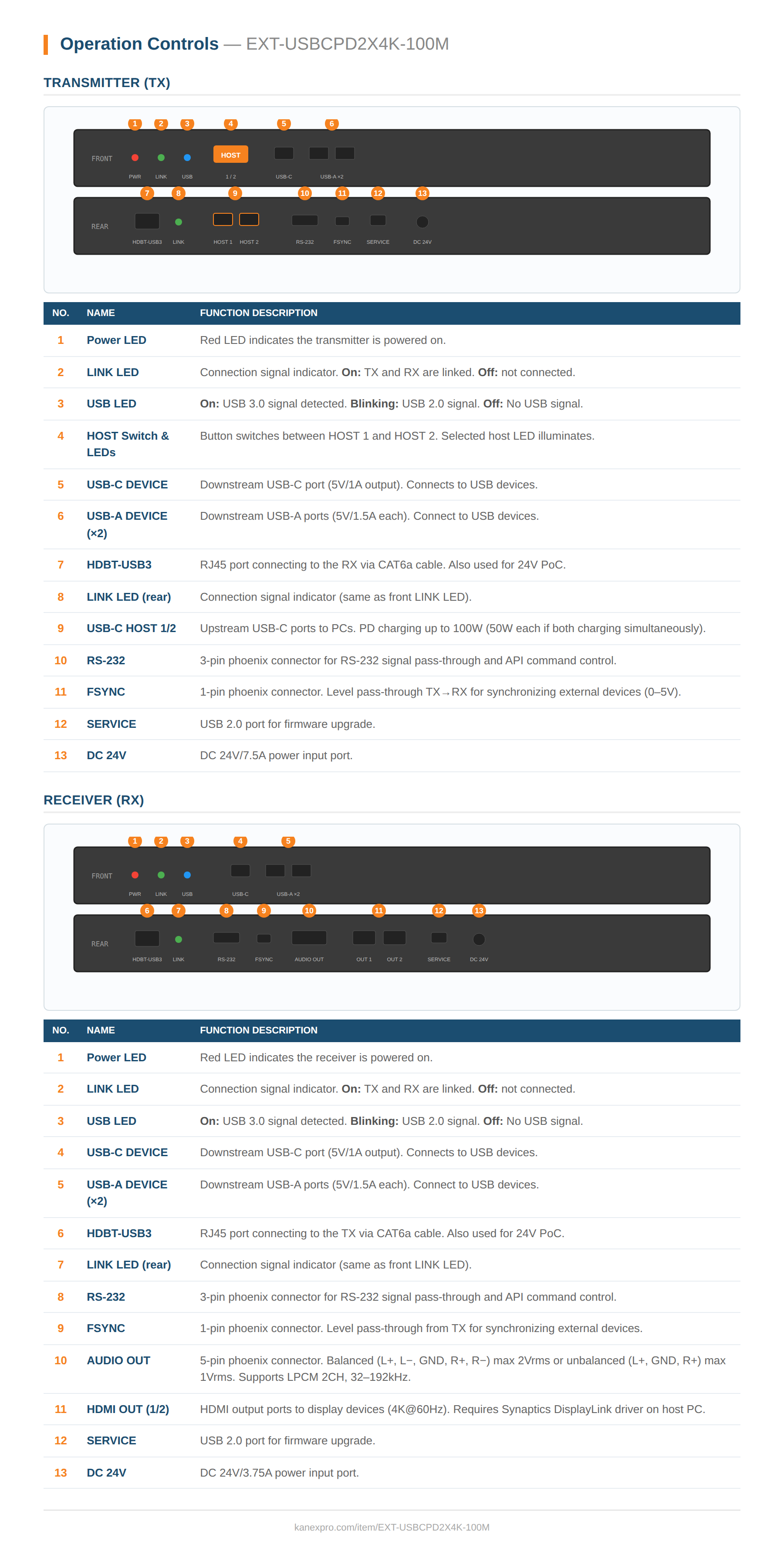

Product Panel
