4x2 HDMI® 2.0，4K/60 矩阵切换器，支持 HDR10 和 EDID 管理
4K/60Hz 4:4:4, Apple HDCP Mode, EDID Management — 4 Inputs to 2 Displays
Resellers, installers, schools and businesses. Approval is usually the same working day.

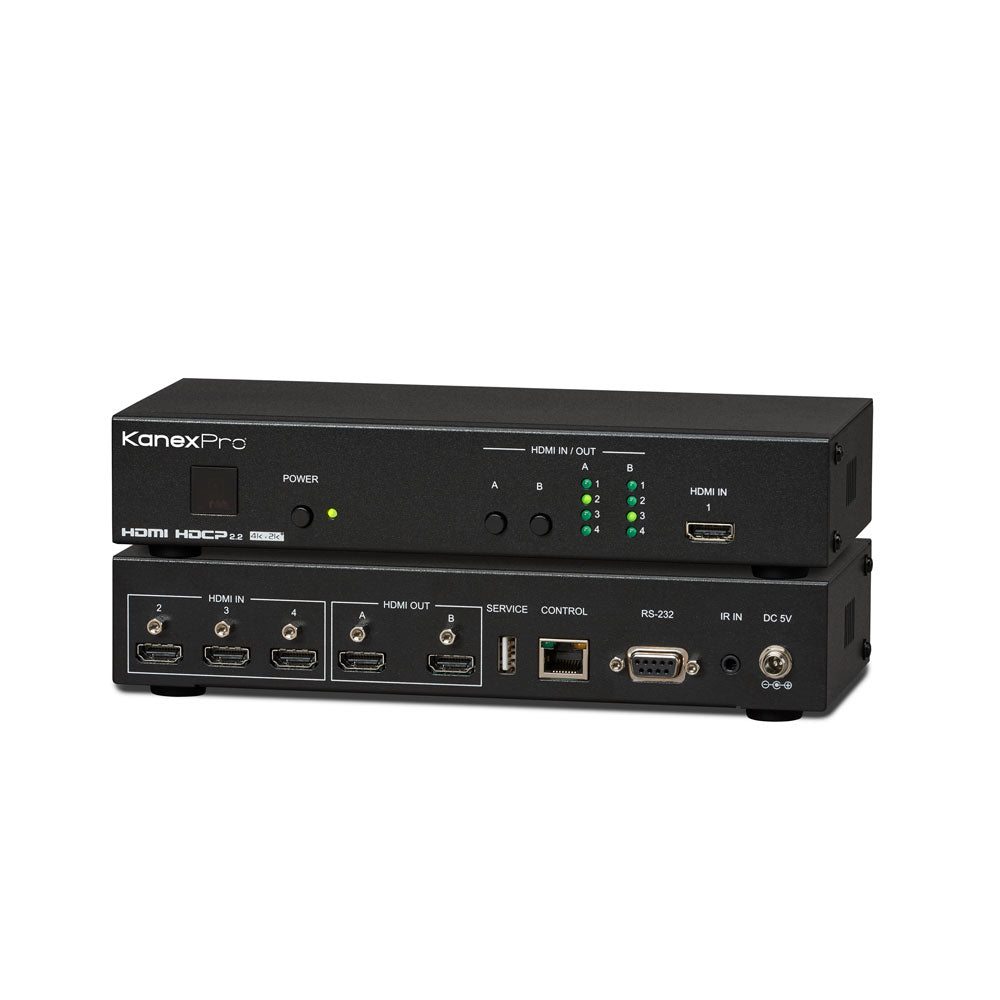

Basic 4×2 HDMI matrix switchers offer front panel and IR control — but commercial integrators increasingly require IP-based management for remote operation, diagnostics, and control system integration. The KanexPro HDMX42-18G delivers a full three-interface control suite — WebGUI, Telnet, and RS-232 — alongside front panel and IR, giving integrators complete flexibility to manage the unit from any network-connected device or third-party control system.
Supporting 4K@60Hz 4:4:4 with 18Gbps bandwidth and HDCP 2.2 compliance, the HDMX42-18G routes any of four HDMI sources to two independent displays at full 4K fidelity. Apple HDCP mode allows non-HDCP content from Apple and similar devices to display on non-HDCP screens without signal loss. Seven EDID presets — including sink-learned and resolution-specific options — handle mixed source and display environments. Compact half-rack form factor fits cleanly into any AV furniture or rack install.
- HDMI 2.0 and HDCP 2.2 compliant — 18Gbps / 600MHz bandwidth
- Routes 4 HDMI inputs to 2 independent HDMI outputs at up to 4K@60Hz 4:4:4
- WebGUI control — full routing, EDID, HDCP, naming, and network settings via browser
- Telnet control — CLI access for scripting and control system integration
- RS-232 control (115200 baud) — full command set for third-party control system integration
- Apple HDCP mode per input — allows non-HDCP content from Apple devices on non-HDCP displays
- EDID management: 7 presets (SINK A/B, 720P, 1080P, 4K_3G, 4K_Y420, 4K_6G) — ALL or per-input APPOINT mode
- Front panel button control with green/red power LED and source indicator LEDs
- IR remote control (CR-155) with IR extender cable included
- HDMI IN 1 accessible from front panel; HDMI IN 2–4 on rear
| Technical | |
| Video Bandwidth | 600 MHz / 18 Gbps |
| Input Ports | 4× HDMI Type A |
| Output Ports | 2× HDMI Type A |
| Control Interfaces | 1× RS-232 (DE-9) • 1× IP Control (RJ-45) • 1× IR Extender (3.5mm) |
| Service Port | 1× USB 2.0 (firmware update) |
| Supported Resolutions | 480i@60Hz – 4K@60Hz (4:4:4, 8-bit) • VGA@60Hz – WUXGA@60Hz |
| Baud Rate | 115200 bps |
| IR Frequency | 30–50 kHz |
| ESD Protection | ±12kV (Air) • ±8kV (Contact) |
| Mechanical | |
| Housing | Metal, Black |
| Dimensions | 9.45″ × 1.69″ × 4.09″ (240 × 43 × 104mm) |
| Net Weight | 1.75 lbs (796g) |
| Power Supply | DC 5V/2.6A (CE/FCC/UL certified) |
| Power Consumption | 7.1W |
| Operating Temp | 32°F–104°F (0°C–40°C) |
| Storage Temp | −4°F–140°F (−20°C–60°C) |
| Relative Humidity | 20–90% RH (non-condensing) |
| Certifications | |
| Regulatory | CE • FCC • UL |
| Cable Length | |
| 1080p@60Hz (12-bit) | Up to 33 ft (10m) |
| 4K@60Hz (4:4:4, 8-bit) | Up to 10 ft (3m) |
| Package Contents | |
| 1× | 4×2 HDMI Matrix Switcher |
| 1× | IR Remote (CR-155) |
| 1× | IR Extender Cable |
| 1× | 5V/2.6A DC Power Adapter |
| 1× | Operation Manual |
