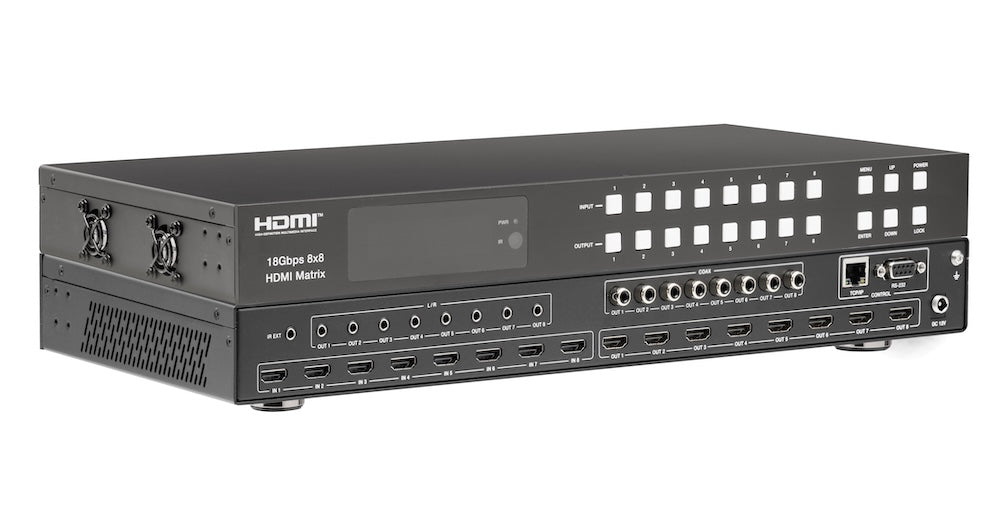

18Gbps 8×8 HDMI Matrix with ARC Function
4K60 4:4:4 Matrix Switcher with Independent Audio De-embedding & ARC
Resellers, installers, schools and businesses. Approval is usually the same working day.

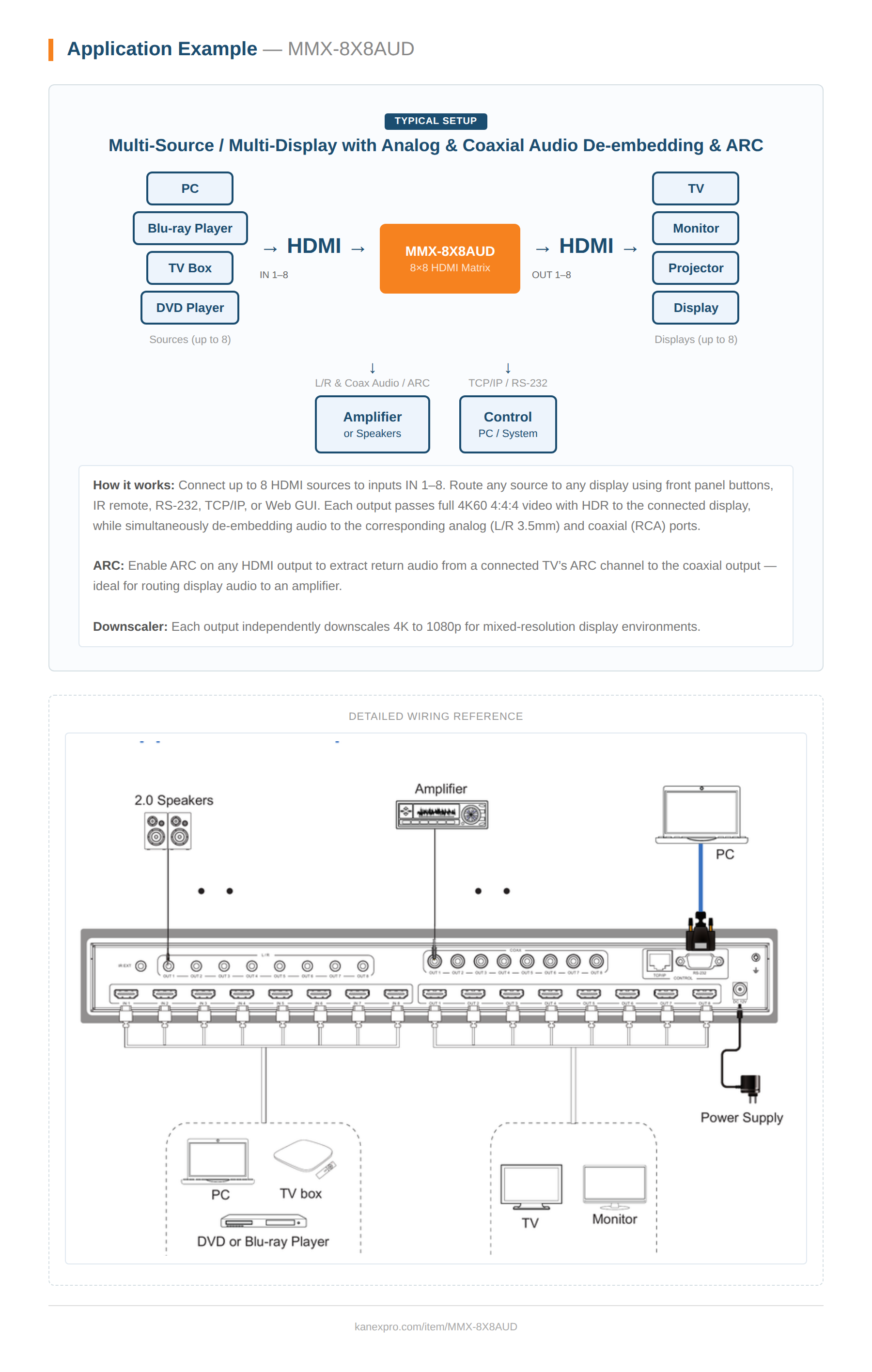

Centralized 4K60 HDMI switching with integrated audio management for multi-display environments. The KanexPro MMX-8X8AUD routes up to eight 18Gbps HDMI sources to eight independent displays at resolutions up to 4K2K@60Hz 4:4:4, with Dolby Vision, HDR10+, and HLG pass-through preserved end-to-end across every output.
Each output provides independent audio de-embedding via both analog (3.5mm) and coaxial (RCA) ports, while per-output ARC support extracts return audio from connected displays. A built-in 4K→1080p downscaler operates independently on each output, enabling mixed-resolution environments from a single matrix. Control options include front panel buttons with OLED display, IR remote, RS-232, TCP/IP, and a full-featured Web GUI with scene presets.
- Routes 8 HDMI 2.0b sources to 8 HDMI displays at full 18Gbps bandwidth — 4K2K@60Hz 4:4:4
- Dolby Vision, HDR10+, and HLG pass-through on every output
- Audio de-embedding on all 8 outputs via analog (3.5mm L/R) and coaxial (RCA) ports
- Per-output ARC extracts return audio from connected displays to coaxial output
- Independent 4K→1080p downscaler per output enables mixed-resolution deployments
- HDMI audio pass-through up to 7.1ch — LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master, DTS:X
- Smart EDID management with 21 factory presets, 2 user-defined, and 8 copy-from-output modes

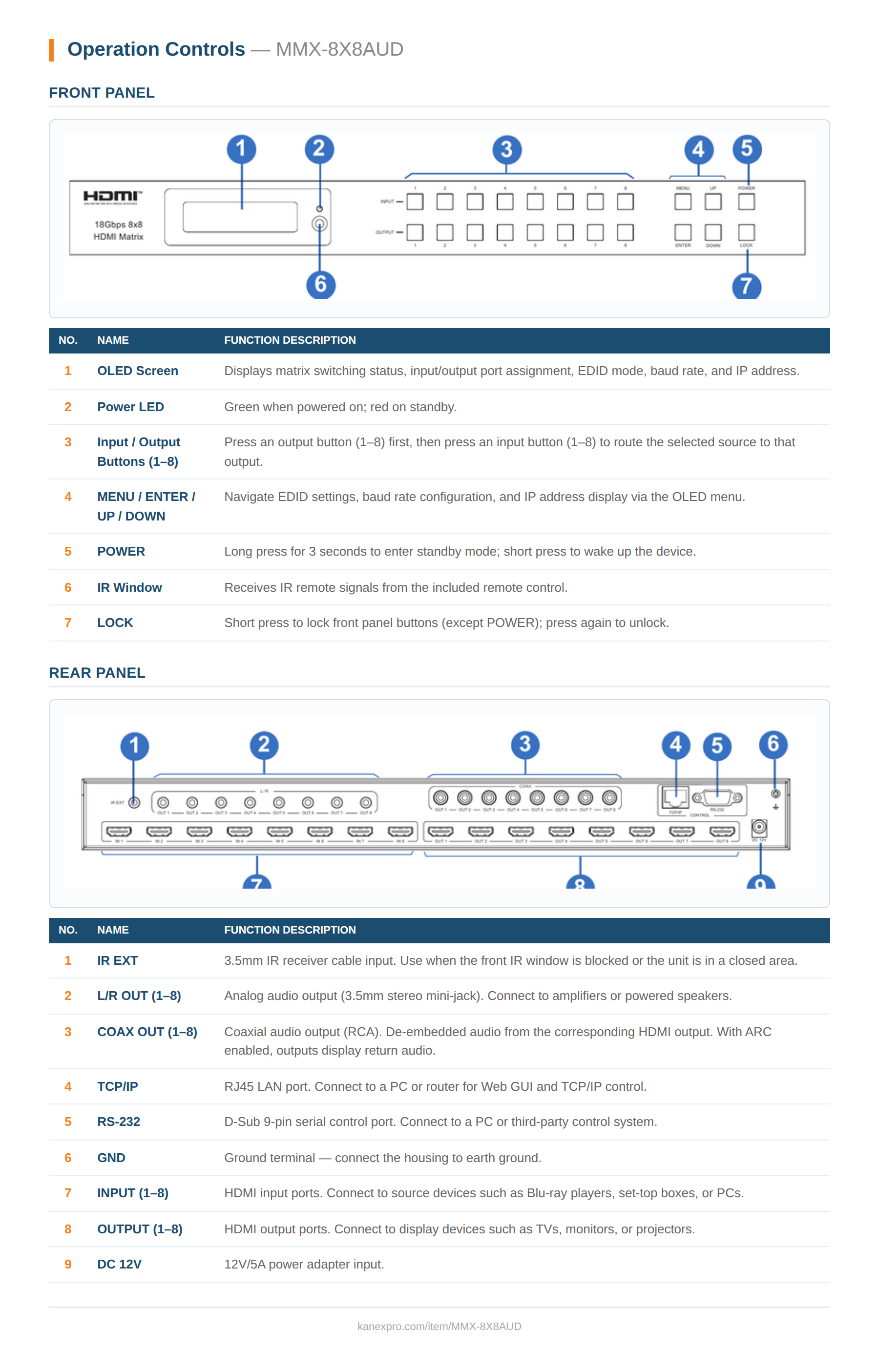

- Full control: front panel OLED, IR remote, RS-232, TCP/IP (LAN), and Web GUI with 8 scene presets
| Specification | |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio (Pass-through) | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 |
| L/R Audio Formats | PCM 2.0 |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact) |
| Connection | |
| Input | 8× HDMI Type A [19-pin female], 1× IR EXT [3.5mm Stereo Mini-jack] |
| Output | 8× HDMI Type A [19-pin female], 8× Coaxial Audio (RCA), 8× L/R Audio [3.5mm Stereo Mini-jack] |
| Control | 1× TCP/IP [RJ45] • 1× RS-232 [D-Sub 9] |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions | 440mm (W) × 200mm (D) × 44.5mm (H) — 1U |
| Weight | 2.8 kg |
| Power Supply | AC 100–240V 50/60Hz → DC 12V/5A |
| Power Consumption | 43W |
| Operating Temperature | −10–45°C / 14–113°F |
| Storage Temperature | −20–60°C / −4–140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Cable Length | |
| 4K60 | Up to 16 ft / 5m |
| 4K30 | Up to 32 ft / 10m |
| 1080p60 | Up to 50 ft / 15m |
| Package Contents | |
| 1× | 18Gbps 8×8 HDMI Matrix |
| 1× | 12V/5A Power Adapter |
| 1× | IR Remote |
| 1× | IR Receiver Cable (1.5m) |
| 1× | RS-232 Cable (1.5m, male to female) |
| 2× | Mounting Ears |
| 1× | Product Manual |
