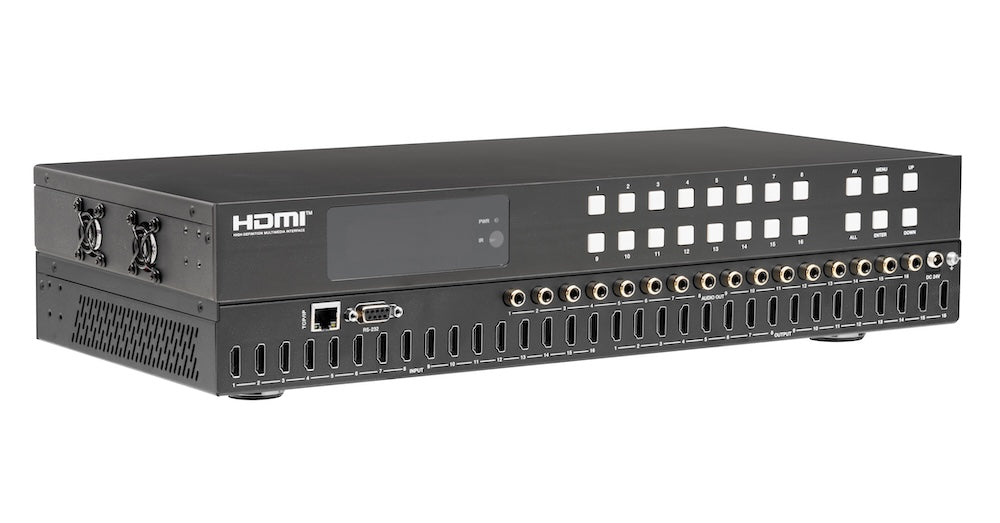

18Gbps 16×16 HDMI Matrix with ARC Function New
4K60 4:4:4 Matrix Switcher with Coaxial Audio De-embedding & ARC

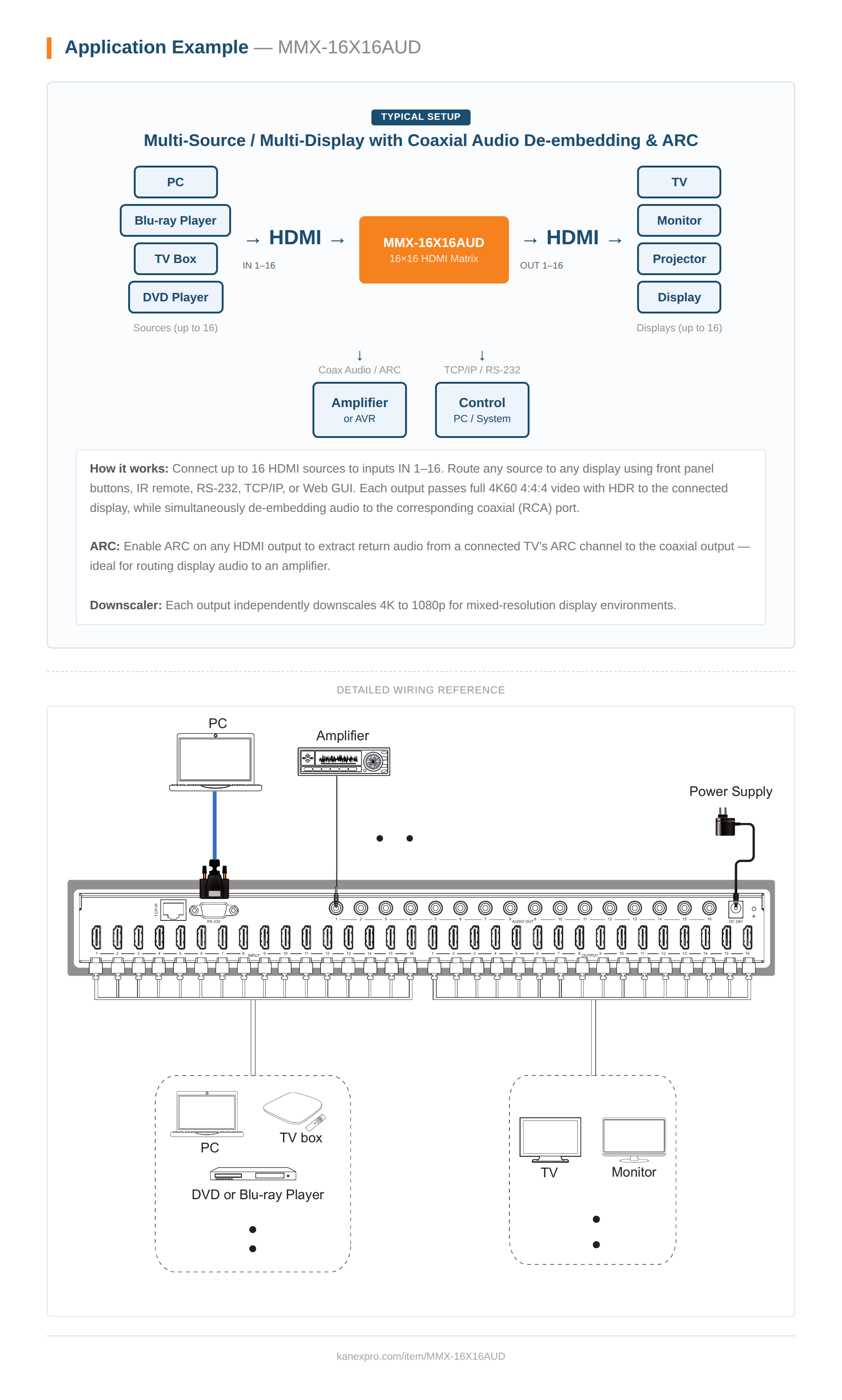

Route sixteen HDMI sources to sixteen displays with full 4K60 4:4:4 fidelity and independent coaxial audio de-embedding on every output. The KanexPro MMX-16X16AUD is an 18Gbps 16×16 HDMI matrix switcher that delivers seamless routing of ultra-high-definition video and multi-channel digital audio across large-scale AV environments — with dedicated coaxial audio outputs on all sixteen channels.
Compliant with HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0, the matrix supports HDR10, HDR10+, Dolby Vision, and HLG pass-through alongside Dolby Atmos and DTS:X audio. Each output features an independent 4K-to-1080p downscaler for mixed-resolution displays. ARC support extracts audio from connected displays to coaxial output. Control via front panel OLED, IR remote, RS-232, TCP/IP, and Web GUI. 1U rack-mountable.
- Routes 16 HDMI 2.0b sources to 16 displays at up to 4K2K@60Hz 4:4:4 with 18Gbps bandwidth on every port
- HDCP 2.2/1.x and DVI 1.0 compliant — supports protected content across all input and output channels
- HDR10, HDR10+, Dolby Vision, and HLG pass-through preserves HDR metadata end-to-end
- Audio pass-through up to 7.1-channel HD audio including LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- Independent coaxial audio de-embedding on all 16 outputs — supports LPCM 2.0, Dolby Digital/DD+, and DTS 5.1
- ARC function on HDMI outputs extracts display audio to coaxial output — ideal for soundbar and amplifier integration
- Independent 4K→1080p downscaler on each output for mixed-resolution display environments
- Smart EDID management with 21 factory presets, 2 user-defined, and 16 copy modes; CEC pass-through

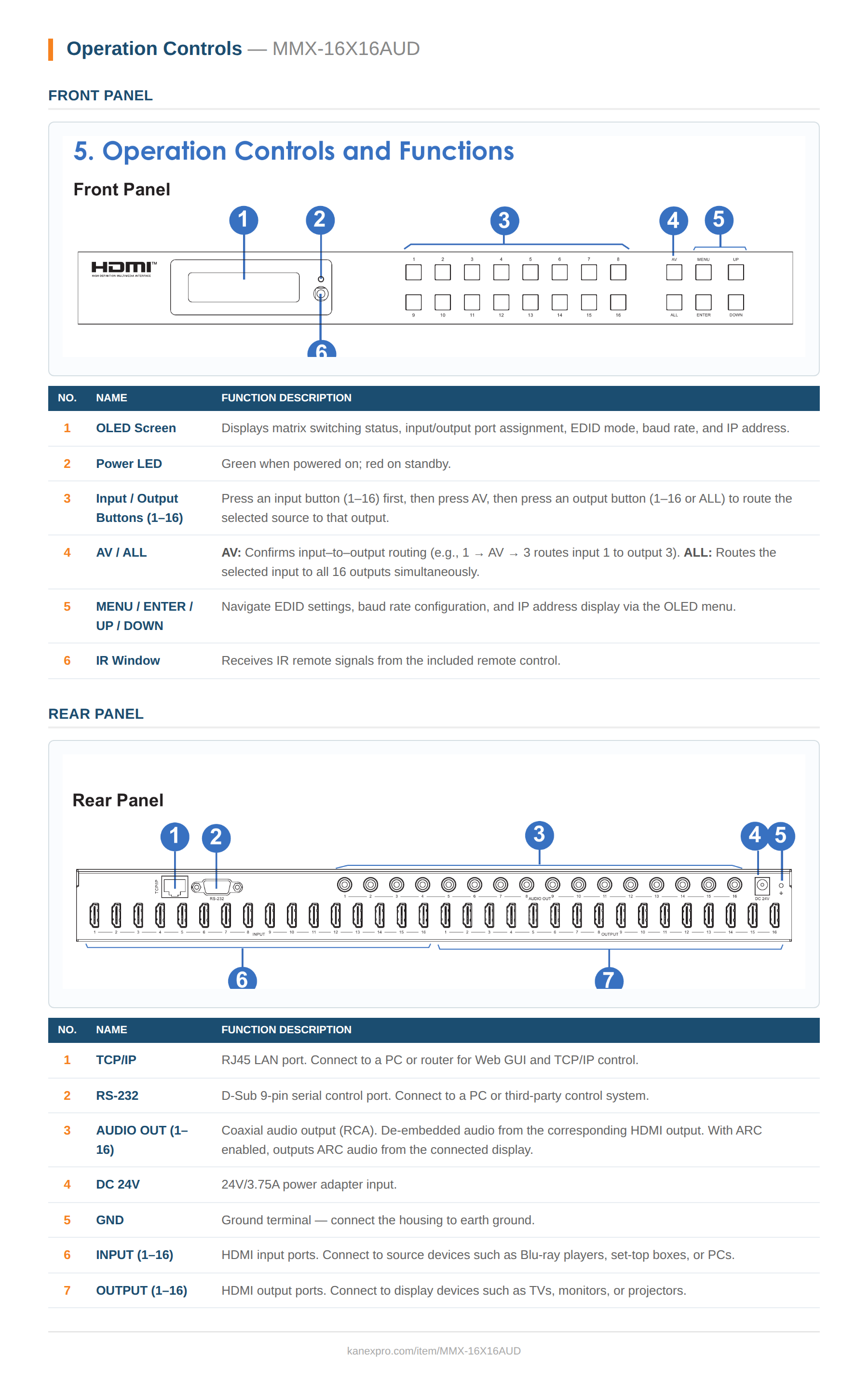

- Control via front panel (OLED), IR remote, RS-232, TCP/IP, and Web GUI — 1U rack-mountable
| Specification | |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x • DVI 1.0 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@60Hz (4:4:4) |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio (Pass-through) | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap) & ±4kV (contact) |
| Connection | |
| Input | 16× HDMI Type A [19-pin female] |
| Output | 16× HDMI Type A [19-pin female], 16× Coaxial Audio (RCA) |
| Control | 1× TCP/IP [RJ45] • 1× RS-232 [D-Sub 9] |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Dimensions | 440mm (W) × 200mm (D) × 44mm (H) — 1U |
| Weight | 3.1 kg |
| Power Supply | AC 100–240V 50/60Hz → DC 24V/3.75A |
| Power Consumption | 76.8W |
| Operating Temp | 14–113°F / −10–45°C |
| Storage Temp | −4–140°F / −20–60°C |
| Humidity | 20–90% RH (non-condensing) |
| Cable Length | |
| Cable Length (4K60) | Up to 16 ft / 5m |
| Cable Length (4K30) | Up to 32 ft / 10m |
| Cable Length (1080p60) | Up to 50 ft / 15m |
| Package Contents | |
| 1× | 18Gbps 16×16 HDMI Matrix |
| 1× | 24V/3.75A Power Adapter |
| 1× | IR Remote |
| 1× | RS-232 Cable (1.5m, male to female) |
| 2× | Mounting Ears |
| 1× | Product Manual |
