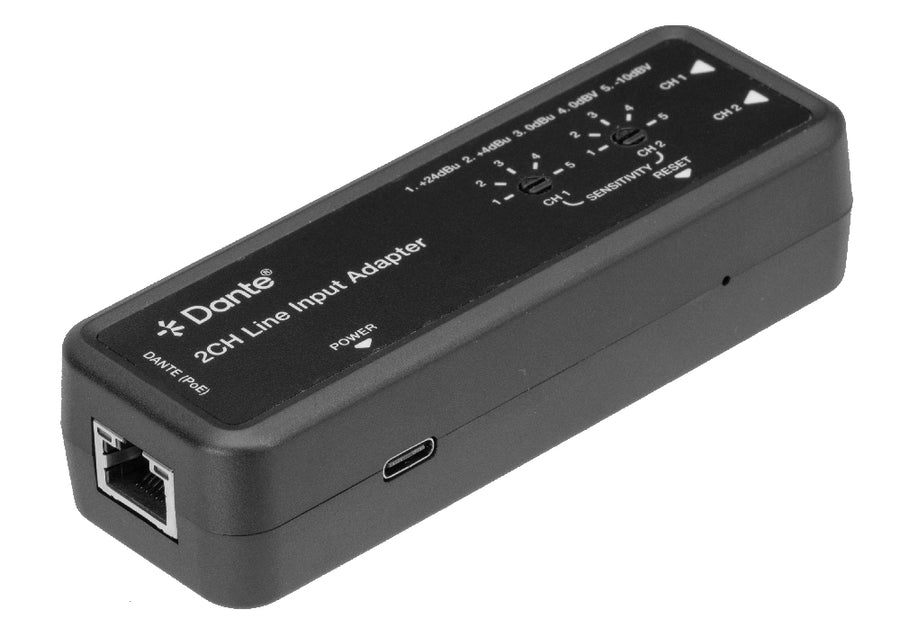

Dante 2CH Analog Line Input Adapter New

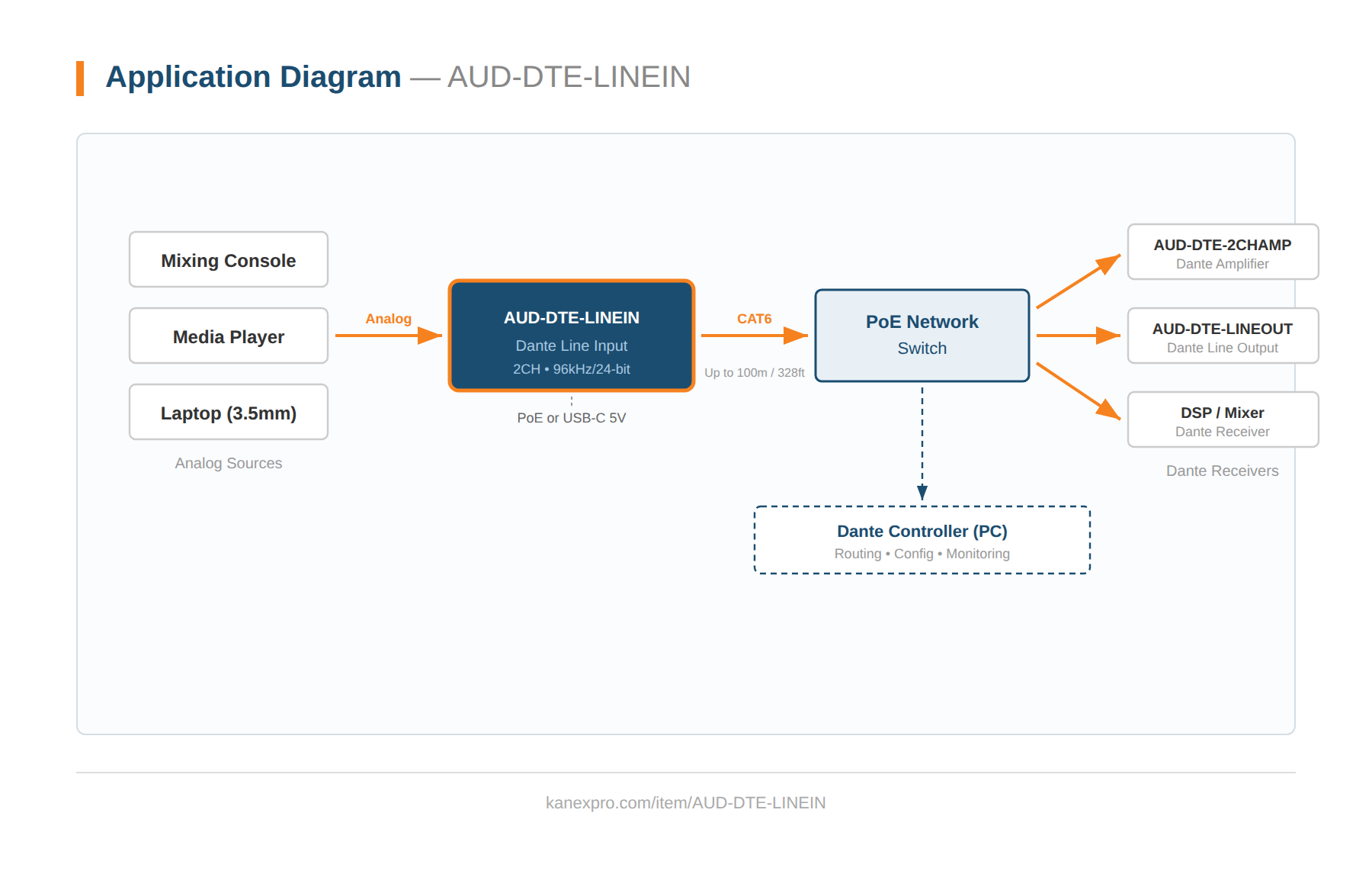

Bridges legacy analog audio sources into any Dante network with a compact, plug-and-play 2-channel line input adapter. The KanexPro AUD-DTE-LINEIN accepts balanced or unbalanced analog audio via a 6-pin phoenix connector and converts it to Dante digital audio at up to 96kHz/24-bit, delivering >100dB dynamic range and <0.01% THD+N for transparent signal quality.

Five-level per-channel sensitivity adjustment (+24dBu to −10dBv) accommodates everything from professional mixing consoles to consumer media players without external attenuators. Powered by PoE (IEEE 802.3af) or USB-C, the adapter installs anywhere on the network with a single CAT cable — no dedicated power run required. AES67 interoperability ensures compatibility across mixed-vendor Dante and AES67 systems.

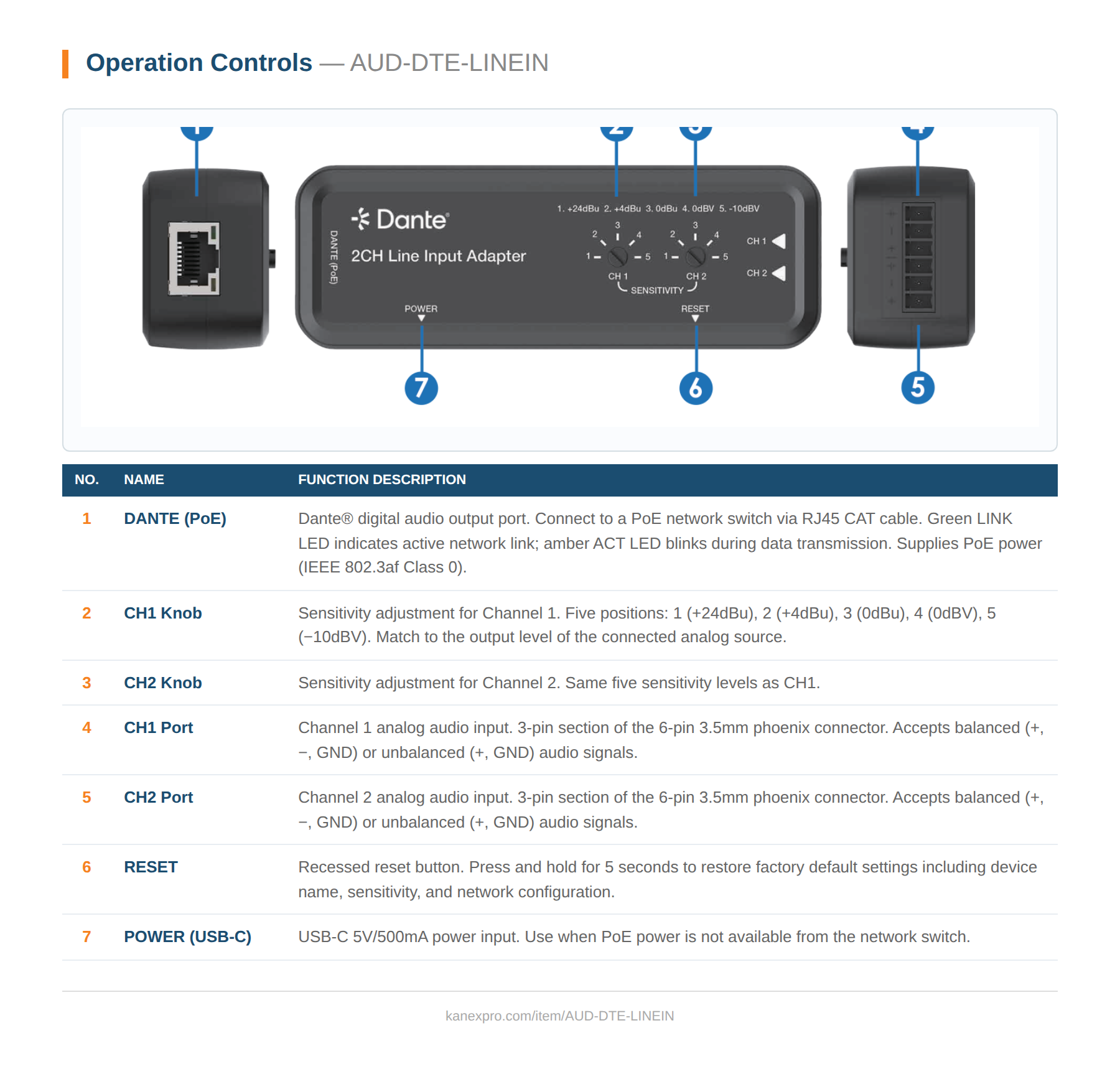

• Converts 2-channel balanced/unbalanced analog audio to Dante digital audio via 6-pin 3.5mm phoenix connector
• Dante Ultimo 2×2 platform with sampling rates of 44.1, 48, 88.2, and 96kHz at 24-bit resolution
• 5-level per-channel sensitivity adjustment: +24dBu, +4dBu, 0dBu, 0dBV, −10dBV
• Signal performance: >100dB S/N ratio, >100dB dynamic range, <0.01% THD+N at +4dBu
• Configurable Dante audio delay: 1, 2, or 5ms via Dante Controller
• AES67 RTP audio transmission for cross-platform interoperability
• Dual power: PoE (IEEE 802.3af Class 0) or USB-C 5V — single-cable network installation
• Compact 115×40×28mm enclosure with hook-and-loop mounting for flexible placement
