Dante powered 2CH USB Audio Encoder with POE

PC MAC Audio to Dante

1 1

KanexPro

SKU: AUD-DTE-USB

UPC: 813982023536

$299.95
View full details

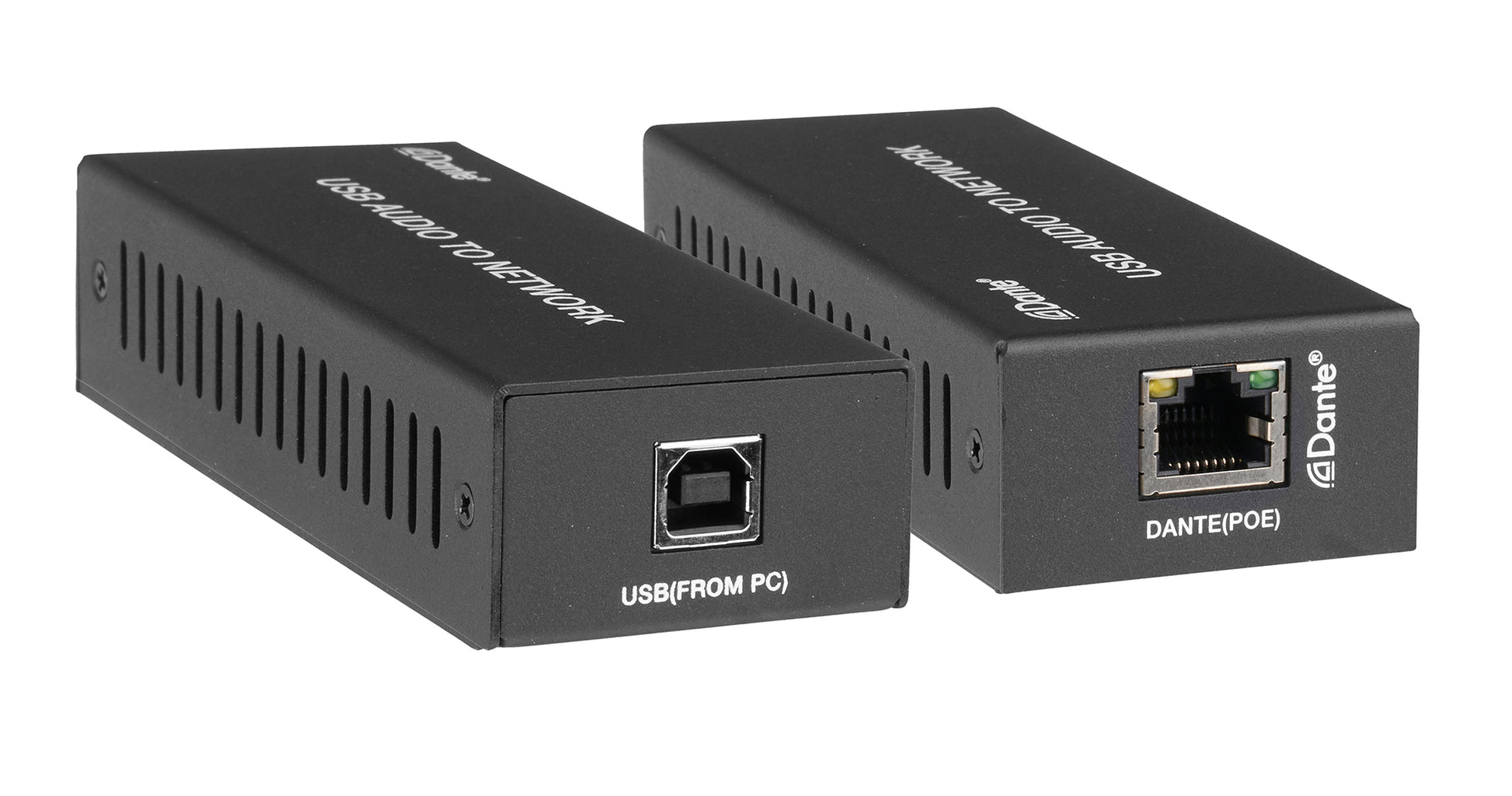

This KanexPro AUD-DTE-USB Dante 2CH USB Audio Encoder is a Dante sound card adapter based on
the Dante Ultimo solution.
It supports USB audio transmission. Built-in USB sound card chip, it transmits audio signal through network (Dante).
It supports USB power supply and POE function.

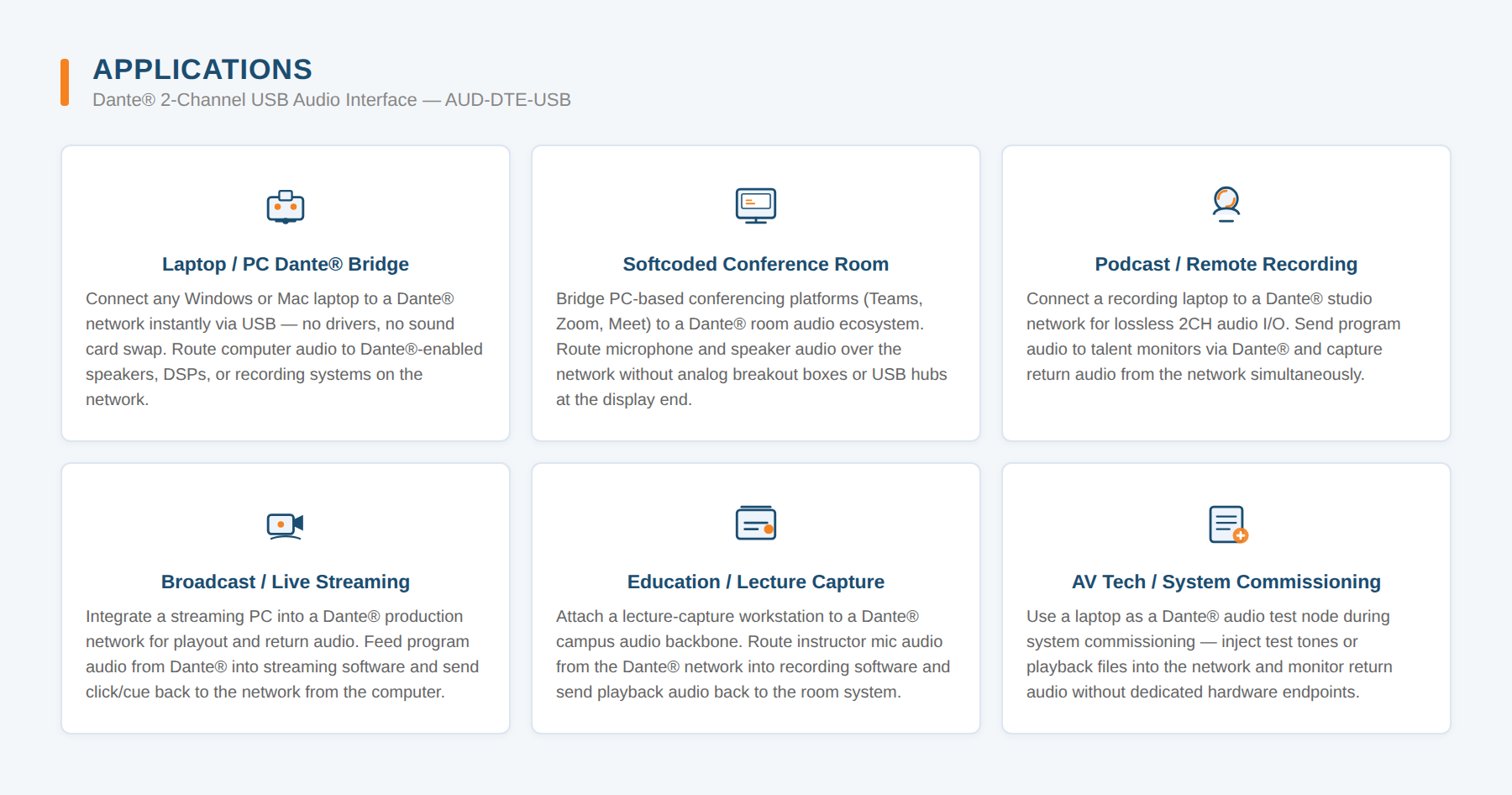

The product is compact and easy to carry, plug and play, suitable for recording studios, art festivals,
concerts and other scenes.
  • Compliant with USB 2.0 Full Speed Operation
  • Compliant with USB Audio Device Class Specification V1.0
  • Analog sound card, supporting MIC input and SPK output
  • Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
  • Dante solution supports AES67 RTP audio transmission
  •  Support USB 5V power supply and POE function (IEEE802.3af Class 0)

Technical

  • Video Network Bandwidth: 100M
  • Audio Formats: PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
  • Transmission Distance: 100m (CAT6/6A)
  • Frequency Response: 20Hz to 20kHz
  • Control Method: Donte Controller

Connection

  • Input& Output:  1x USB-B

                       1x DANTE [RJ45 connector, POE]

Mechanical

  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 120mm (W) × 47mm (D) × 26mm (H)
  • Weight: 186g
  • Power supply: USB input: 5V/500mA

                            PoE input: IEEE802.3af Class 0

  • Power consumption: 1W
  • Operating temperature:  0°C ~ 40°C / 32°F ~ 104°F
  • Storage temperature:  -20°C ~ 60°C / -4°F ~ 140°F
  •  Relative humidity: 20~90% RH (non-condensing)

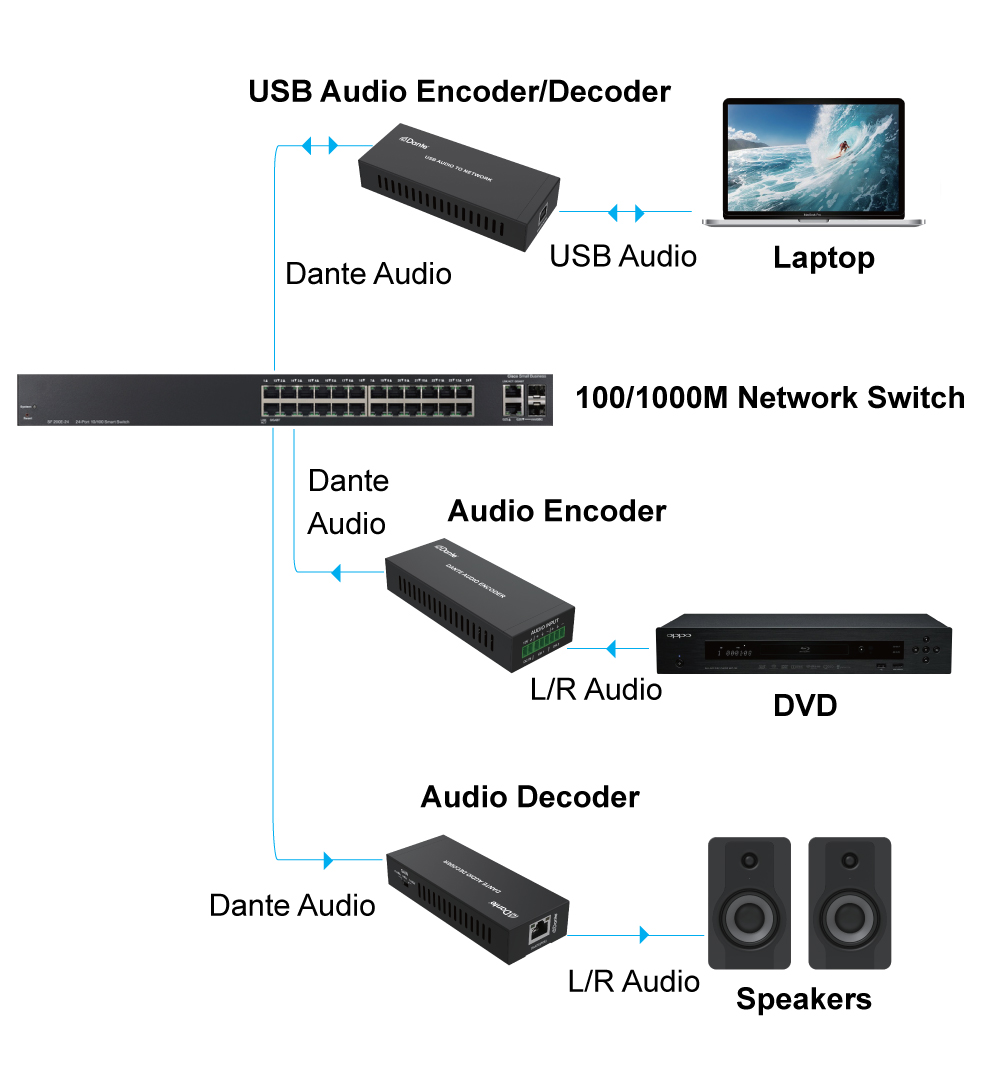

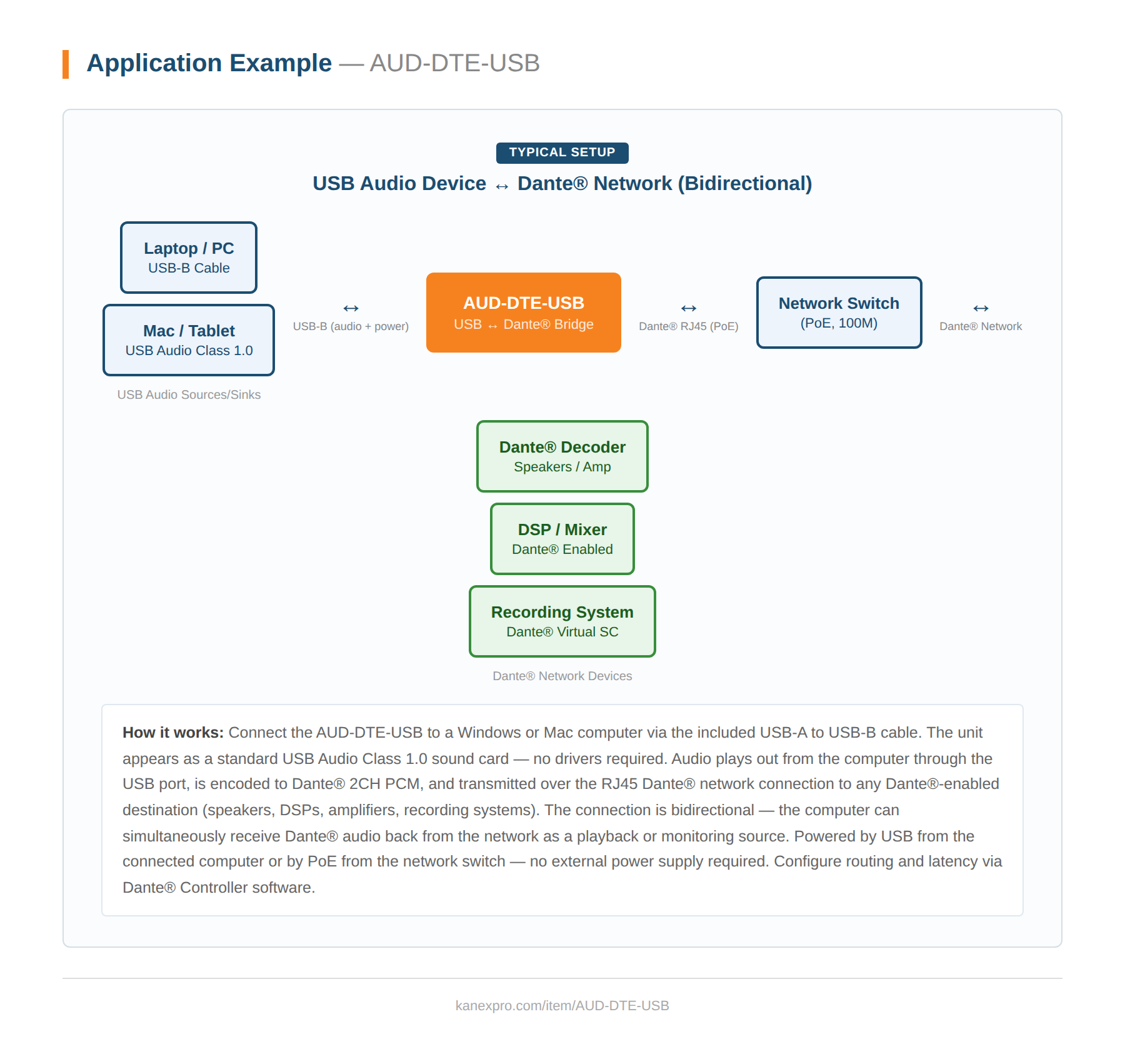

Product Diagram

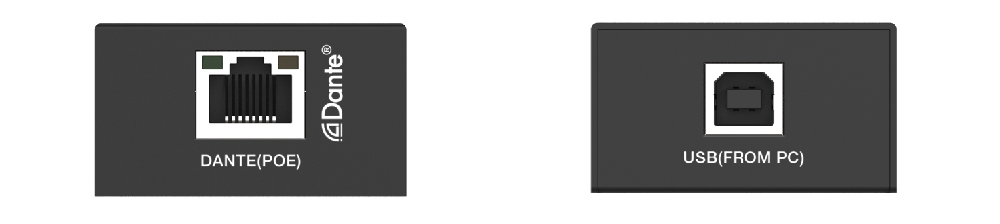

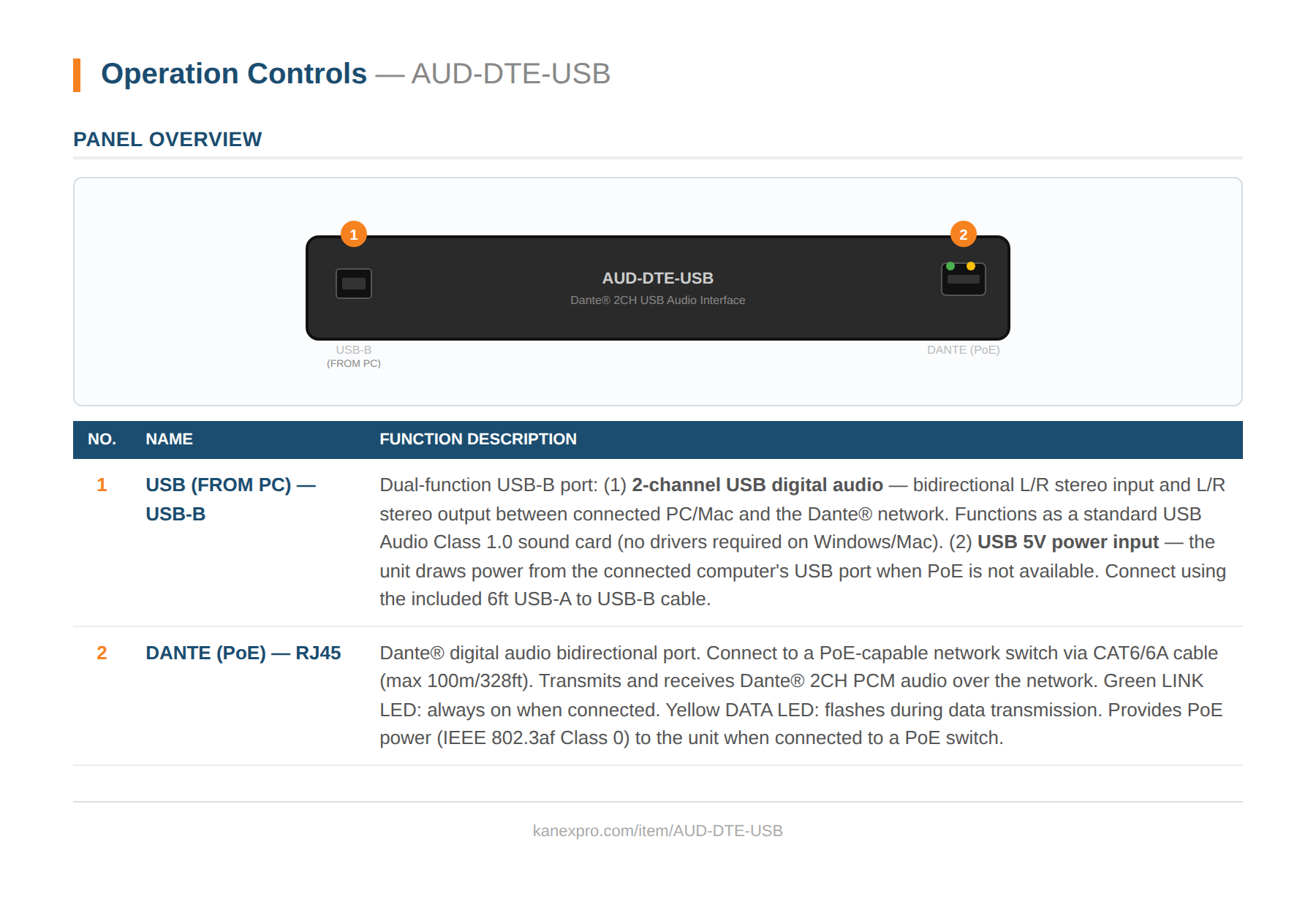

Product Panel
