Dante® 2-Channel XLR Input Adapter New

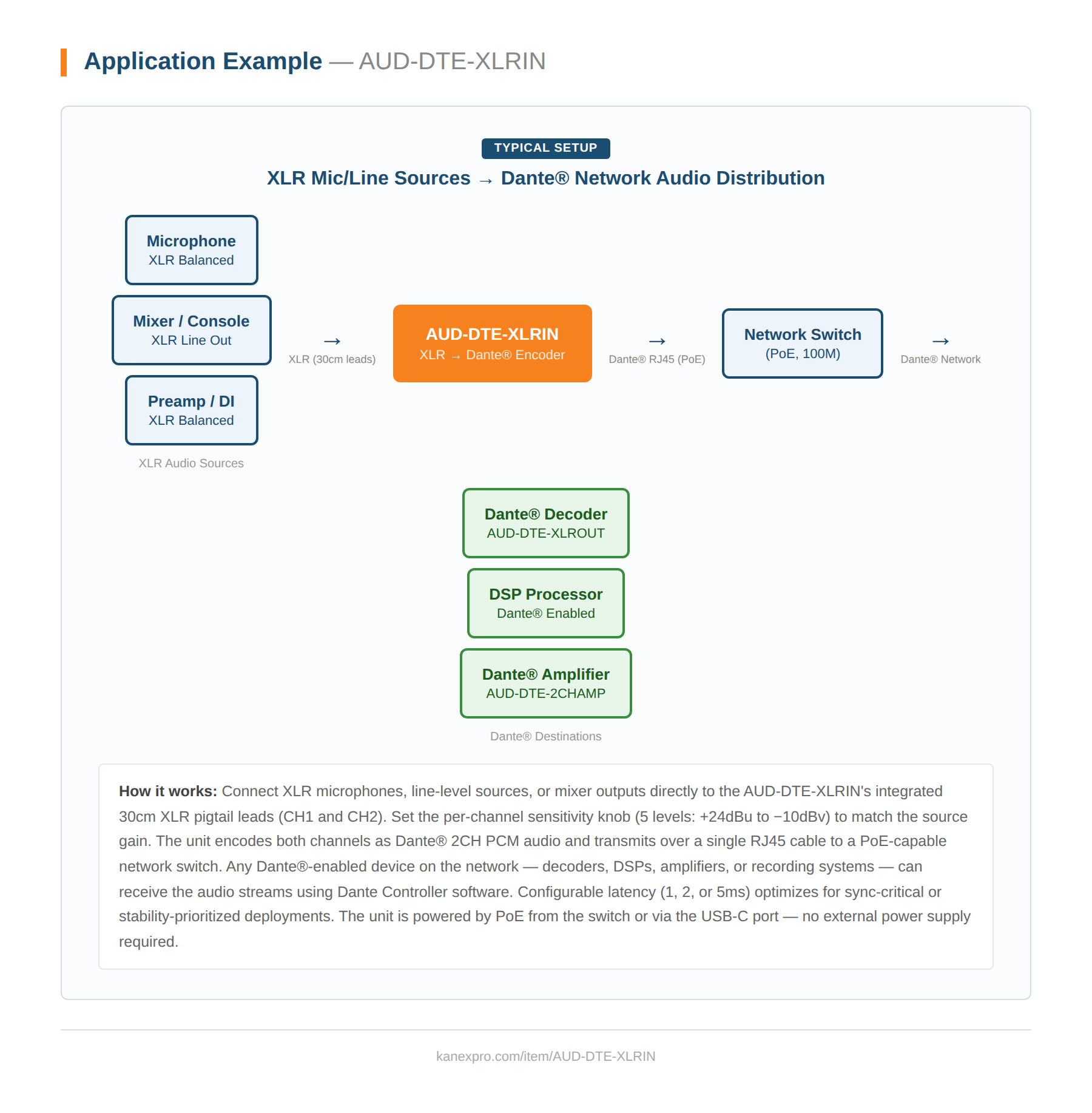

The KanexPro AUD-DTE-XLRIN converts two-channel balanced or unbalanced XLR analog audio into Dante® digital audio for professional AV and networked sound environments. Built on the Dante Ultimo 2×2 platform, it accepts microphones, mixers, and pro-audio line sources directly via integrated 30cm XLR pigtail leads, eliminating the need for a separate stagebox or rack-mount interface.

Five selectable input sensitivity levels (+24dBu to -10dBv) deliver precise gain staging at the source. Powered by PoE (802.3af Class 0) or USB-C, it installs anywhere on the network with minimal cabling. Configurable latency (1, 2, or 5ms) and AES67 compatibility ensure integration into any professional Dante® ecosystem.

• Converts 2-channel balanced/unbalanced XLR analog audio to Dante® 2CH digital audio

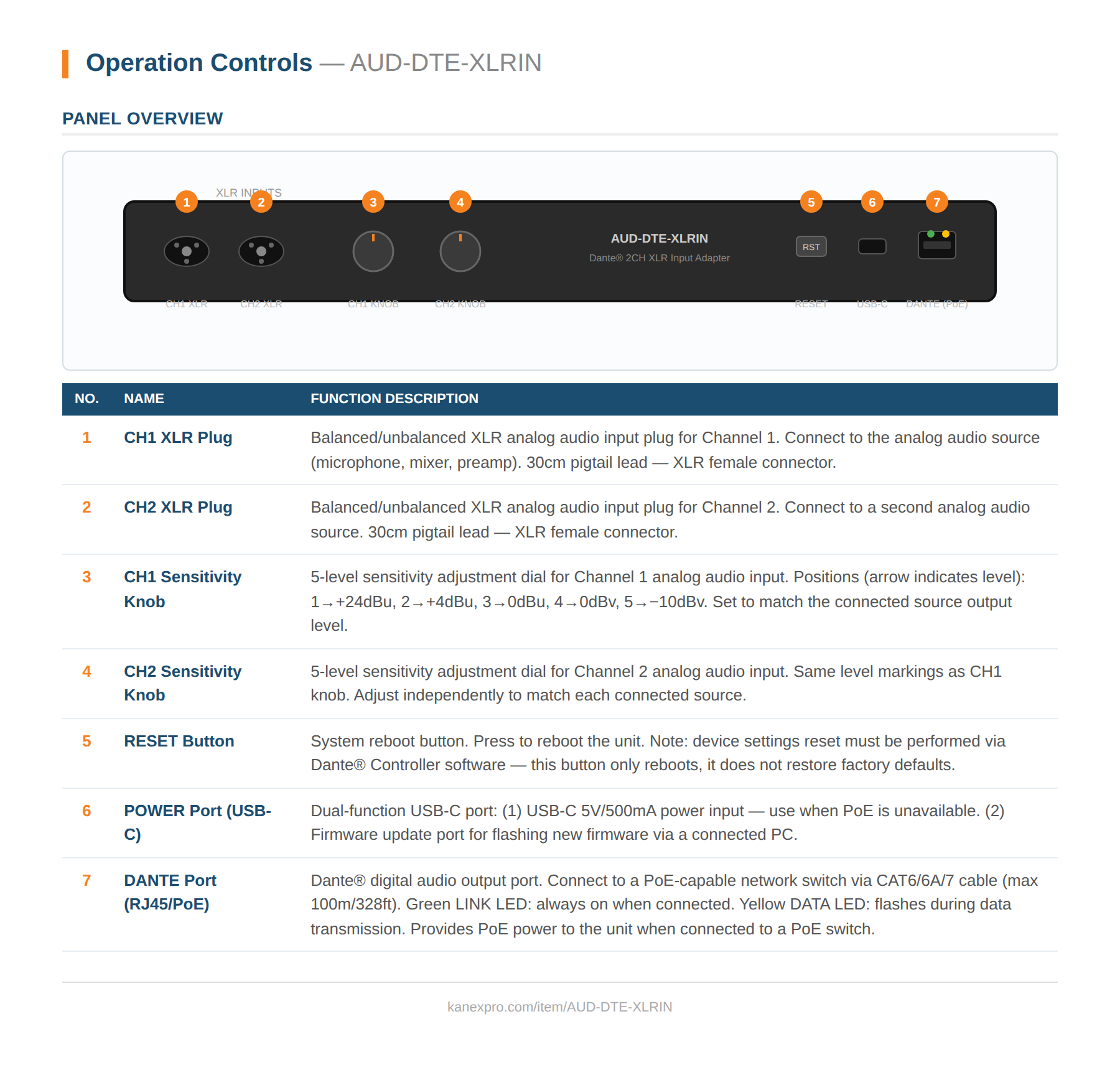

• Five input sensitivity levels: +24dBu, +4dBu, 0dBu, 0dBv, -10dBv — per-channel adjustment
• Dante® audio sampling up to 96kHz at 24-bit; AES67 compatible
• Configurable Dante® device latency: 1, 2, or 5ms via Dante® Controller

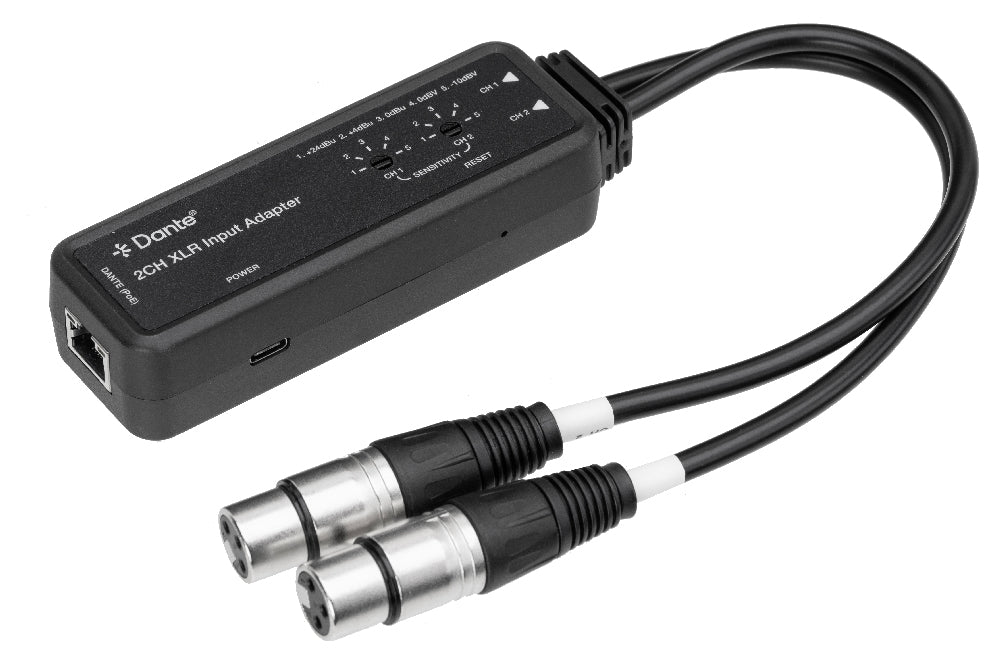

• Integrated 30cm XLR pigtail leads (CH1 + CH2) — direct mic/line connection, no adapter required
• Dual power: PoE IEEE 802.3af Class 0 or USB-C 5V/500mA
• High-performance audio: SNR >100dB, THD+N <0.01% at +4dBu/1kHz, 20Hz–20kHz ±0.5dB
