4K60 4:4:4 JPEG2000 AV over IP Decoder — Copper + Fiber In One Box
Distribute Matrix, Video Wall & KVM to Any Display Without a 10G Switch Upgrade — Dante AV-A, 9x9 Video Wall, PoE-Powered
Resellers, installers, schools and businesses. Approval is usually the same working day.
Distributes visually-lossless 4K60 4:4:4 video to any display over the standard 1-Gigabit network you already own — without a 10G switch upgrade. The AVO-IPJP2K-DEC is a black metal-enclosure JPEG2000 AV-over-IP decoder that draws power over the network in PoE PD mode (7.08W maximum, DC 12V/2.5A adapter optional) and integrates both a copper LAN port and an optical fiber port in a single box, so short in-room drops and long inter-building runs terminate on the same unit. It scales point-to-point, video-matrix and video-wall deployments to a 9x9 array by adding switch ports rather than matrix cards — the right choice for boardrooms, divisible conference spaces, control rooms, courtrooms and video-wall installations where visually-lossless 4:4:4 reach, latency determinism and single-vendor endpoint convergence matter more than a 10G fabric or a proprietary matrix chassis.

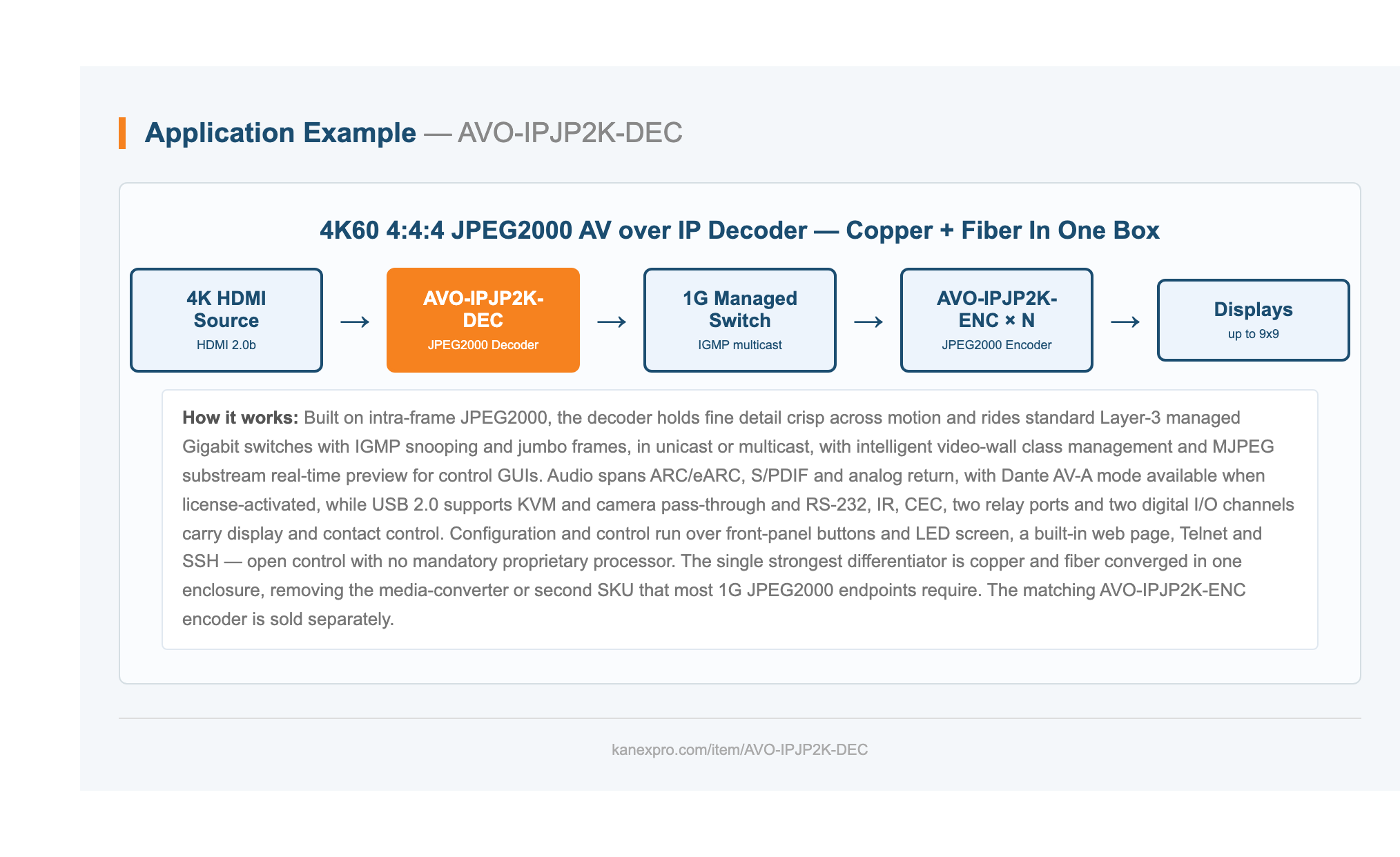

Built on intra-frame JPEG2000, the decoder holds fine detail crisp across motion and rides standard Layer-3 managed Gigabit switches with IGMP snooping and jumbo frames, in unicast or multicast, with intelligent video-wall class management and MJPEG substream real-time preview for control GUIs. Audio spans ARC/eARC, S/PDIF and analog return, with Dante AV-A mode available when license-activated, while USB 2.0 supports KVM and camera pass-through and RS-232, IR, CEC, two relay ports and two digital I/O channels carry display and contact control. Configuration and control run over front-panel buttons and LED screen, a built-in web page, Telnet and SSH — open control with no mandatory proprietary processor. The single strongest differentiator is copper and fiber converged in one enclosure, removing the media-converter or second SKU that most 1G JPEG2000 endpoints require. The matching AVO-IPJP2K-ENC encoder is sold separately.
- HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Input and output video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
- Signal transmission extended up to 328ft / 100m over CAT5E/6/6A/7 cable
- Transmits video, analog and digital audio, IR, RS-232, CEC and USB over Ethernet
- Integrates copper port and fiber port within a single box
- ARC / eARC / S-PDIF / analog audio return function
- Dante AV-A mode supported when license-activated
- Channel configuration via front-panel buttons and LED screen
- Built-in two-channel relay ports and two-channel digital I/O ports for contact control
- Supports unicast and multicast
- Supports point-to-point, video-matrix and video-wall functions (video wall up to 9x9)
- Intelligent video-wall class management
- Supports MJPEG substream real-time preview
- Operates on standard 1G Ethernet switching
- PoE-powered (PD mode) from the network switch
- Built-in web-page configuration and control, plus Telnet and SSH
- HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- USB 2.0 KVM and camera support with bidirectional RS-232 and two-way IR
- Smart networking design for easy and flexible installation
| Video | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Compression Standard | JPEG2000 |
| Video Network Bandwidth | 1G |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Depth | Input: 8/10/12-bit; Output: 8-bit |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Audio | |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master |
| Audio Return | ARC / eARC / S-PDIF / analog |
| Networked Audio | Dante AV-A mode (license-activated) |
| Transmission & Distance | |
| Cable Transmission Distance | 100m (328ft) over CAT5E/6/6A/7 |
| HDMI Cable Length — 4K60 | 16ft / 5m |
| HDMI Cable Length — 4K30 | 32ft / 10m |
| HDMI Cable Length — 1080P60 | 50ft / 15m |
| Networking & Topology | |
| Topologies | Point-to-point, video matrix, video wall (up to 9x9) |
| Cast Modes | Unicast and multicast |
| Transport | Copper or fiber, selectable per unit |
| Switch Requirements | Layer-3 managed Gigabit, 8KB jumbo frame, IGMP snooping |

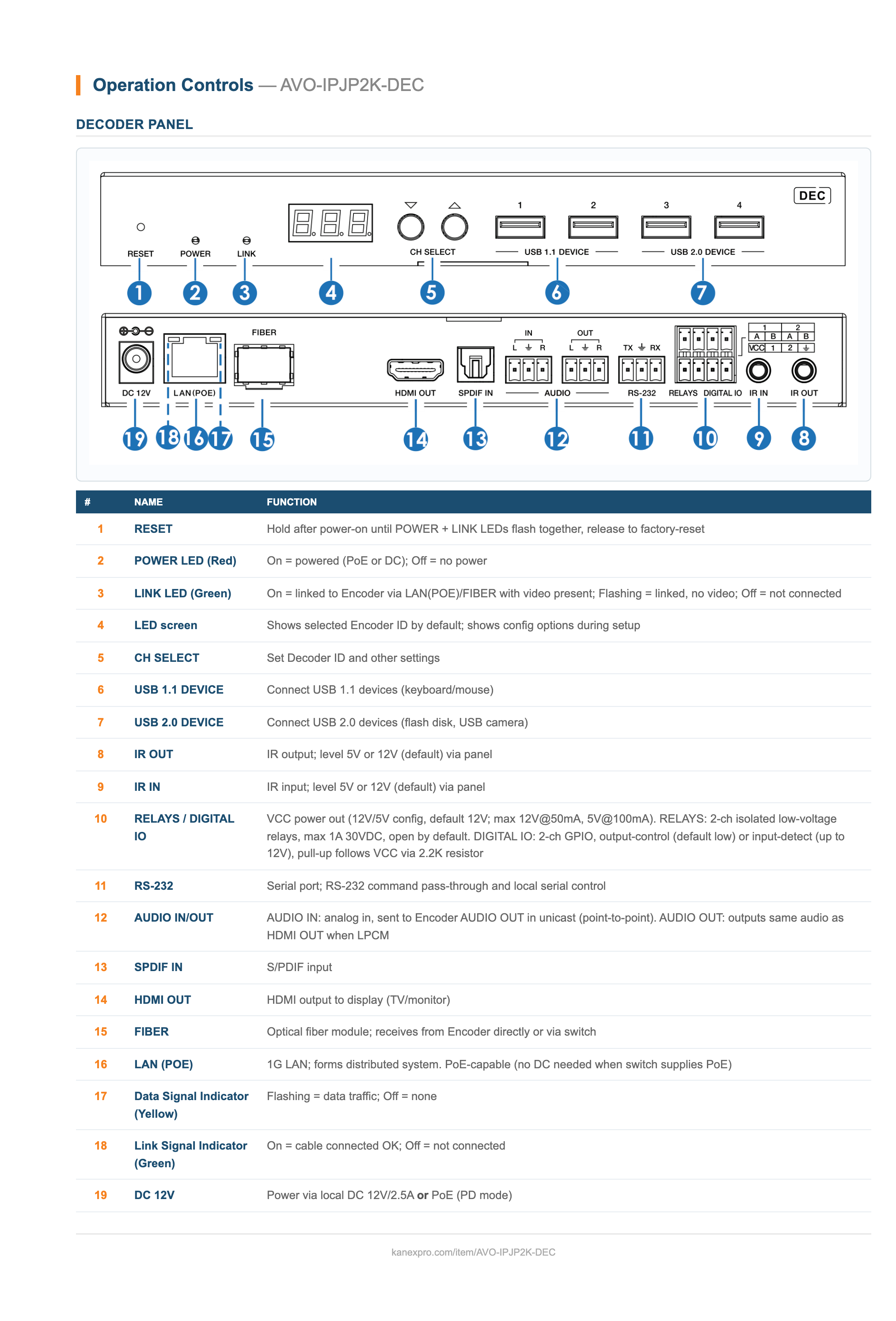

| Control & Connections (Decoder) | |
| Audio Input | 1 x S/PDIF IN (optical); 1 x L/R AUDIO IN (3-pin 3.81mm Phoenix) |
| Video Output | 1 x HDMI OUT (Type A, 19-pin female) |
| Audio Output | 1 x L/R AUDIO OUT (3-pin 3.81mm Phoenix) |
| Network | 1 x LAN/PoE (RJ45); 1 x FIBER (optical fiber slot) |
| USB | 1 x USB 1.1 DEVICE (Type-A); 2 x USB 2.0 DEVICE (Type-A) |
| Serial | 1 x RS-232 (3.81mm Phoenix) |
| Contact Control | 2 x relay ports (3.81mm Phoenix); 2 x digital I/O (3.81mm Phoenix) |
| IR | 1 x IR IN (3.5mm); 1 x IR OUT (3.5mm) |
| IR Level | Default 12V, optional 5V |
| IR Frequency | Wideband 20KHz–60KHz |
| Control Interfaces | Front-panel buttons and LED screen, web page, Telnet, SSH, MJPEG substream API |
| Protection | |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap discharge, ±4kV contact discharge |
| Physical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (W x D x H) | 8.03" x 5.35" x 1.00" (204 x 136 x 25.5mm) |
| Net Weight | 1.38 lbs (0.63kg) |
| Power | |
| Power Supply | Input AC 100–240V 50/60Hz; Output DC 12V/2.5A |
| PoE | PoE-powered (PD mode) from network switch; DC adapter not needed when switch supplies PoE |
| Power Consumption | 7.08W (max.) |
| Environmental | |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | -4–140°F / -20–60°C |
| Relative Humidity | 20–90% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, UL |
| Package Contents | |
| 1x | JPEG2000 Decoder |
| 1x | DC 12V/2.5A power adapter |
| 2x | Mounting ears |
| 1x | Quick start guide |
