4K60 JPEG2000 AV over IP BYOD Wall Plate Encoder — Magnetic Mount New

US 2-Gang Magnetic-Attachment with HDMI + USB-C Dual Input, PD 100W Laptop Charging & Dante Ready over 1G

  • 4K60 JPEG2000 AV over IP BYOD Wall Plate Encoder — Magnetic Mount
  • 4K60 JPEG2000 AV over IP BYOD Wall Plate Encoder — Magnetic Mount
1 2

KanexPro

SKU: AVO-IPJP2KWPM

UPC:

View full details

Puts JPEG2000 BYOD encoding directly in the wall with tool-free magnetic panel attachment — a US 2-gang wall plate that accepts both HDMI and USB-C from any presenter, auto-switches to the active source, and delivers up to 100W of PD charging back to the connected laptop. The AVO-IPJP2KWPM snaps into place magnetically for clean, screwless installation at any presenter position — ideal for conference rooms, classrooms, and boardrooms where appearance and fast serviceability matter.

Distributes visually lossless 4K60 4:4:4 JPEG2000 video to any AVO-IPJP2K-series decoder on the same 1G managed network. Supports matrix switching and video wall up to 9×9 via the AVO-IPCTL-JP2K controller. Optional Dante AV-A, USB 2.0 KVM, and MJPEG sub-stream preview. Encoder only — order with the decoder of your choice.

  • US 2-gang magnetic-attachment wall plate — tool-free snap-in panel installation
  • HDMI and USB-C dual inputs with automatic source switching
  • USB-C IN 1: video, audio, and USB data from laptop — USB-C IN 2: PD 100W charging back to source device
  • JPEG2000 visually lossless 4K60 4:4:4 distribution over standard 1G managed networks
  • LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X audio passthrough
  • USB 2.0 KVM with RS-232 pass-through and CEC control
  • Optional Dante AV-A integration (license activated)
  • HDMI 2.0b, HDCP 2.2, 18Gbps — unicast, multicast, matrix switching, video wall up to 9×9
  • PoE (802.3af PD) or DC 12V/2.5A
  • MJPEG sub-stream preview
  • Web GUI, RS-232, TCP/IP, CEC control
  • Encoder only — pairs with any AVO-IPJP2K-series decoder
Specification
Technical
Video Compression JPEG2000
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Max Resolution 4K@60Hz 4:4:4
Color Depth Input: 8/10/12-bit — Output: 8-bit
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDR Support HDR10, Dolby Vision, HLG
Audio Formats LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X
Audio Return Analog only (3.5mm Phoenix)
Dante Optional AV-A (license activated)
Video Wall Up to 9×9 (81 displays)
Preview Stream MJPEG sub-stream
Transmission Distance Up to 328ft / 100m via CAT6/6A/7
ESD Protection IEC 61000-4-2: ±15kV (air-gap) / ±8kV (contact)
Connection

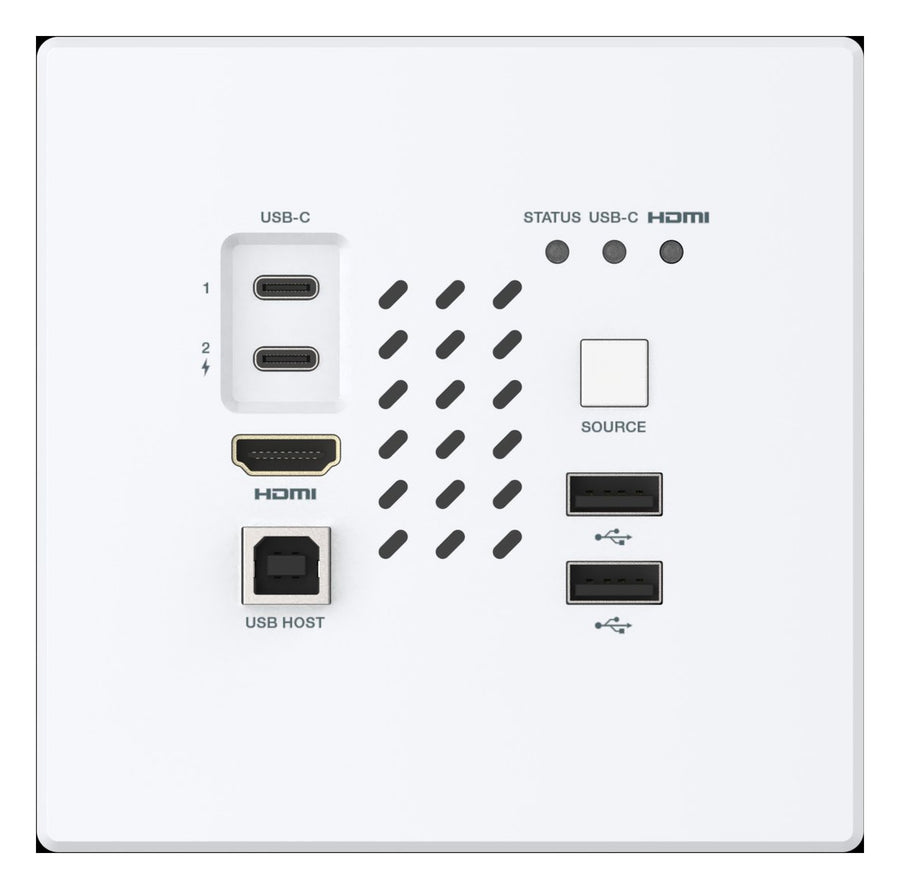

Video Input 1× HDMI IN (Type A)  |  1× USB-C IN 1 — video/audio/USB data  |  1× USB-C IN 2 — PD charging up to 100W
Audio Input 1× Audio IN (3-pin 3.5mm Phoenix, unbalanced)
Audio Output 1× Audio OUT (3-pin 3.5mm Phoenix, unbalanced)

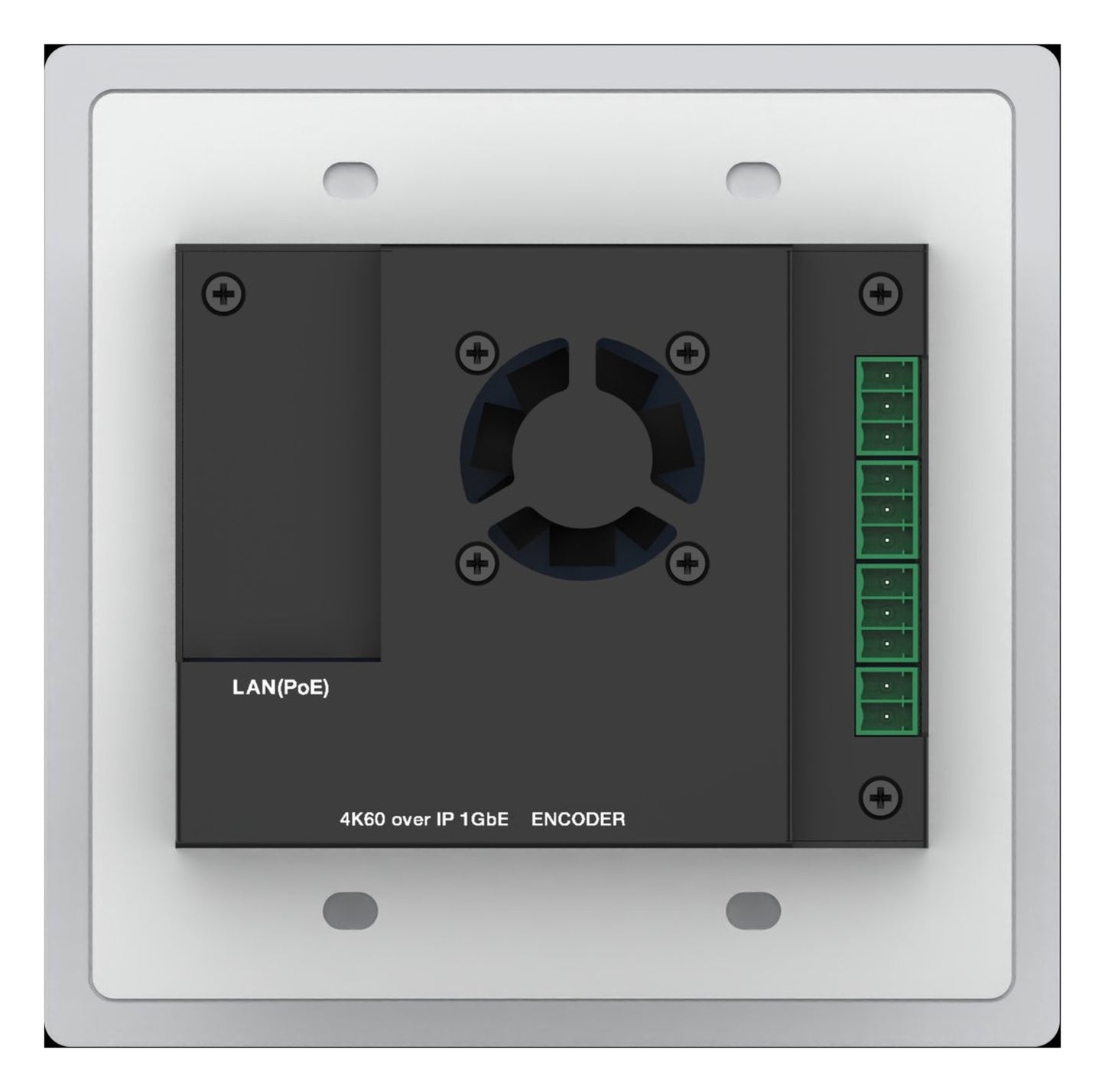

Network 1× LAN/PoE (RJ45, 802.3af PD)
USB 1× USB 2.0 HOST (Type B)  |  2× USB 2.0 DEVICE (Type A)
Control 1× RS-232 (3-pin 3.5mm Phoenix)
Control & Power
Control Methods Web GUI, RS-232, TCP/IP, CEC, IR
Controller AVO-IPCTL-JP2K (sold separately)
Power PoE (802.3af PD) or DC 12V/2.5A multinational
Physical
Form Factor US 2-gang wall plate — Magnetic-Attachment Panel Type
Housing Aluminum panel + Iron case
Dimensions (W×H×D) 4.56″ × 4.50″ × 1.74″ (115.9 × 114.3 × 44.25mm)
Net Weight 0.77 lbs (350g)
Power Supply AC100–240V 50/60Hz, DC 12V/2.5A output (multinational)
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -4–140°F (-20–60°C)
Humidity 20–80% RH (non-condensing)
Package Contents
1× AVO-IPJP2KWPM Encoder Wall Plate
3× 3-pin 3.5mm Phoenix connectors
1× DC 12V/2.5A multinational power supply
1× User manual
