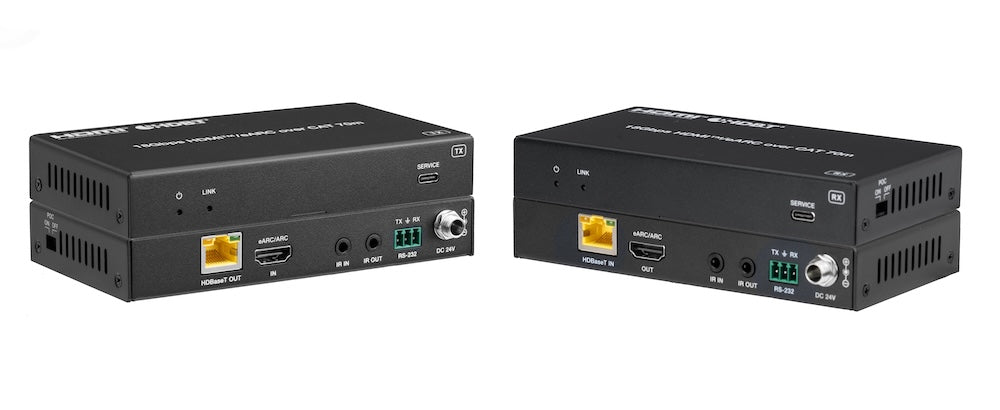

4K HDMI/eARC over HDBaseT 3.0 Extender (70m)
TX/RX Kit with eARC/ARC Pass-Through, Bi-Directional IR, RS-232 & 24V PoC

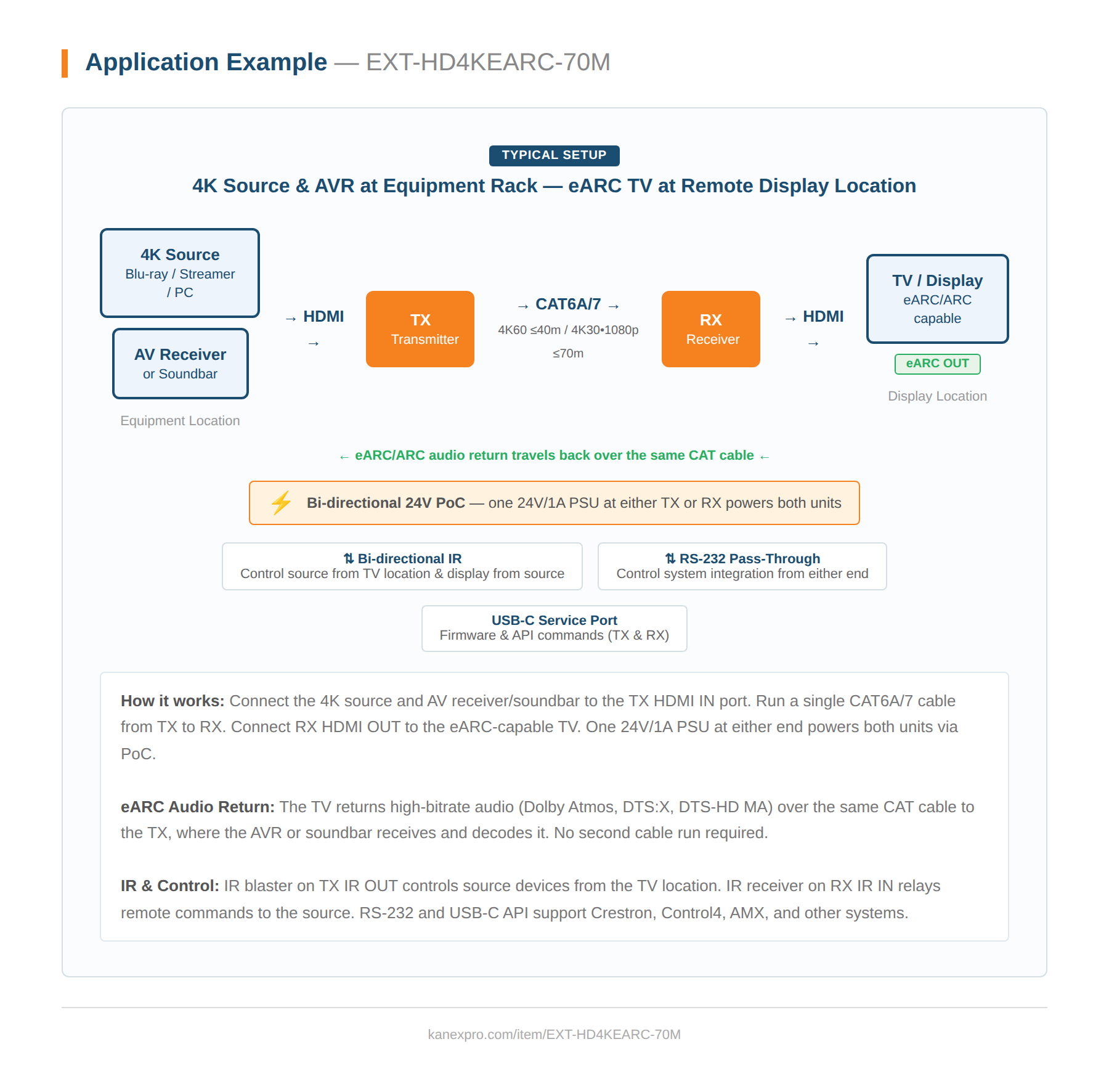

Extend 4K HDMI and eARC/ARC signals over a single CAT6A/7 cable - up to 40m at 4K60 4:4:4 or 70m at 4K30/1080p - with no second cable run for audio return. The KanexPro EXT-HD4KEARC-70M eliminates the need for a separate cable to return audio from a remote TV to a local AV receiver or soundbar. Built on HDBaseT 3.0 VS310 chipset, HDCP 2.3, with Dolby Atmos, DTS:X, and DTS-HD Master Audio support.
Extend 4K HDMI and eARC/ARC signals over a single CAT6A/7 cable - up to 40m at 4K60 4:4:4 or 70m at 4K30/1080p - with no second cable run for audio return. The KanexPro EXT-HD4KEARC-70M eliminates the need for a separate cable to return audio from a remote TV to a local AV receiver or soundbar. Built on HDBaseT 3.0 VS310 chipset, HDCP 2.3, with Dolby Atmos, DTS:X, and DTS-HD Master Audio support.
| HDMI Compliance | HDMI 2.0b |
|---|---|
| HDCP | HDCP 2.3 |
| Video Bandwidth | 18 Gbps |
| HDBaseT Version | HDBaseT 3.0 (VS310 chipset) |
| HDR Formats | HDR10, HDR10+, Dolby Vision LLM, HLG |
| eARC/ARC | Pass-through from RX HDMI OUT to TX HDMI IN |
| 4K60 4:4:4 Distance | 131 ft / 40 m (CAT6A/7) |
| 4K30/1080p Distance | 230 ft / 70 m (CAT6A/7) |
| Dimensions (TX & RX) | 5.67" x 3.07" x 0.91" (W x D x H) / 144 x 78 x 23 mm |
| Weight | TX: 0.68 lbs (308 g) / RX: 0.68 lbs (307 g) |
| Power Supply | AC 100-240V to DC 24V/1A (locking); Bi-directional PoC; 11W total |
| Package Contents | |
| 1x | Transmitter (TX) unit |
| 1x | Receiver (RX) unit |
| 2x | 3-pin 3.5mm Phoenix Connector (male) |
| 1x | 24V/1A Locking Power Supply |
| 4x | Mounting Ears |
| 8x | Machine Screws (KM3x4) |
| 1x | IR Blaster Cable (1.5m) |
| 1x | IR Receiver Cable (1.5m) |
| 1x | User Manual |
