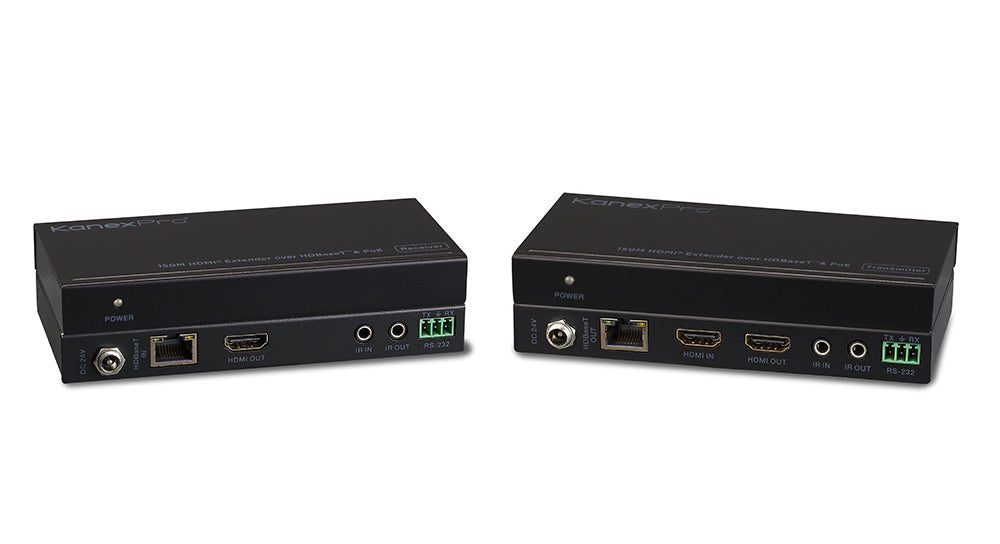

HDBaseT HDMI Extender over Cat6 - 150M (492 ft.) with PoE

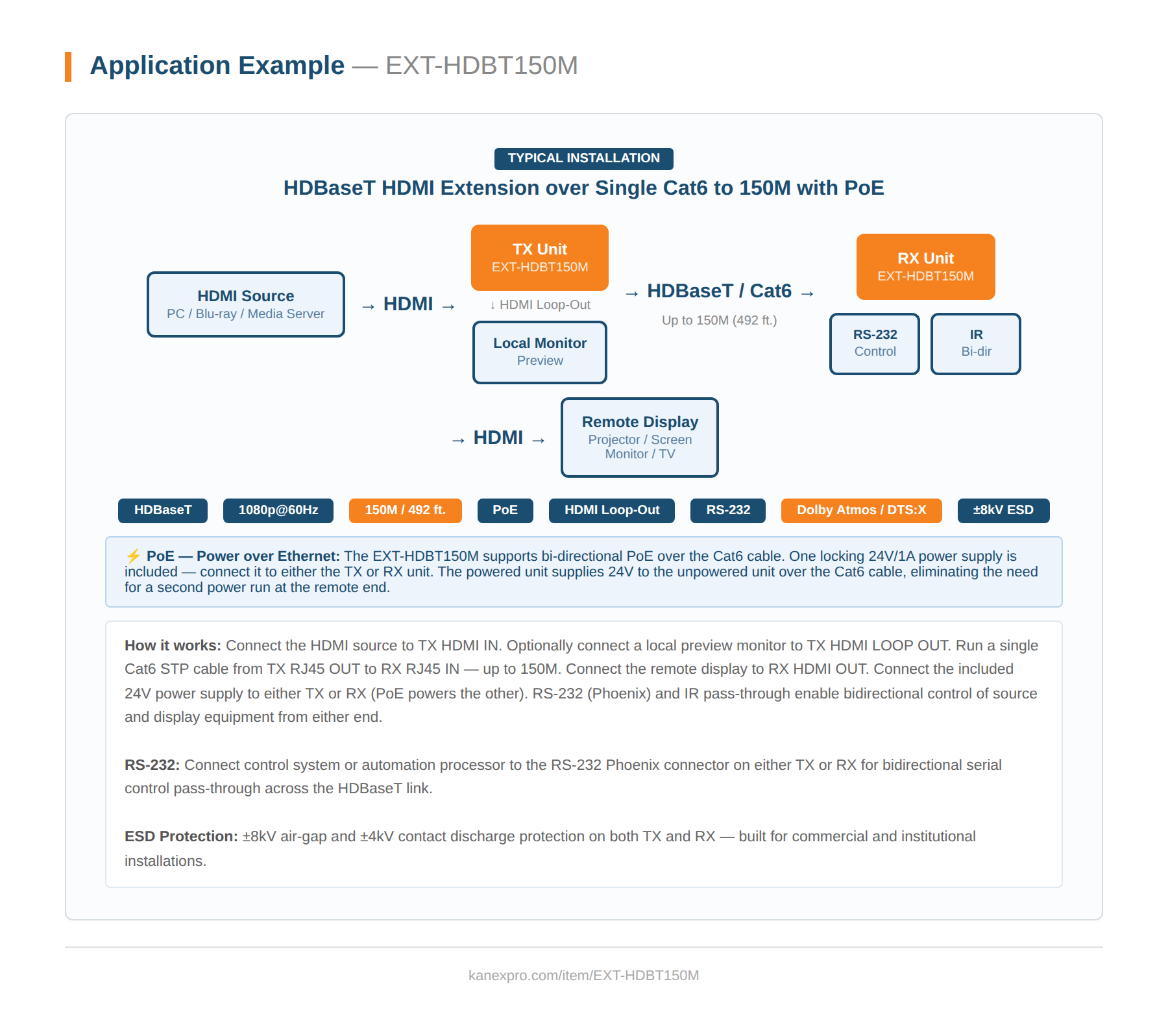

The KanexPro EXT-HDBT150M is a professional HDBaseT HDMI extender transmitter-receiver kit that extends 1080p/60Hz HD signals up to 150 meters (492 feet) over a single Cat6 STP cable. Bi-directional PoE allows one locking 24V/1A power supply to power both TX and RX units over the same Cat6 cable — eliminating the need for a second power run at the remote end.

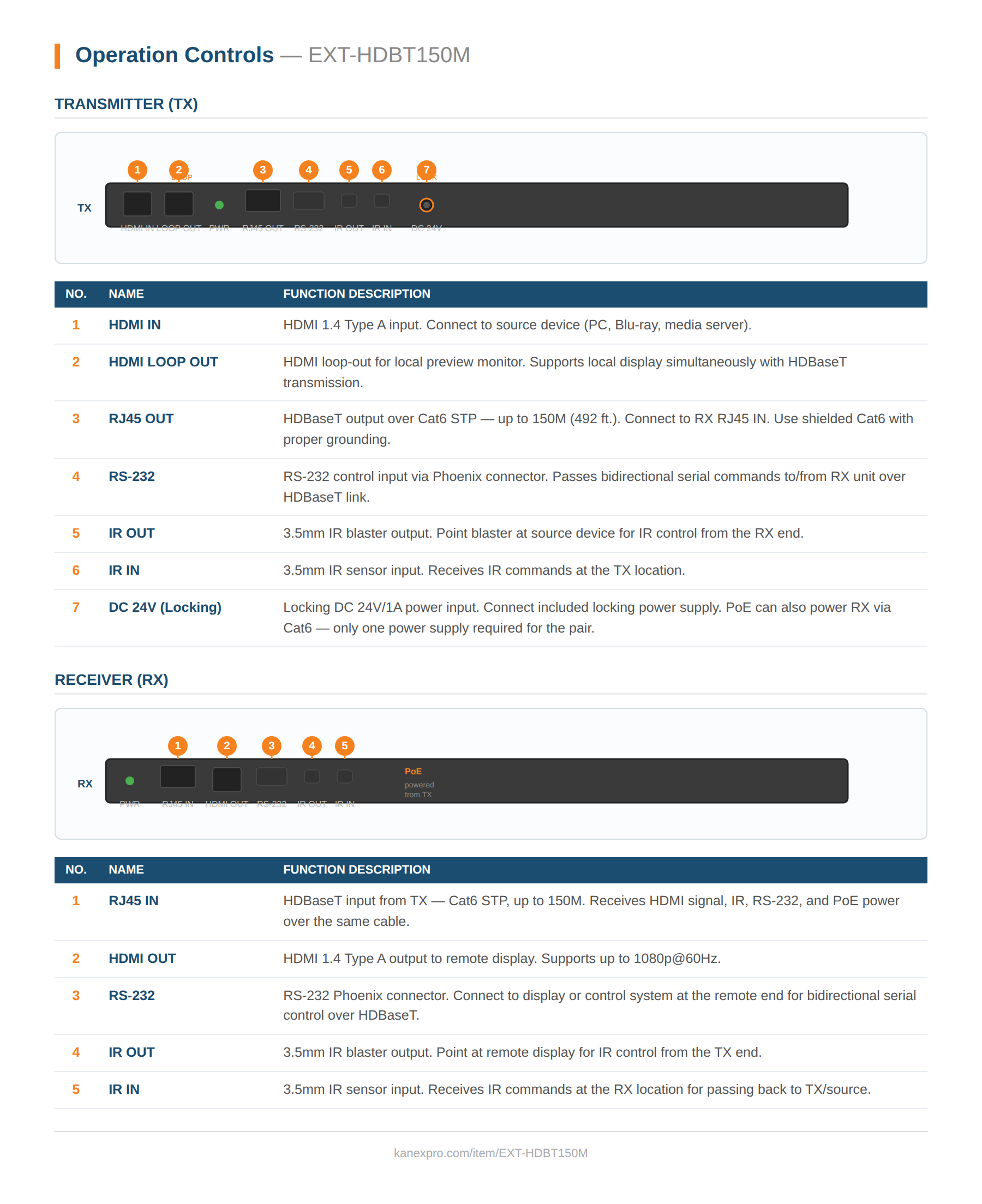

The transmitter includes an HDMI loop-out for local preview monitoring. Bi-directional RS-232 (Phoenix connector) and IR pass-through enable full source and display control from either end of the extension. Full Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, and LPCM 7.1 audio pass-through are supported. Built to commercial standards with metal enclosure, locking power connector, and ESD protection up to plus or minus 8kV. Backed by KanexPro's 3-year warranty.

Applications: Large lecture halls, house of worship, conference rooms, command and control rooms, digital signage, and campus AV where 150M HDBaseT reach and RS-232/IR control are required.

• Extends 1080p@60Hz HDMI over single Cat6 up to 150M (492 ft.) using HDBaseT protocol
• Bi-directional PoE - one locking 24V/1A supply powers both TX and RX over Cat6
• HDMI loop-out on TX for local preview monitor or secondary display
• Bi-directional RS-232 (Phoenix connector) control pass-through over HDBaseT link
• Bi-directional IR control - wideband IR emitter and receiver cables included
• Full audio: Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, LPCM 7.1
• HDMI 1.4 / HDCP 1.4 - 225MHz per channel video bandwidth
• ESD protection: plus or minus 8kV air-gap, plus or minus 4kV contact discharge
• Metal enclosure, locking power connector - CE/FCC/UL certified power supply
• 3-year KanexPro parts and labor warranty
