Long-Range 4K HDMI over HDBaseT Extender Kit — 150M / 492ft
18Gbps 4K60 4:4:4 HDR Extension with HDMI Loop, Audio De-embed, RS-232 & Bi-directional IR over Single Cat5e/6
Extends 4K HDMI, RS-232, and bi-directional IR up to 150 meters over a single Cat5e/6 cable — eliminating the signal degradation and distance limitations that plague standard HDMI runs. The EXT-4KHD150M2 delivers uncompressed 4K2K@60Hz 4:4:4 at distances up to 120 meters and 1080p at up to 150 meters, with full HDCP 2.2 compliance and support for HDR, HDR10+, Dolby Vision, and HLG.

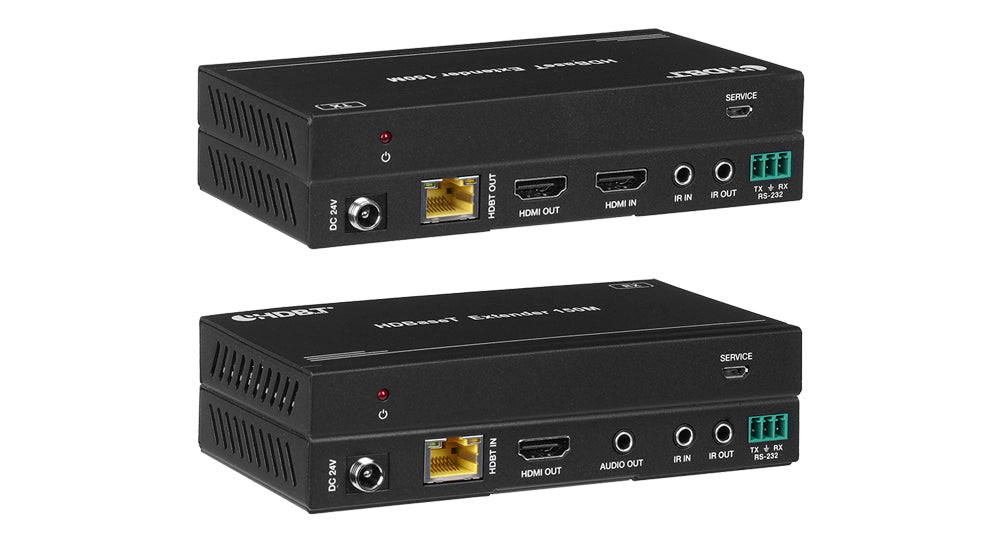

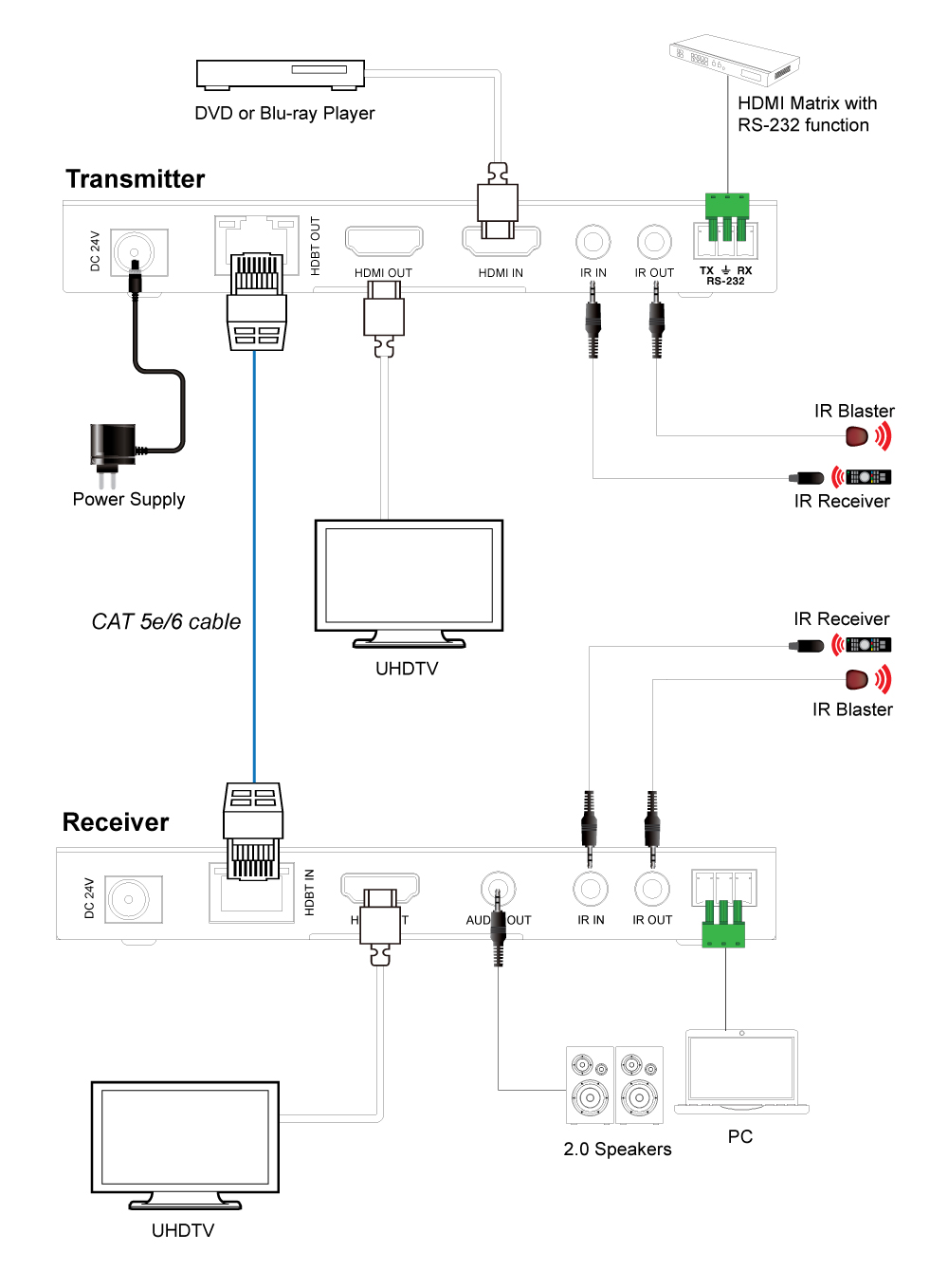

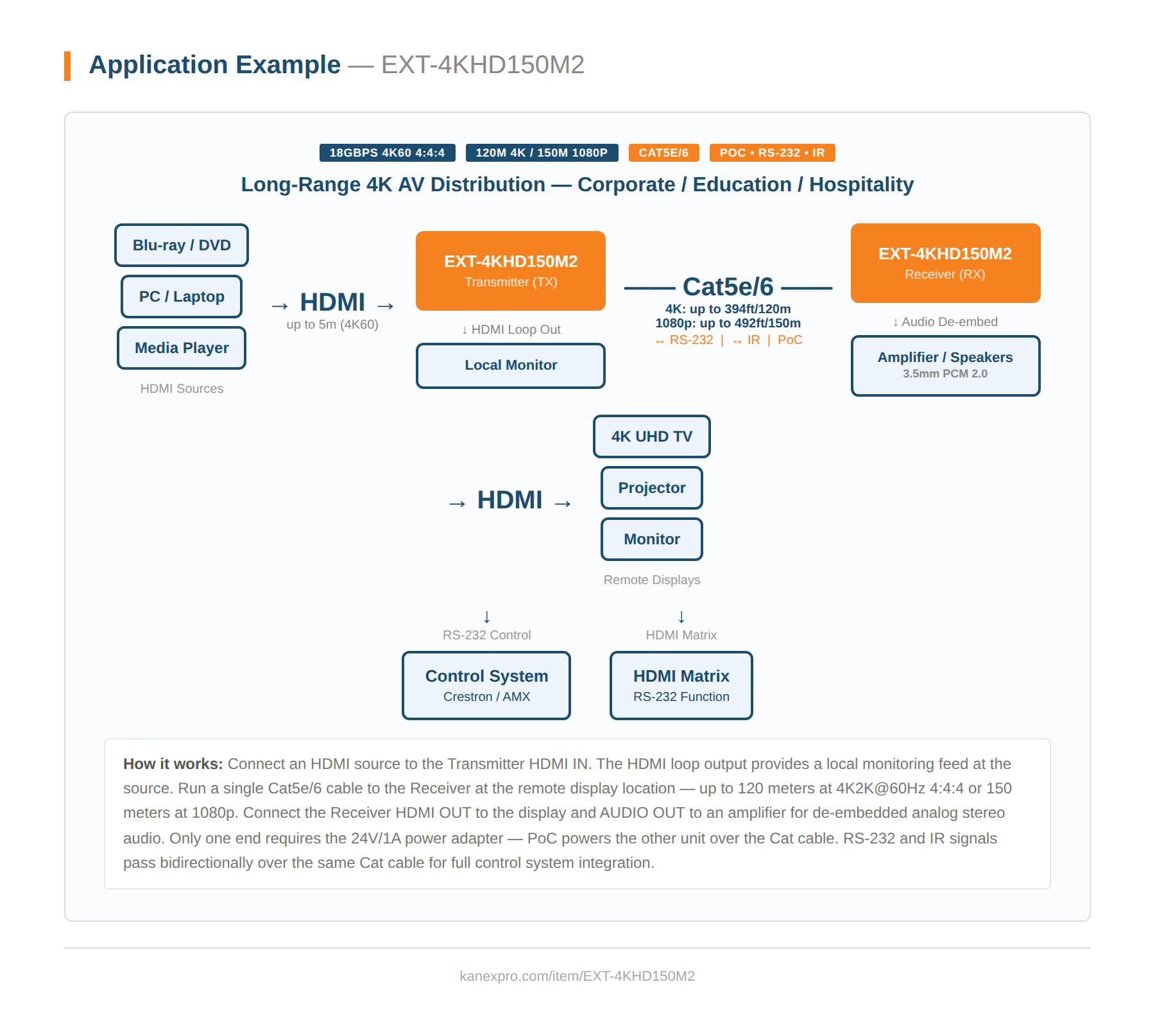

Designed for commercial AV installations where sources and displays are separated by long cable runs, the extender includes an HDMI loop output on the transmitter for local monitoring, de-embedded analog stereo audio on the receiver, and Power over Cable (PoC) so only one end requires a power adapter. The compact metal enclosure with mounting ears fits standard AV rack environments.
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps video bandwidth
- Maximum extended transmission distance via single Cat5e/6 cable: 394ft / 120 meters for 4K2K signal; 492ft / 150 meters for 1080P signal
- Supports one HDMI loop output on the transmitter
- De-embedded audio to analog stereo output on receiver
- Bi-directional IR, RS-232, and CEC pass-through
- HDR, HDR10+, Dolby Vision, and HLG supported
- Supports PoC (Power over Cable) function
- Compact design for easy and flexible installation
| Technical | |
|---|---|
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i, All HDMI 3D TV formats, All PC resolutions including 1920x1200 |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0); 8-bit (4K60Hz 4:4:4) |
| HDR Formats | HDR, HDR10+, Dolby Vision, HLG |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| L/R Audio Formats | PCM 2.0 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |

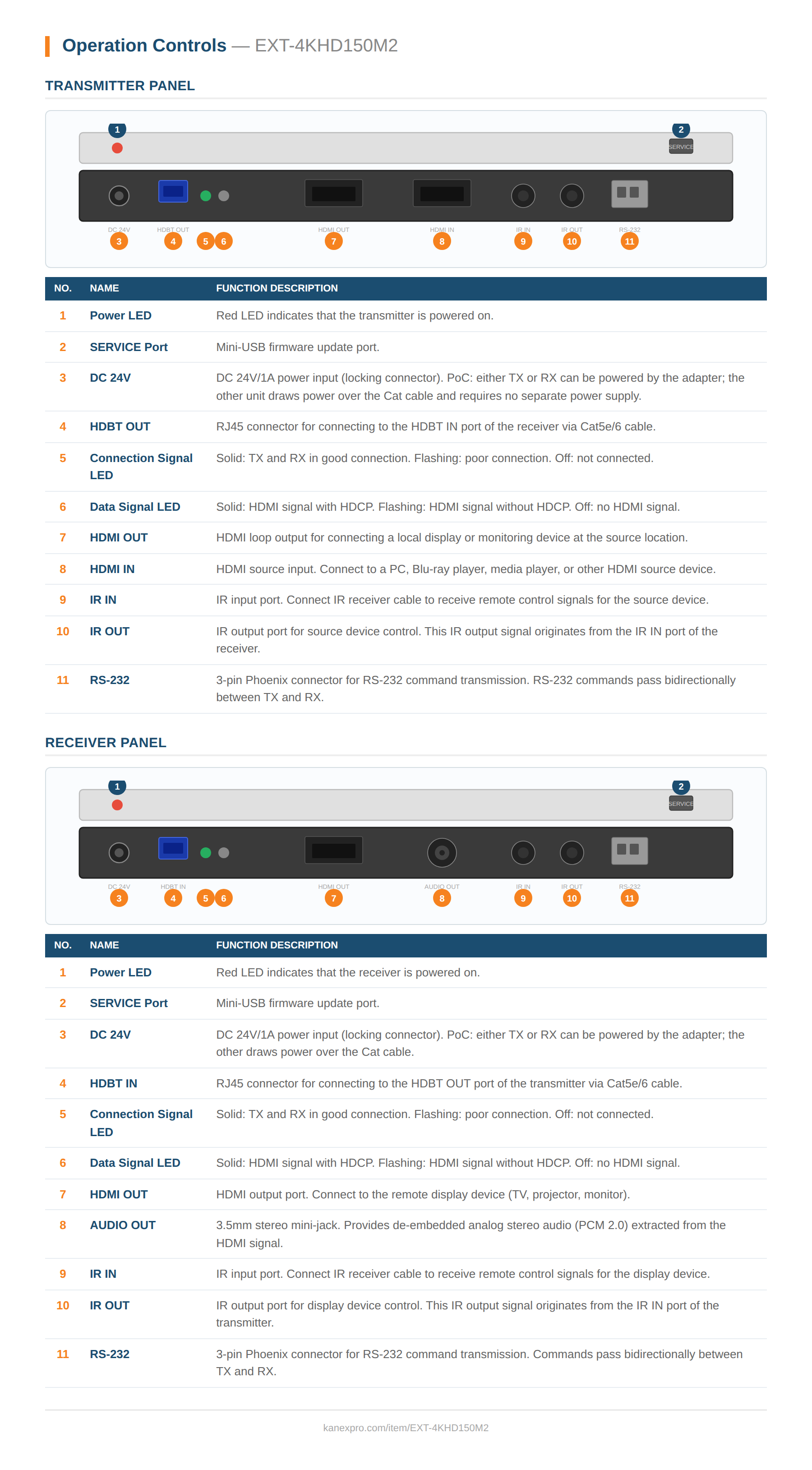

| Connection — Transmitter | |
| TX Inputs | 1× HDMI Type A [19-pin female] |
| TX Outputs | 1× HDMI Type A [19-pin female] (Loop), 1× HDBT OUT [RJ45, 8-pin female] |
| TX Control | 1× IR IN [3.5mm Stereo Mini-jack], 1× IR OUT [3.5mm Stereo Mini-jack], 1× RS-232 [Phoenix jack], 1× SERVICE [Mini-USB, Update port] |

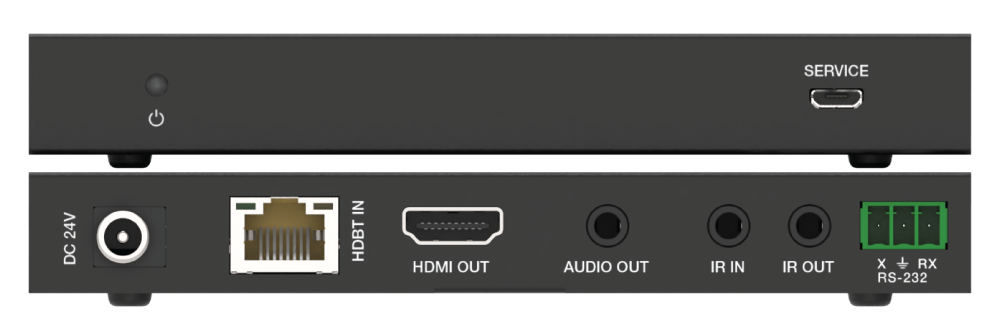

| Connection — Receiver | |
| RX Inputs | 1× HDBT IN [RJ45, 8-pin female] |
| RX Outputs | 1× HDMI Type A [19-pin female], 1× AUDIO OUT [3.5mm Stereo Mini-jack] |
| RX Control | 1× IR IN [3.5mm Stereo Mini-jack], 1× IR OUT [3.5mm Stereo Mini-jack], 1× RS-232 [Phoenix jack], 1× SERVICE [Mini-USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 140mm (W) × 65mm (D) × 18mm (H) |
| Weight | Transmitter: 160g, Receiver: 155g |
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 24V/1A (Locking connector) |
| Power Consumption | 9.36W |
| PoC | Supported (TX or RX powered) |
| Operating Temperature | 32-104°F / 0-40°C |
| Storage Temperature | -4-140°F / -20-60°C |
| Relative Humidity | 20-90% RH (no condensation) |
| Extension Range (Cat5e/6) | |
| 4K2K | 394ft / 120M |
| 1080P | 492ft / 150M |
| Cable Length (HDMI) | |
| 4K60 | Up to 16ft / 5M |
| 4K30 | Up to 32ft / 10M |
| 1080P60 | Up to 50ft / 15M |
| Package Contents | |
| 1× 18Gbps HDMI over HDBaseT Extender (Transmitter), 1× 18Gbps HDMI over HDBaseT Extender (Receiver), 1× IR Blaster cable (1.5 meters), 1× 20-60KHz IR Receiver cable (1.5 meters), 4× Mounting Ear, 2× 3-pin Phoenix connector, 1× 24V/1A Locking Power adapter, 1× User Manual | |
