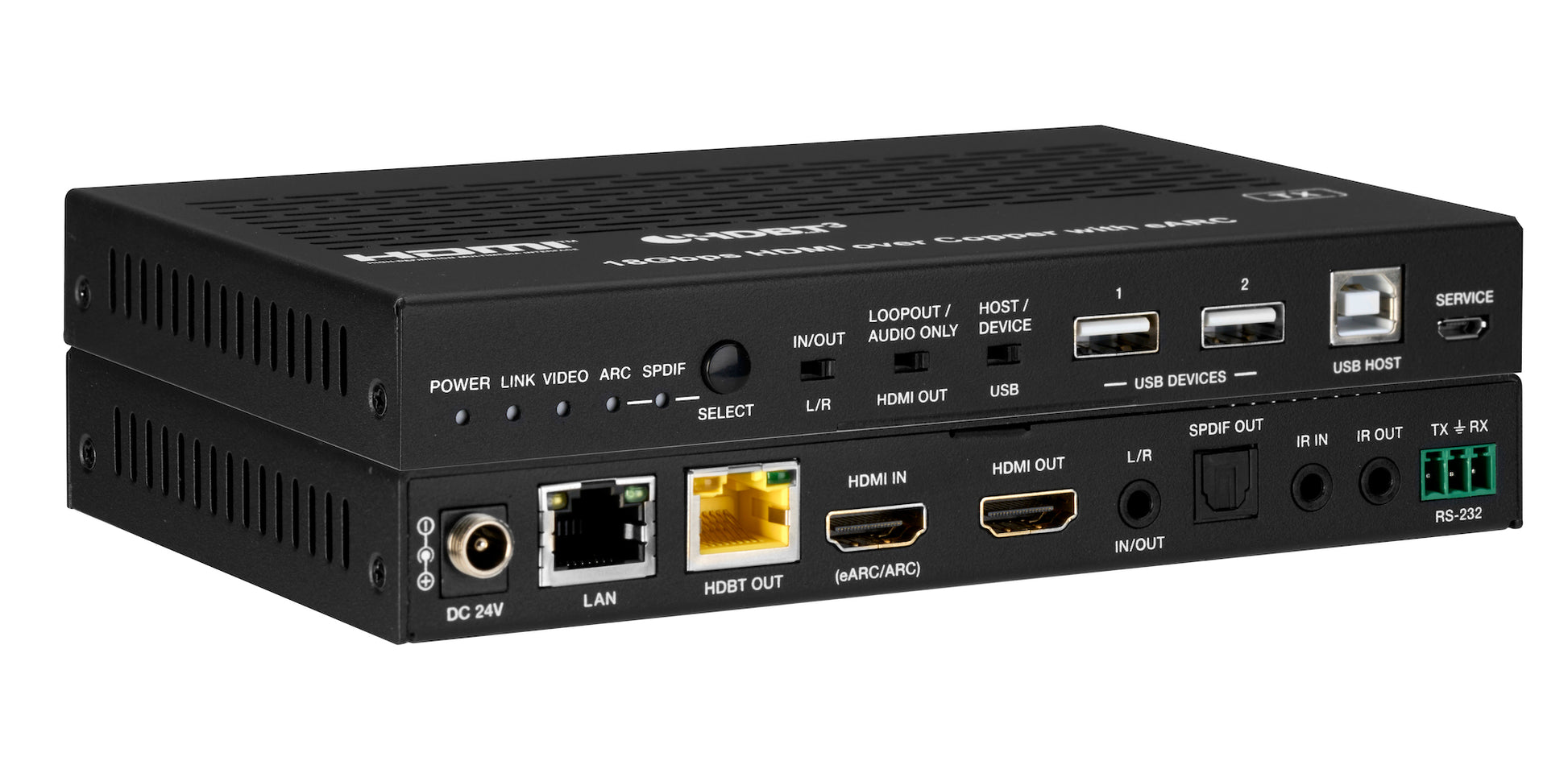

HDMI HDBaseT 3.0 Transmitter Only 100M w/ eARC Audio Embed

Name: HDMI HDBaseT 3.0 Transmitter Only 100M w/ eARC Audio Embed
Brand: KanexPro
SKU: EXT-HDBT3ARC-TX

Send Uncompressed 4K60 4:4:4 Video To HDBaseT Projectors HDTV Displays

1 1

KanexPro

SKU: EXT-HDBT3ARC-TX

UPC: 813982023666

$319.96 $399.95 Save 20%

View full details

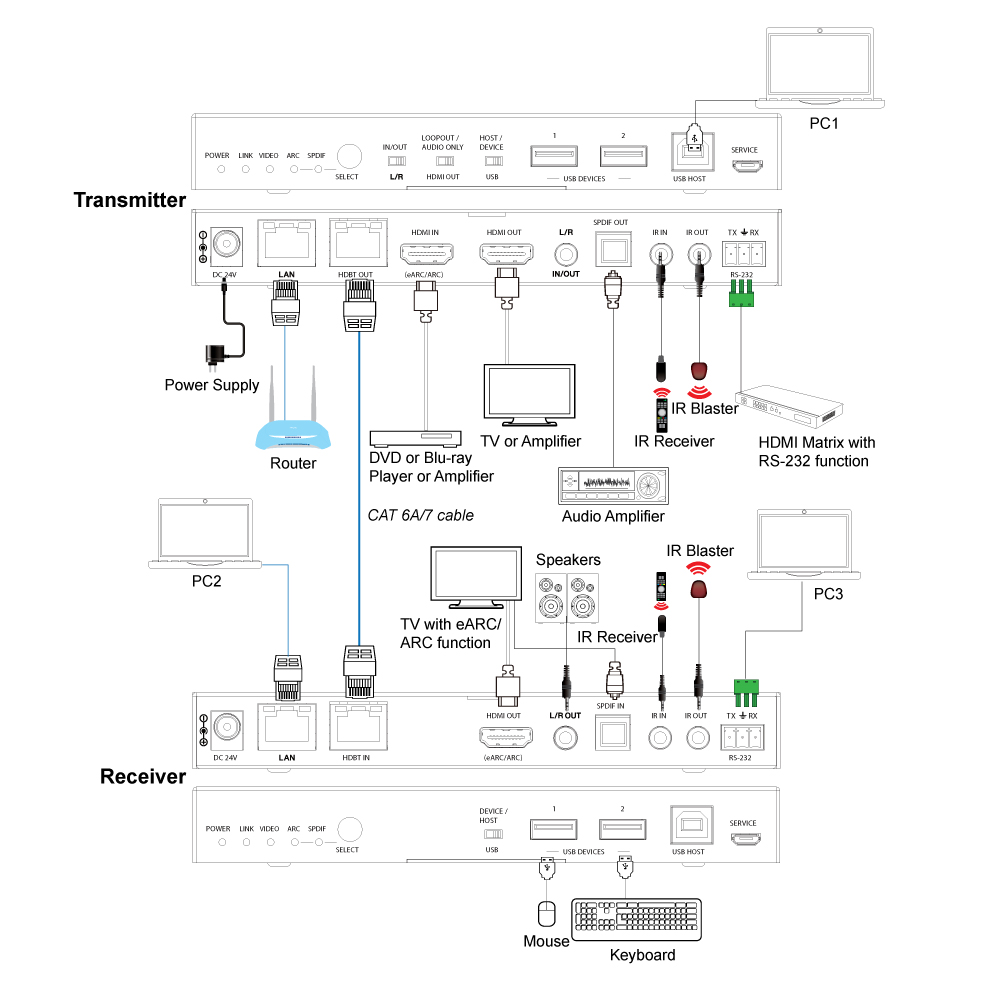

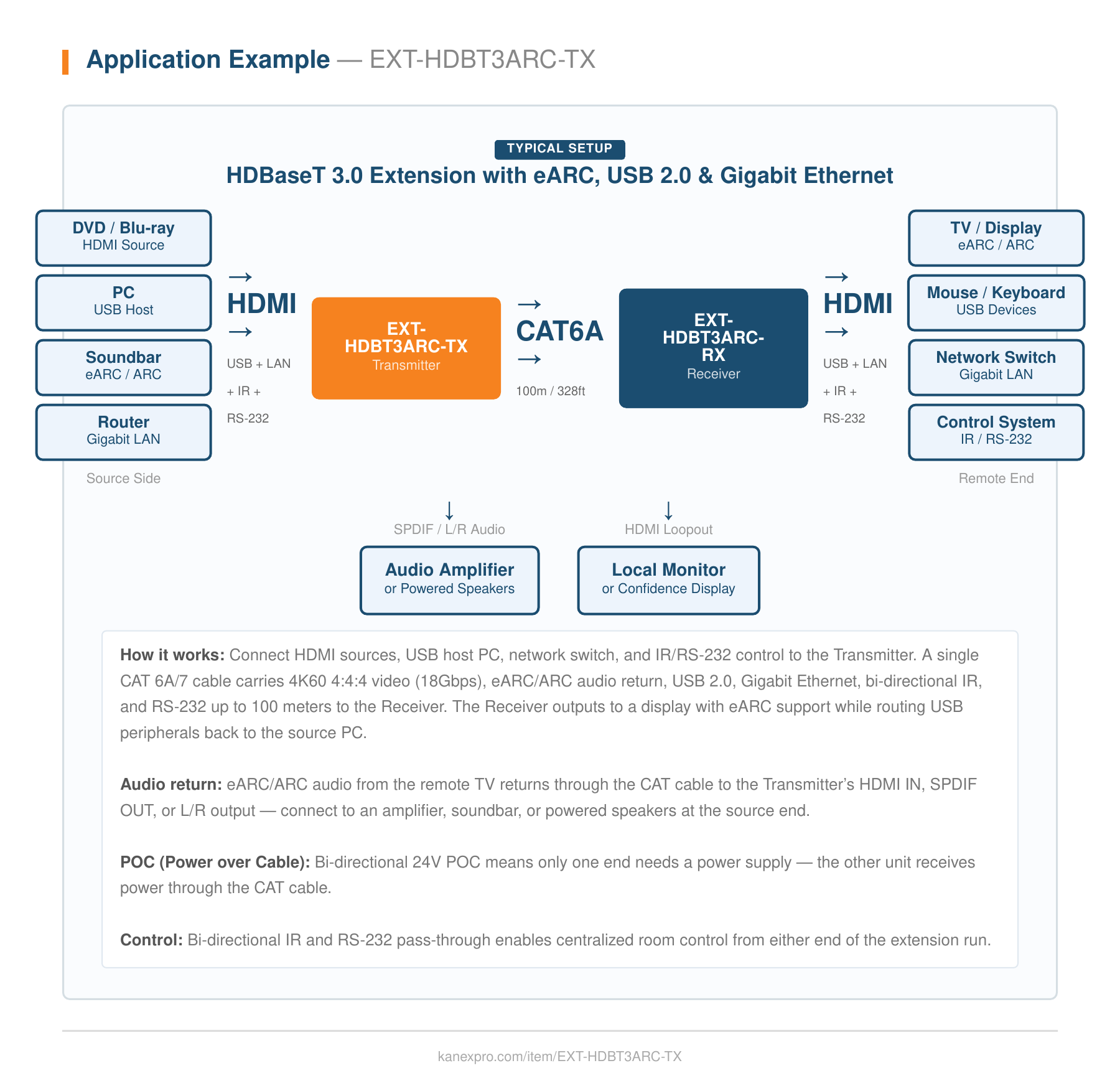

The KanexPro HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1Gbps Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding.

It also supports eARC/ARC from RX's HDMI output pass through to TX's HDMI input or de-embedding to TX's HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bi-directional POC.
The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.

HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth
HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
DTS High Res, DTS-HD Master Audio, DSD pass through
Transmission distance up to 328ft/100 meters via a single CAT 6A/7 cable
Supports eARC/ARC function (the audio is returned to the HDMI IN port,
HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
Supports SPDIF audio reverse transmission
Bi-directional IR, RS-232 and 1G Ethernet signal pass through
Supports USB2.0 transmission, Host/Device is configurable
Bi-directional 24V POC function

Technical
HDMICompliance	HDMI2.0b
HDCPCompliance	HDCP2.2
VideoBandwidth	18Gbps
VideoResolution	Upto4K@60Hz4:4:4
HDBaseT Bandwidth	16Gbpsonmainand2Gbpsonreturnlink
HDR	HDR,HDR10,HDR10+,DolbyVision,HLG
ColorSpace	RGB,YCbCr4:4:4,YCbCr4:2:2,YCbCr4:2:0
ColorDepth	8/10/12-bit
AudioFormats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24,DTS High Res, DTS-HD MasterAudio, DSD
L/RAudioFormats	PCM2.0
SPDIFAudioFormats	LPCM2.0,AC35.1,DTS5.1
IRLevel	12Vp-p
IRBandwidth	20K-60KHz
USBBandwidth	Upto350Mbps
Ethernet	1000Mbps
RS-232	Upto921600bps
Transmission Distance	100m(viaasingleCAT6A/7cable)
ESD Protection	Humanbodymodel—±8kV(Air-gapdischarge)& ±4kV(Contactdischarge)
Connection

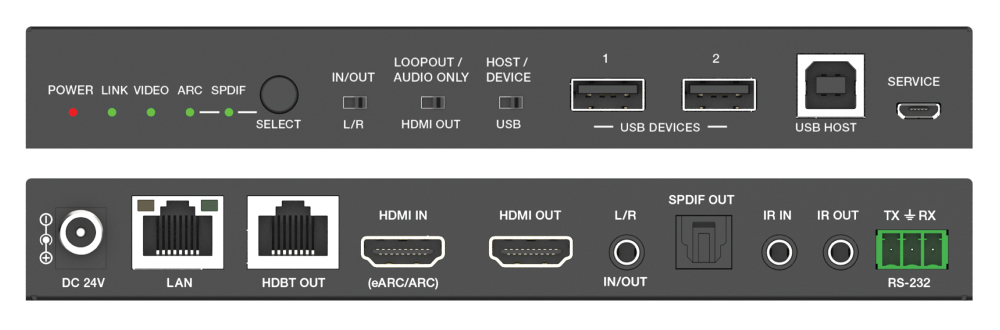

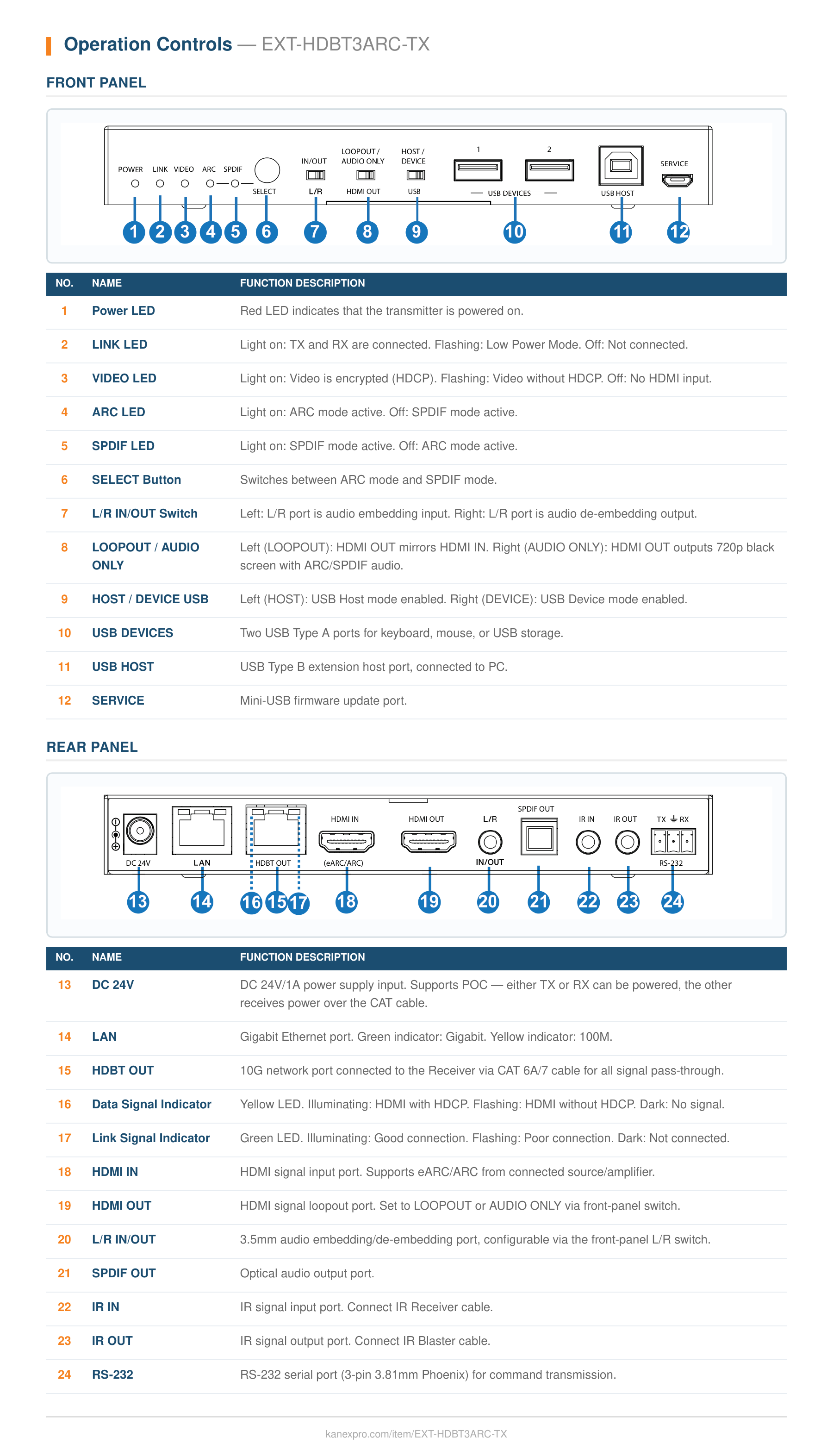

Transmitter	Input:1 x HDMI IN [Type A, 19-pin female]Output:1xHDMIOUT[TypeA,19-pinfemale] 1xHDBTOUT[RJ45,8-pinfemale]1x SPDIFOUT[S/PDIF] 1xL/ROUT[3.5mmStereoMini-jack]Control:1x IRIN [3.5mmStereo Mini-jack] 1x IROUT[3.5mm Stereo Mini-jack] x RS-232 [3pin-3.81mm Phoenix jack]1xSERVICE[Mini-USB,Updateport]1xUSB HOST[USBTypeB] xUSBDEVICES[USBTypeA] 1x LAN[RJ45]

Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter/Receiver:170mm[W]x102mm[D]x22mm[H]
Weight	Transmitter:425g,Receiver:437g
Power Supply	Input:AC100-240V50/60Hz Output:DC24V/1A(US/EUstandard,CE/FCC/ULcertified)
PowerConsumption	15.36W(POC)
Operating Temperature	32-104°F/0-40°C
StorageTemperature	-4-140°F/-20-60°C
RelativeHumidity	20- 90%RH(nocondensation)
Resolution /CableLength	4K60- Feet / Meters	4K30- Feet / Meters	1080P60- Feet / Meters
HDMIIN /OUT	16ft/5M	32ft/10M	50ft/15M
The use of “Premium HighSpeed HDMI”cable is highly recommended.
