Extend Uncompressed 4K@60Hz 4:4:4, eARC/ARC Audio Return, USB 2.0, IR, RS-232 and Gigabit Ethernet Over a Single CAT6A/7 Cable
KanexPro
SKU: EXT-HDBT3ARC-100M
UPC: 813982023680
Couldn't load pickup availability

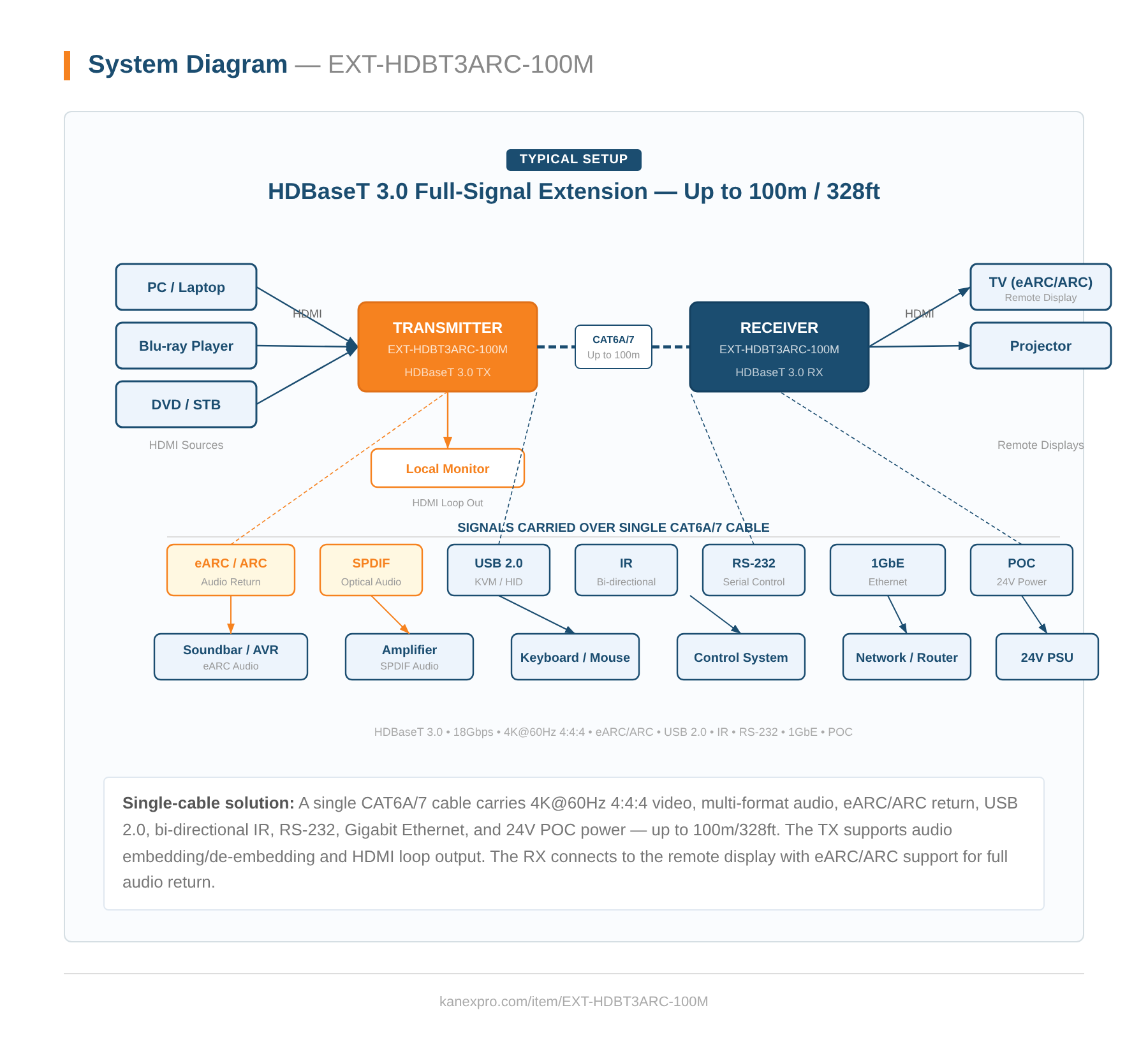

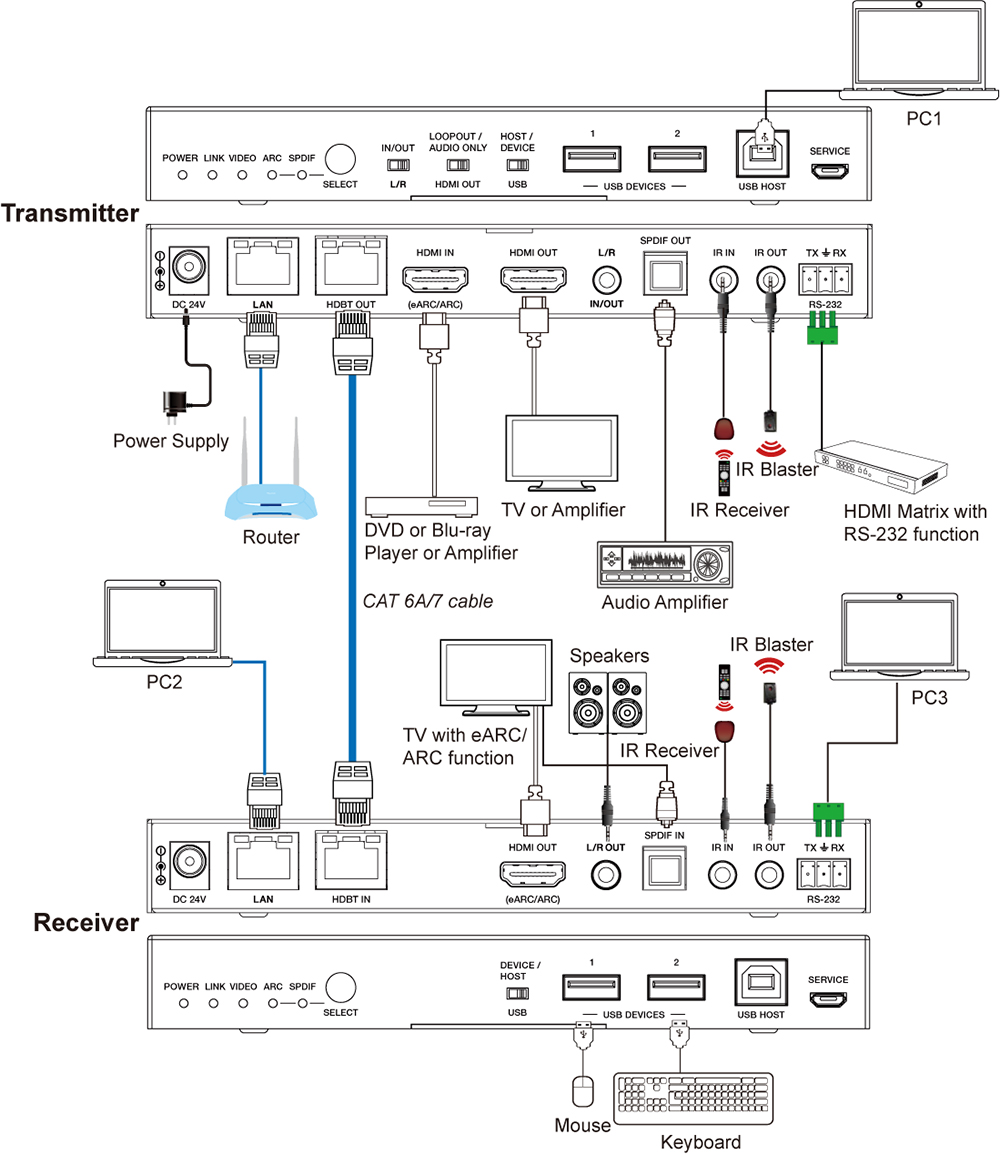

Extends uncompressed 4K@60Hz 4:4:4 HDMI, eARC/ARC audio return, USB 2.0, and control signals up to 328 feet over a single CAT6A/7 cable. The KanexPro EXT-HDBT3ARC-100M is an HDBaseT 3.0 extender kit (transmitter + receiver) that delivers full 18Gbps video bandwidth with eARC/ARC audio routing, bi-directional IR, RS-232, Gigabit Ethernet, and configurable USB 2.0 — eliminating the need for multiple cable runs in long-distance AV installations.
Compliant with HDMI 2.0b and HDCP 2.2, the extender supports HDR10, HDR10+, Dolby Vision, and HLG pass-through alongside Dolby TrueHD, DTS-HD Master Audio, and DSD audio formats. Six eARC/ARC/SPDIF switching scenes provide flexible audio return routing to amplifiers and soundbars. The transmitter supports audio embedding and de-embedding via 3.5mm analog I/O. Bi-directional 24V POC allows a single power supply to power both units.
| Specification | Value |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| HDBaseT Bandwidth | 16Gbps on main and 2Gbps on return link |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| L/R Audio Formats | PCM 2.0 |
| SPDIF Audio Formats | LPCM 2.0, AC3 5.1, DTS 5.1 |
| IR Level | 12Vp-p |
| IR Bandwidth | 20K–60KHz |
| USB Bandwidth | Up to 350Mbps |
| Ethernet | 1000Mbps |
| RS-232 | Up to 921,600bps |
| Transmission Distance | 100m (via a single CAT6A/7 cable) |
| ESD Protection | Human body model — ±8kV (Air-gap) & ±4kV (Contact) |

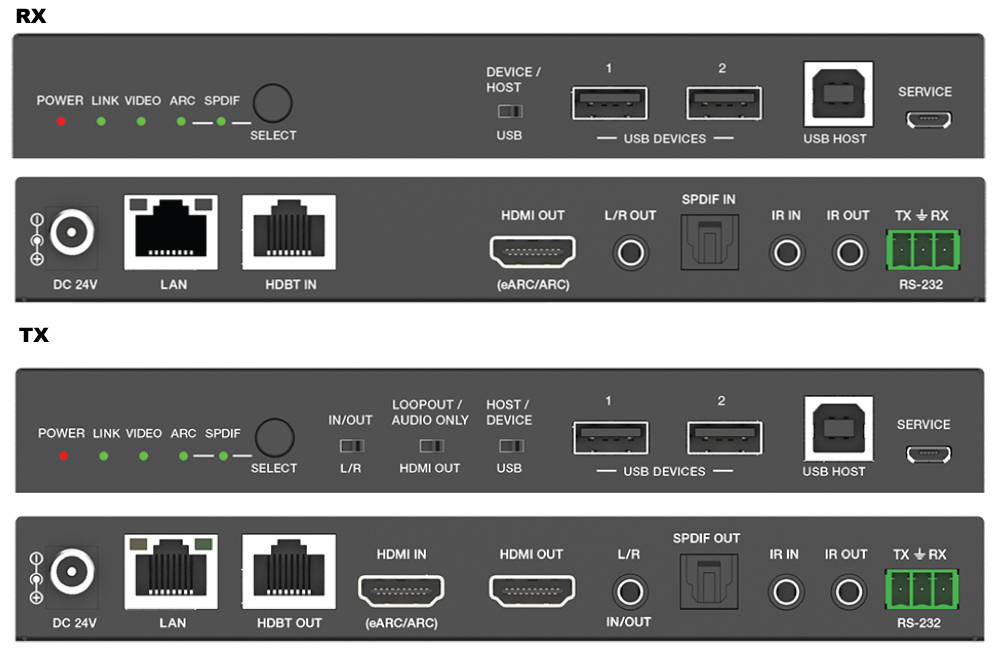

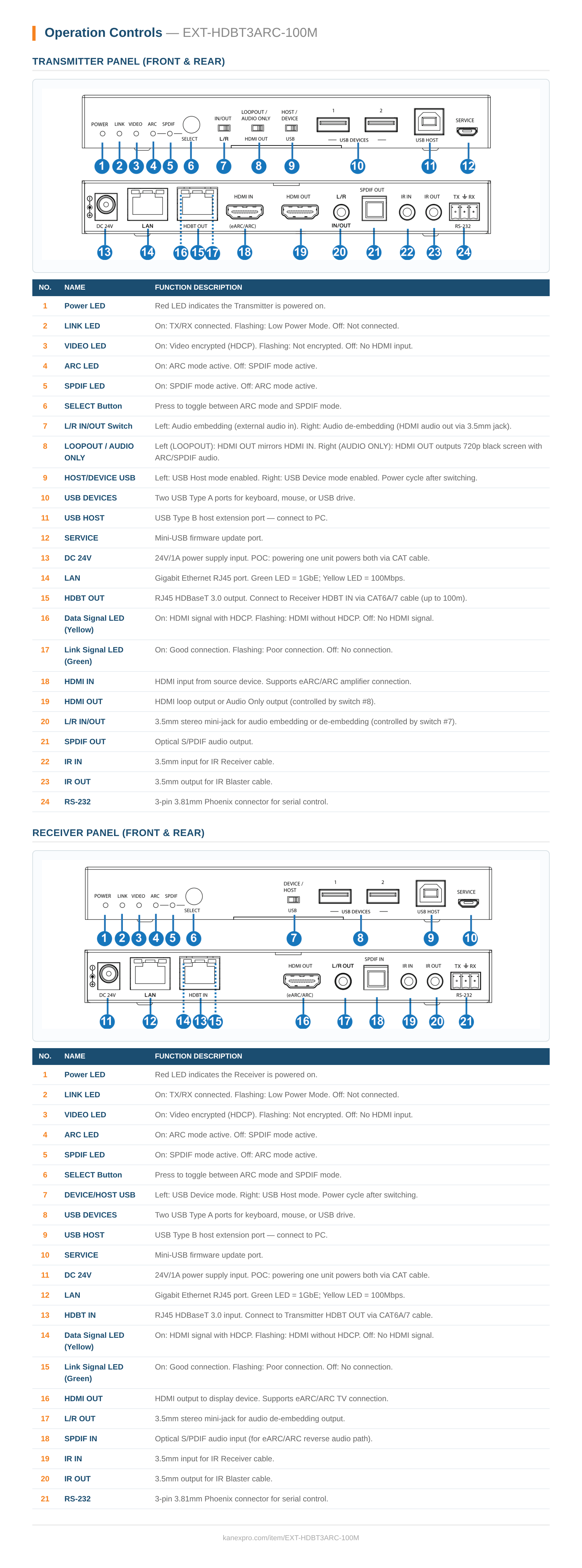

| Connection — Transmitter | |
| Input | 1× HDMI IN [Type A, 19-pin female] |
| Output | 1× HDMI OUT [Type A, 19-pin female], 1× HDBT OUT [RJ45, 8-pin female], 1× SPDIF OUT [S/PDIF], 1× L/R OUT [3.5mm Stereo Mini-jack] |
| Control | 1× IR IN [3.5mm], 1× IR OUT [3.5mm], 1× RS-232 [3-pin 3.81mm Phoenix], 1× SERVICE [Mini-USB], 1× USB HOST [Type B], 2× USB DEVICES [Type A], 1× LAN [RJ45] |
| Connection — Receiver | |
| Input | 1× HDBT IN [RJ45, 8-pin female], 1× SPDIF IN [S/PDIF] |
| Output | 1× HDMI OUT [Type A, 19-pin female], 1× L/R OUT [3.5mm Stereo Mini-jack] |
| Control | 1× IR IN [3.5mm], 1× IR OUT [3.5mm], 1× RS-232 [3-pin 3.81mm Phoenix], 1× SERVICE [Mini-USB], 1× USB HOST [Type B], 2× USB DEVICES [Type A], 1× LAN [RJ45] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter/Receiver: 170mm [W] × 102mm [D] × 22mm [H] |
| Weight | Transmitter: 425g, Receiver: 437g |
| Power Supply | Input: AC 100–240V 50/60Hz, Output: DC 24V/1A (CE/FCC/UL certified) |
| Power Consumption | 15.36W (POC) |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | -4–140°F / -20–60°C |
| Relative Humidity | 20–90% RH (no condensation) |
| Cable Length | |
| HDMI IN/OUT (4K60) | 16ft / 5m |
| HDMI IN/OUT (4K30) | 32ft / 10m |
| HDMI IN/OUT (1080p60) | 50ft / 15m |
| Package Contents | |
| 1× | HDBaseT 3.0 Extender (Transmitter) |
| 1× | HDBaseT 3.0 Extender (Receiver) |
| 1× | IR Blaster Cable (1.5m) |
| 1× | IR Receiver Cable (1.5m) |
| 2× | 3-Pin 3.81mm Phoenix Connectors |
| 4× | Mounting Ears |
| 8× | Machine Screws (KM3×4) |
| 1× | 24V/1A Locking Power Supply |
| 1× | User Manual |
