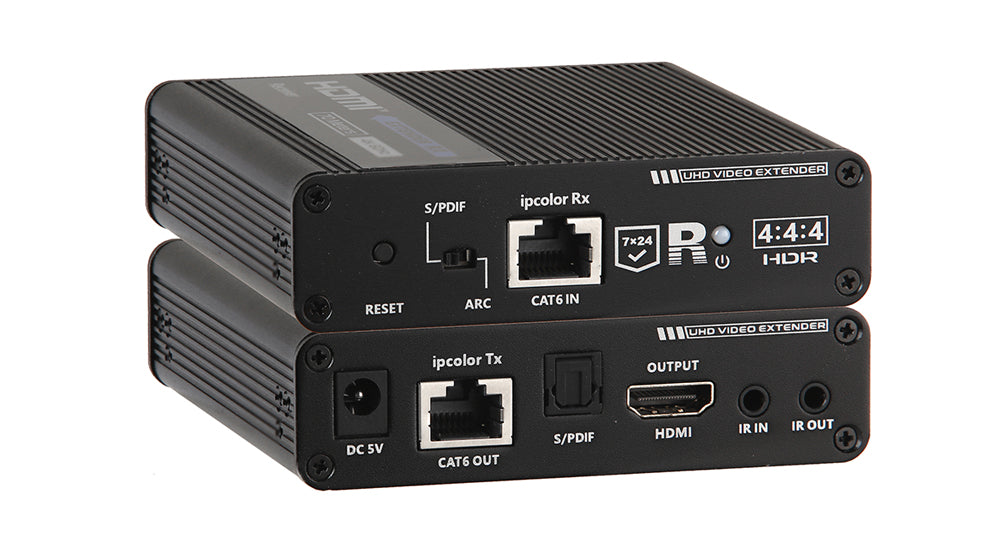

4K60Hz HDMI Cascading Extender Receiver over Cat6 - 70M
Add-on RX for EXT-HDMICAS70M | 4K@60Hz | Daisy-Chain Cascade | 3-Year Warranty

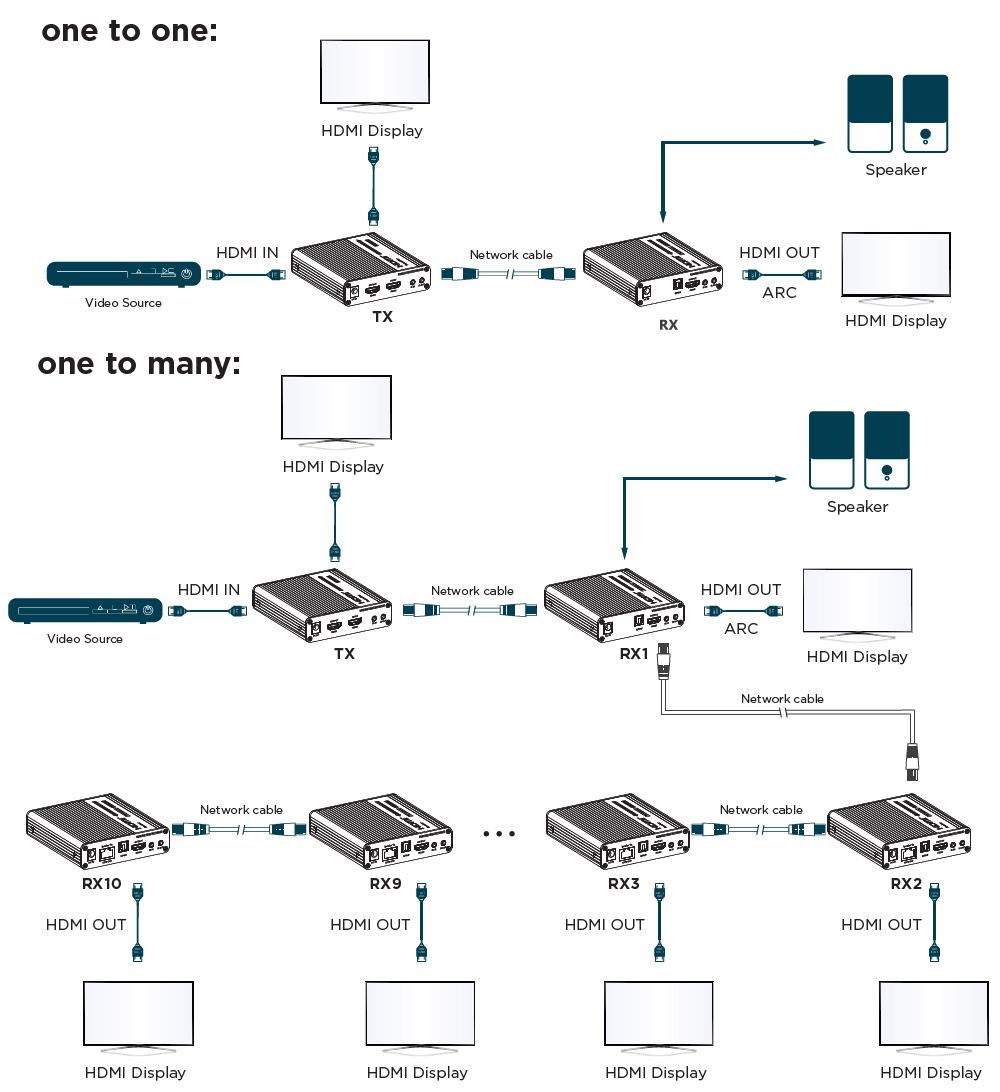

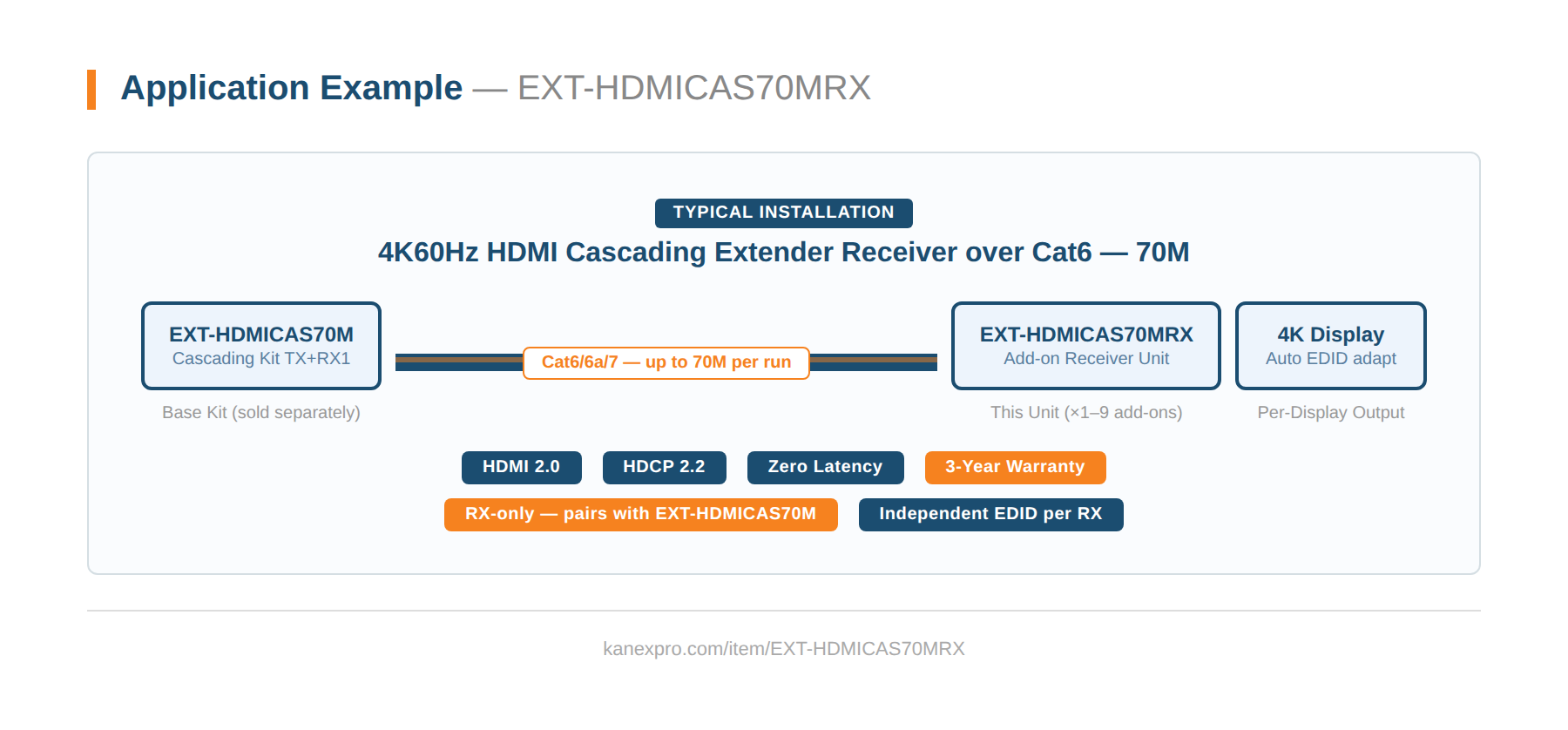

The KanexPro EXT-HDMICAS70MRX is the add-on receiver unit for the EXT-HDMICAS70M cascading HDMI extender system. Each unit adds one additional display location — up to 9 additional receivers per TX, for a total of 10 display endpoints from a single source.
Each EXT-HDMICAS70MRX independently manages the connected display's resolution and EDID, auto-adapting for mixed-resolution environments. Bi-directional IR control and ARC S/PDIF audio de-embed included. Requires EXT-HDMICAS70M transmitter kit. Backed by KanexPro's 3-year warranty.
- Add-on receiver for the EXT-HDMICAS70M cascading extender system, sold separately
- 4K@60Hz HDR over single Cat6/6a/7 up to 70M per run
- CAT6 IN plus CAT6 OUT to daisy-chain the next receiver
- HDCP 2.2 support
- Bi-directional IR pass-through 20-60KHz, IR blasters included
- Optical (Toslink) S/PDIF audio output with S/PDIF/ARC switch
- Plug-and-play; DC 5V power
- Compact aluminum chassis: 106x99x26.2mm, 210g
- 3-year KanexPro parts and labor warranty
| Type | Add-on RX unit, pairs with EXT-HDMICAS70M |
| HDMI / HDCP | HDMI 2.0 | HDCP 2.2 |
| Max Resolution | 4K x 2K @ 60Hz (4:4:4 HDR) |
| Cable | Single Cat6 / Cat6a / Cat7 |
| Max Distance | 70M (230 ft.) per Cat6 run |

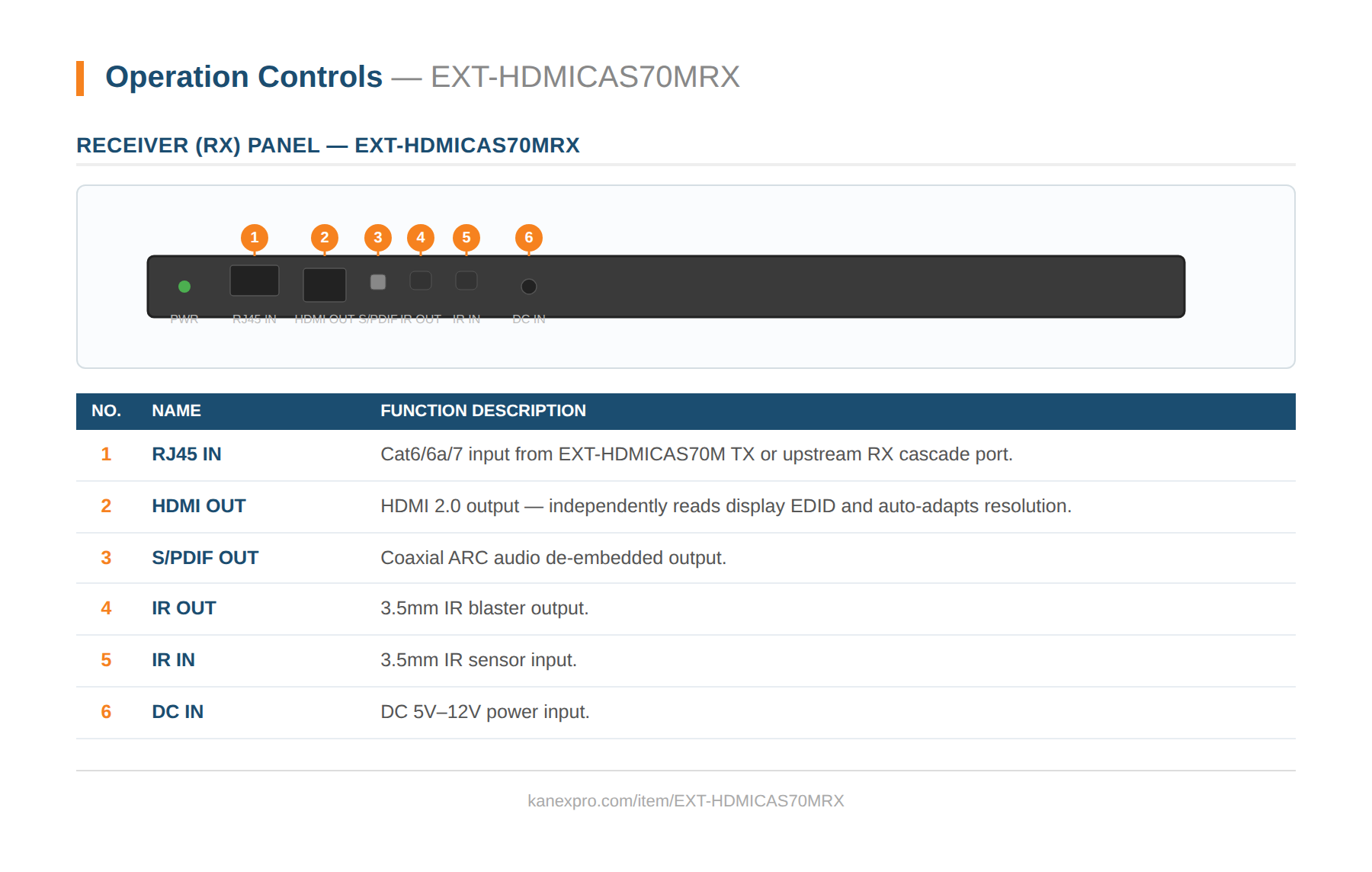

| Ports | CAT6 IN | CAT6 OUT (cascade) | HDMI OUT | S/PDIF OUT (optical) + S/PDIF/ARC switch | IR IN | IR OUT | DC IN | RESET |
| IR | Bi-directional 20-60KHz (blasters included) |
| Audio | Optical (Toslink) S/PDIF, S/PDIF/ARC switch |
| Power | DC 5V | RX less than 4W |
| Weight | RX 210g |
| Operating Temp | -20 to 60 degrees C |
