KanexPro
SKU: EXT-HDMIKVM70M
UPC: 813982022751
$399.95
Couldn't load pickup availability

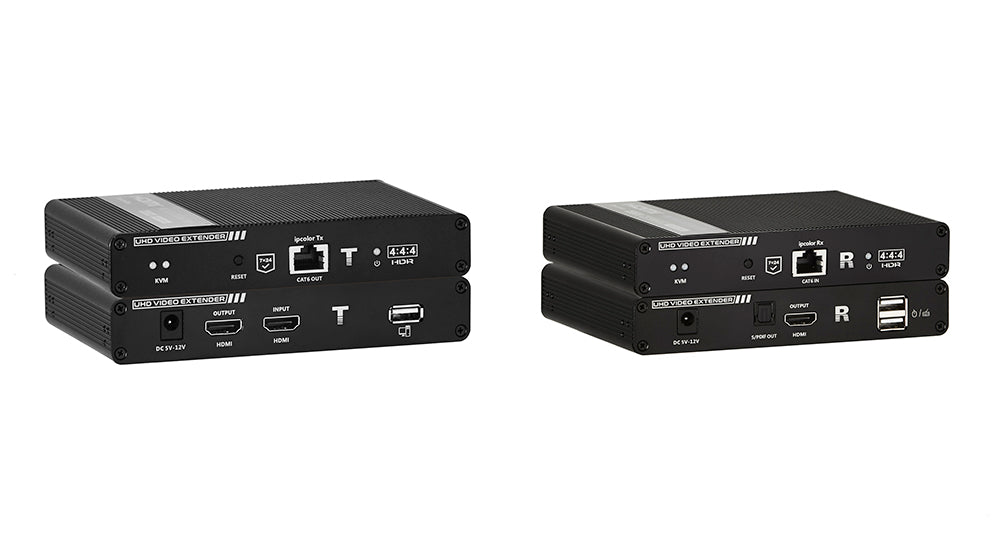

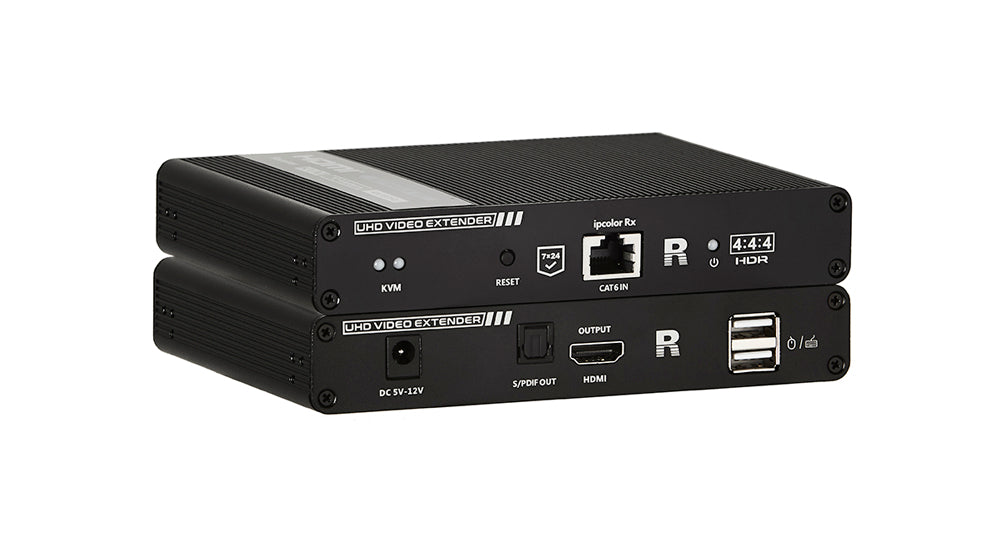

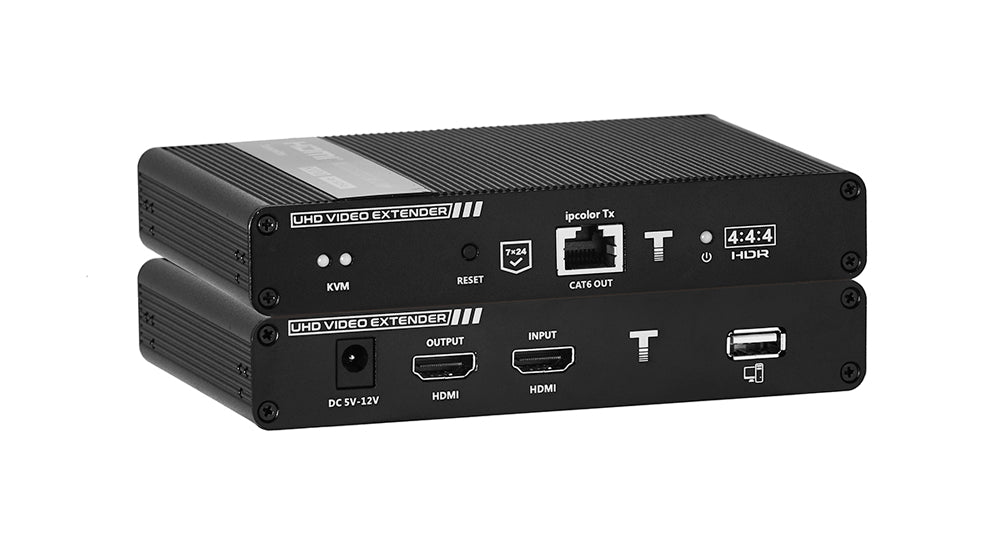

4K60Hz HDMI KVM Extender over Cat6 - 70M
4K@60Hz HDR | KVM USB 2.0 | Zero Latency | IR Bi-directional | 3-Year Warranty

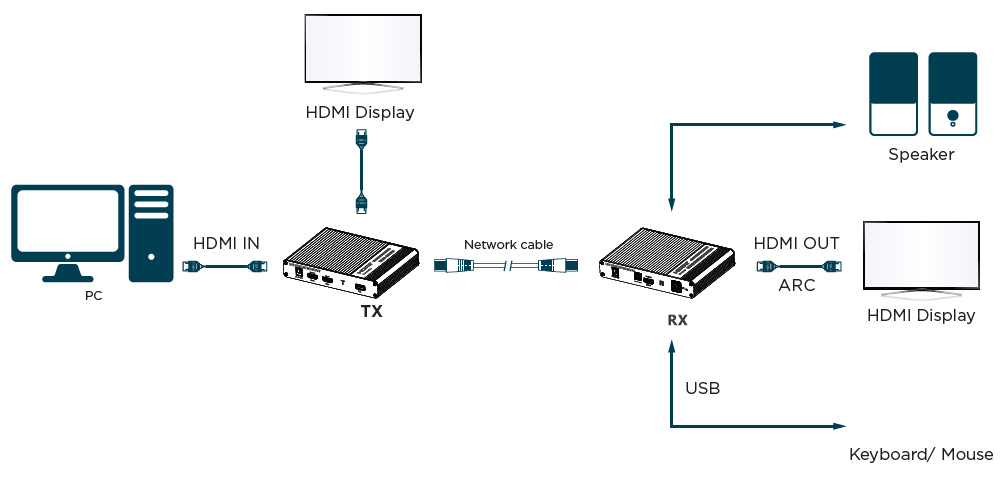

The KanexPro EXT-HDMIKVM70M adds KVM (keyboard, mouse, PTZ camera, and touchscreen) control to a zero-latency 4K@60Hz HDMI extension system — all over a single Cat6 cable to 70M. Transmit full 4:4:4 HDR video and USB 2.0 peripheral signals simultaneously without separate KVM extender hardware.
The KVM USB 2.0/1.1 channel supports keyboards, mice, PTZ cameras, and touchscreen devices at the receiver end. ARC S/PDIF audio de-embed, bi-directional IR, HDCP 2.2, and zero configuration complete the package. Backed by KanexPro's 3-year warranty.
- Zero latency 4K@60Hz HDR + KVM USB 2.0/1.1 over single Cat6 up to 70M
- KVM supports keyboard, mouse, PTZ cameras, and touchscreen devices
- HDCP 2.2 and EDID support for multiple display types
- Bi-directional IR pass-through 20-60KHz — IR blasters included
- ARC S/PDIF digital audio de-embedded output on receiver
- Zero configuration plug-and-play setup
- Compact aluminum chassis: 106x99x26.2mm, 260g TX/RX
- 3-year KanexPro parts and labor warranty
| Specification | Value |
|---|---|
| HDMI / HDCP | HDMI 2.0 | HDCP 2.2 |
| Max Resolution | 4K x 2K @ 60Hz (4:4:4 HDR) |
| KVM | USB 2.0/1.1 — keyboard, mouse, PTZ, touchscreen |
| Cable | Single Cat6 / Cat6a |
| Max Distance | 70M (230 ft.) at 4K@60Hz |
| IR | Bi-directional 20-60KHz (TX/RX included) |
| Audio | ARC S/PDIF de-embedded on RX |
| Power | DC 5V-12V | TX less than 4W | RX less than 4W |
| Dimensions | 106 x 99 x 26.2mm (TX and RX) |
| Weight | TX 260g | RX 260g |
| Operating Temp | -20 to 60 degrees C |
