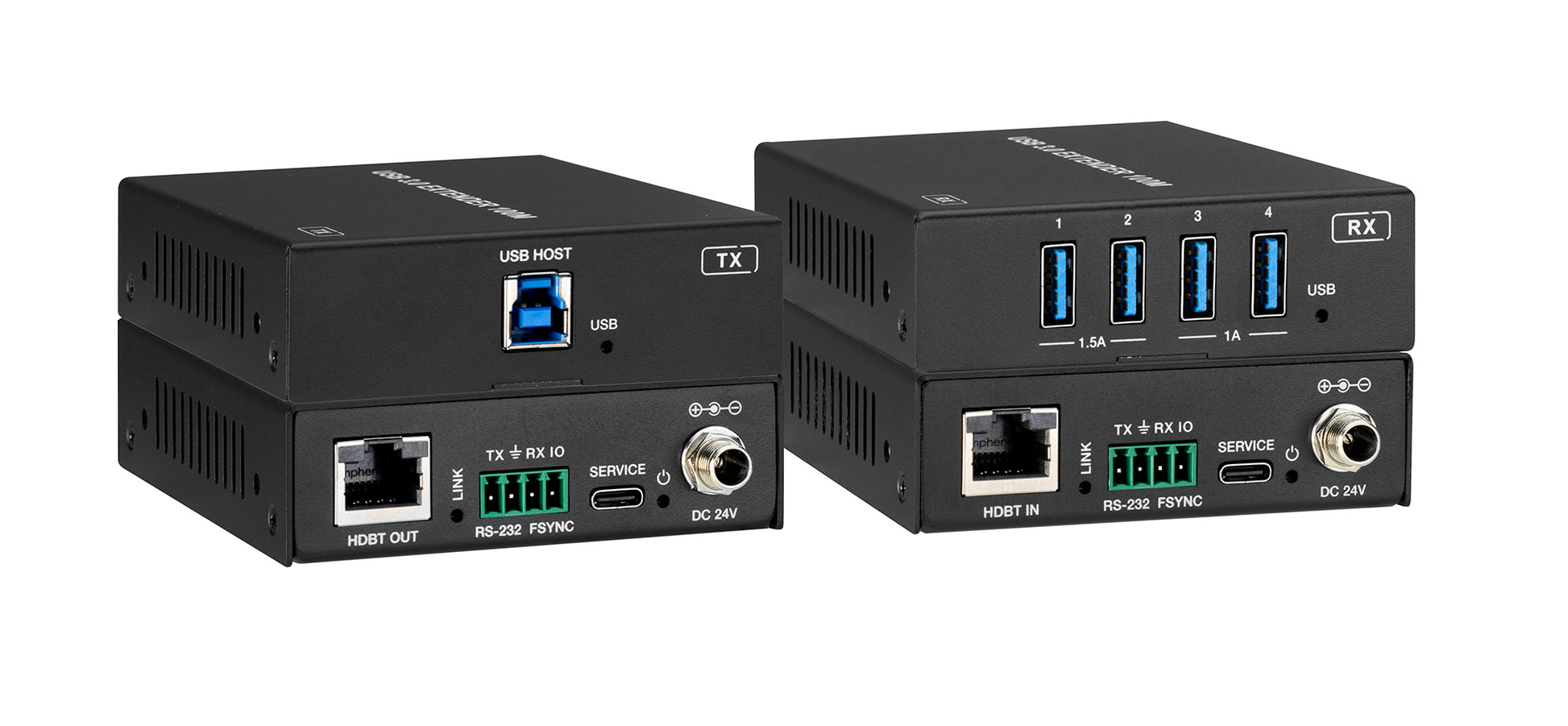

USB 3.0 Extender Over Cat6 100M HDBaseT

Name: USB 3.0 Extender Over Cat6 100M HDBaseT
Brand: KanexPro
SKU: EXT-USB3100M

Plug and Play Solution

1 1

KanexPro

SKU: EXT-USB3100M

UPC: 813982023611

$399.95

View full details

Unlock USB 3.0 potential with KanexPro's Extender. Stretch your connectivity up to 100m (about 328.08 ft) over CAT6a cable, with speeds reaching 5Gbps. Seamless backward compatibility with USB 2.0 and 1.1. Experience hassle-free plug-and-play setup—no drivers needed.

USB 3.0 connectivity with data transfer rate up to 5Gbps
Backwards compatible with USB 2.0 and 1.1
Hardware acceleration for isochronous and bulk transfer

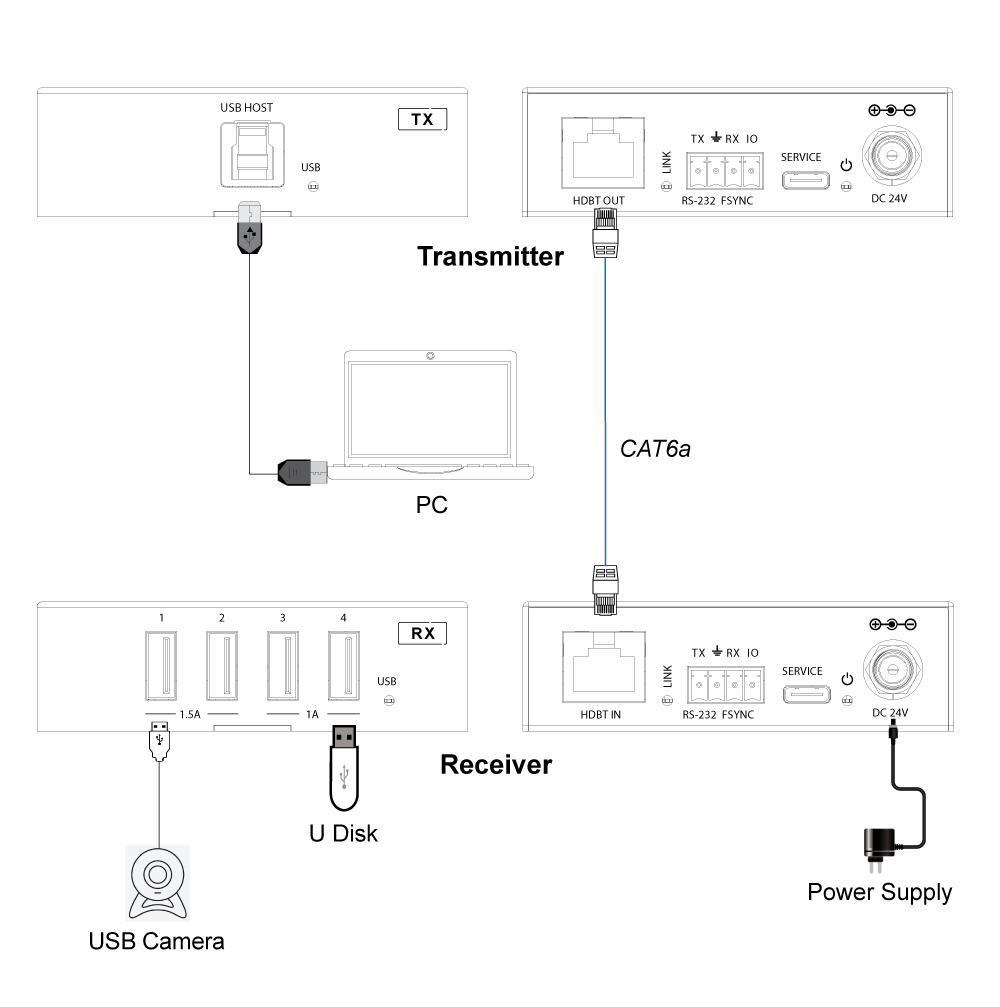

Extension of USB 3.0 up to 100m/328ft over CAT6a cable
USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
Simple plug and play, no driver and setting installation needed
Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
Support bi-directional 24V PoC (Power Over CAT)
Simple plug and play, no driver and setting installation needed

USB Protocol: USB3.0

Transfer Rate: Up to 5Gbps

Network Bandwidth: 10Gbps

Transmission Distrance: 100m/328ft over CAT6a (F/FTP) cable

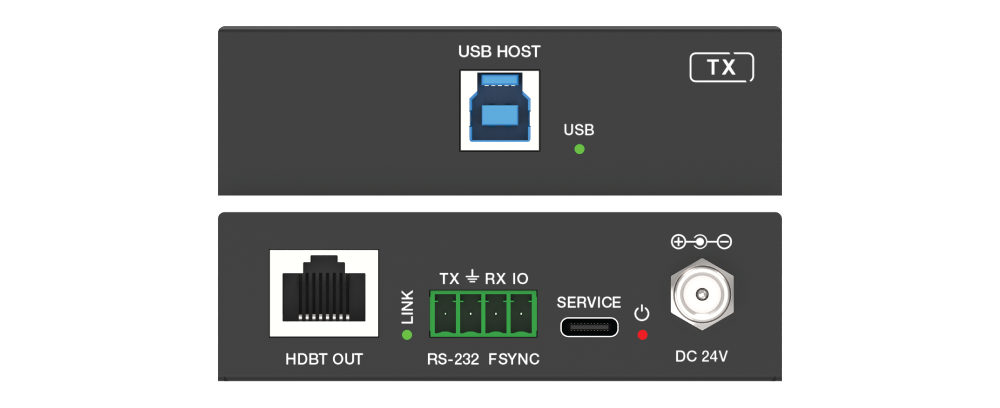

Transmitter: Input: 1 × USB HOST [USB-B, 9pin Female]
                     Output: 1 × HDBT OUT [RJ45, Female]
                     Control: 1 × RS-232 [3pin-3.5mm Phoenix Connector]
                     1 × FSYNC [1pin-3.5mm Phoenix Connector]
                     1 × SERVICE [USB-C, Update Port]

Receiver: Input: 1 × HDBT IN [RJ45, Female]
                  Output: 4 × USB Devices [USB-A, 9pin Female]
                  Control: 1 × RS-232 [3pin-3.5mm Phoenix Connector]
                  1 × FSYNC [1pin-3.5mm Phoenix Connector]
                  1 × SERVICE [USB-C, Update Port]

Housing: Metal Enclosure

Color: Black

Dimensions: Transmitter / Receiver: 85mm [W] × 100mm [D] × 25.5mm [H]

Weight: Transmitter: 253g, Receiver: 260g

Power Supply: Input: AC 100~240V 50/60Hz Output: DC 24V/2A

Power Consumption: PoC Power Supply: 40W Max

Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity: 20~90% RH (non-condensing)
