HDMI Extender over CAT5/6 up to 164ft. (50m)

Extend HD Signals over CAT 5/5e up to 165ft.(50m) w/ local HDMI Loop out

1 1

KanexPro

SKU: HDEXT50M

UPC: 814556013427

$83.96 $104.95 Save 20%
View full details

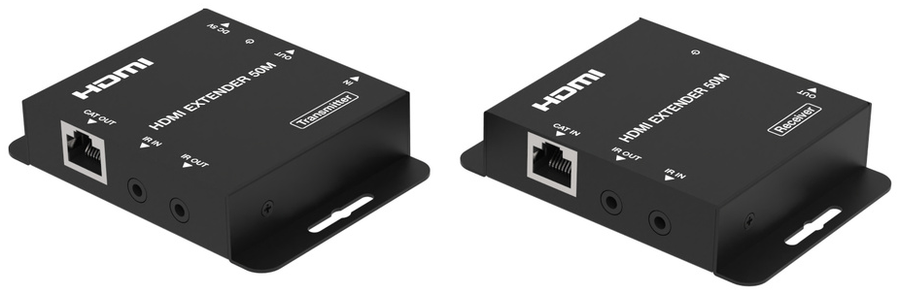

The KanexPro HDEXT50M extender is a set of transmitter and receiver which sends full HD 1080p/60 HDMI signals over CAT5/5e cable up to 164ft. (50m). Local HDMI out for preview is built-in to the transmitter to quick view using confidence monitor. For control, the extender set can send/ receive IR signals from each other over CAT5/5e cable with IR pass-through.

Applications:

Ideally used for home theater, small office, house of worship centers and classrooms, where there is a need to remotely extend HDMI sources such as a Blu-ray player, HDMI laptop, or cable box to an HD 1080p display.



  • Extend DVI/HDMI over cost-effective Cat5 cable up to 164 ft. (50m)
  • Supports full HD 1080p (1920x1080@60Hz)
  • Local HDMI output (loop out)
  • Built-in EDID to ensure proper HDMI transmission
  • Built in EQ button on the side to compensate for signal equalization
  • Digital audio support through HDMI
  • HDCP 1.4 compliant
  • Bi-directional wideband IR control
  • Plug & Play - no set-up required
  • Includes IR kits & Micro USB based power supplies

Interface:

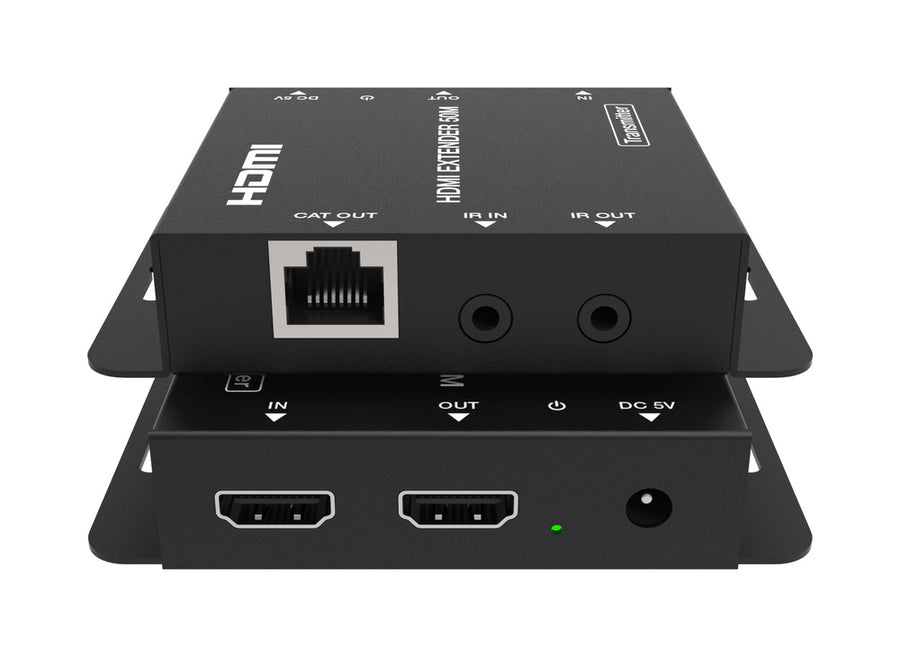

  • Transmitter
    • Input: HDMI x1
    • OutputL HDMI Local output
    • Output: Cat 5/5e x1
    • 3.5mm - IR in / IR out

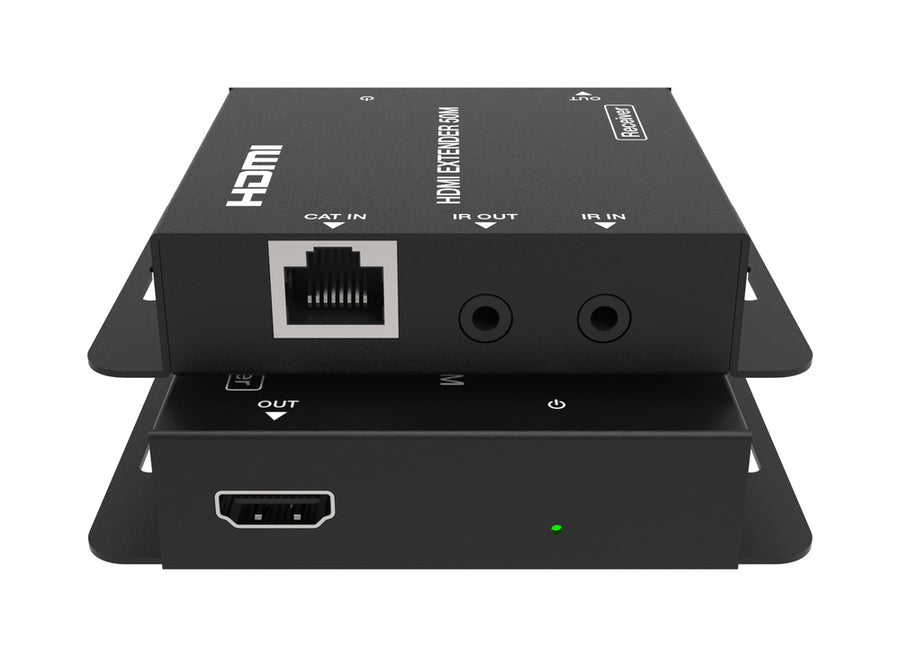

  • Receiver
    • Input: Cat 5/5e x1
    • Output: HDMI x1
    • 3.5mm - IR in/ IR out

Resolutions (HDTV): 480i/576i/480p/576p/720p/1080i/1080p

Transmission Distance:

  • Up to 164 feet(50m).
  • Resolution may vary based on CATx cables used, signal interference and other factors.

EDID: Built-in EDID management system

Power Supply:

  • Input: 100 VAC ~240 VAC, 50/60Hz
  • Output: 5V DC@1A
  • Power consumption: 4W (max)

Operating Temperature: -10°C to 55°C

Operating Humidity: 10% to 85 % RH (no condensation)

Storage Temperature: -10°C to +80°C

Storage Humidity: 5% to 90 % RH (no condensation)

Regulatory Approvals Converter: FCC, CE, UL

Regulatory Approvals Power Supply: FCC, CE, UL

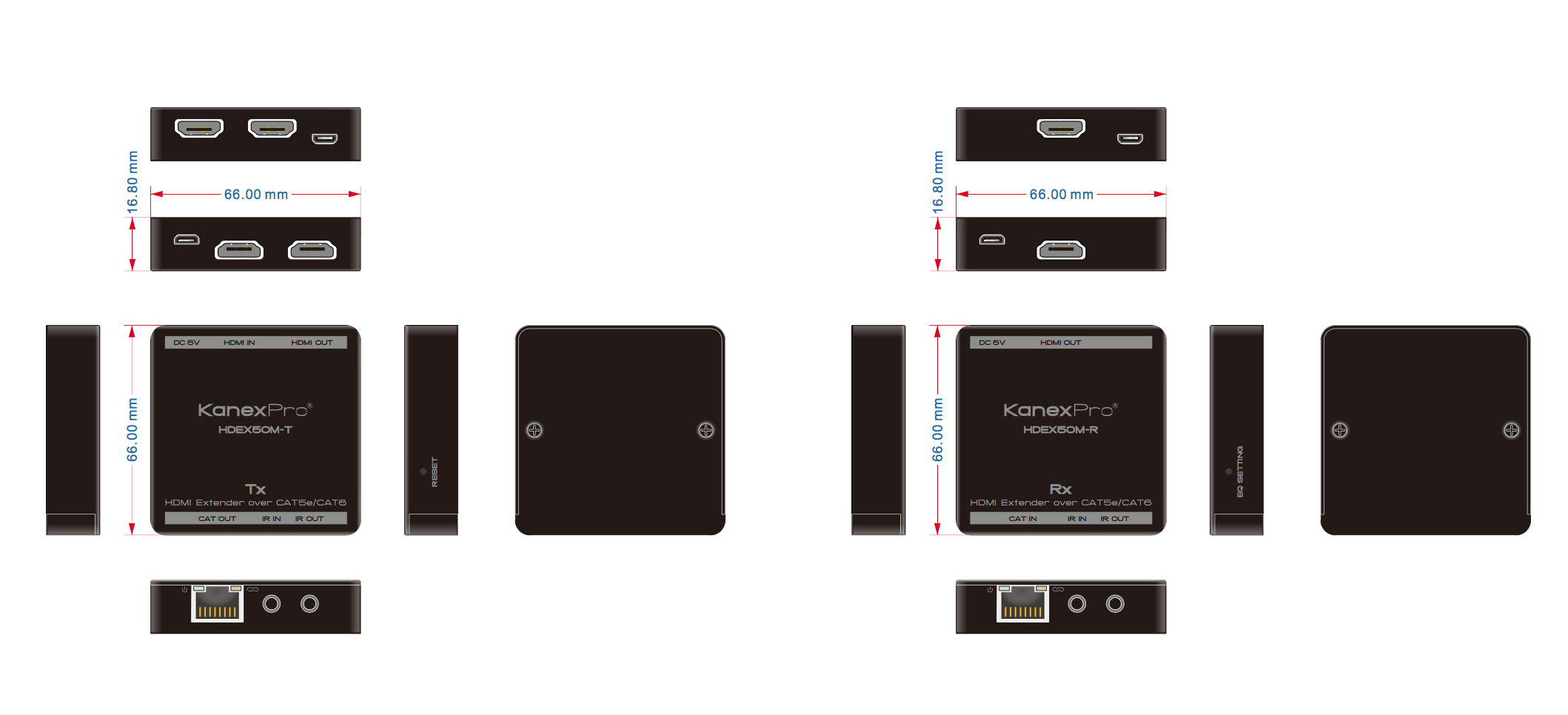

Dimensions:

  • W H D:  2.59”x 2.59" 4”x 0.51” (66x66x13mm)

Weight:

  • Tx: 0.07 lbs. (36g)
  • Rx: 0.08 lbs (38g)

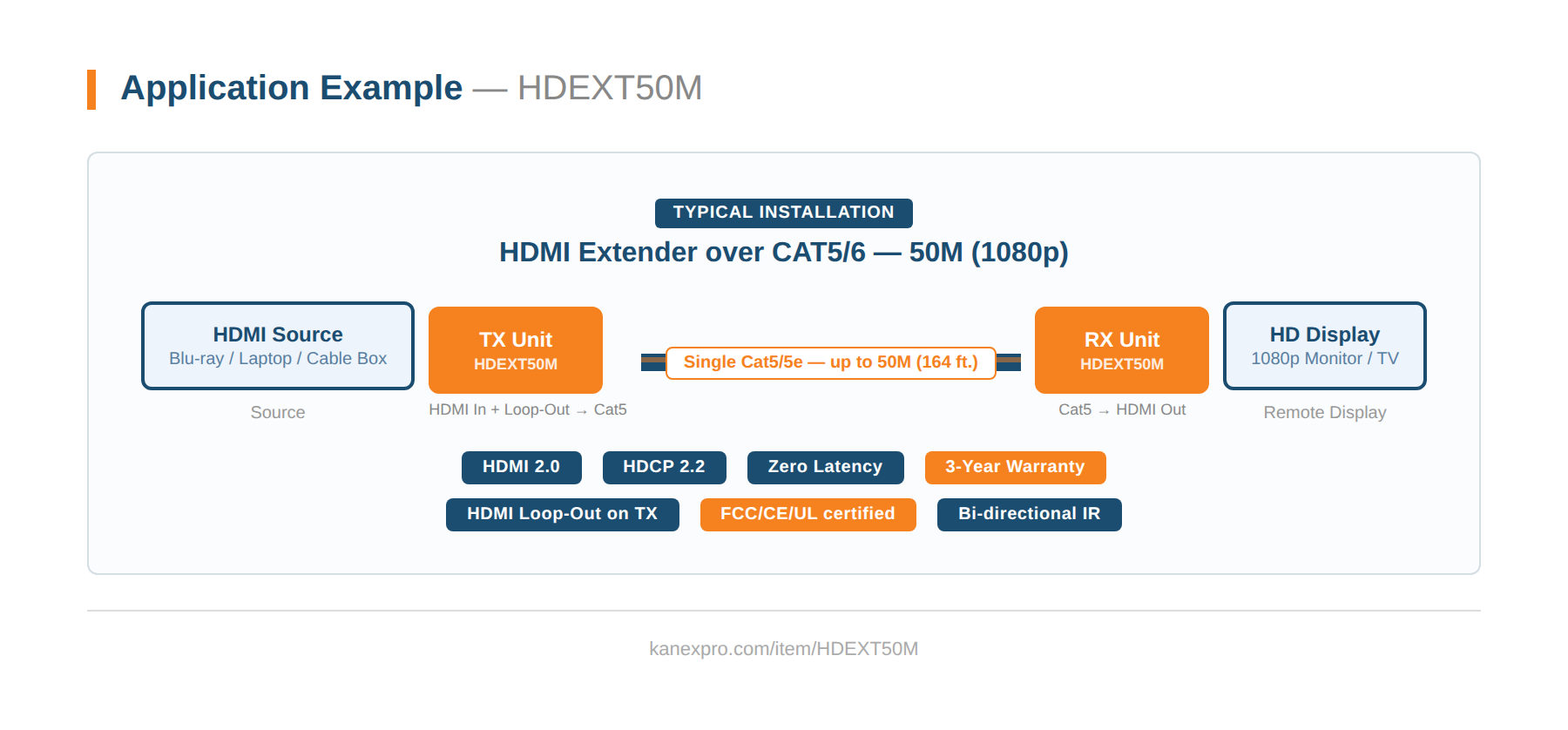

Product Diagram
Product Panel
