1080P60 H.265 AV over IP Decoder New

Decodes any AVO-IP265HD encoder's H.265/H.264 IP stream to a connected HDMI display, letting integrators add screens to a distribution system without adding encoders. At 120×95×21.5mm and 3.1 watts, the AVO-IP265HD-DEC rack-mounts up to 12 units in 4U or 8 in 1U — built for digital signage, education, retail, and corporate AV where display counts grow independently of sources.

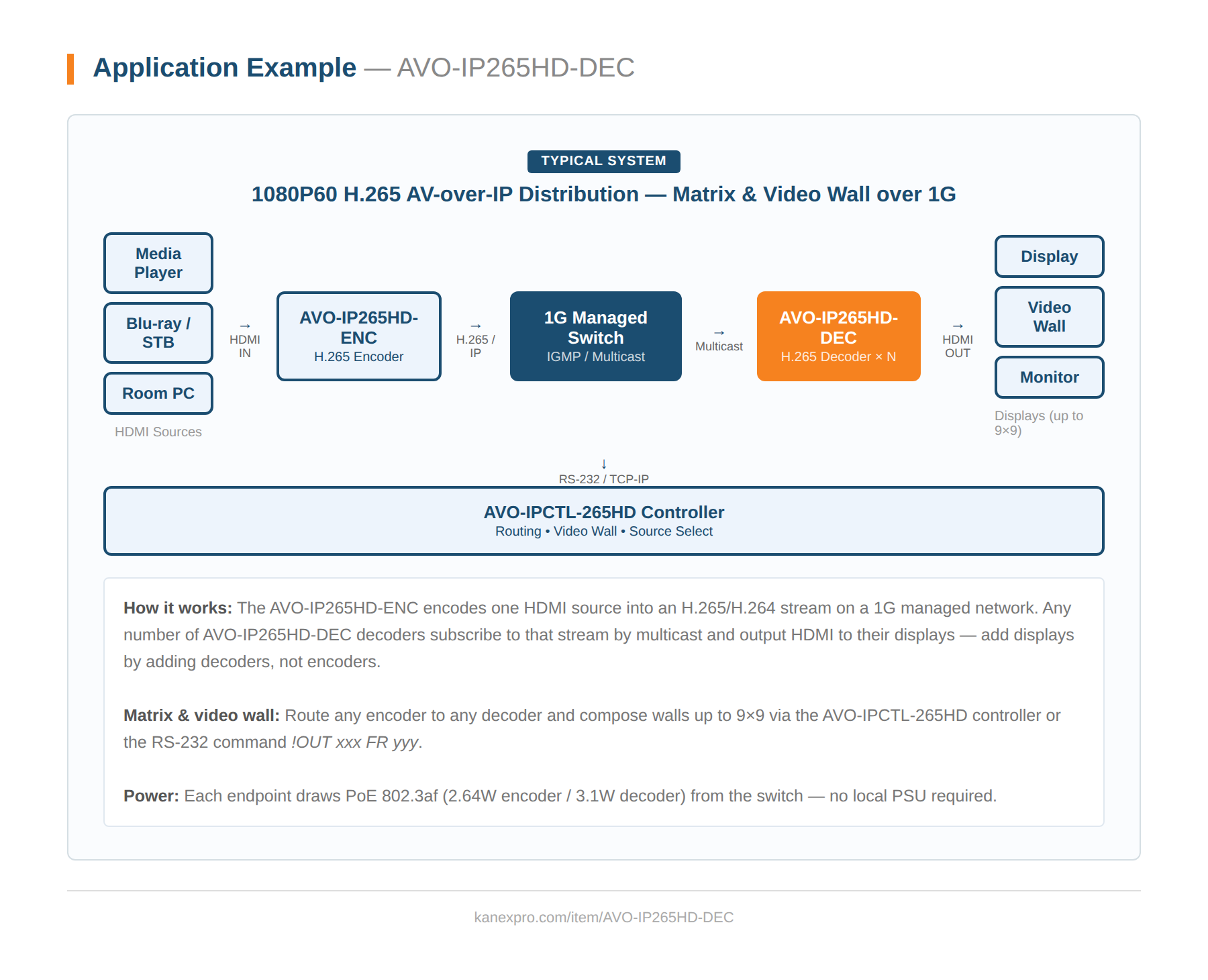

Supports matrix switching, video wall up to 9×9, unicast and multicast reception, analog audio extraction, and RS-232 pass-through, all configurable via web GUI. Pair to any encoder via RS-232 command (!OUT xxx FR yyy) or the AVO-IPCTL-265HD controller. Encoders (AVO-IP265HD-ENC) sold separately.

• H.265/H.264 codec — 1080P@60Hz 4:4:4, up to 1920×1200@60Hz, HDMI 1.3, HDCP 1.4
• Compact form factor: 4.72″ × 3.74″ × 0.85″ (120 × 95 × 21.5mm), 0.65 lbs per unit
• Rack-dense: 4U rack (up to 12 units) or 1U rack (up to 8 units)
• Decodes any AVO-IP265HD encoder stream to a connected HDMI display
• Matrix switching, video wall up to 9×9, unicast and multicast reception over 1G
• Analog audio extraction — LPCM 2.0CH to the 3-pin Phoenix output
• Decoder-to-encoder pairing via RS-232 command (!OUT xxx FR yyy) or controller
• RTSP sub-stream for VLC and third-party application preview
• Web GUI for video configuration, scaling, picture settings, firmware updates
• PoE 802.3af Class 3 PD or DC 12V/1A — ultra-low power: 3.1W
• Works with AVO-IPCTL-265HD (CTL100H) controller
