1080P60 H.265 AV over IP KVM Decoder New

Adds a display with keyboard, mouse, and IR control of the source to your AV-over-IP system without adding an encoder — over the standard 1G network you already have. A compact 1080P60 H.265/H.264 AV-over-IP KVM decoder, the AVO-IP265HDK-DEC brings USB-KVM and bidirectional IR to every endpoint and racks up to 10 units in 6U or 4 in 1U — the right choice for control rooms, command centers, education, and corporate AV where display and control points grow independently of sources.

It receives any AVO-IP265HDK encoder's stream by unicast or multicast, drives matrix switching and video wall up to 9×9, extracts analog audio, and passes RS-232 / IR through — all configured through the web GUI, with USB DEVICE ports for the operator's keyboard and mouse. Pair it to a source with the AVO-IPCTL-265HD controller or an RS-232 command. Sold as a standalone decoder, it turns KVM expansion into a simple add-on. Encoders (AVO-IP265HDK-ENC) sold separately.

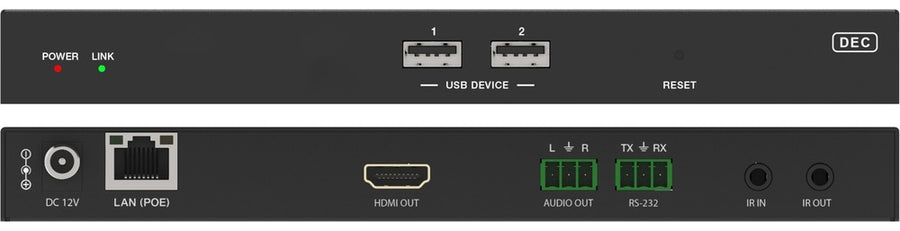

• H.265/H.264 codec — 1080P@60Hz 4:4:4, up to 1920×1200@60Hz, HDMI 1.3, HDCP 1.4
• USB-KVM — 2× USB DEVICE (Type A) for the operator's keyboard and mouse at the display
• Bidirectional IR — IR IN + IR OUT (3.5mm) for IR pass-through to and from the source
• Decodes any AVO-IP265HDK encoder stream to a connected HDMI display
• Compact form factor: 8.03″ × 3.74″ × 0.85″ (204 × 95 × 21.5mm), 1.03 lbs
• Rack-dense: 6U rack (up to 10 units) or 1U rack (up to 4 units)
• Matrix switching, video wall up to 9×9, unicast and multicast reception over 1G
• Analog audio extraction — LPCM 2.0CH to the 3-pin Phoenix output
• RTSP sub-stream for VLC and third-party application preview
• RS-232 pass-through, guest mode, and single-machine control (no controller box); Web GUI for scaling and firmware
• PoE 802.3af Class 3 PD or DC 12V/1A — 2.77W; works with AVO-IPCTL-265HD controller
