1080P60 H.265 AV over IP KVM Encoder New

Distributes one HDMI source — with full keyboard, mouse, and IR control — to an unlimited number of displays over the standard 1G network you already have. A compact 1080P60 H.265/H.264 AV-over-IP KVM encoder, the AVO-IP265HDK-ENC adds USB-KVM and bidirectional IR to IP video distribution and racks up to 10 units in 6U or 4 in 1U — the right choice for control rooms, command centers, education, and corporate AV where operators must reach and control remote sources, not just watch them.

It drives matrix switching, video wall up to 9×9, unicast and multicast distribution, analog audio embedding, and RS-232 / IR pass-through — all configured through the web GUI, with a local HDMI loop-out for on-site monitoring and RTSP sub-streams for VLC preview. Sold as a standalone encoder and managed by the AVO-IPCTL-265HD controller, it lets integrators order the exact encoder-to-decoder ratio each job needs. Decoders (AVO-IP265HDK-DEC) sold separately.

• H.265/H.264 codec — 1080P@60Hz 4:4:4, up to 1920×1200@60Hz, HDMI 1.3, HDCP 1.4

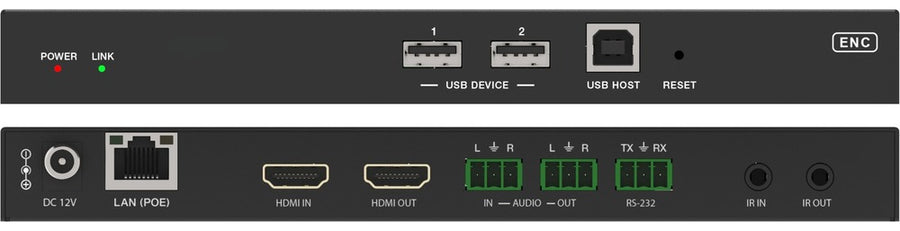

• USB-KVM — 1× USB HOST (Type B) to the source PC + 2× USB DEVICE (Type A) for keyboard/mouse
• Bidirectional IR — IR IN + IR OUT (3.5mm) for IR pass-through to and from any room
• HDMI local loop output — monitor the encoded source on-site without splitting
• Compact form factor: 8.03″ × 3.74″ × 0.85″ (204 × 95 × 21.5mm), 1.04 lbs
• Rack-dense: 6U rack (up to 10 units) or 1U rack (up to 4 units)
• Matrix switching, video wall up to 9×9, unicast and multicast distribution over 1G
• Analog audio embedding — LPCM 2.0CH inserted into the stream
• Configurable main stream and sub stream — RTSP preview via VLC
• RS-232 pass-through, guest mode, and single-machine control (no controller box); Web GUI for stream, EDID, and firmware
• PoE 802.3af Class 3 PD or DC 12V/1A — 3.48W; works with AVO-IPCTL-265HD controller
