4K60 JPEG2000 AV over IP BYOD Encoder — USB-C & HDMI
Dual Input Auto-Switch with PD 100W Laptop Charging, Dolby Vision, Dolby Atmos & ARC/eARC over Standard 1G Copper
Resellers, installers, schools and businesses. Approval is usually the same working day.

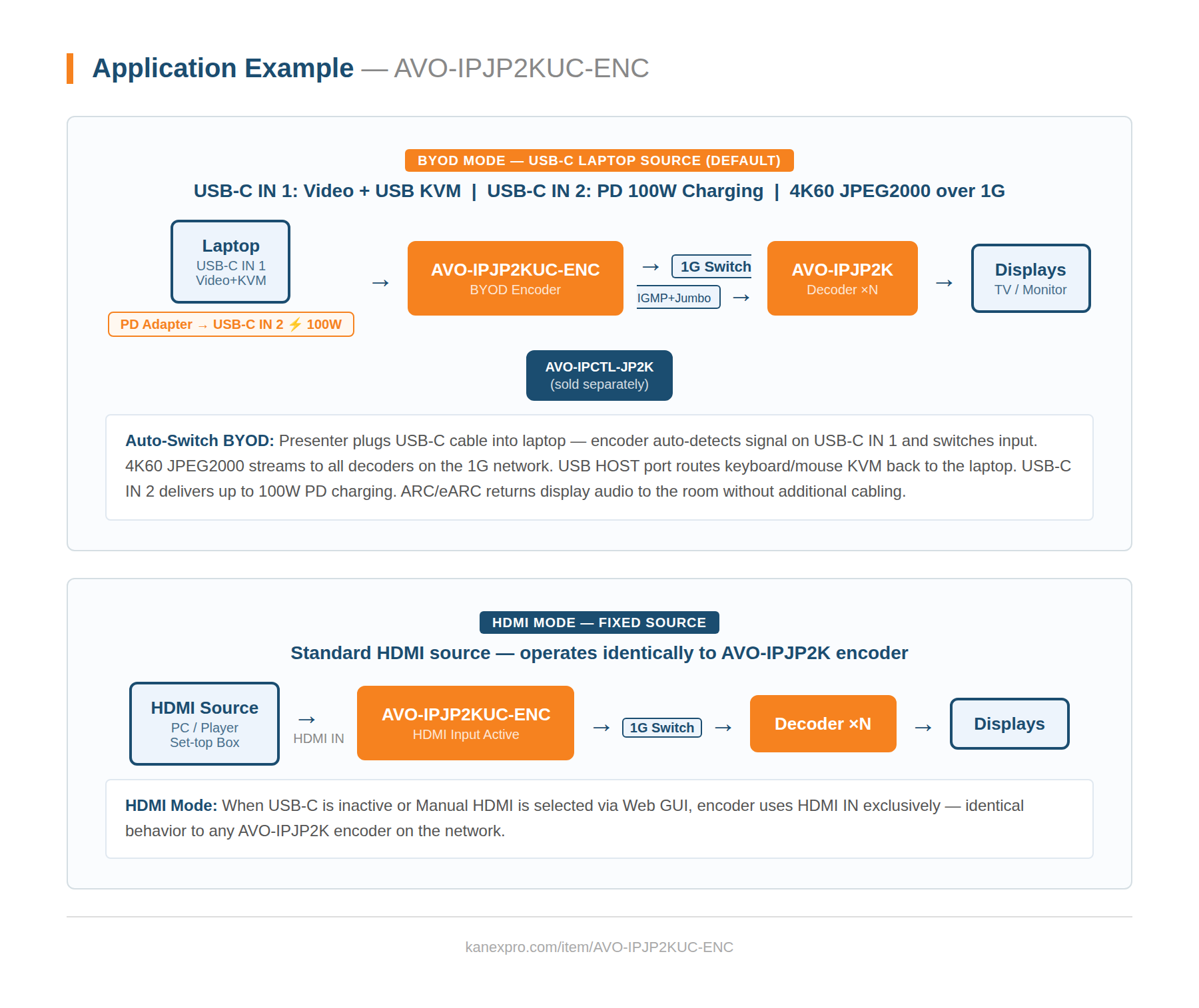

Brings visually lossless 4K60 4:4:4 JPEG2000 encoding to BYOD and UC rooms — with a dual HDMI and USB-C input that automatically switches to whichever source is connected, and a dedicated USB-C IN 2 port that delivers up to 100W of power back to the presenter's laptop. The AVO-IPJP2KUC-ENC eliminates the dongle problem in huddle rooms and conference spaces: a single USB-C cable connects the laptop, shares the display, routes USB peripherals for KVM, and keeps the laptop charged — all while distributing 4K60 video to any compatible JPEG2000 decoder on the same 1G network.
Where standard JPEG2000 encoders require a dedicated AV rack source, the AVO-IPJP2KUC-ENC is designed for presenter-driven spaces. Dolby Vision, HDR10, and HLG passthrough cover every content type a laptop or mobile workstation produces. ARC, eARC, S/PDIF, and analog audio return bring display audio back to the room without extra cabling. Optional Dante AV-A ties the encoder into professional audio infrastructure. Compatible with any AVO-IPJP2K-series decoder and the AVO-IPCTL-JP2K controller for matrix switching, video wall, and KVM roaming.
- HDMI and USB-C dual inputs with automatic source switching — connects to whichever input is active
- USB-C IN 1 carries video, audio, and USB data from laptop; USB-C IN 2 delivers up to PD 100W charging back to the source device
- JPEG2000 visually lossless 4K60 4:4:4 distribution over standard 1G managed networks — no 10G required
- HDR10, Dolby Vision, and HLG support on input and output
- LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X audio passthrough
- ARC, eARC, S/PDIF, and analog audio return
- Optional Dante AV-A integration (license activated)
- USB 2.0 KVM with two-way IR and RS-232 — centralized control of remote sources
- HDMI 2.0b with HDCP 2.2, 18Gbps bandwidth
- Unicast, multicast, matrix switching, and video wall up to 9×9
- PoE (802.3at PD) or DC 12V/2.5A — single-cable deployment
- MJPEG sub-stream preview — view encoder feed in real time
- Digital I/O and relay controls with configurable VCC output (5V/12V)
- Web GUI, Telnet, SSH, RS-232, TCP/IP, CEC, IR control
- Works with AVO-IPCTL-JP2K IP Controller (sold separately)
- Encoder only — pairs with any AVO-IPJP2K-series decoder
| Specification | |
|---|---|
| Technical | |
| Video Compression | JPEG2000 |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Input Resolution | 480i–1080p50/60Hz, 4K×2K@24/30Hz, 4K2K@50/60Hz 4:4:4 |
| Output Resolution | Auto, 4K60/50, 4K30/25, 1920×1200p60, 1080p60/50, 1360×768p60, 1280×800p60, 1280×720p60/50, 1024×768p60 |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR Support | HDR10, Dolby Vision, HLG |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X |
| Audio Sample Rate | 32–192kHz |
| Audio Return | ARC, eARC, S/PDIF, Analog |
| Dante | Optional AV-A (license activated) |
| Video Wall | Up to 9×9 (81 displays) |
| Preview Stream | MJPEG sub-stream |
| USB Bandwidth | USB 2.0 480Mbps |
| Connection | |

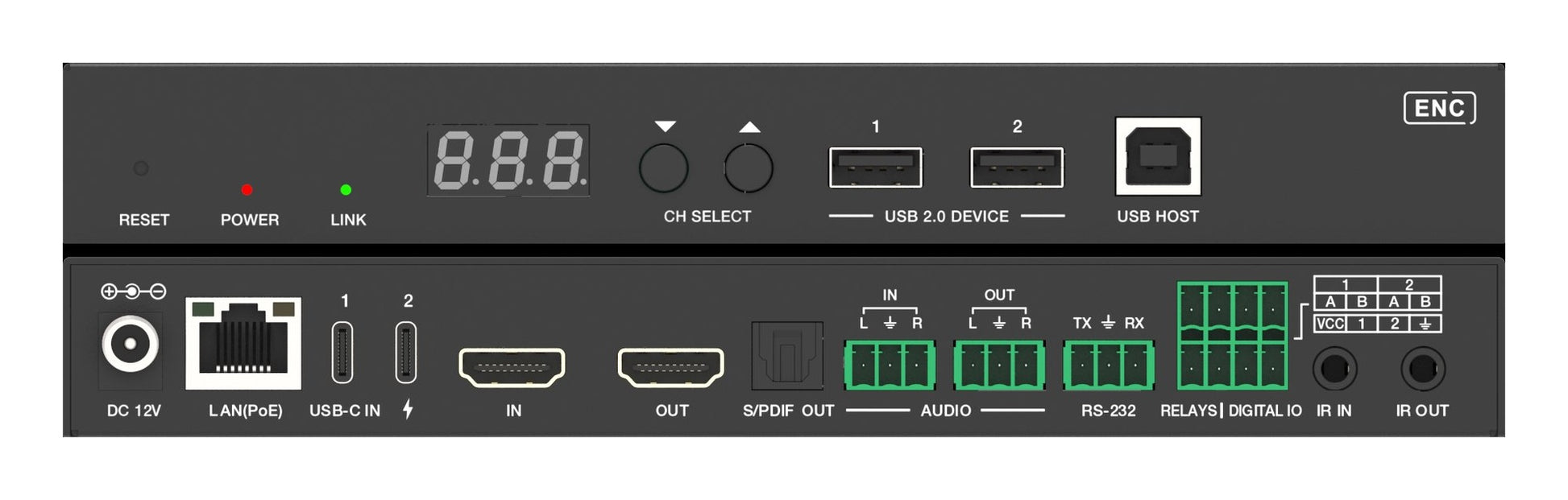

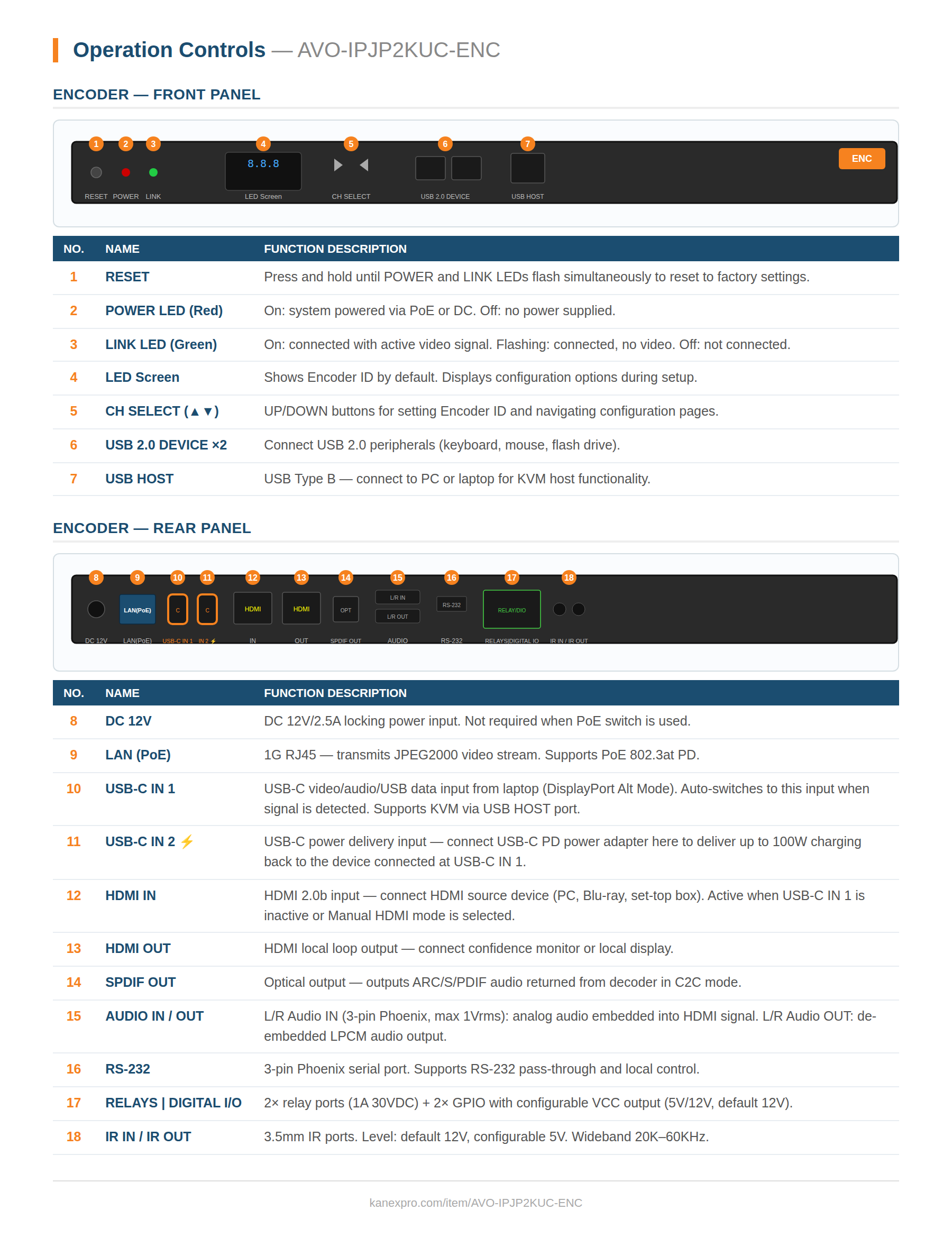

| Video Input | 1× HDMI IN (Type A) | 1× USB-C IN 1 — video/audio/USB data (Type C) | 1× USB-C IN 2 — PD charging up to 100W (Type C) |
| Video Output | 1× HDMI OUT loop (Type A) |
| Audio Input | 1× L/R Audio IN (3-pin Phoenix, unbalanced, max 1Vrms) |
| Audio Output | 1× L/R Audio OUT (3-pin Phoenix) | 1× S/PDIF OUT (optical) |
| Network | 1× LAN/PoE (RJ45, 802.3at PD) |
| USB | 1× USB 2.0 HOST (Type B) | 2× USB 2.0 DEVICE (Type A) |
| Control | 1× RS-232 (3-pin Phoenix) | 2× Relay | 2× Digital I/O | 1× IR IN | 1× IR OUT |
| Control | |
| Control Methods | Two-way IR, RS-232, CEC, TCP/IP, Web GUI, Telnet, SSH |
| Controller | AVO-IPCTL-JP2K (sold separately) |
| Power | PoE (802.3at PD) or DC 12V/2.5A | IR: default 12V, optional 5V | Wideband 20K–60KHz |
| Transmission Distance | Up to 328ft / 100m via CAT6/6A/7 |
| Physical | |
| Housing | Metal enclosure, Black |
| Dimensions (W×D×H) | 8.03″ × 5.35″ × 1.00″ (204 × 136 × 25.5mm) |
| Net Weight | 1.39 lbs (632g) |
| Power Supply | AC100–240V 50/60Hz, DC 12V/2.5A output (CE/FCC/UL) |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Humidity | 20–90% RH (non-condensing) |
| Package Contents | |
| 1× | AVO-IPJP2KUC-ENC Encoder |
| 1× | IR Receiver cable (1.5m) |
| 1× | DC 12V/2.5A locking power supply |
| 2× | Mounting ears |
| 4× | Machine screws (KM3×4) |
