The KanexPro MMX-4X4CAT-150M is an 18Gbps 4×4 HDMI matrix switcher with long-range HDBaseT extension up to 492ft (150m) per output, combining compact 1U form factor with enterprise-grade signal reach and built-in audio de-embedding for professional AV installations across large spaces. Four HDMI 2.0b sources are simultaneously distributed to up to eight displays — four via direct HDMI and four via HDBaseT to the included PoC-powered receivers — over a single CAT5e/6/7 cable per run. 24V Power over Cable eliminates local power requirements at each remote receiver. For 1080p signals, the maximum reach is 492ft (150m); 4K60 4:4:4 is supported to 394ft (120m).
A key differentiator over the 70m model: the MMX-4X4CAT-150M includes coaxial audio de-embedding (3.5mm stereo mini-jack) and balanced analog audio outputs (5-pin Phoenix connector) on every HDBaseT port, enabling direct connection to amplifiers, DSPs, and audio zone controllers without additional hardware. Analog performance: PCM 2.0CH, Vmax 2Vrms, SNR >90dB, THD+N <0.1%, frequency response 20Hz–20kHz ±0.5dB. Full 18Gbps video bandwidth supports 4K2K@60Hz (YUV 4:4:4), all HDR formats (HDR10, HDR10+, Dolby Vision, HLG), and HD audio pass-through including LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and DTS-X. Each output includes an independent 4K-to-1080p downscaler. An OLED front panel shows live routing and system status. Control via front panel, IR remote, RS-232, TCP/IP LAN, and Web GUI — integrates with Crestron, AMX, and third-party control systems.
Ideal for mid-size conference centers, houses of worship, university environments, hospitality venues, and any installation requiring 4K distribution over long runs with integrated audio outputs in a space-efficient 1U chassis.
Package Contents: 1× MMX-4X4CAT-150M Matrix • 4× HDBaseT Receivers • 1× IR Remote • 1× IEC Power Cable (AC 100–240V) • 1× RS-232 Serial Cable (1.5m, male to female) • 4× 3-pin Phoenix Connectors • 4× 5-pin Phoenix Connectors • 5× IR Blaster Cables (1.5m) • 5× IR Receiver Cables (1.5m) • Mounting Ears (Matrix + Receivers) • 1× User Manual
- 4 HDMI inputs • 4 HDMI + 4 mirrored HDBaseT outputs • 4 PoC HDBaseT receivers included
- 18Gbps video bandwidth • HDMI 2.0b • HDCP 2.2/1.x
- Up to 4K2K@60Hz (YUV 4:4:4) on all HDMI and HDBaseT ports
- HDR10, HDR10+, Dolby Vision, HLG pass-through
- HDBaseT extension up to 492ft / 150m (1080p) or 394ft / 120m (4K60) via single CAT5e/6/7
- Independent 4K→1080p downscaler per output for mixed-resolution displays
- LPCM 7.1, Dolby TrueHD, DD+, DTS-HD Master, DTS-X audio pass-through
- Coaxial and balanced analog audio de-embedding per HDBaseT output port
- One-way IR matrix routing • CEC display control • Advanced EDID management
- Control via front panel OLED, IR remote, RS-232, TCP/IP (LAN), and Web GUI
- 1U rack-mountable metal enclosure • 24V PoC on all HDBaseT ports
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (YUV 4:4:4) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8/10/12-bit (1080p@60Hz) • 8-bit (4K2K@60Hz 4:4:4) • 8/10/12-bit (4K2K@60Hz 4:2:2/4:2:0) |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, DD+, DTS-ES, DTS-HD Master, DTS-HD HRA, DTS-X |
| Coax Audio | PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| Analog Balanced Audio | PCM 2.0CH • Vmax: 2Vrms • SNR: >90dB • THD+N: <0.1% • Freq: 20Hz–20kHz ±0.5dB |
| ESD Protection | Human-body Model: ±8kV (air-gap) / ±4kV (contact) |
| Connection | |
| HDMI Input | 4× HDMI Type A [19-pin female] |
| HDMI Output | 4× HDMI Type A [19-pin female] |
| HDBaseT Output | 4× RJ45 [HDBaseT, 24V PoC] |
| Coax Audio Output | 4× 3.5mm Stereo Mini-jack |
| Balanced Analog Audio | 4× 5-pin Phoenix connector |
| Matrix Control | 1× TCP/IP [RJ45] • 1× RS-232 [D-Sub 9] • 5× IR IN / 5× IR OUT [3.5mm] |

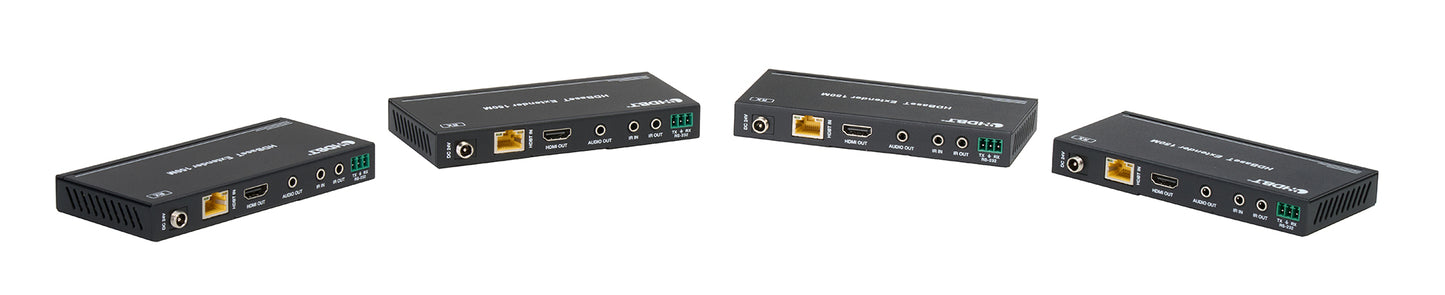

| HDBaseT Receiver | IN: 1× RJ45 • OUT: 1× HDMI Type A • 1× Audio OUT [3.5mm] • IR IN/OUT • RS-232 • SERVICE [Mini-USB] |
| HDBaseT Extension | |
| Distance (1080p) | 492ft / 150m via CAT5e/6/7 |
| Distance (4K60) | 394ft / 120m via CAT5e/6/7 |
| PoC | 24V Power over CAT cable to receivers |
| Mechanical | |
| Housing | Metal Enclosure, Black |
| Matrix Dimensions | 440mm (W) × 200mm (D) × 44.5mm (H) — 1U |
| Receiver Dimensions | 140mm (W) × 65mm (D) × 18mm (H) |
| Weight | Matrix: 3.1 kg • Receiver: 155g each |
| Power Supply | AC 100–240V 50/60Hz (IEC power cable) |
| Power Consumption | 60W max |
| Operating Temp | 32–104°F / 0–40°C |
| Storage Temp | −4–140°F / −20–60°C |
| Humidity | 20–90% RH (non-condensing) |
| Cable Length (HDMI IN/OUT) | |
| 4K60 | Up to 16ft / 5m |
| 4K30 | Up to 32ft / 10m |
| 1080p60 | Up to 50ft / 15m |
