HDMI HDBaseT 矩阵 8x8 CAT6 150M 4K@60Hz

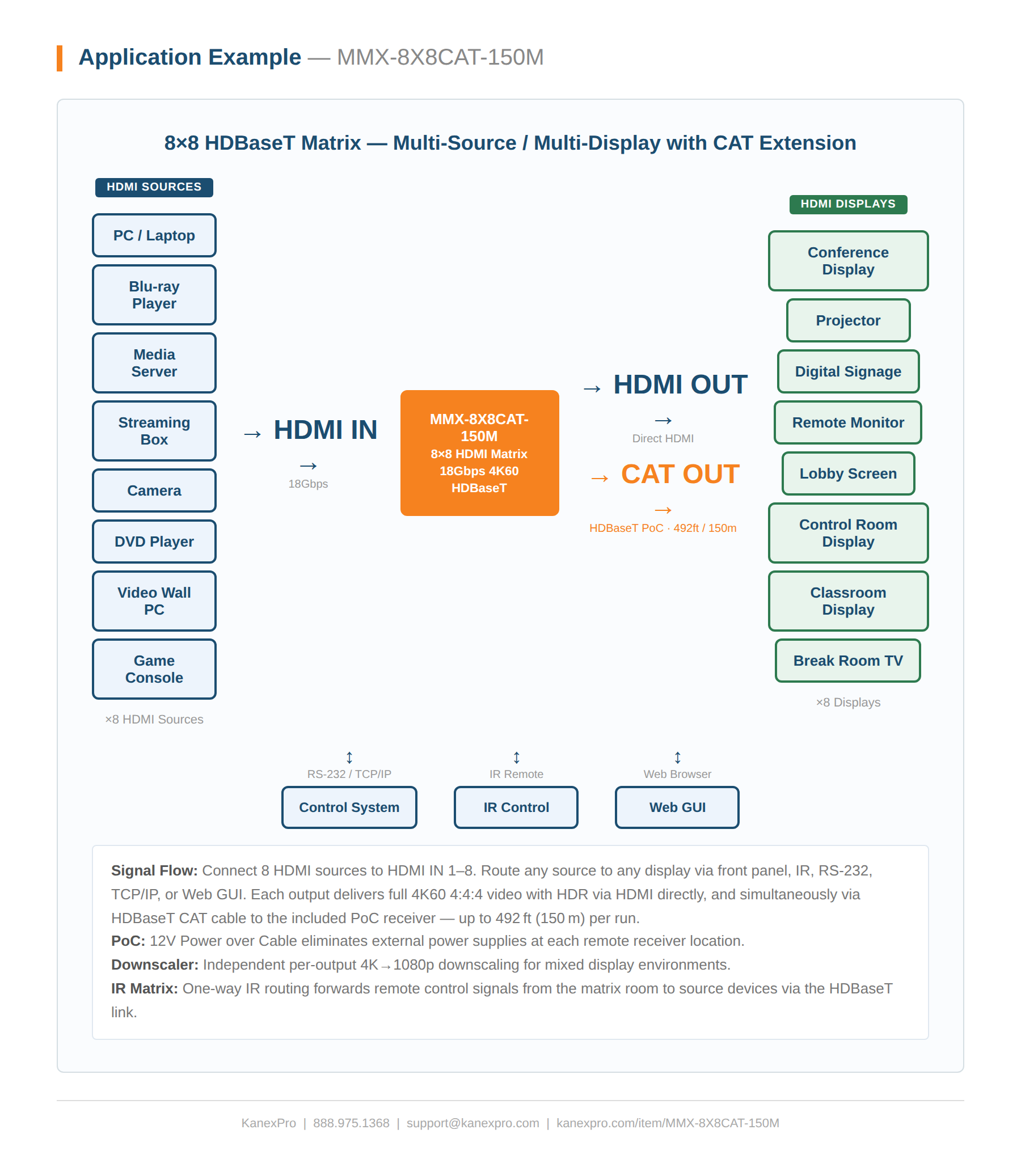

The KanexPro MMX-8X8CAT-150M is an 18Gbps 8×8 HDMI matrix switcher with long-range HDBaseT extension up to 492ft (150m) per output, purpose-built for large-venue and enterprise AV installations requiring 4K60 distribution across entire floors, wings, or buildings from a single equipment room. Eight HDMI 2.0b sources are routed simultaneously to up to sixteen displays — eight via direct HDMI and eight via HDBaseT to the included PoC-powered receivers — over a single CAT5e/6/7 cable per run. 24V Power over Cable eliminates the need for local power at each remote receiver. For 1080p signals the maximum extension reaches 492ft (150m); 4K60 4:4:4 is supported to 394ft (120m).

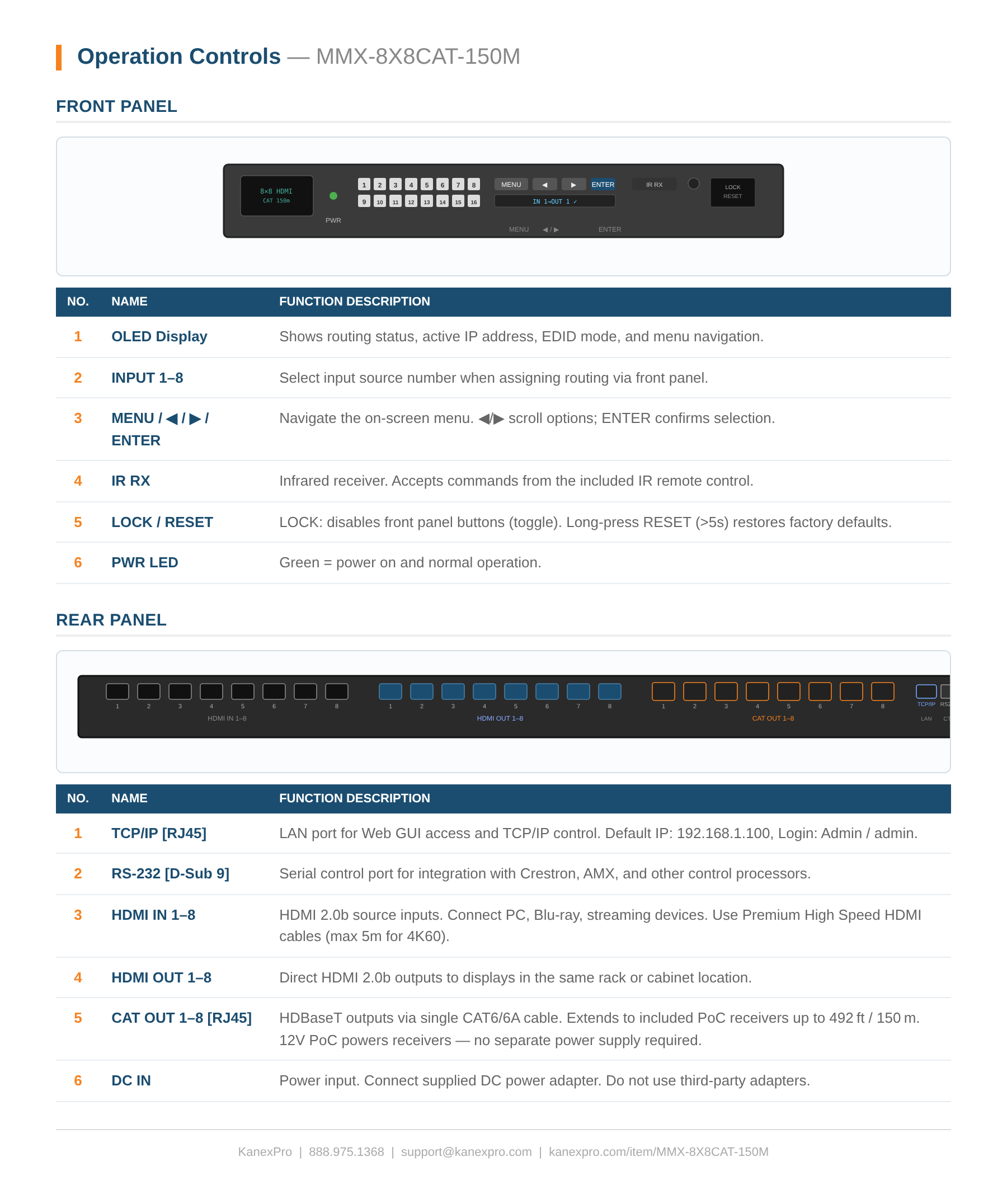

Unlike the 70m model, the MMX-8X8CAT-150M includes coaxial audio de-embedding (3.5mm stereo mini-jack) and balanced analog audio outputs (5-pin Phoenix connector) on every HDBaseT port — enabling direct connection to amplifiers, DSPs, or audio distribution systems without a separate extractor. Analog performance specs: PCM 2.0CH, Vmax 2Vrms, SNR >90dB, THD+N <0.1%, frequency response 20Hz–20kHz ±0.5dB. Full 18Gbps video bandwidth supports 4K2K@60Hz (YUV 4:4:4), all HDR formats (HDR10, HDR10+, Dolby Vision, HLG), and HD audio pass-through including LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, and DTS-X. Each output includes an independent 4K-to-1080p downscaler for mixed-resolution environments. An OLED front panel displays live routing status and configuration. Control via front panel, IR remote, RS-232, TCP/IP LAN, and Web GUI — integrates with Crestron, AMX, and third-party control systems.

The 2U chassis houses the full 8×8 switching fabric with all ports on the rear panel. Ideal for performing arts centers, houses of worship, university lecture halls, broadcast facilities, and large corporate campuses where sources must reach distant displays with full audio de-embedding and professional analog outputs.

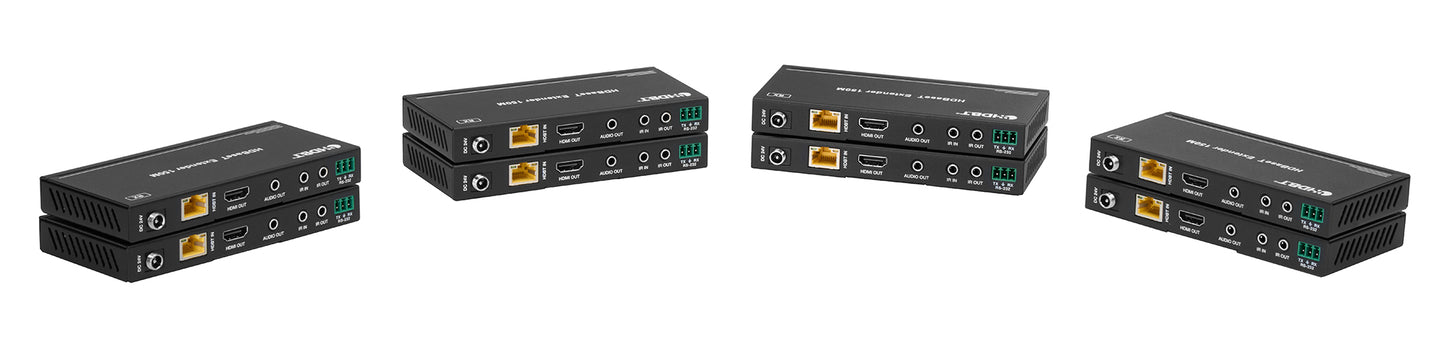

Package Contents: 1× MMX-8X8CAT-150M Matrix  •  8× HDBaseT Receivers  •  1× IR Remote  •  1× IEC Power Cable (AC 100–240V)  •  1× RS-232 Serial Cable (1.5m, male to female)  •  8× 3-pin Phoenix Connectors  •  8× 5-pin Phoenix Connectors  •  9× IR Blaster Cables (1.5m)  •  9× IR Receiver Cables (1.5m)  •  18× Mounting Ears (Matrix + Receivers)  •  1× User Manual

• 最大支持 18 Gbps 数据速率。
• 最高支持 4K @60Hz 4:4:4 分辨率。
• 符合 HDCP 2.2 和 HDCP 1.x 标准。
• 8 个 HDMI 输入端口，8 个 HDMI 和 CATx 镜像输出端口。
• 支持平衡音频解嵌。
• POC到接收方。
• 支持高级EDID管理和CEC控制。
• 通过单根 Cat 5e/6/7 电缆，可将 1080P 视频传输距离延长至 492 英尺/150 米，或 4K2K 视频传输距离延长至 394 英尺/120 米。
• 支持红外矩阵。
• 1U机架式设计，带前面板OLED显示屏
