8K DisplayPort 2.0 Active Optical Cable — 30

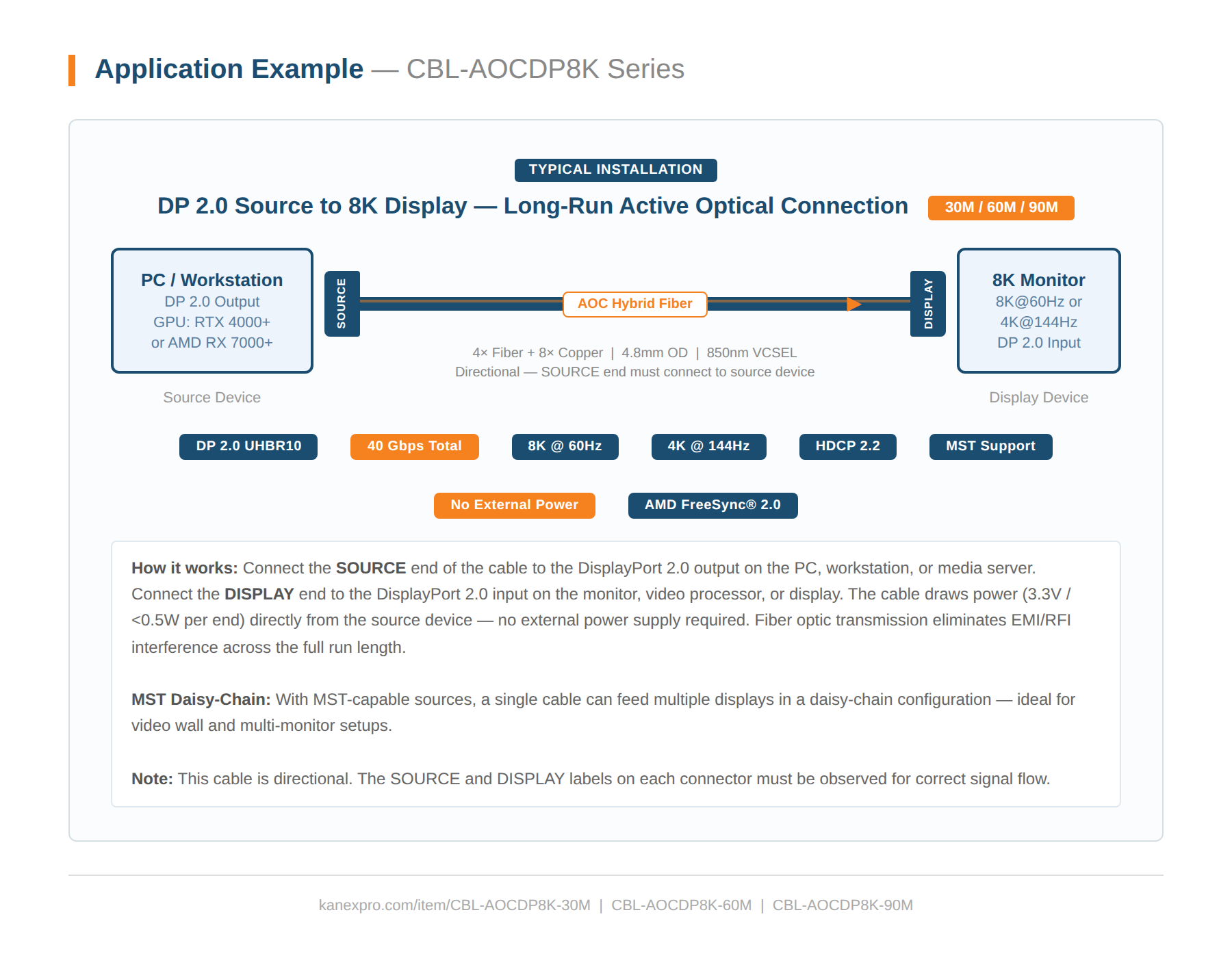

KanexPro Active Optical DisplayPort 2.0 Cables deliver full, uncompressed 40Gbps UHBR10 signal across runs of 30, 60, or 90 meters — far beyond copper cable limits. Built on a hybrid 4× optical fiber + 8× copper construction, these plug-and-play cables carry 8K@60Hz, 4K@144Hz, and HDR with zero signal loss, drawing power directly from the DisplayPort source — no wall adapters or repeaters required.

Supporting MST daisy-chaining, AMD FreeSync® 2.0, Dolby Vision, HDCP 1.4/2.2, and full EDID management, the CBL-AOCDP8K series is engineered for professional AV environments where EMI immunity and signal integrity are non-negotiable. Backed by KanexPro's 3-year warranty.

• Supports DisplayPort 2.0 UHBR10 standard — 10Gbps per lane, 40Gbps total bandwidth
• Resolutions up to 8K@60Hz and 4K@144Hz with 48-bit color depth
• High Dynamic Range (HDR) video pass-through including Dolby Vision
• Multi-Stream Transport (MST) support for daisy-chaining multiple displays
• AMD FreeSync® 2.0 compatible for variable refresh rate displays
• HDCP 1.4 and HDCP 2.2 compliance for protected content delivery
• Full EDID support and bidirectional AUX channel for link training
• Supports DisplayPort Dual-Mode (DP++) for passive adapter compatibility
• Bus-powered — draws <0.5W per end from source device; no external power required

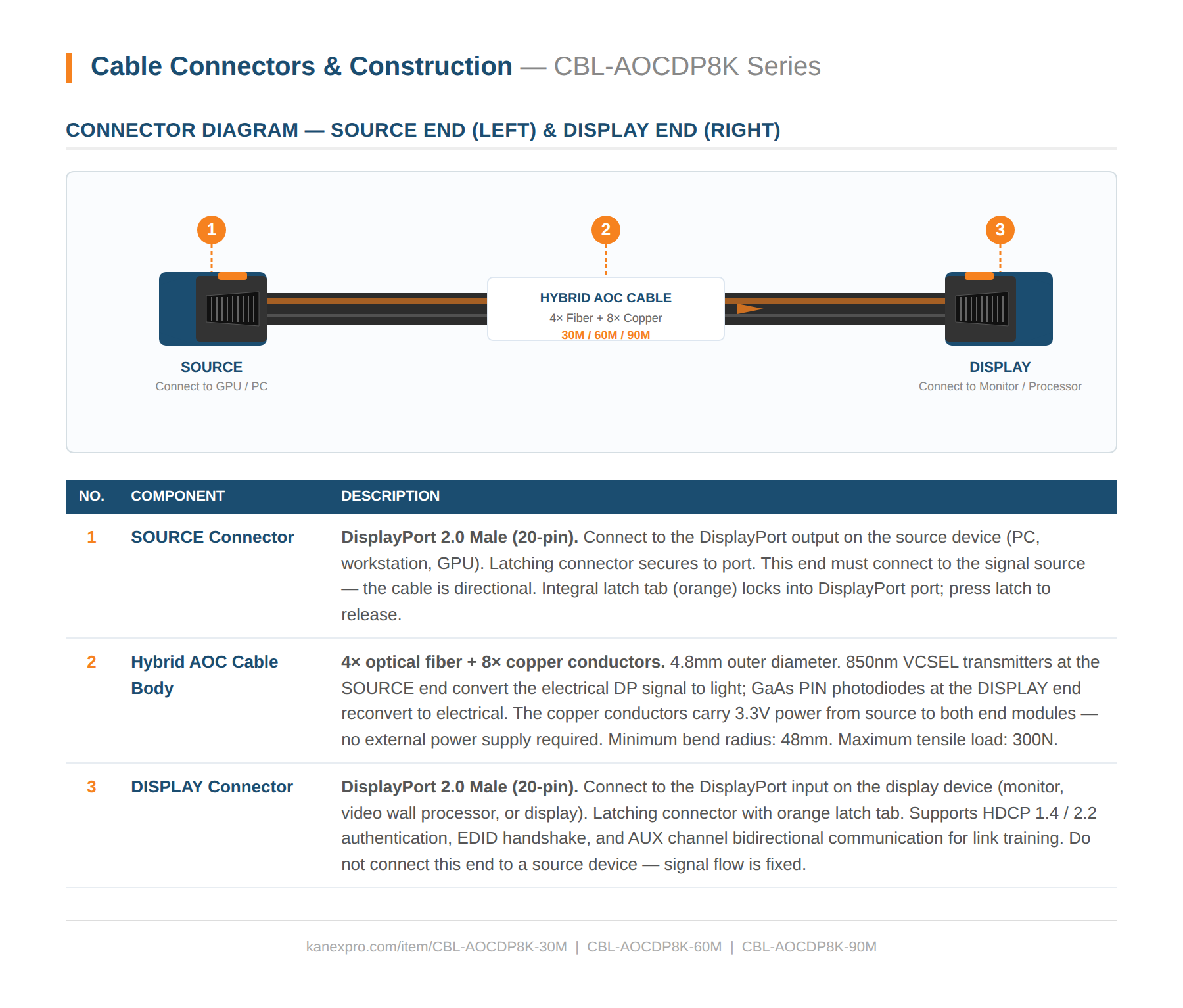

• EMI/RFI immune optical transmission — 4× 850nm fiber + 8× copper hybrid, 4.8mm OD
• Directional cable: SOURCE and DISPLAY ends labeled on each connector
