4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support

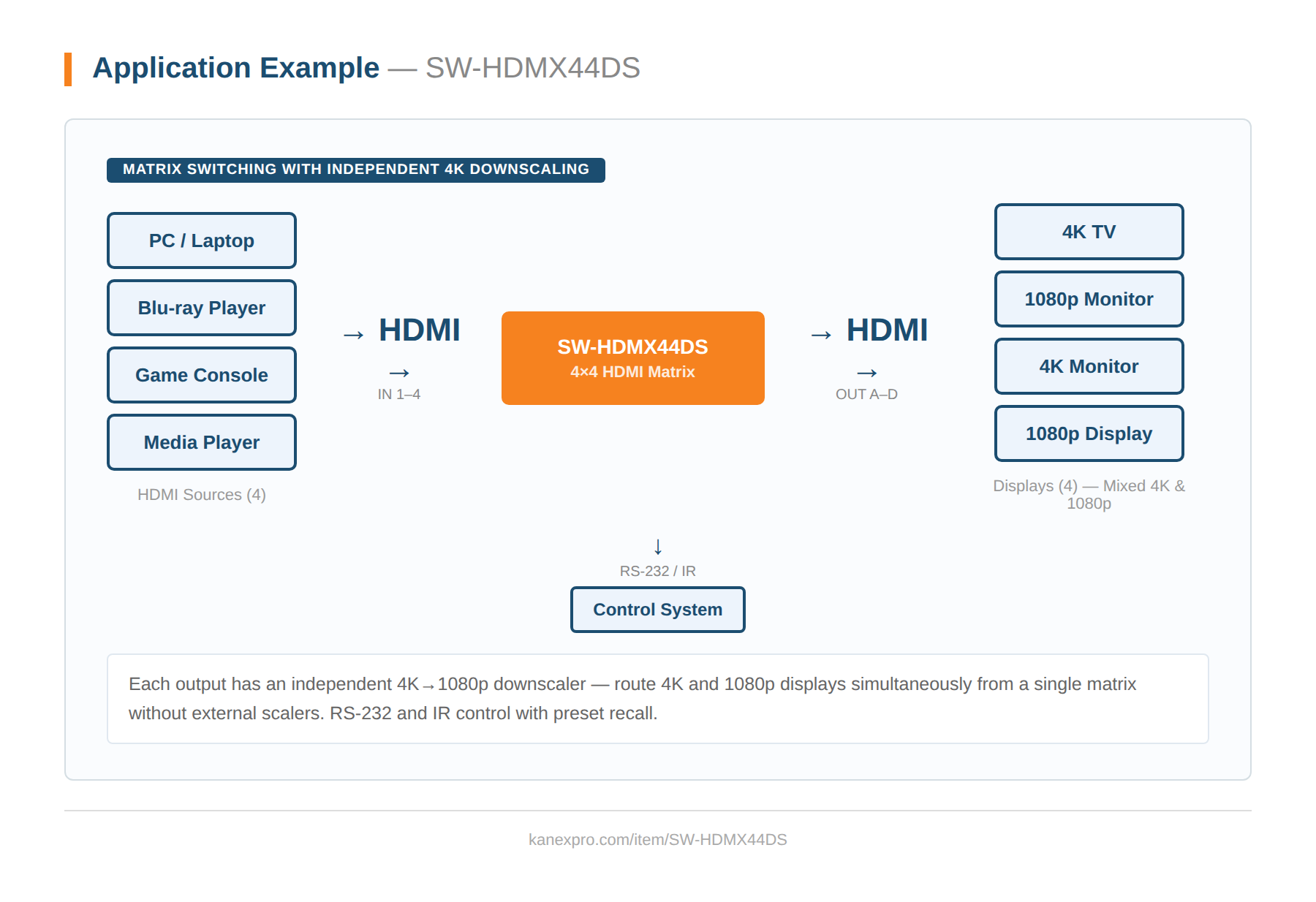

Most 4×4 HDMI matrix installations require separate scalers when mixing 4K and 1080p displays — adding cost and configuration overhead to every output. The KanexPro SW-HDMX44DS eliminates that with per-output independent 4K?1080p downscaling built into every channel, letting integrators route any of four 18Gbps HDMI sources to any of four displays — 4K and 1080p simultaneously — without additional hardware.

Supporting resolutions up to 4K@60Hz 4:4:4 with HDR10 and Dolby Vision pass-through, the SW-HDMX44DS handles today's most demanding source formats across all four outputs. Smart EDID management with 13 factory presets, user-defined modes, and copy-from-output capability resolves handshake issues in mixed environments. Control is via front panel buttons, IR remote, or RS-232 — making it well-suited for corporate AV rooms, classrooms, and hospitality environments.

• Supports resolutions up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, including 1080p 3D
• Fully compliant with HDMI 2.0 and HDCP 2.2 specifications
• Independent 4K→1080p downscaler on each output — supports mixed 4K and 1080p display environments simultaneously
• Smart EDID management with 13 factory presets, user-defined EDID, and copy-from-output modes

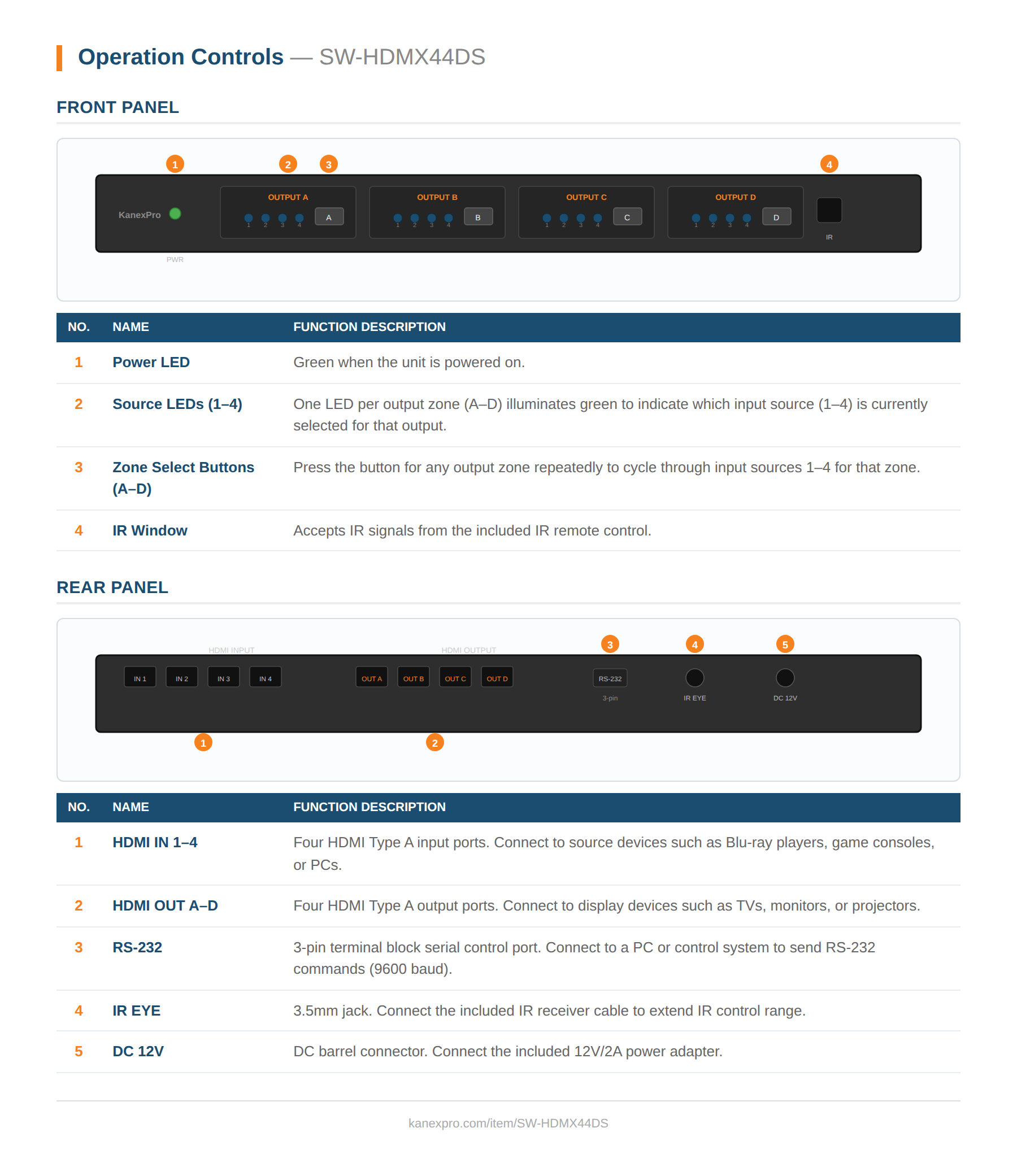

• Control via front panel buttons, IR remote, and RS-232 (9600 baud, 3-pin terminal block)
• 10 preset memories (Save/Recall/Clear) for one-touch routing recall
• Per-output HDMI digital audio enable/disable via RS-232 command
• HDCP management per output — bypass or force HDCP 1.4
